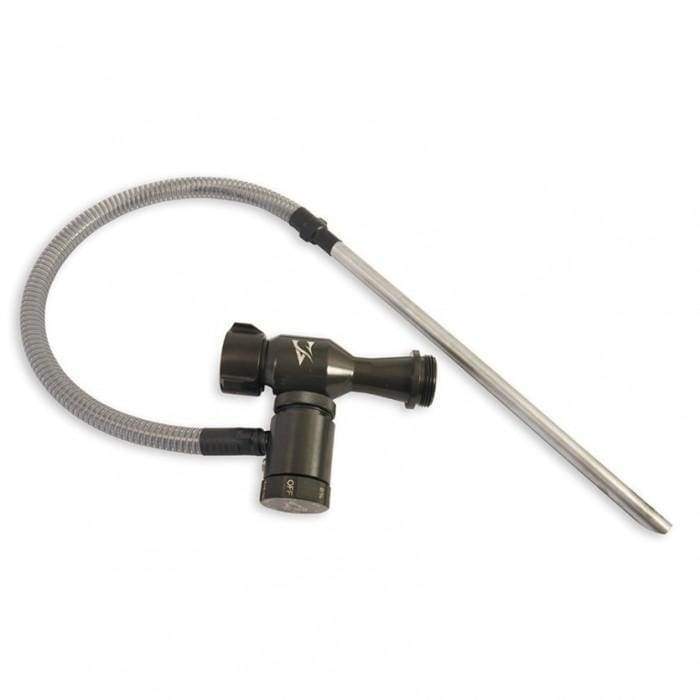

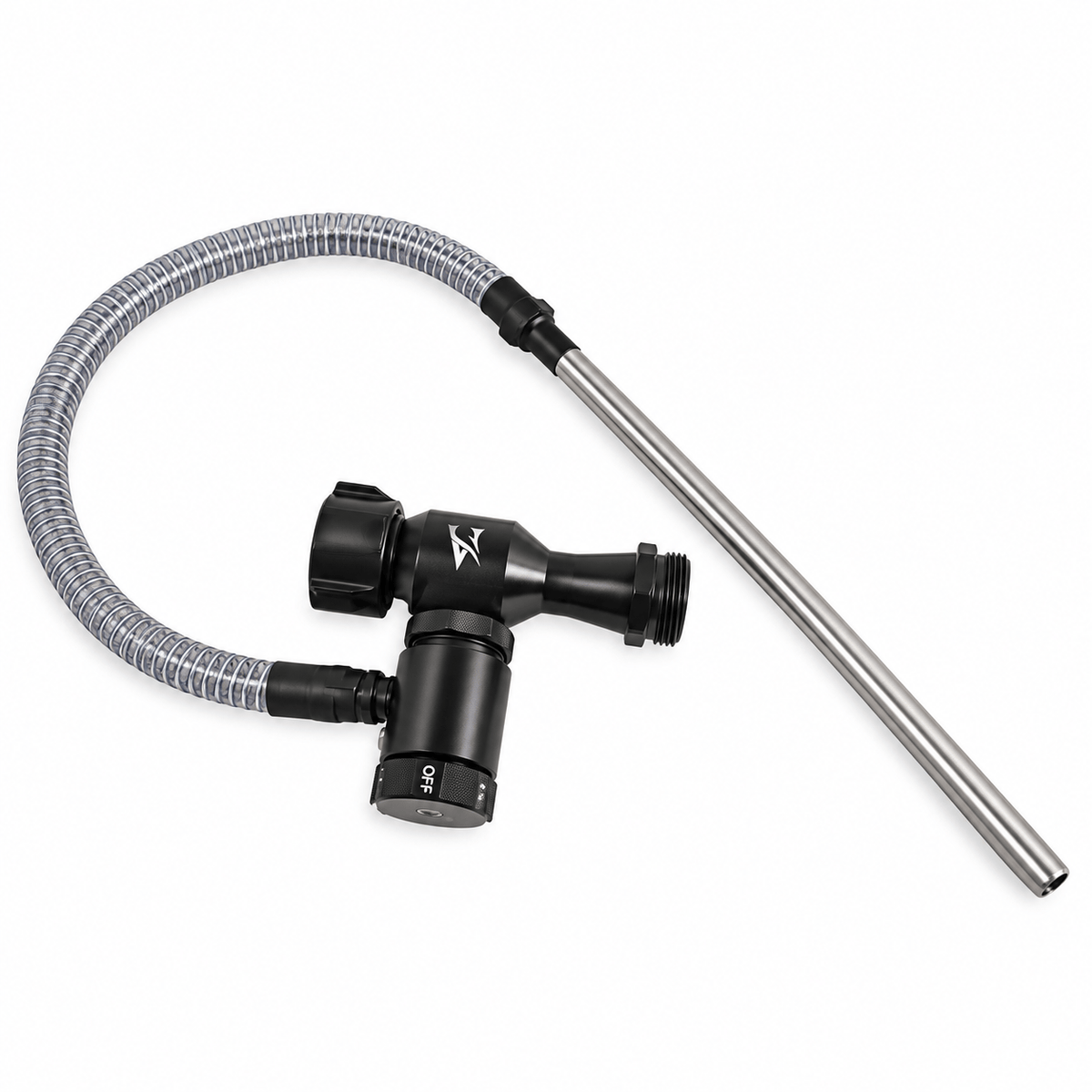

The Akron Brass In-Line Foam Eductor – 95 GPM is designed to accurately proportion firefighting foam concentrates into the water stream for effective fire suppression operations. Built with rugged brass construction, this eductor provides reliable performance in municipal, industrial, and emergency response applications where dependable foam delivery is critical.
Featuring a large, easy-to-read removable metering dial with settings from 0% to 6%, the eductor allows operators to quickly adjust foam concentrate ratios to meet application requirements. Rated for 95 GPM at 200 PSI inlet pressure, it works effectively with nozzles operating between 50 and 100 PSI, making it a versatile solution for a variety of firefighting scenarios.
Features
• Designed for accurate foam concentrate proportioning in firefighting operations
• Rugged brass construction for durability and long service life
• Large, easy-to-read removable metering dial
• Adjustable metering settings from 0% to 6%
• Positive detents at 1/4%, 1/2%, 1%, 3%, and 6% settings
• Rated for 95 GPM flow at 200 PSI inlet pressure
• Compatible with nozzles rated from 50 to 100 PSI
• 30" pickup hose included as standard equipment
• Swivel inlet design for easy hose connection
• Ideal for municipal, industrial, and emergency response foam applications
Specifications
• Manufacturer: Akron Brass
• Style: 3071
• Product Type: In-Line Foam Eductor
• Family: Eductors
• Material: Brass
• Flow Rate: 95 GPM (360 LPM)
• Inlet Pressure Rating: 200 PSI (14 Bar)
• Metering Range: 0% to 6%
• Metering Detents: 1/4%, 1/2%, 1%, 3%, and 6%
• Inlet Connection: 1.5" Female NH Swivel (38 mm)
• Outlet Connection: 1.5" Male NH (38 mm)
• Pickup Hose Length: 30" Standard
• Compatible Nozzle Pressure Range: 50–100 PSI (3–7 Bar)
