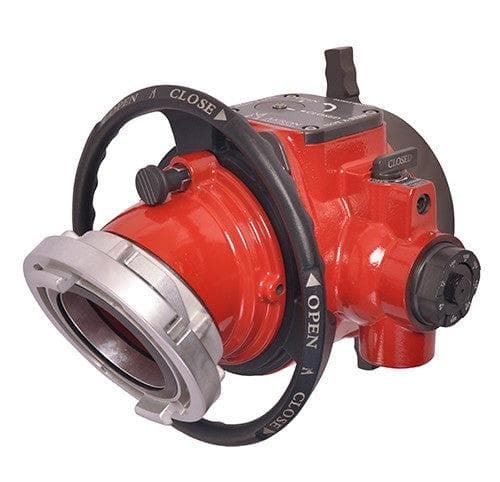

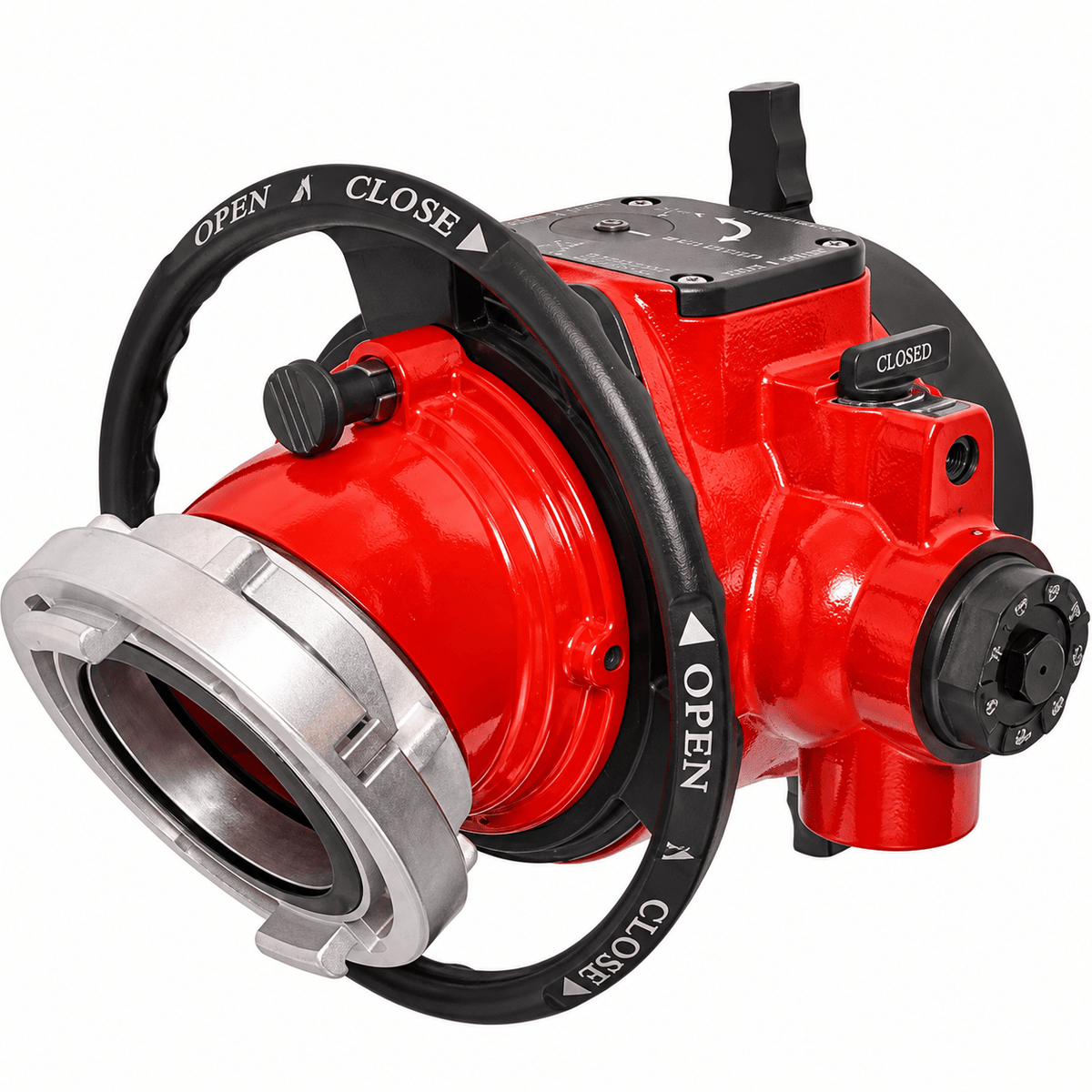

The Akron Brass Revolution™ Intake Valve with 30° Swivel Inlet is engineered to maximize pump panel space while delivering reliable, high-flow water control for demanding firefighting operations. Its compact design and patent-pending integrated Pyrolite handwheel minimize interference with surrounding equipment, creating a safer and more efficient operating environment for apparatus operators.
Designed for flows up to 2,000 GPM, the Revolution™ Intake Valve utilizes a durable ball sector design for smooth, dependable operation. Critical waterway components are constructed from non-corrosive stainless steel, while the aluminum body features a durable powder-coated finish for long-term durability. The valve includes a field-adjustable pressure relief valve, quick-turn bleeder valve, built-in position indicator, and a swiveling 30° inlet elbow with locking pin, making it an ideal solution for modern fire apparatus intake applications.

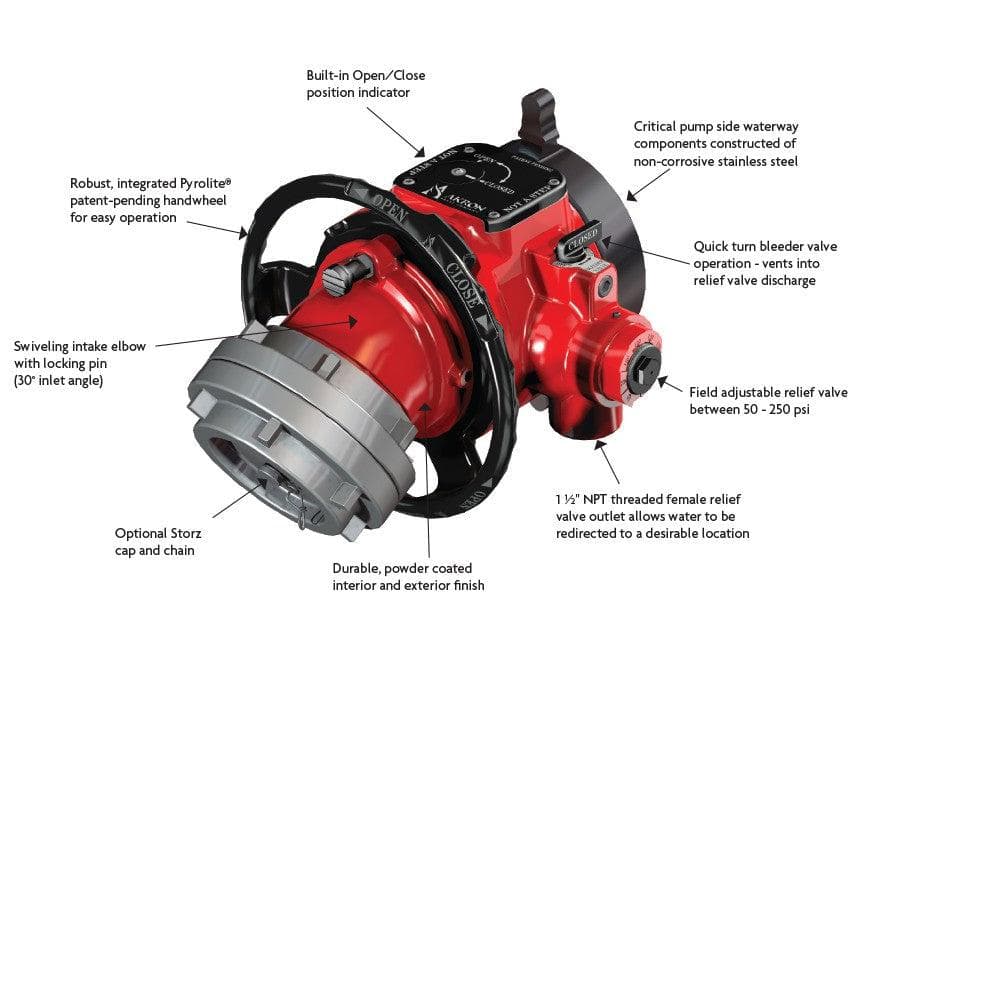

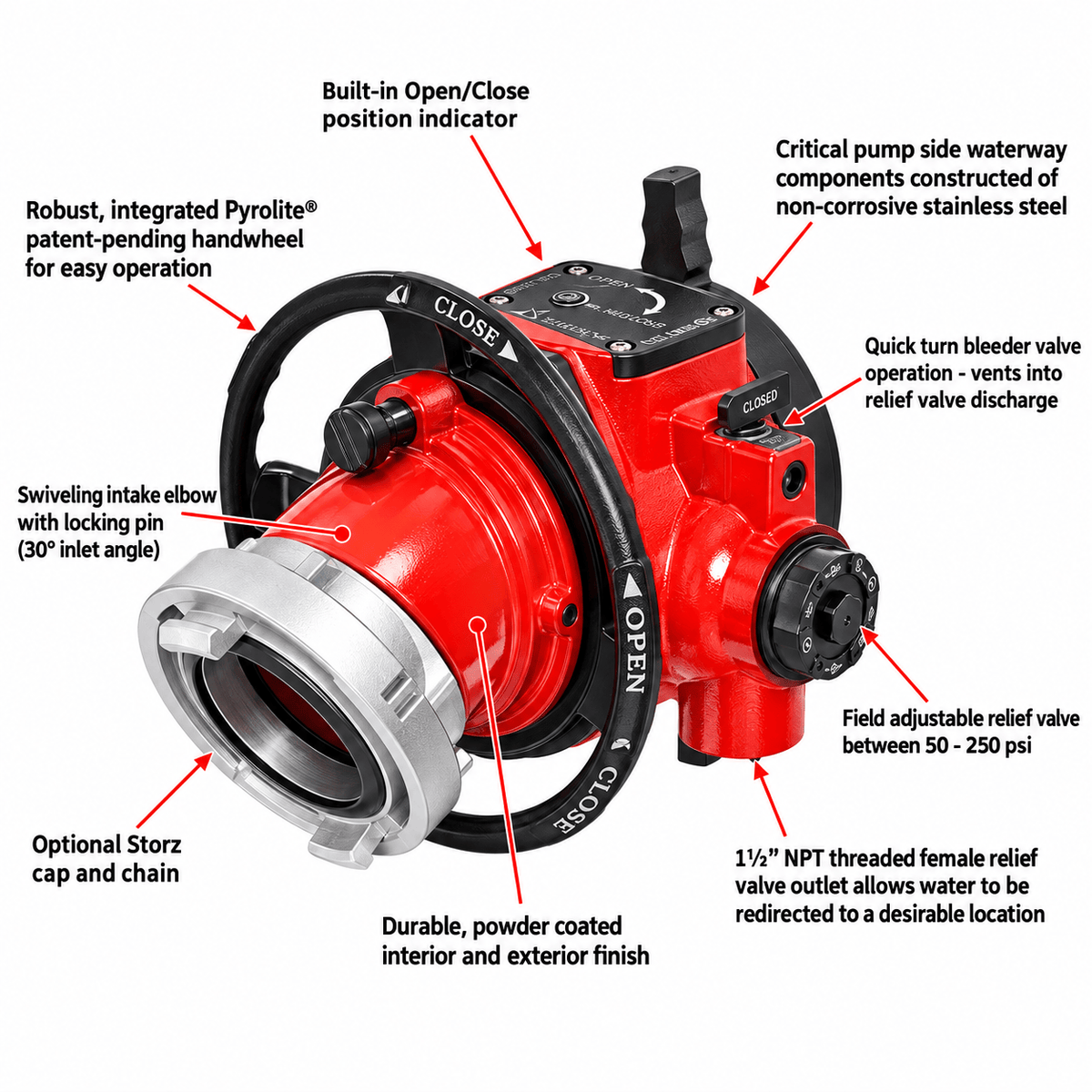

Features
• Compact design saves valuable pump panel space
• Patent-pending integrated Pyrolite handwheel for easy operation
• Ball sector valve design provides smooth, reliable flow control
• 30° swiveling intake elbow with locking pin
• Critical pump-side waterway components constructed from stainless steel
• All water-contact components are stainless steel for corrosion resistance
• Durable powder-coated interior and exterior finish
• Includes Storz cap and chain
• Field-adjustable pressure relief valve adjustable from 50–250 PSI
• 1.5" NPT female relief valve discharge connection

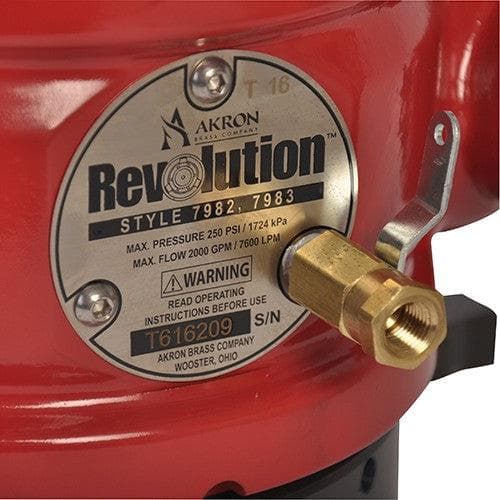

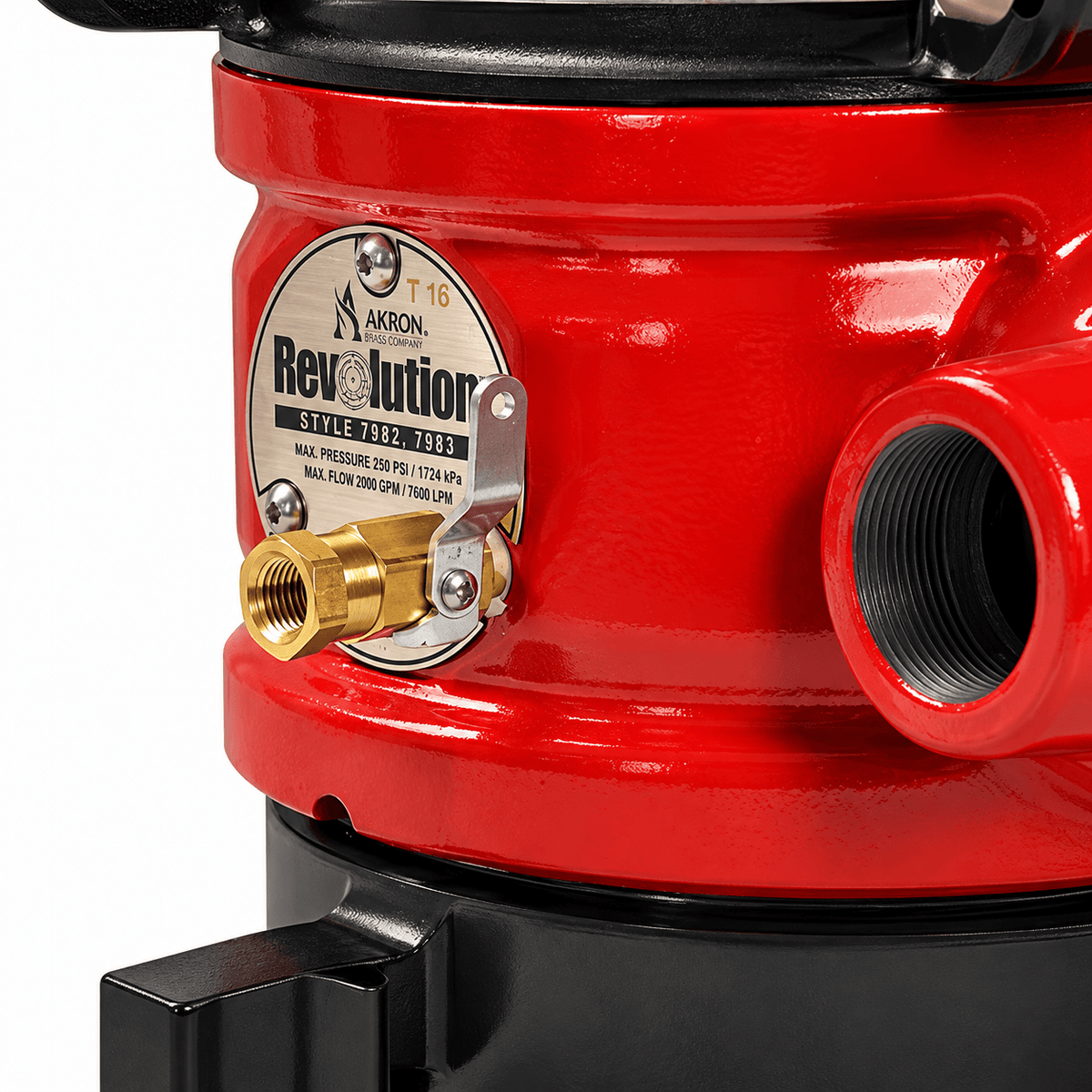

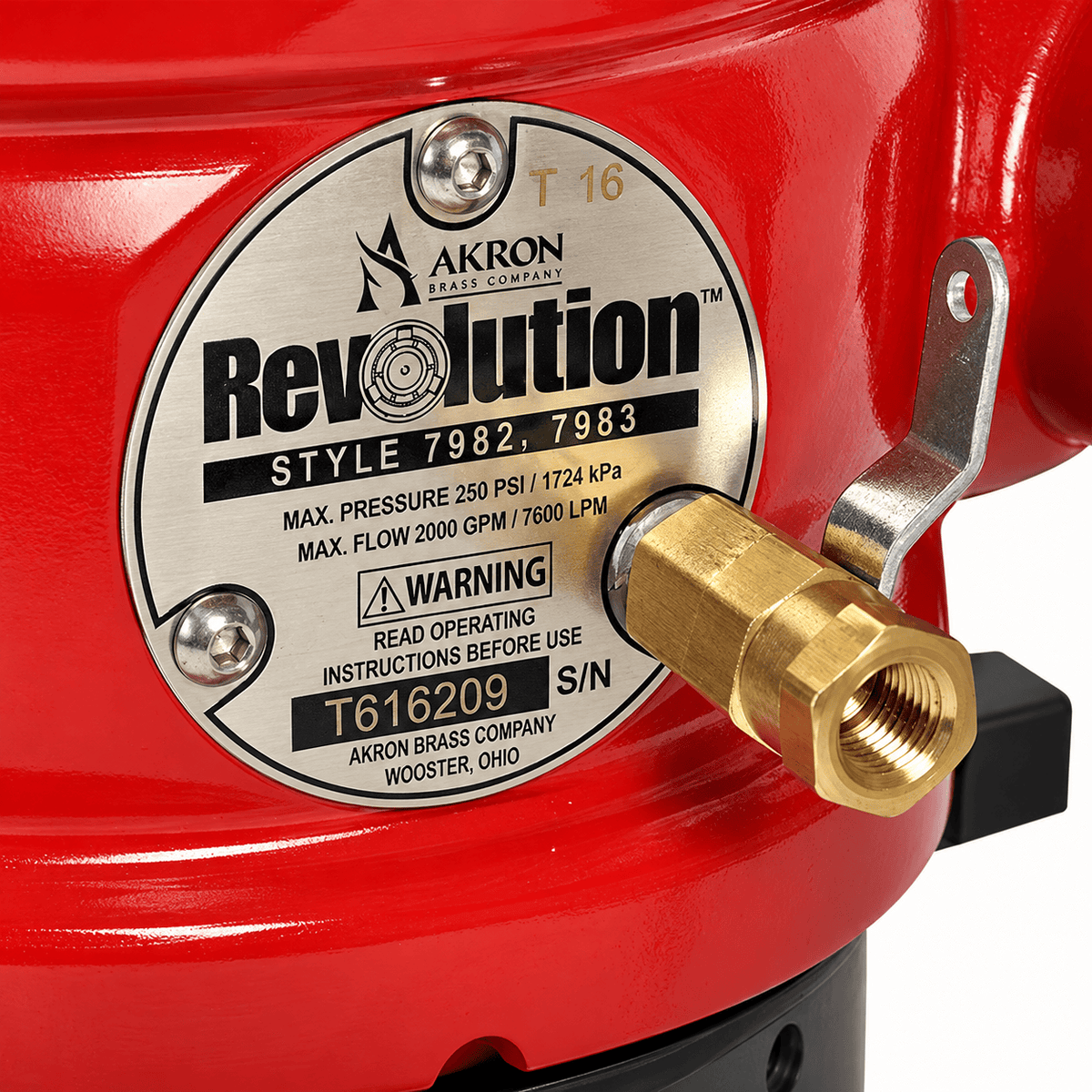

• Quick-turn bleeder valve vents into relief discharge
• Built-in open/close position indicator
• Flows up to 2,000 GPM (7,600 LPM)
• Field-serviceable design for simplified maintenance
• NFPA 1901 compliant
• Backed by a 10-year warranty against manufacturing defects and corrosion
Specifications
• Manufacturer: Akron Brass
• Style: 7982
• Product Type: Intake Valve
• Material: Aluminum / Stainless Steel
• Finish: Powder-Coated Paint
• Inlet Connection: 4" or 5" Storz with 30° Swivel Inlet
• Inlet Size: 125 mm (5")
• Outlet Connection: 5" or 6" Female Swivel
• Outlet Size: 150 mm (6")
• Maximum Flow Rate: 2,000 GPM (7,600 LPM)
• Operating Pressure: 250 PSI
• Pressure Relief Valve Range: 50–250 PSI
• Friction Loss: 7 PSI at 2,000 GPM
• Dimensions: 12.3" H × 14.25" W × 14.9" D (without cap)
• Dimensions (Metric): 312 mm H × 362 mm W × 378 mm D
• Weight: 40 lbs (18.1 kg)
• Certification: NFPA 1964
