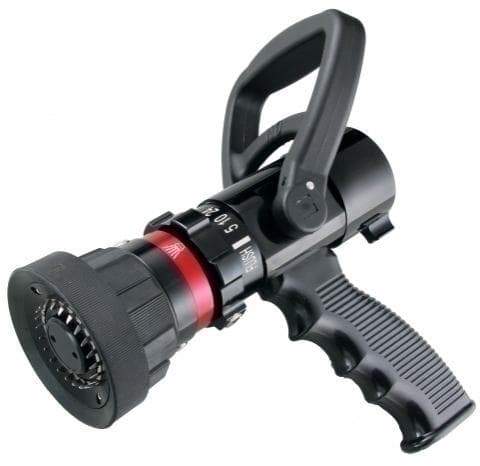

The 1.0" NH Selectable Gallonage Nozzle with Pistol Grip (5-40 GPM) is a compact, lightweight firefighting nozzle designed to provide precise flow control for low-flow firefighting and specialized suppression applications. Featuring four selectable flow settings ranging from 5 to 40 GPM, this nozzle allows firefighters to match water delivery to changing conditions while maintaining a constant flow rate regardless of stream pattern.
Constructed from lightweight hard-coat anodized aluminum with durable stainless steel components, this nozzle is built for reliable performance in demanding environments. The integrated pistol grip improves handling and control, while stainless steel spinning teeth create a wide protective fog pattern for firefighter safety. A quarter-turn adjustment allows rapid transition between straight stream and fog patterns, making this nozzle ideal for wildland firefighting, gas cooling, booster line operations, and other low-flow firefighting applications.
Features
• Four selectable flow settings: 5, 10, 24, and 40 GPM at 100 PSI
• Constant gallonage design maintains selected flow rate throughout all stream patterns
• Integrated pistol grip for improved nozzle control and handling
• Combination fog and straight stream capabilities
• Quarter-turn operation from straight stream to fog pattern
• Stainless steel spinning teeth produce a wide protective fog pattern
• Flushes debris without shutting down nozzle operation
• Positive detent flow selector for quick and accurate flow adjustments
• Smooth ball shutoff for dependable flow control
• Durable stainless steel components and metal selector ring
• Protective front bumper helps prevent damage during use
• Lightweight hard-coat anodized aluminum construction
• Compliant with NFPA 1964 standards
Specifications
• Flow Control Style: Selectable gallonage, constant flow design
• Flow Settings @ 100 PSI (7 Bar): 5, 10, 24, and 40 GPM (19, 37, 90, and 150 LPM)
• Coupling Size: 1.0 in. NH
• Material: Lightweight hard-coat anodized aluminum with stainless steel components
• Length: 190 mm (7.5 in.)
• Weight: 1.15 kg (2.5 lbs.)
• Shutoff Type: Ball shutoff
• Compliance: NFPA 1964
