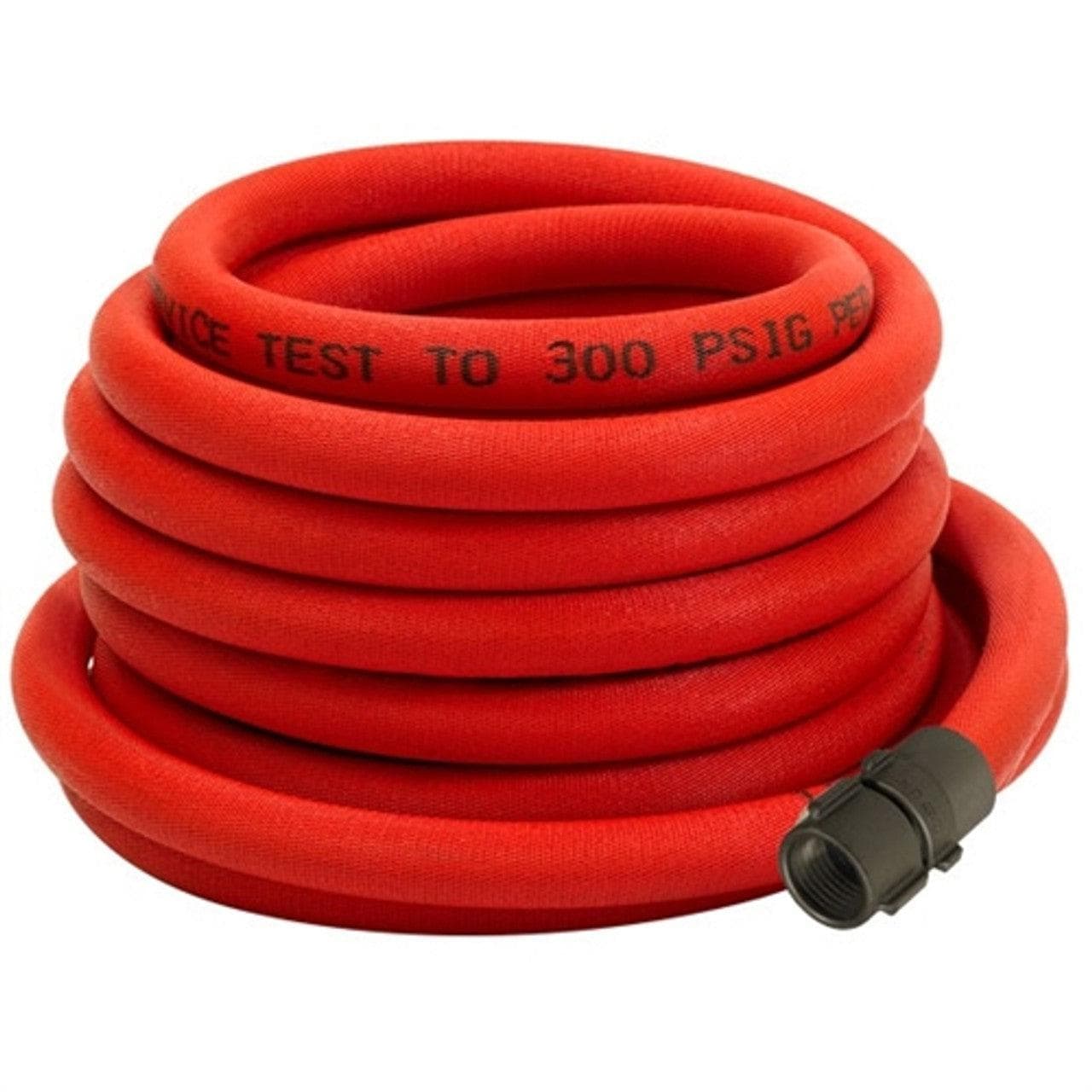

The ATI/Kuriyama Armored Reel Booster Line is a one-inch, polyester jacketed, lightweight semi-rigid hose, intended to replace the heavy rubber hose traditionally used as a booster line. Like booster line, Armored Reel can be charged while on the reel. It meets or exceeds NFPA 1961 Fire Hose Standard, 2013 edition.
Jacket Construction - The hose is single jacket, constructed with 100 percent continuous, virgin high tenacity polyester that is circular woven. The outer jacket is thoroughly impregnated with a polymer compound to seal the jacket and provide superior resistance to chemicals, abrasion, oil and ultra-violet light. Compound is heat set at 250 degrees F.
Lining - The synthetic lining is extruded polyurethane, combined with a helical interior reinforcement. The lining is compounded to resist deterioration from ozone. No reclaimed material is used. The finished form is free of pits or other imperfections, resulting in a smooth lining that reduces friction loss.
Couplings - Expansion-type couplings in hardcoat anodized aluminum are available. Field detachable couplings are available by special order. All couplings meet NFPA 1963, Standard for Fire Hose Connections, 2009 edition.
Abrasion Resistance – Outer jacket must withstand a minimum of 15,000 cycles on the Taber Abraser with no abrasion through the filler yarn as defined in FM Class Number 2111, Factory Mutual Approval Standard for Fire Hose.
Cold Resistance – Hose shall have the capability of use down to -40 º F.
Hydrostatic Test:
| Pressure (psi) |
Proof Test |
Burst Pressure |
| 300 |
600 |
900 |
Features:
- One-inch, polyester jacketed, lightweight semi-rigid hose, intended to replace the heavy rubber hose traditionally used as a booster line
- Can be charged while on the reel
- Colors: Red
- Available size: 1"
- Meets or exceeds NFPA 1961 Fire Hose Standard, 2013 edition
- Single jacket, constructed with 100 percent continuous, virgin high tenacity polyester that is circular woven
- Synthetic lining is extruded polyurethane, combined with a helical interior reinforcement
- Reel drum size 12" minimum
- 1 Year Warranty
