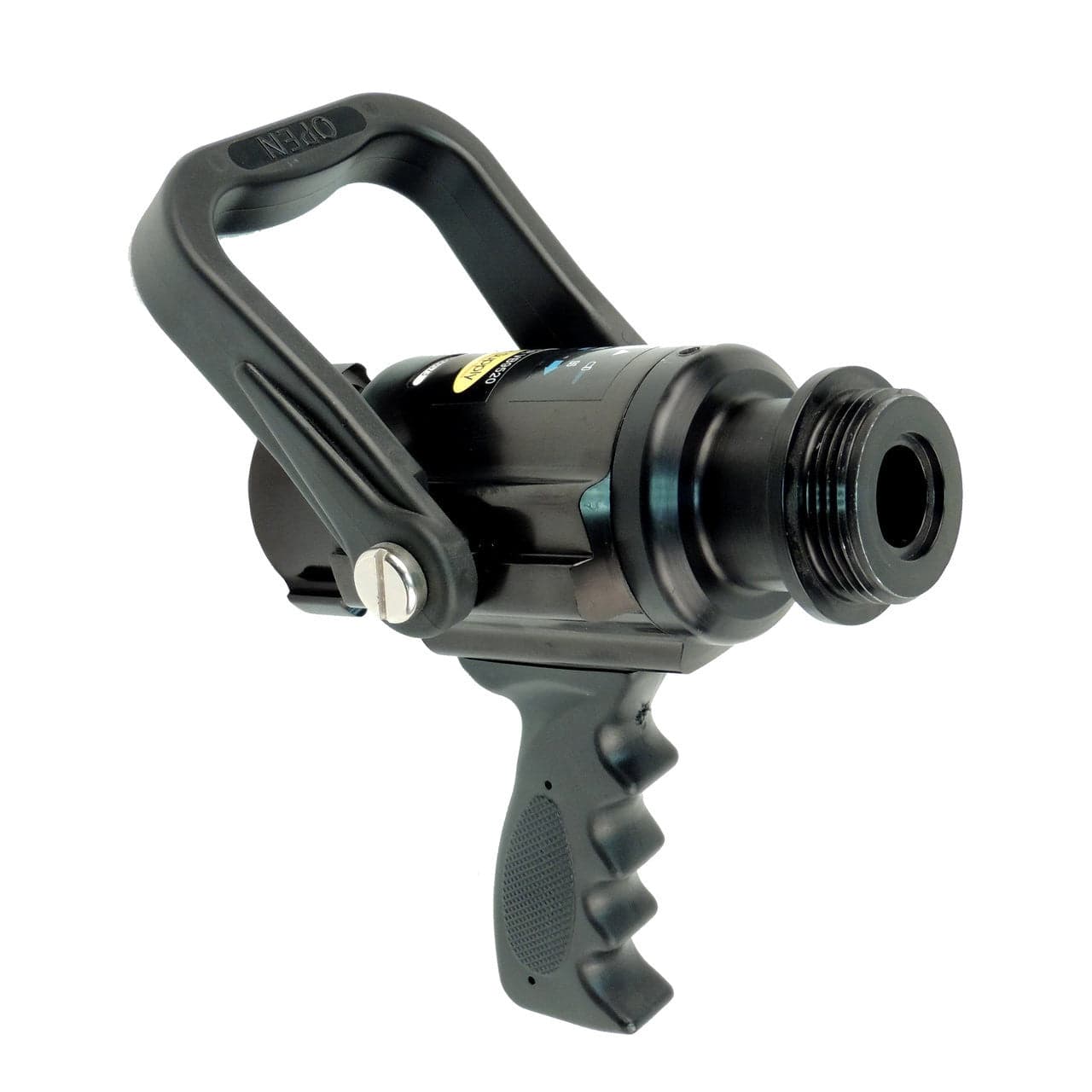

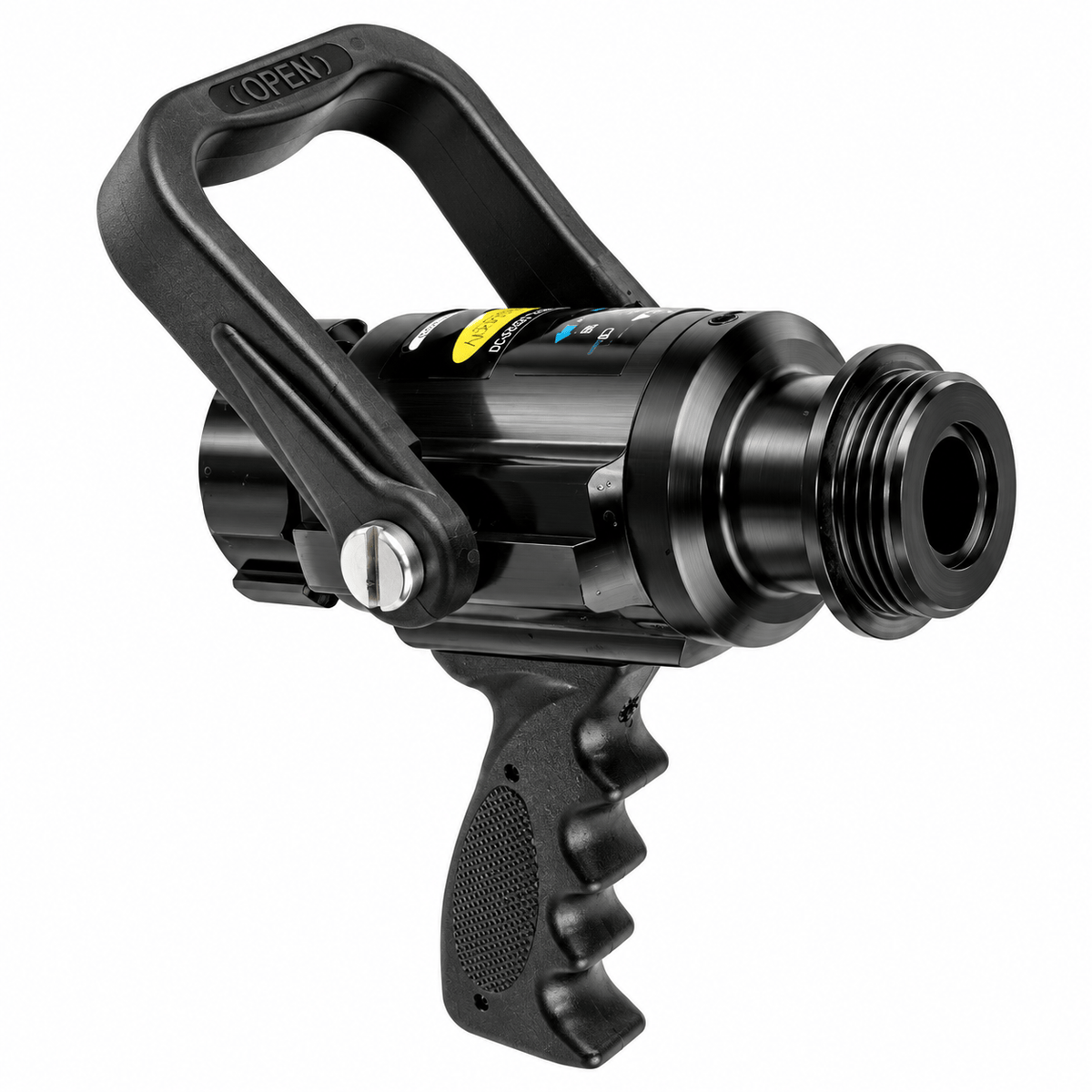

The C&S Supply 1-1/2" Ball Shutoff with 1" Integrated Smooth Bore Tip is designed to provide dependable flow control and maximum smooth bore stream performance for structural firefighting and water delivery operations. Featuring an integrated 1" smooth bore tip and a full 1-3/8" waterway, this nozzle assembly delivers exceptional reach, penetration, and flow efficiency while minimizing friction loss through the valve body.
Constructed from lightweight yet durable E-lite alloy, this shutoff nozzle is hard coated for enhanced corrosion resistance and long service life. Smooth-operating polymer balls and seats provide reliable on/off control, while the integrated smooth bore tip eliminates the need for separate tip attachments. Designed for demanding fireground conditions, this nozzle is available with a 1-1/2" NST inlet connection and offers the durability and performance firefighters expect from C&S Supply products.
Features
• Integrated 1" smooth bore tip
• 1-1/2" NST (NH) inlet connection
• Full 1-3/8" waterway for maximum flow efficiency
• Smooth-operating polymer ball and seat design
• Lightweight E-lite alloy construction
• Hard-coated finish for durability and corrosion resistance
• Exceptional stream reach and penetration
• Low-friction waterway design helps maximize flow
• Integrated shutoff valve for reliable water control
• Designed for demanding firefighting operations
Specifications
• Manufacturer: C&S Supply
• Model: VB9520-ISB1
• Product Type: Ball Shutoff with Integrated Smooth Bore Tip
• Inlet Connection: 1-1/2" NST (NH)
• Tip Size: 1" Integrated Smooth Bore
• Flow Rate: 189 GPM @ 40 PSI
• Flow Rate: 211 GPM @ 50 PSI
• Flow Rate: 230 GPM @ 60 PSI
• Flow Rate: 265 GPM @ 80 PSI
• Flow Rate: 297 GPM @ 100 PSI
• Waterway Diameter: 1-3/8"
• Material: E-lite Alloy
• Ball and Seats: Polymer
• Weight: 4.00 lbs
• Dimensions: 12" W x 9" H x 6" D
• Finish: Hard-Coated
• Application: Structural Firefighting, Smooth Bore Operations, and Water Delivery Applications
