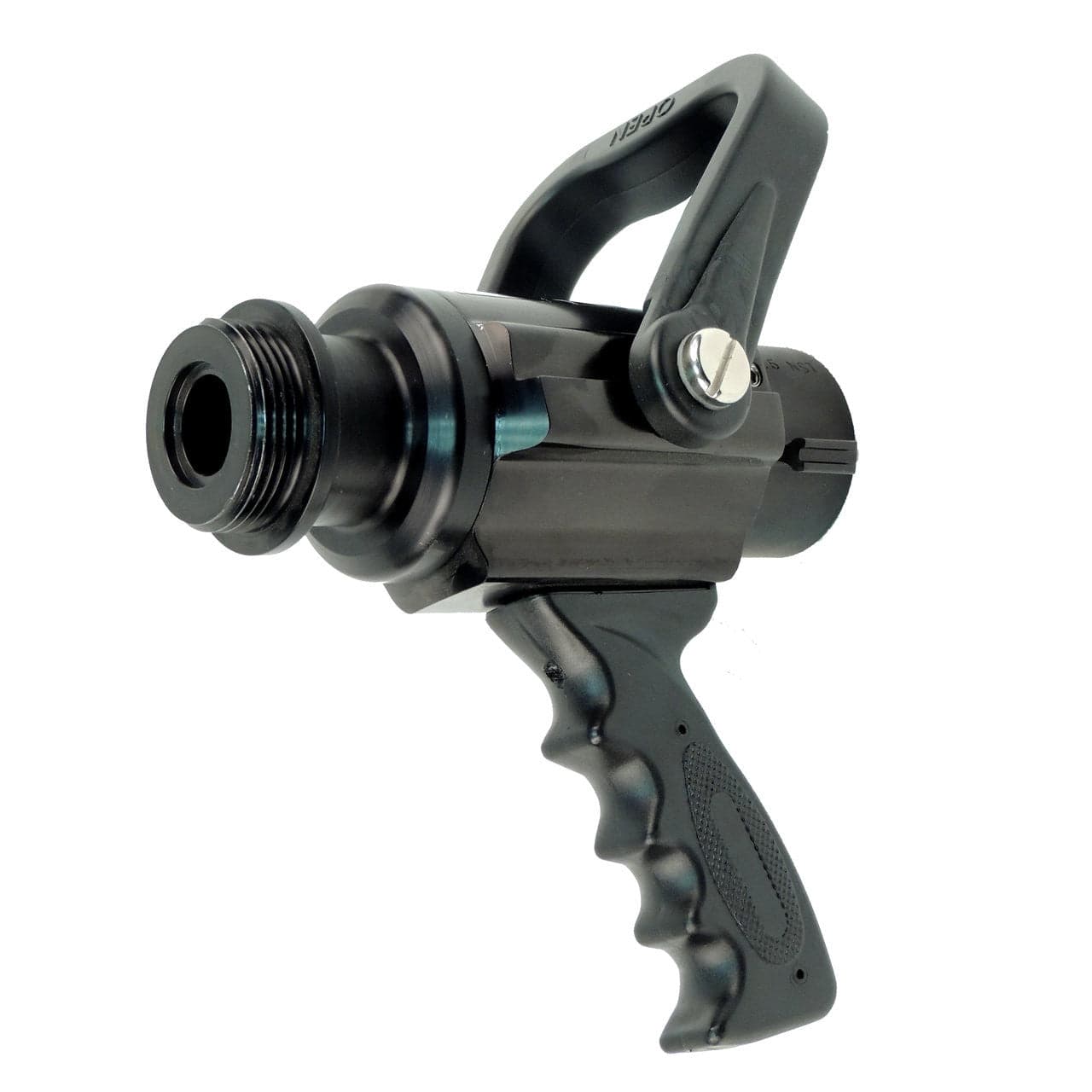

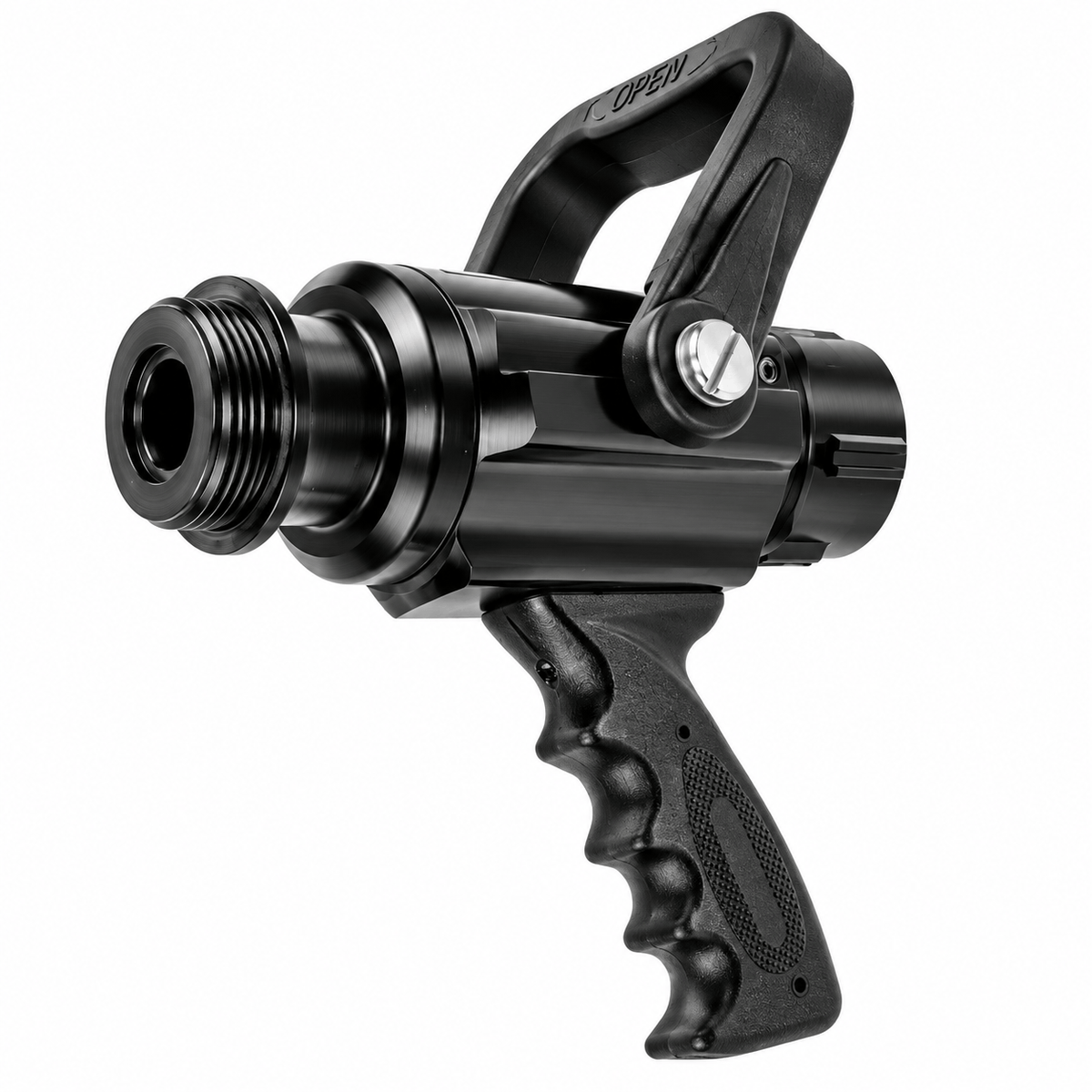

The C&S Supply 1-1/2" Ball Shutoff with 7/8" Integrated Smooth Bore Tip is designed to provide dependable flow control and outstanding smooth bore stream performance for structural firefighting and water delivery operations. Featuring an integrated 7/8" smooth bore tip and a full 1-3/8" waterway, this nozzle assembly delivers excellent reach, penetration, and flow efficiency while minimizing friction loss through the valve body.
Constructed from lightweight yet durable E-lite alloy, this shutoff nozzle is hard coated for enhanced corrosion resistance and long service life. Smooth-operating polymer balls and seats provide reliable on/off control, while the integrated smooth bore tip eliminates the need for separate tip attachments. Designed for demanding fireground conditions, this nozzle is available with a 1-1/2" NST inlet connection and offers the durability and performance firefighters expect from C&S Supply products.
Features
• Integrated 7/8" smooth bore tip
• 1-1/2" NST (NH) inlet connection
• Full 1-3/8" waterway for maximum flow efficiency
• Smooth-operating polymer ball and seat design
• Lightweight E-lite alloy construction
• Hard-coated finish for durability and corrosion resistance
• Excellent stream reach and penetration
• Low-friction waterway design helps maximize flow
• Integrated shutoff valve for reliable water control
• Designed for demanding firefighting operations
Specifications
• Manufacturer: C&S Supply
• Model: VB9520-ISB7/8
• Product Type: Ball Shutoff with Integrated Smooth Bore Tip
• Inlet Connection: 1-1/2" NST (NH)
• Tip Size: 7/8" Integrated Smooth Bore
• Waterway Diameter: 1-3/8"
• Material: E-lite Alloy
• Ball and Seats: Polymer
• Weight: 4.00 lbs
• Dimensions: 12" W x 9" H x 6" D
• Finish: Hard-Coated
• Application: Structural Firefighting, Smooth Bore Operations, and Water Delivery Applications
