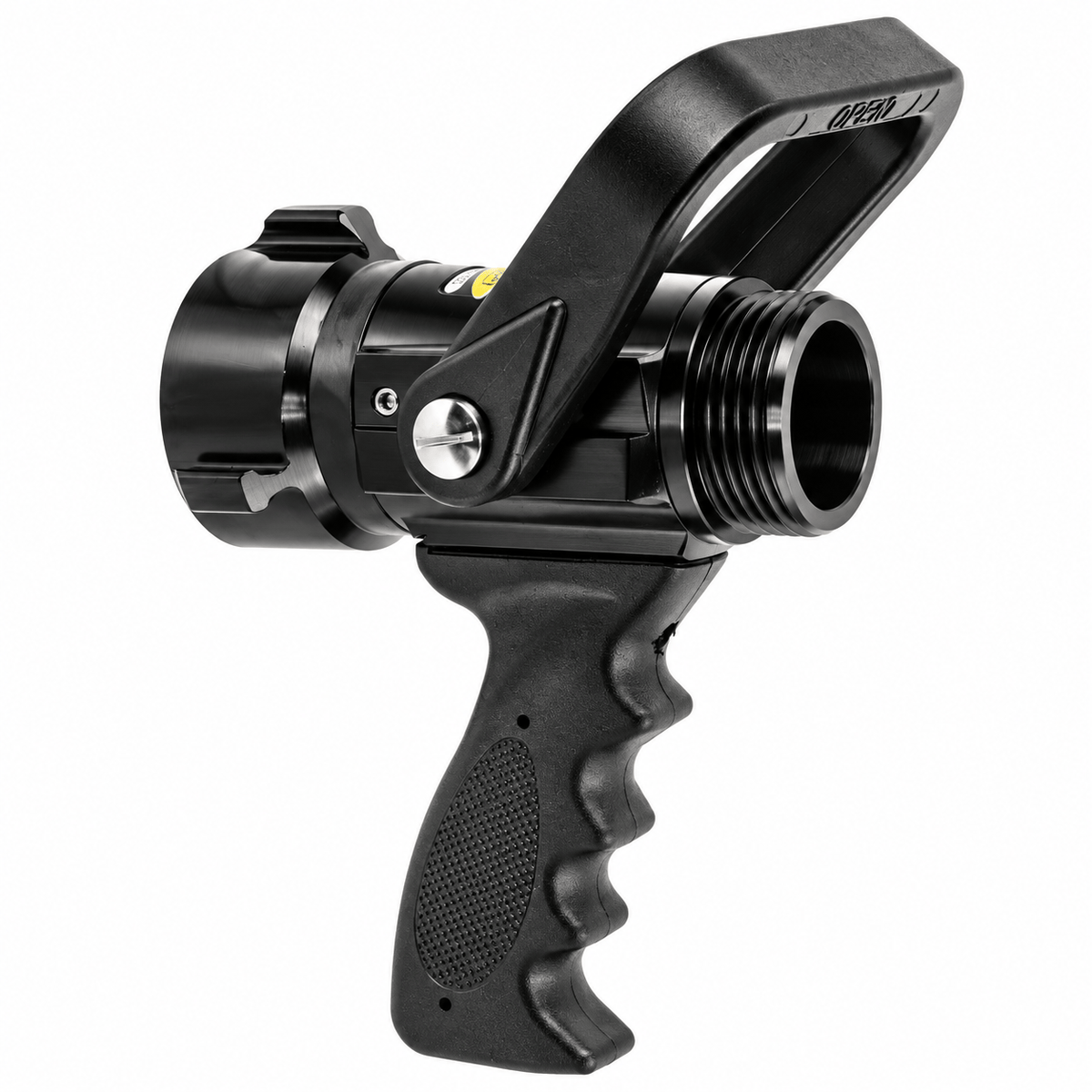

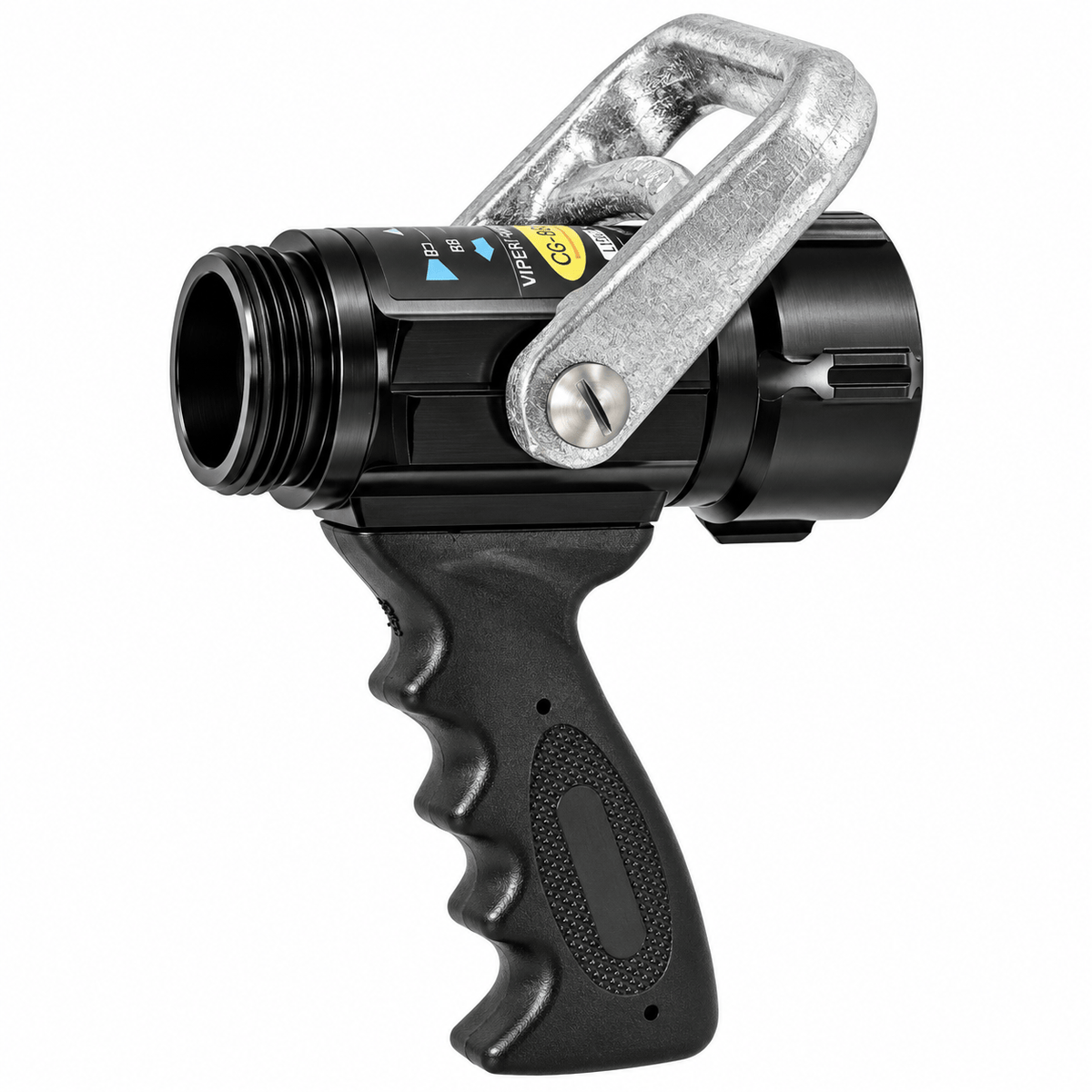

The C&S Supply 1-1/2" Ball Shutoff Valve with Pistol Grip is designed to provide dependable water control, smooth operation, and lightweight performance for structural, wildland, and industrial firefighting applications. Featuring a 1-1/2" female swivel inlet and a 1-1/2" male threaded outlet, this versatile shutoff valve allows firefighters to quickly control water flow while maintaining compatibility with a wide range of nozzle configurations. The integrated pistol grip provides enhanced handling and control during extended operations and can be easily removed when desired.
Constructed from hard-anodized aluminum, the VB3012 combines durability and corrosion resistance with lightweight performance. Ergonomic bail handles are available in either composite or cast metal construction, allowing departments to select the configuration that best fits their operational preferences. Available with either NST (NH) or NPSH threads, this valve is offered in four different configurations to meet a variety of apparatus and hose connection requirements.
Features
• 1-1/2" female swivel inlet x 1-1/2" male threaded outlet
• Integrated pistol grip for improved handling and control
• Pistol grip can be easily removed if desired
• Available with NST (NH) or NPSH thread connections
• Hard-anodized aluminum construction
• Lightweight, durable, and corrosion-resistant design
• Ergonomic bail handle design for smooth operation

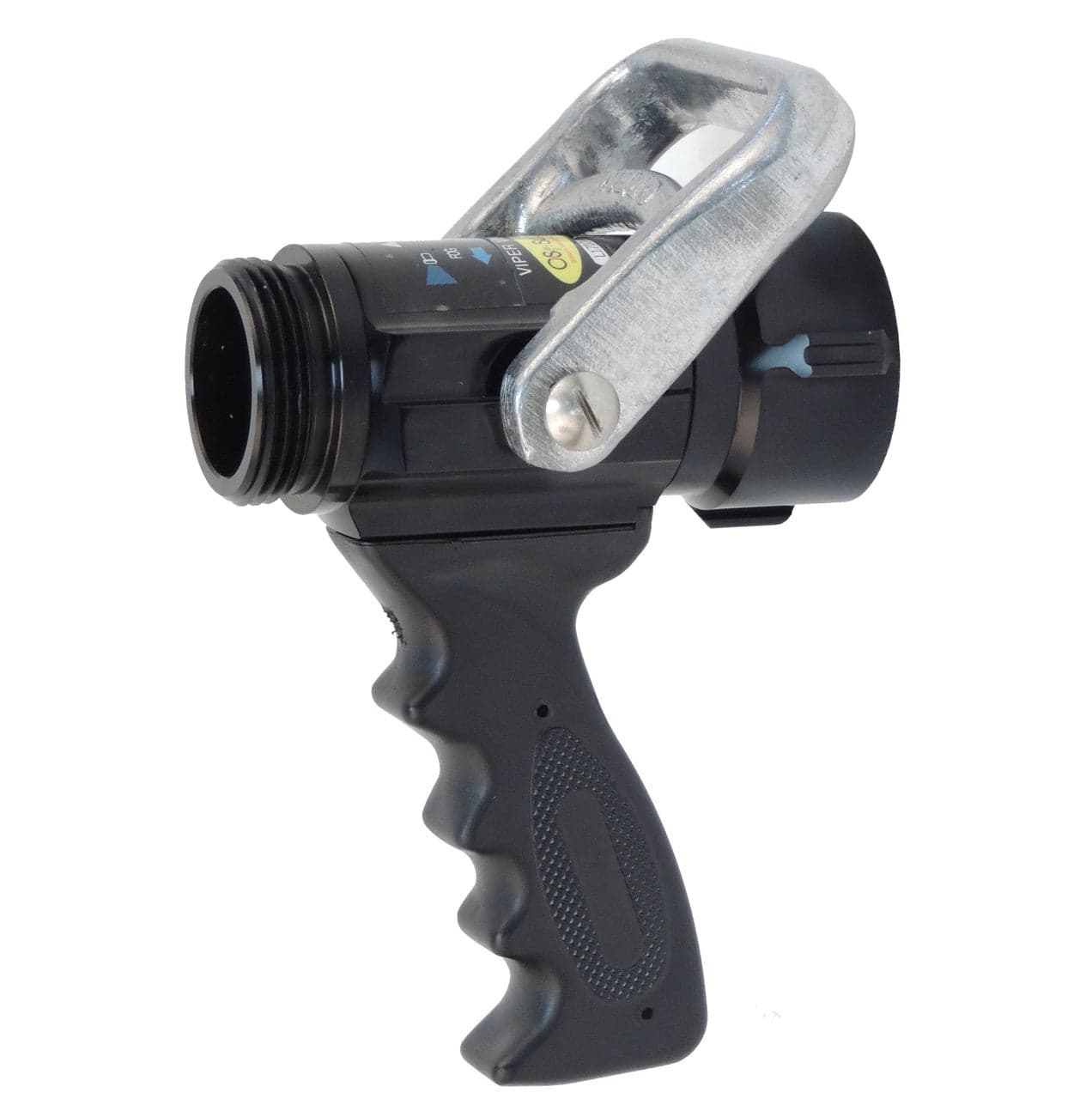

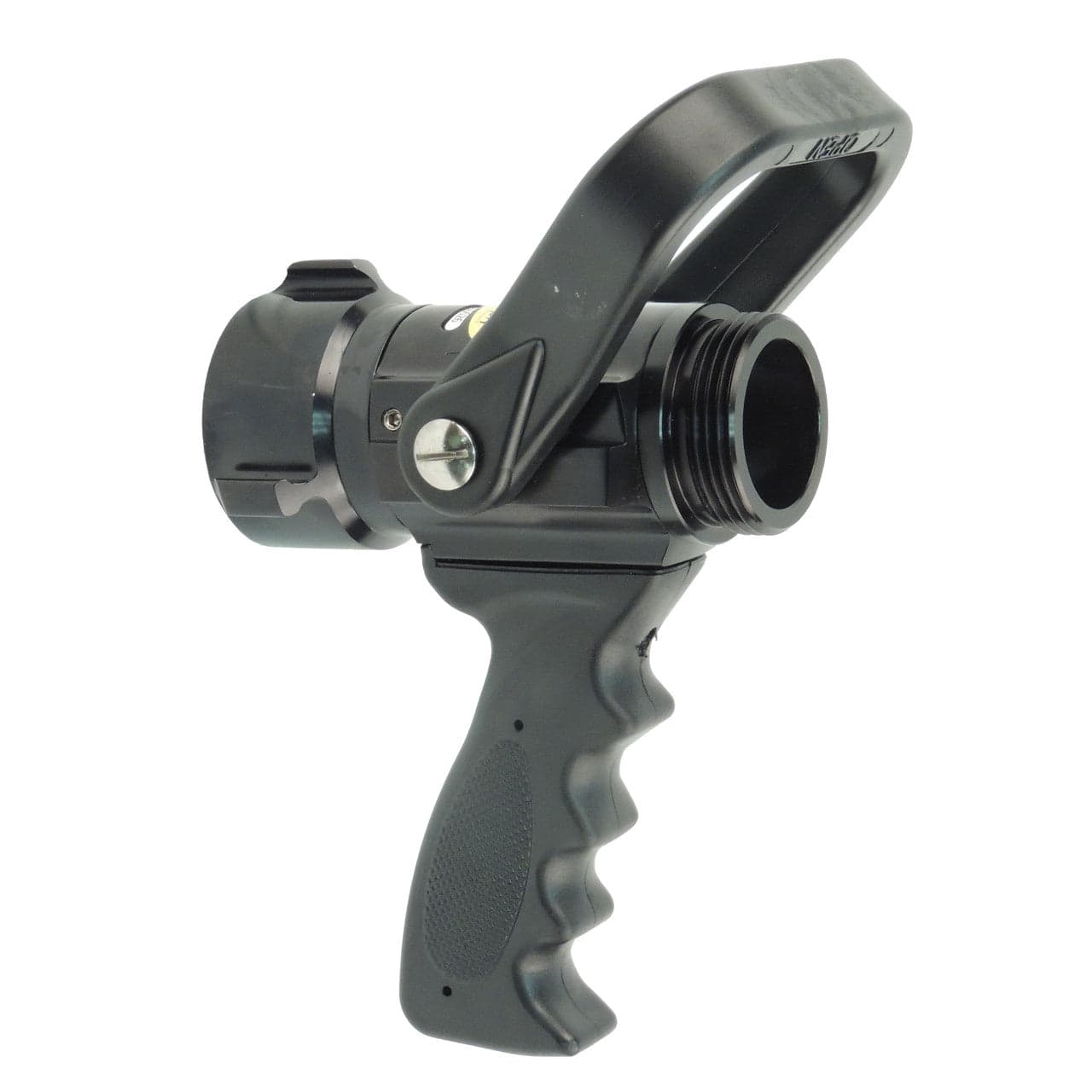

• Available with composite bail handle or cast metal bail handle
• Compatible with a wide range of firefighting nozzles
• Serviceable design with available repair parts and maintenance support
Specifications
• Manufacturer: C&S Supply
• Model: VB3012
• Product Type: Ball Shutoff Valve with Pistol Grip
• Inlet Connection: 1-1/2" Female Swivel
• Outlet Connection: 1-1/2" Male Threaded
• Thread Options: NST (NH) or NPSH
• Material: Hard-Anodized Aluminum
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Available Configurations:
• NST (NH) with Composite Bail Handle
• NST (NH) with Cast Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Cast Metal Bail Handle
• Pistol Grip: Removable
• Weight: 2.50 lbs
• Dimensions: 7" W x 9" H x 5" D
• Application: Structural Firefighting, Wildland Firefighting, Industrial Fire Protection, and Water Delivery Operation
