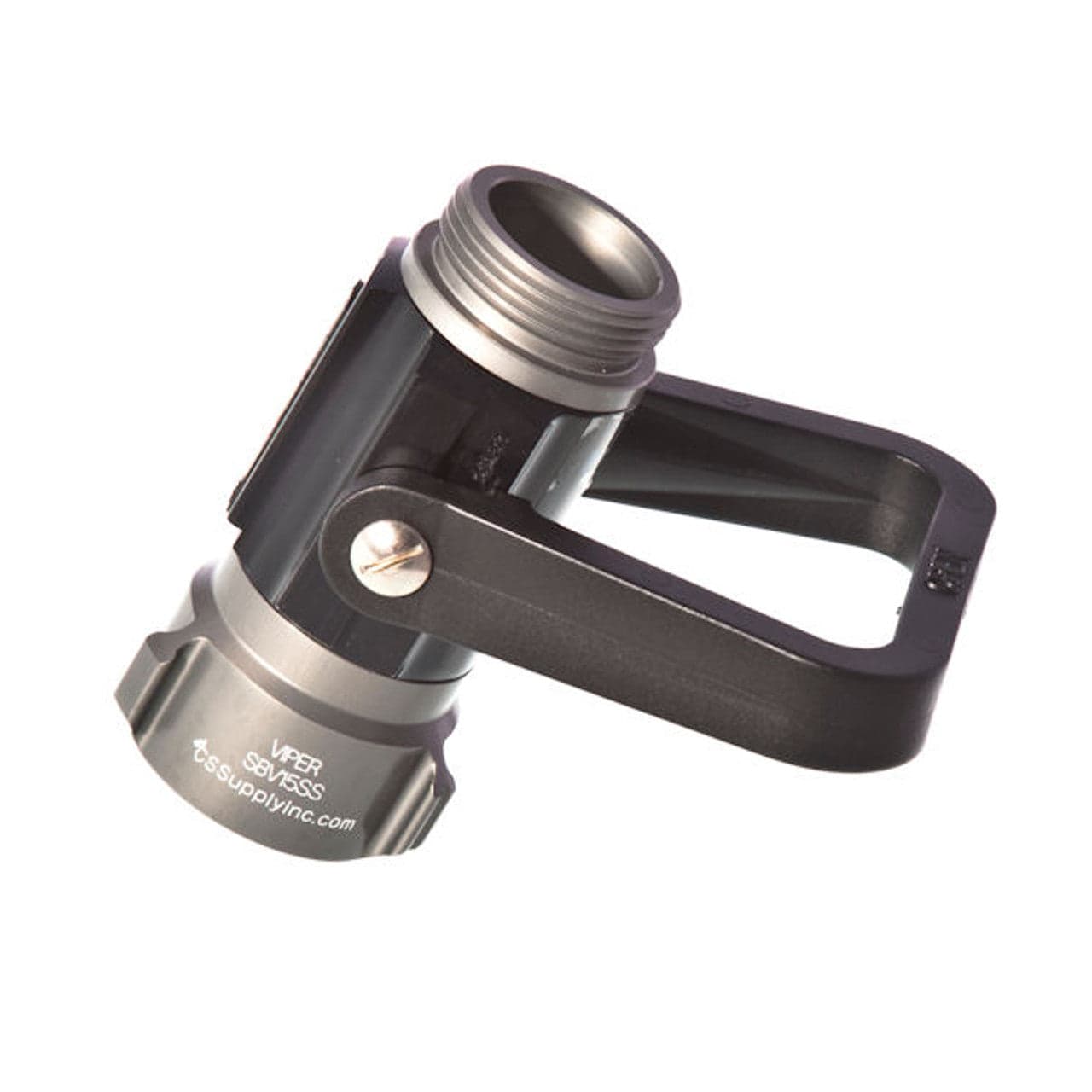

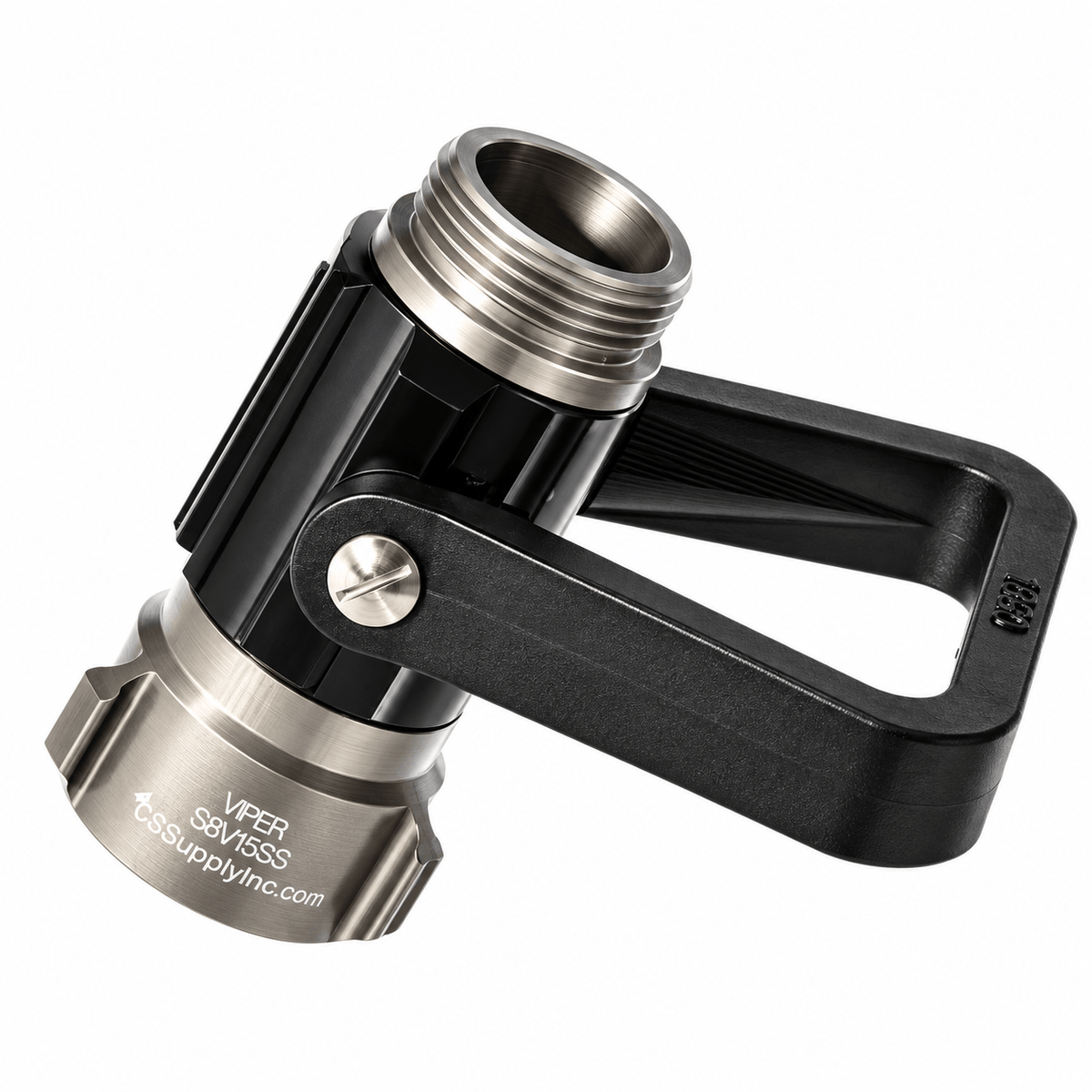

The C&S Supply 1-1/2" Ball Shutoff Valve with 1" Waterway – No Pistol Grip is designed to provide dependable water control, smooth operation, and efficient flow performance for firefighting and water delivery applications. Featuring a 1-1/2" female swivel inlet, 1-1/2" male outlet, and a full 1" waterway, this shutoff valve delivers reliable flow characteristics while maintaining a compact, lightweight design. The no-pistol-grip configuration offers a streamlined profile that is ideal for departments and operators who prefer a traditional shutoff valve setup.
Constructed from durable hard-anodized aluminum, the valve utilizes quality polymer ball and seat/seal mechanisms to ensure smooth and reliable operation. Compatible with all C&S nozzle tips, this versatile shutoff valve is available with either NST (NH) or NPSH thread connections and a choice of composite or cast metal bail handles. With four available configurations, departments can select the thread type and handle style that best matches their equipment and operational requirements.
Features
• 1-1/2" female swivel inlet x 1-1/2" male outlet
• No pistol grip configuration for a streamlined design
• Full 1" waterway for efficient flow performance
• Available with NST (NH) or NPSH thread connections
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms

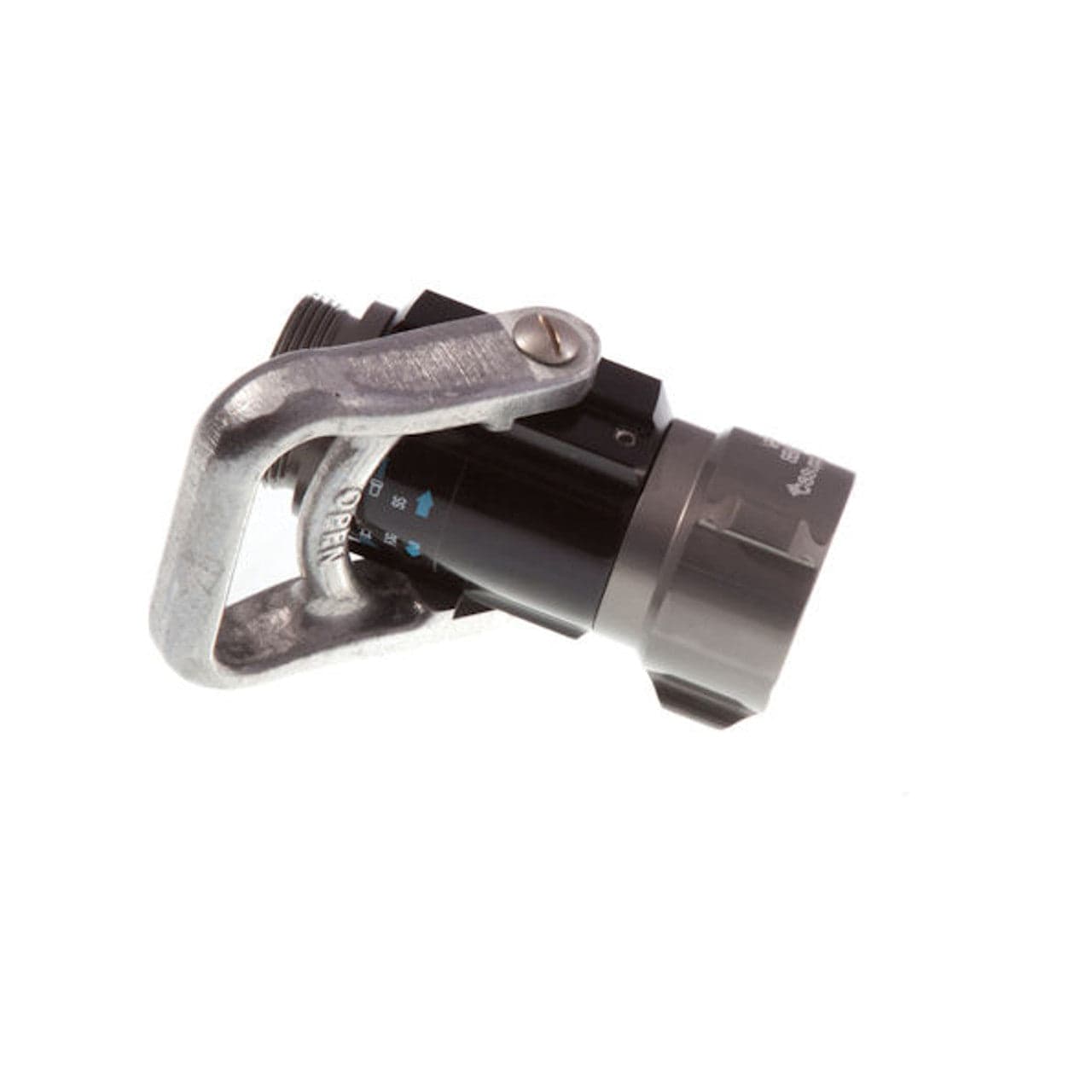

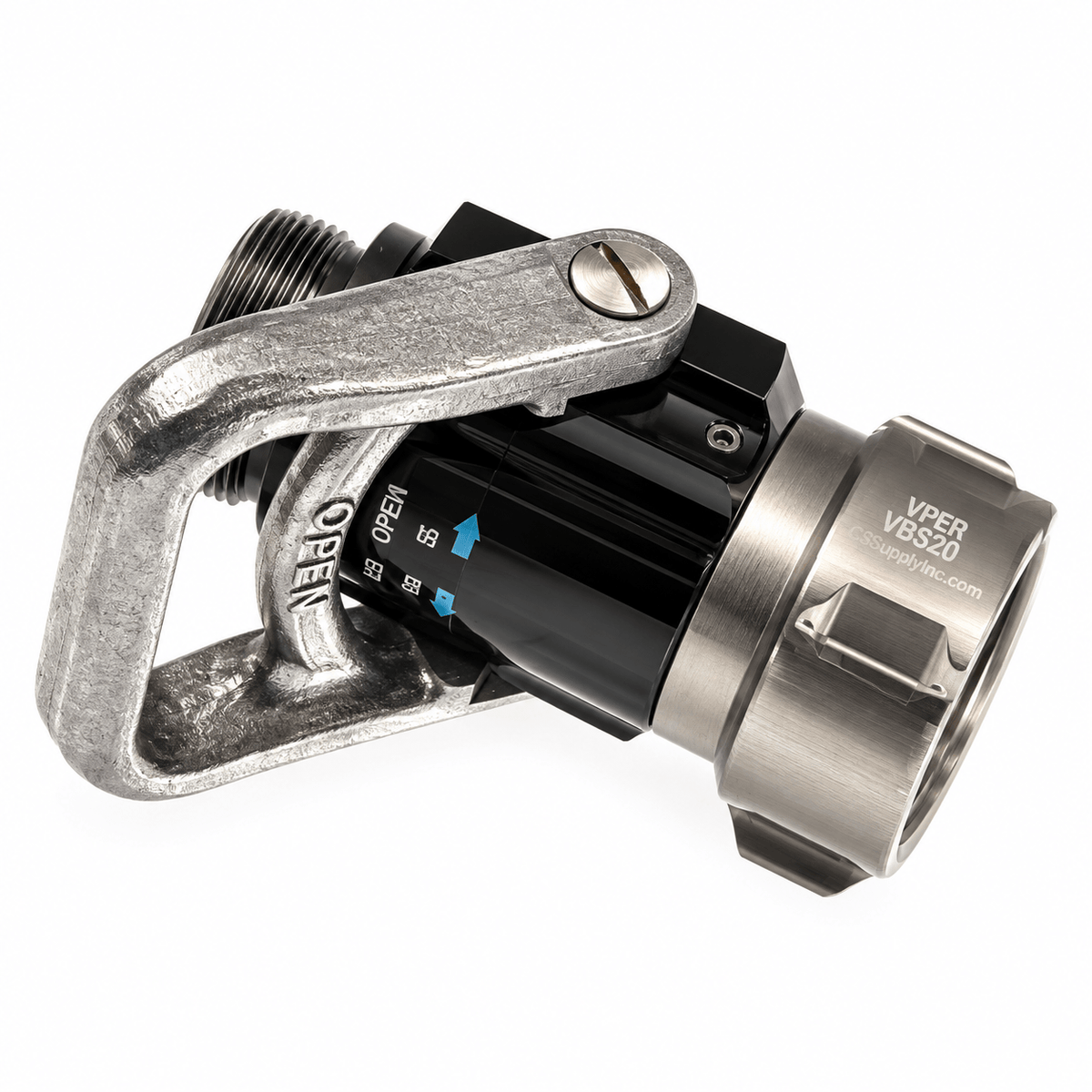

• Available with composite bail handle or cast metal bail handle
• Compatible with all C&S nozzle tips
• Smooth and reliable shutoff operation
• Lightweight, durable, and corrosion-resistant design
Specifications
• Manufacturer: C&S Supply
• Model: SBV15SS
• Product Type: Ball Shutoff Valve
• Configuration: No Pistol Grip
• Inlet Connection: 1-1/2" Female Swivel NST (NH) or NPSH
• Outlet Connection: 1-1/2" Male NST (NH) or NPSH
• Waterway Diameter: 1"
• Material: Hard-Anodized Aluminum
• Ball and Seats: Polymer
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Available Configurations:
• NST (NH) with Composite Bail Handle
• NST (NH) with Cast Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Cast Metal Bail Handle
• Weight: 1.50 lbs
• Dimensions: 7" W x 9" H x 5" D
• Compatible With: All C&S Nozzle Tips
• Application: Structural Firefighting, Wildland Firefighting, CAFS Operations, and Water Delivery Applications
