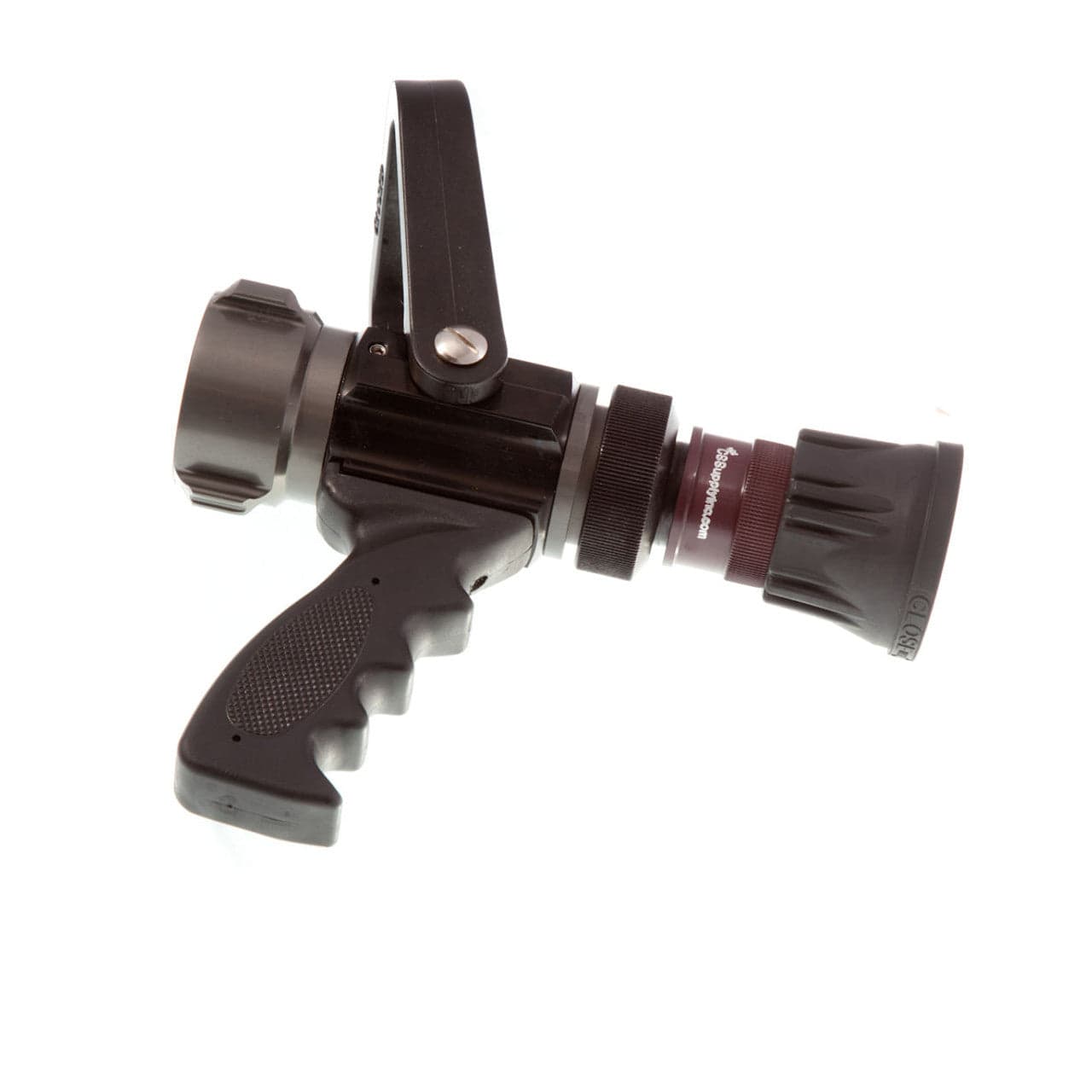

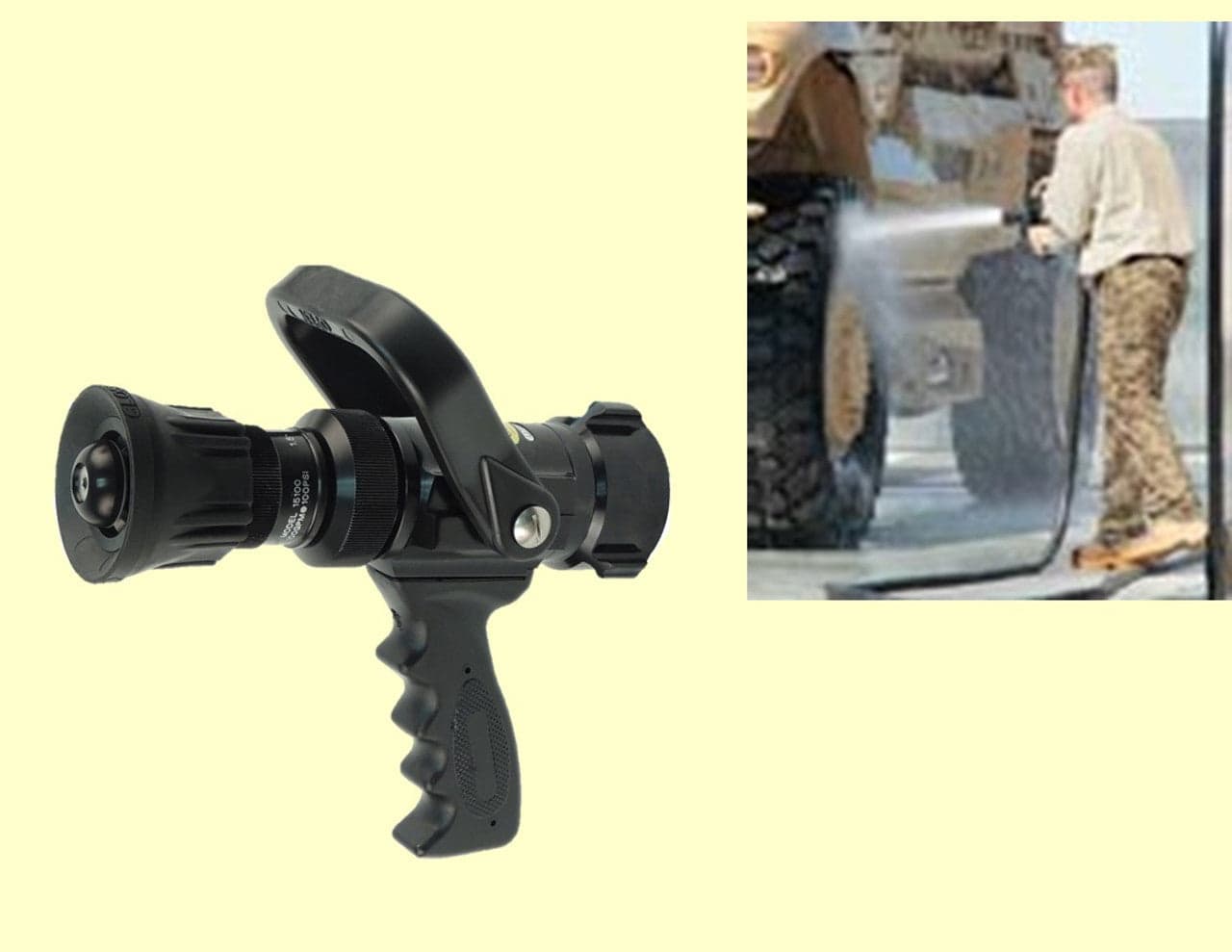

The C&S Supply 1.5" Ball Shutoff and Nozzle Combo combines a durable ball shutoff valve and firefighting nozzle into a complete, ready-to-use assembly for structural, forestry, and wildland firefighting applications. Designed to provide dependable flow control and nozzle performance, this combo offers firefighters a rugged, lightweight solution for attack lines and water delivery operations.
Built around the VB3012 ball shutoff valve, the assembly features a 1.5" female swivel inlet, 1.5" male outlet, and a full 1" waterway for efficient water flow. Constructed from hard anodized aluminum, the valve utilizes quality polymer ball and seat/seal components for smooth operation and long service life. Available with either NST (NH) or NPSH threads, the shutoff valve can be configured with either a cast aluminum or composite handle to meet departmental preferences.
Features
• Complete nozzle and ball shutoff valve assembly
• Includes VB3012 ball shutoff valve
• 1.5" female swivel inlet x 1.5" male outlet
• Full 1" waterway for efficient flow performance
• Hard anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms
• Smooth and reliable shutoff operation
• Available with NST (NH) or NPSH threads
• Choice of cast aluminum or composite shutoff handle
• Lightweight and durable design
• Suitable for structural, forestry, and wildland firefighting applications
Specifications
• Manufacturer: C&S Supply
• Model: SB-VIP-15
• Product Type: Ball Shutoff and Nozzle Combo
• Included Valve: VB3012 Ball Shutoff Valve
• Inlet Connection: 1.5" Female Swivel NST (NH) or NPSH
• Outlet Connection: 1.5" Male NST (NH) or NPSH
• Waterway Size: 1"
• Construction: Hard Anodized Aluminum
• Ball/Seal Material: Polymer
• Handle Options: Cast Aluminum or Composite
• Weight: 4.00 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Structural Firefighting, Wildland Firefighting, and Water Delivery Operations
