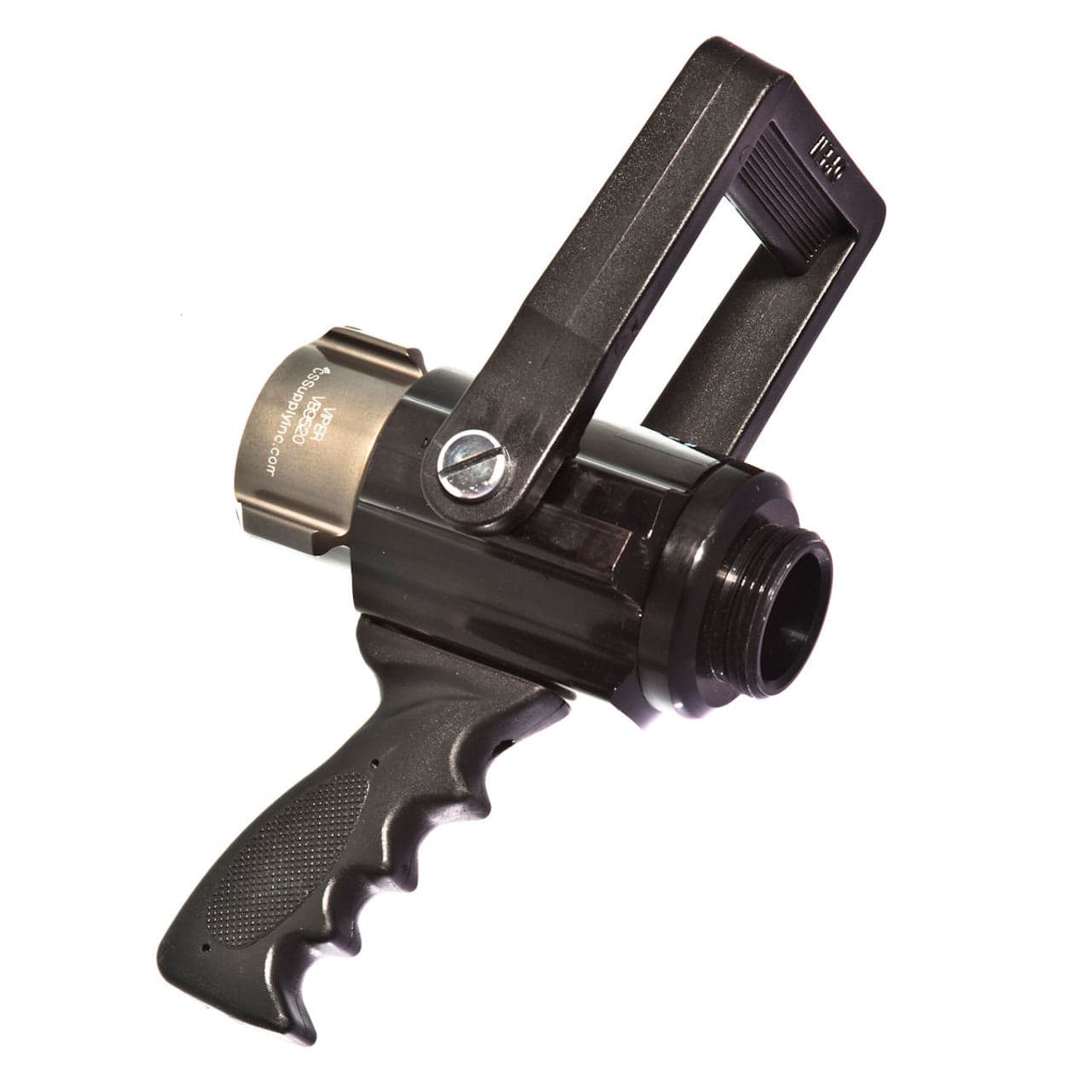

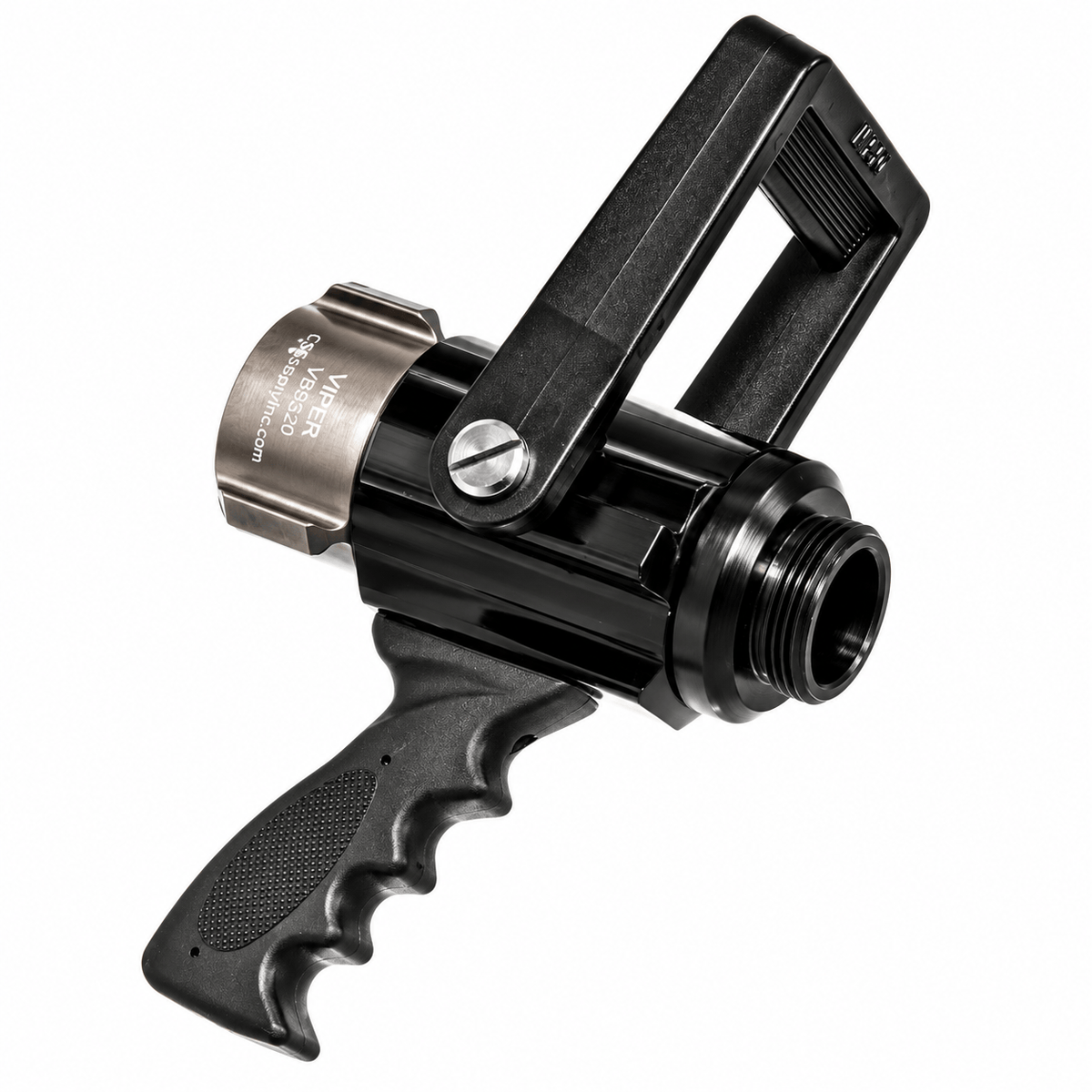

The C&S Supply 1-1/2" Ball Shutoff Valve with Pistol Grip is designed to provide dependable water control, smooth operation, and maximum flow efficiency for firefighting and water delivery applications. Featuring a 1-1/2" female swivel inlet, 1-1/2" male outlet, and a full 1-3/8" waterway, this shutoff valve delivers excellent flow characteristics while minimizing friction loss through the valve body. The integrated pistol grip provides enhanced handling and control, making it easier for firefighters to operate attack lines under demanding conditions.
Constructed from durable hard-anodized aluminum, the valve utilizes quality polymer ball and seat/seal mechanisms to ensure smooth and reliable operation. Compatible with all C&S nozzle tips, this versatile shutoff valve is available in four configurations: NST (NH) with composite bail handle, NST (NH) with cast metal bail handle, NPSH with composite bail handle, and NPSH with cast metal bail handle. This allows departments to select the thread type and handle style that best fits their operational requirements.
Features
• 1-1/2" female swivel inlet x 1-1/2" male outlet
• Integrated pistol grip for improved handling and control
• Full 1-3/8" waterway for maximum flow efficiency
• Available with NST (NH) or NPSH thread connections
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms
• Available with composite bail handle or cast metal bail handle
• Compatible with all C&S nozzle tips
• Smooth and reliable shutoff operation
• Corrosion-resistant and lightweight design
Specifications
• Manufacturer: C&S Supply
• Model: VB9520
• Product Type: Ball Shutoff Valve with Pistol Grip
• Inlet Connection: 1-1/2" Female Swivel NST (NH) or NPSH
• Outlet Connection: 1-1/2" Male NST (NH) or NPSH
• Waterway Diameter: 1-3/8"
• Material: Hard-Anodized Aluminum
• Ball and Seats: Polymer

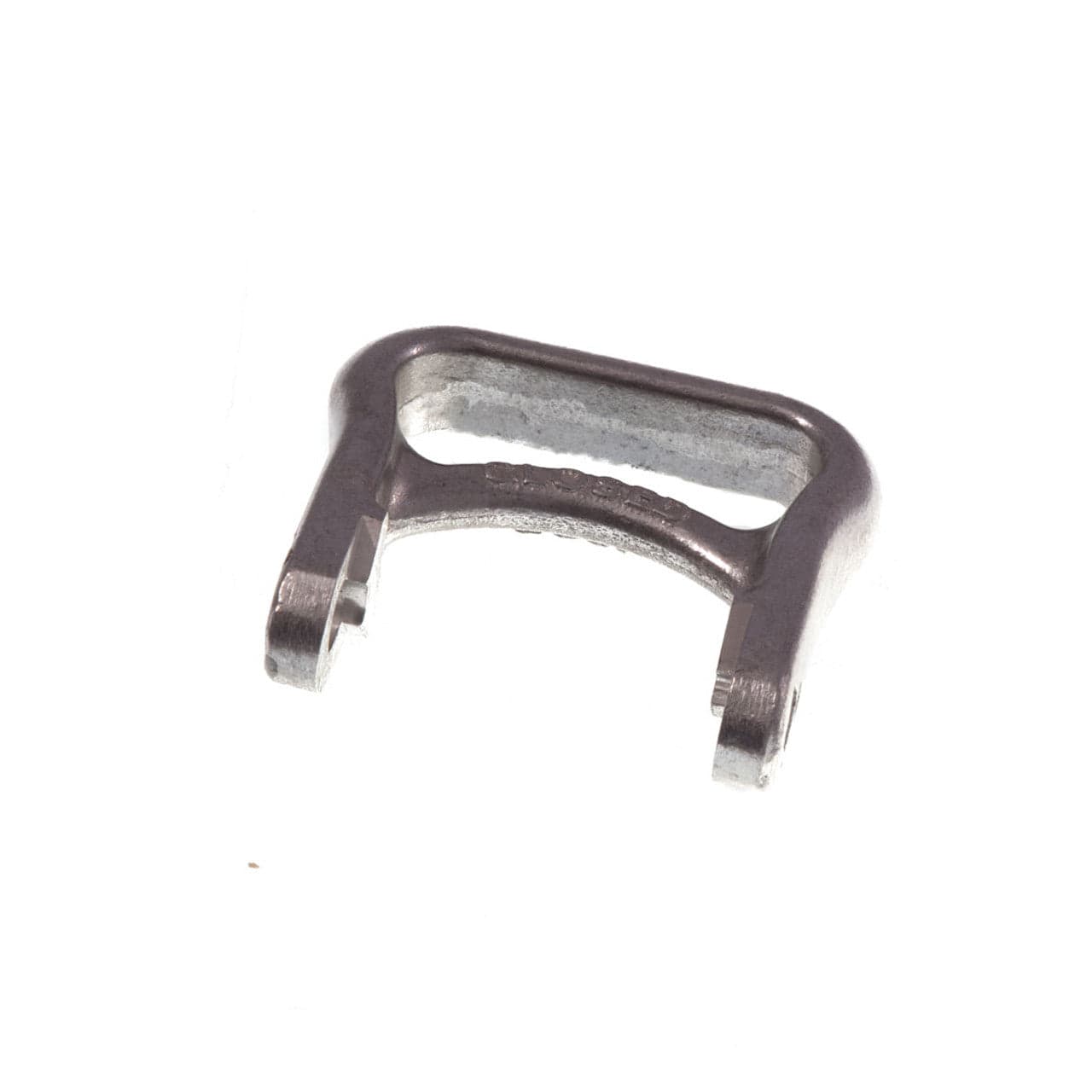

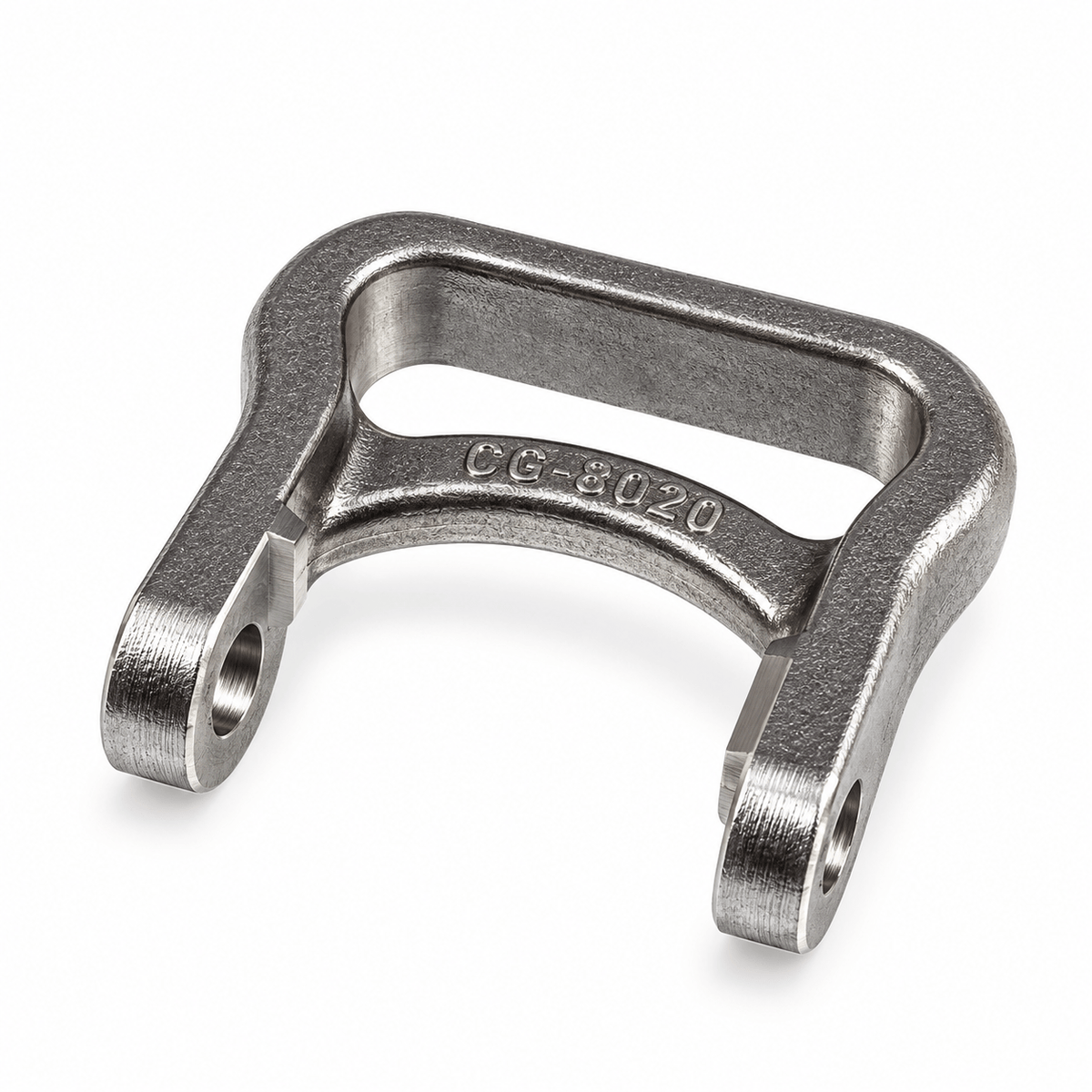

• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Thread Options: NST (NH) or NPSH
• Available Configurations:
• NST (NH) with Composite Bail Handle
• NST (NH) with Cast Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Cast Metal Bail Handle
• Weight: 4.00 lbs
• Dimensions: 9" W x 12" H x 6" D
• Compatible With: All C&S Nozzle Tips
• Application: Structural Firefighting, CAFS Operations, Smooth Bore Systems, and Water Delivery Applications
