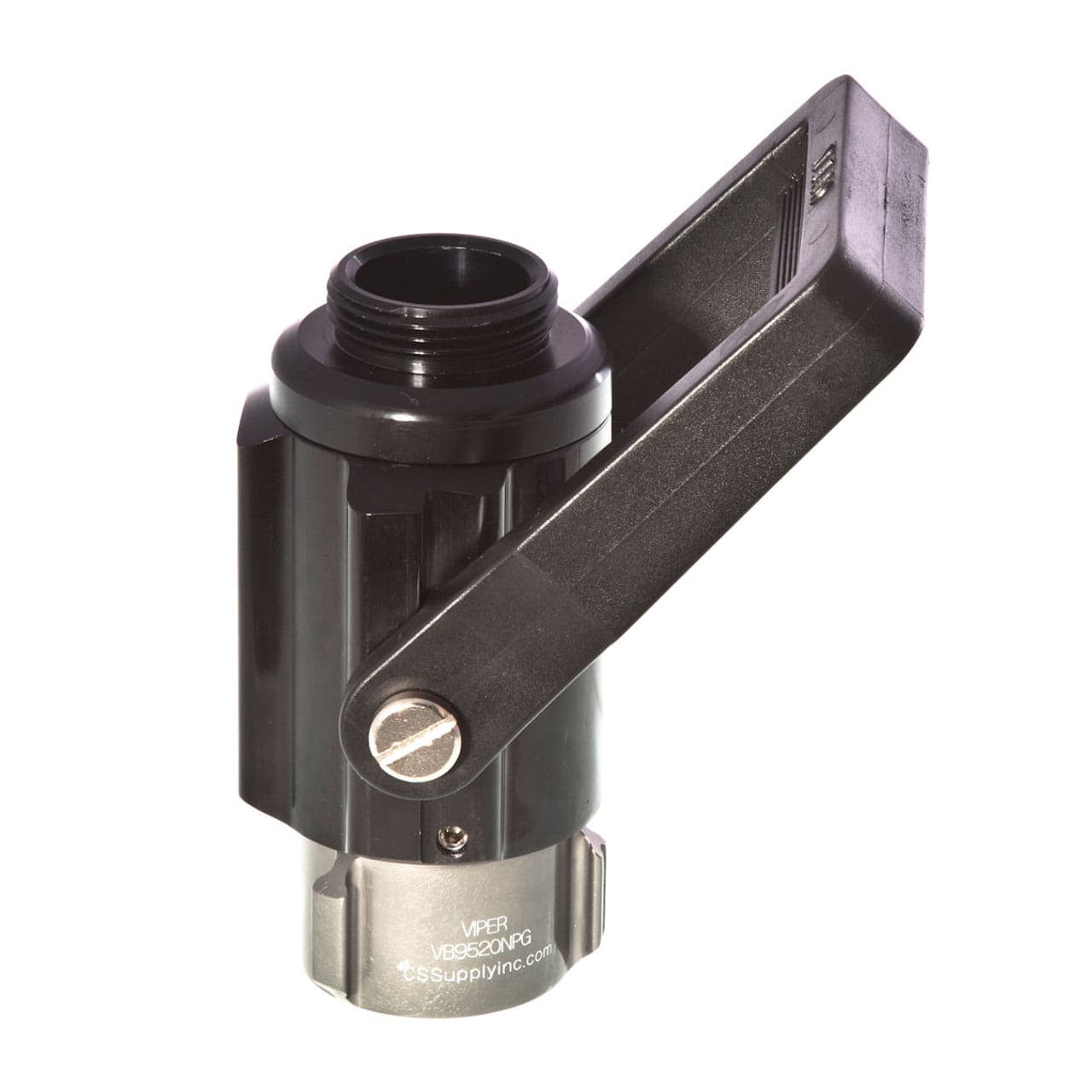

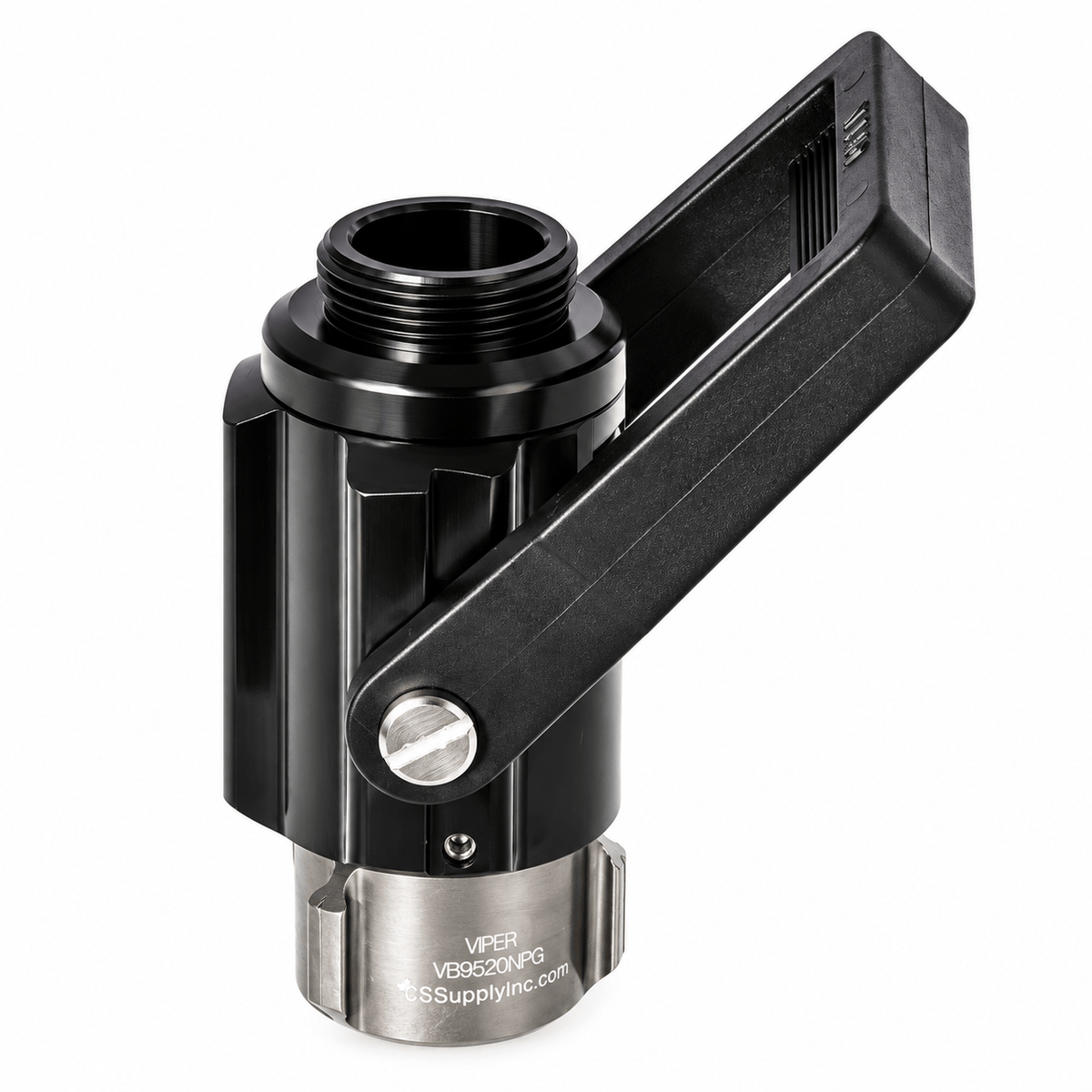

The C&S Supply 1-1/2" Ball Shutoff Valve – No Pistol Grip is designed to provide dependable water control, smooth operation, and maximum flow efficiency for firefighting and water delivery applications. Featuring a 1-1/2" female swivel inlet, 1-1/2" male outlet, and a full 1-3/8" waterway, this shutoff valve delivers excellent flow characteristics while minimizing friction loss through the valve body.
Constructed from durable hard-anodized aluminum, the valve utilizes quality polymer ball and seat/seal mechanisms to ensure smooth and reliable operation. The streamlined no-pistol-grip design provides a compact profile while maintaining exceptional performance. Available with either NST (NH) or NPSH threads, as well as a choice of composite or cast metal bail handles, this versatile shutoff valve can be configured to meet a wide range of department and operational preferences.
Features
• 1-1/2" female swivel inlet x 1-1/2" male outlet
• No pistol grip configuration for a streamlined design
• Full 1-3/8" waterway for maximum flow efficiency
• Available with NST (NH) or NPSH thread connections
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms

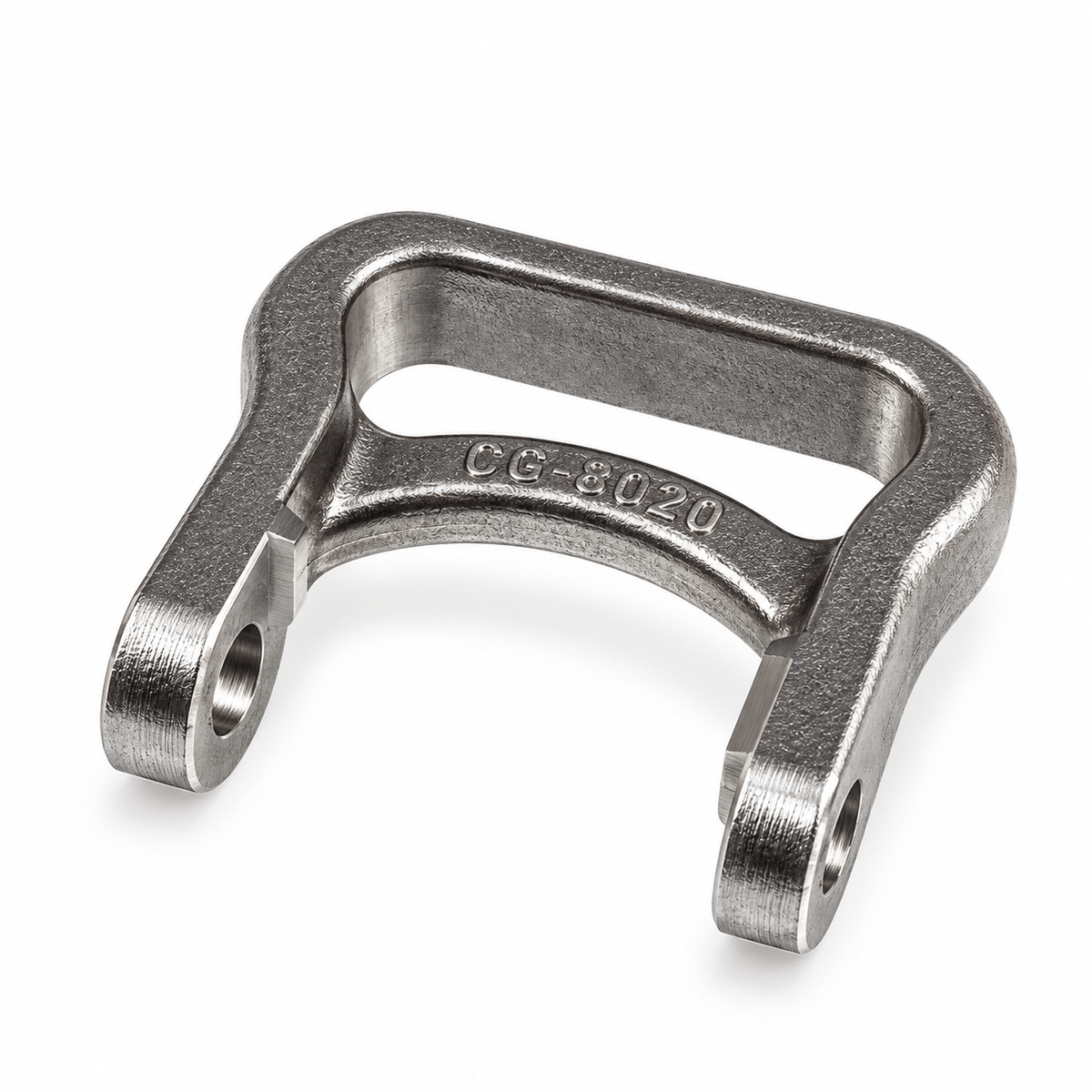

• Available with composite bail handle or cast metal bail handle
• Smooth and reliable shutoff operation
• Corrosion-resistant and lightweight design
• Compatible with a variety of firefighting nozzle assemblies
Specifications
• Manufacturer: C&S Supply
• Model: VB9520 NPG
• Product Type: Ball Shutoff Valve
• Configuration: No Pistol Grip
• Inlet Connection: 1-1/2" Female Swivel NST (NH) or NPSH
• Outlet Connection: 1-1/2" Male NST (NH) or NPSH
• Waterway Diameter: 1-3/8"
• Material: Hard-Anodized Aluminum
• Ball and Seats: Polymer
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Weight: 4.00 lbs
• Dimensions: 4" W x 4" H x 5" D
• Application: Structural Firefighting, CAFS Operations, Smooth Bore Systems, and Water Delivery Applications
