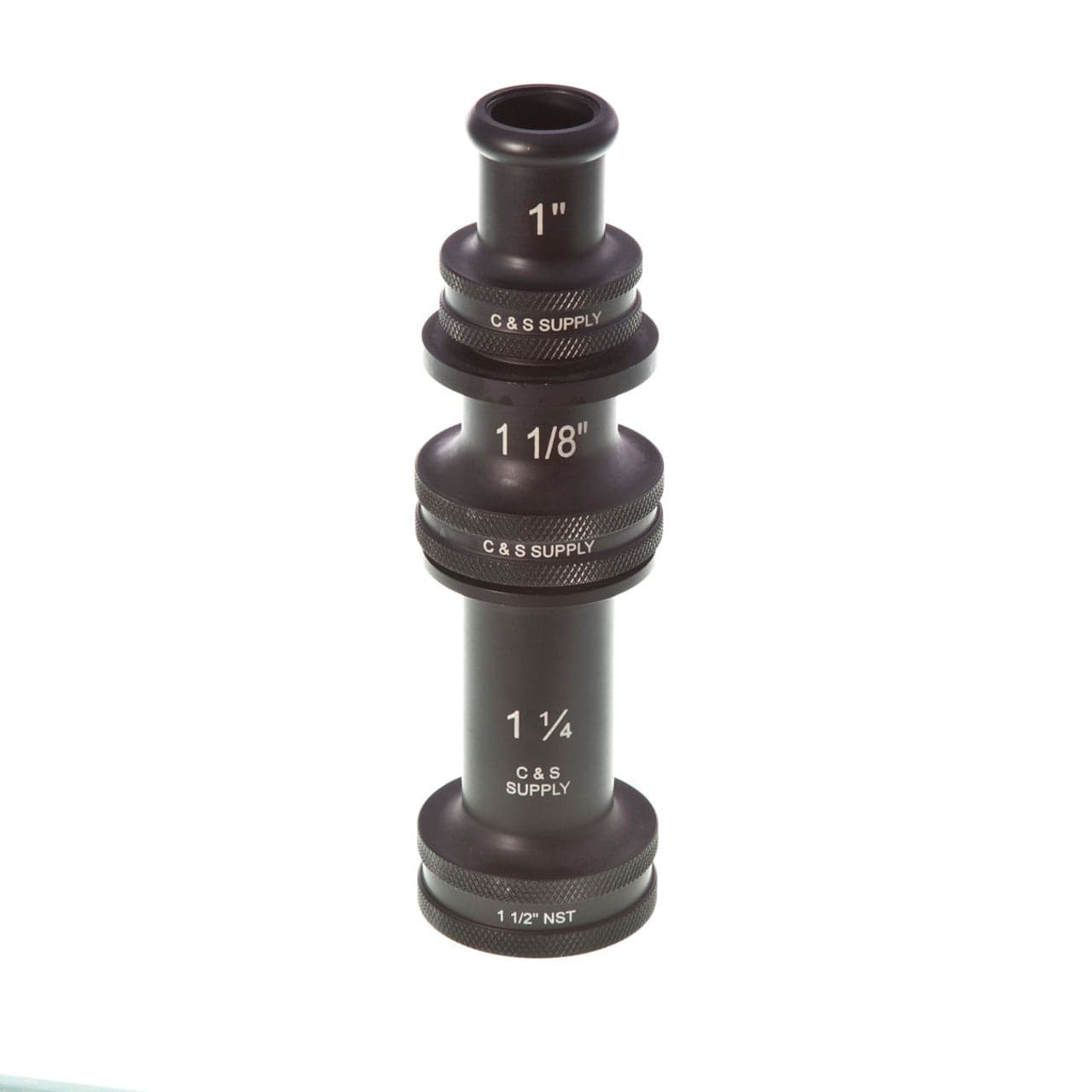

The C&S Supply 1-1/2" Triple Stacked Tip Straight Bore Nozzle is designed to provide firefighters with maximum versatility and flow control in a single smooth bore nozzle tip. Featuring a triple-stack design that tapers from a 1-1/4" outlet to a 1-1/8" outlet and finally to a 1" outlet, this nozzle allows operators to quickly adapt flow characteristics to changing fireground conditions while maintaining the superior stream quality and reach associated with smooth bore nozzles.
Constructed from rugged hard-anodized aluminum, the STT-1 is lightweight, corrosion-resistant, and built to withstand demanding firefighting environments. The gradual internal taper helps optimize stream quality and maximize water delivery efficiency. Available with either 1-1/2" NST (NH) or NPSH inlet threads, this nozzle tip is an excellent choice for structural firefighting, CAFS operations, and high-flow water delivery applications.
Features
• Triple-stack smooth bore design with three outlet sizes • Tapers from a 1-1/4" outlet to a 1-1/8" outlet and 1" outlet • Available with 1-1/2" NST (NH) or NPSH inlet threads • Rugged hard-anodized aluminum construction • Lightweight yet highly durable design • Gradual internal taper for enhanced stream quality • Corrosion-resistant finish • Allows quick adaptation to changing flow requirements • Suitable for smooth bore and CAFS operations • Designed for high-flow firefighting applications
Specifications
• Manufacturer: C&S Supply • Model: STT-1 • Product Type: Triple Stacked Tip Straight Bore Nozzle • Inlet Connection: 1-1/2" NST (NH) or NPSH • Outlet Sizes: 1-1/4", 1-1/8", and 1" • Material: Hard-Anodized Aluminum • Weight: 2.00 lbs • Dimensions: 4" W x 4" H x 12" D • Application: Structural Firefighting, CAFS Operations, and High-Flow Water Delivery Applications
