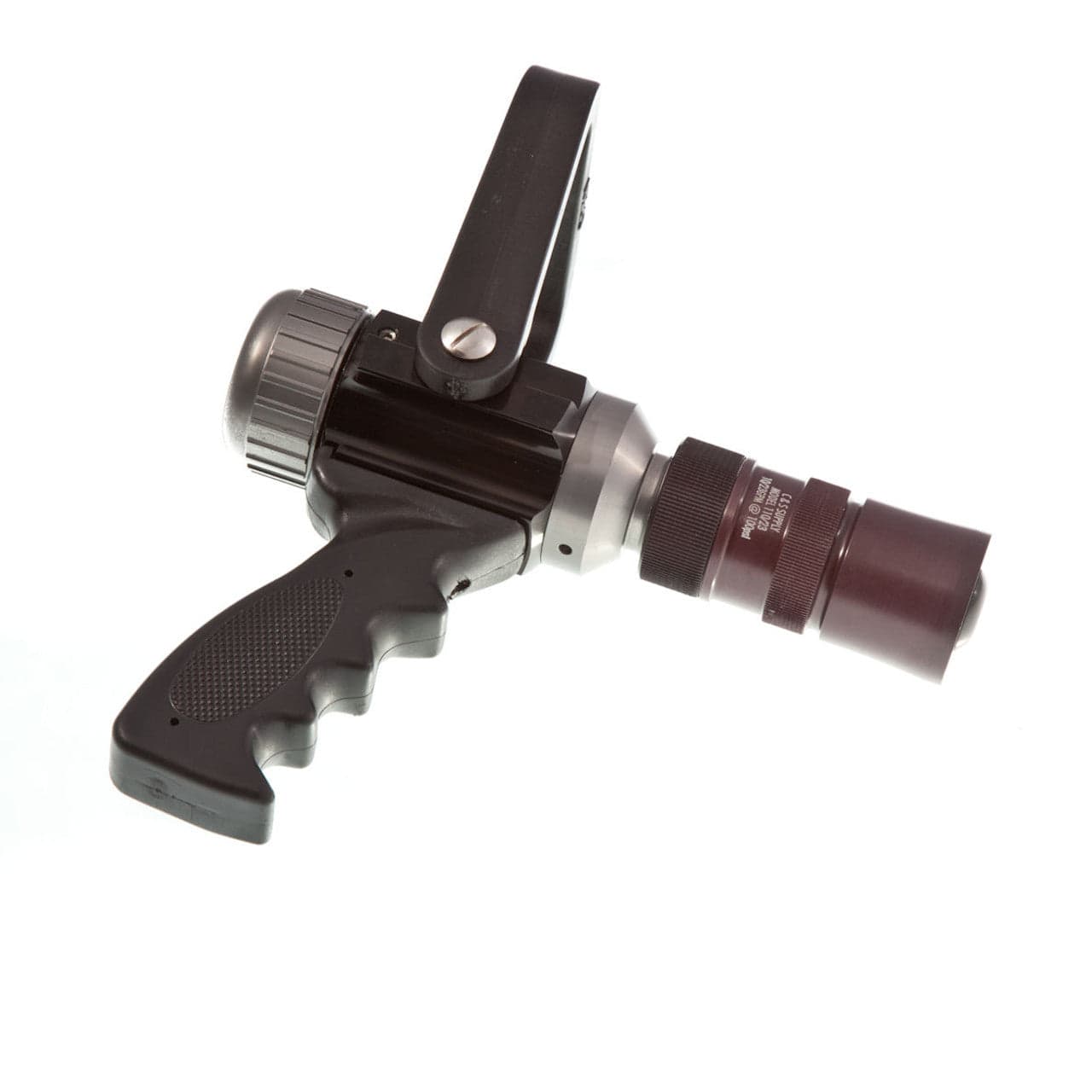

The C&S Supply 1" Ball Shutoff and Nozzle Combo is a lightweight, versatile firefighting assembly designed for wildland, forestry, and water delivery applications. Combining the VB1560 ball shutoff valve with a dual-flow nozzle, this all-in-one package provides reliable flow control and adjustable stream performance in a compact, easy-to-handle configuration.
Built around a durable hard-anodized aluminum valve body, the assembly features a 1" female swivel inlet, 1" male outlet, and a full 1" waterway for efficient flow. Quality polymer ball and seat/seal components ensure smooth operation and long service life, while the removable pistol grip improves handling and control during extended operations. Available with NST (NH) or NPSH threads, this combo includes a dual-flow nozzle capable of delivering either 10 GPM or 23 GPM to meet changing fireground conditions.
Features
• Complete nozzle and ball shutoff valve assembly
• Includes VB1560 ball shutoff valve
• 1" female swivel inlet x 1" male outlet
• Full 1" waterway for efficient flow performance
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms
• Smooth and reliable shutoff operation
• Available with NST (NH) or NPSH threads
• Includes dual-flow nozzle with 10 GPM and 23 GPM settings
• Removable pistol grip for improved versatility
• Choice of cast aluminum or composite shutoff handle
• Lightweight and durable design
Specifications
• Manufacturer: C&S Supply
• Model: SB-VIP-10
• Product Type: Ball Shutoff and Nozzle Combo
• Included Valve: VB1560 Ball Shutoff Valve
• Included Nozzle: Dual-Flow Nozzle
• Nozzle Flow Rates: 10 GPM and 23 GPM
• Inlet Connection: 1" Female Swivel NST (NH) or NPSH
• Outlet Connection: 1" Male NST (NH) or NPSH
• Waterway Size: 1"
• Construction: Hard-Anodized Aluminum
• Ball/Seal Material: Polymer
• Handle Options: Cast Aluminum or Composite
• Weight: 3.00 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Wildland Firefighting, Forestry Operations, and Water Delivery
