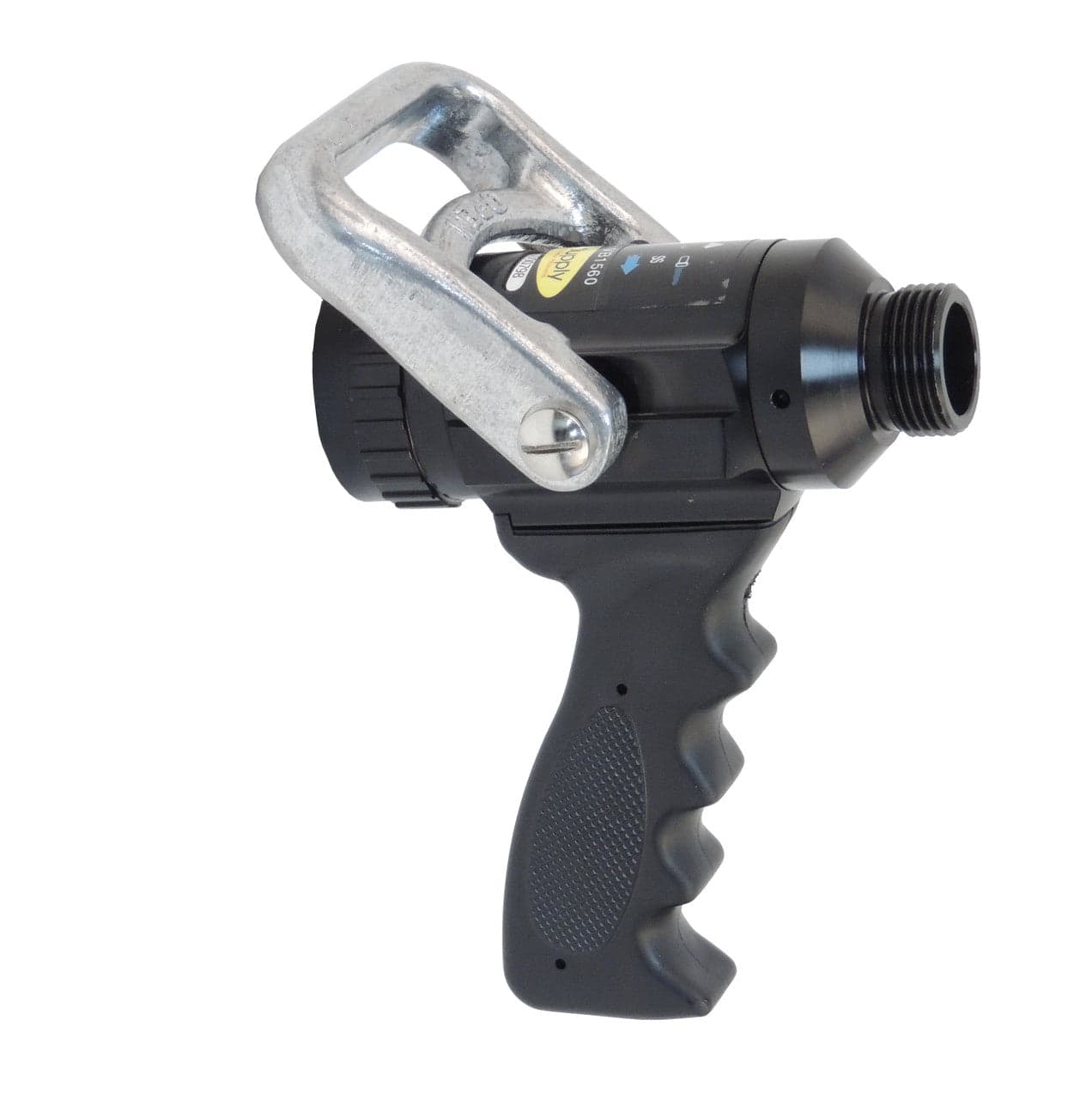

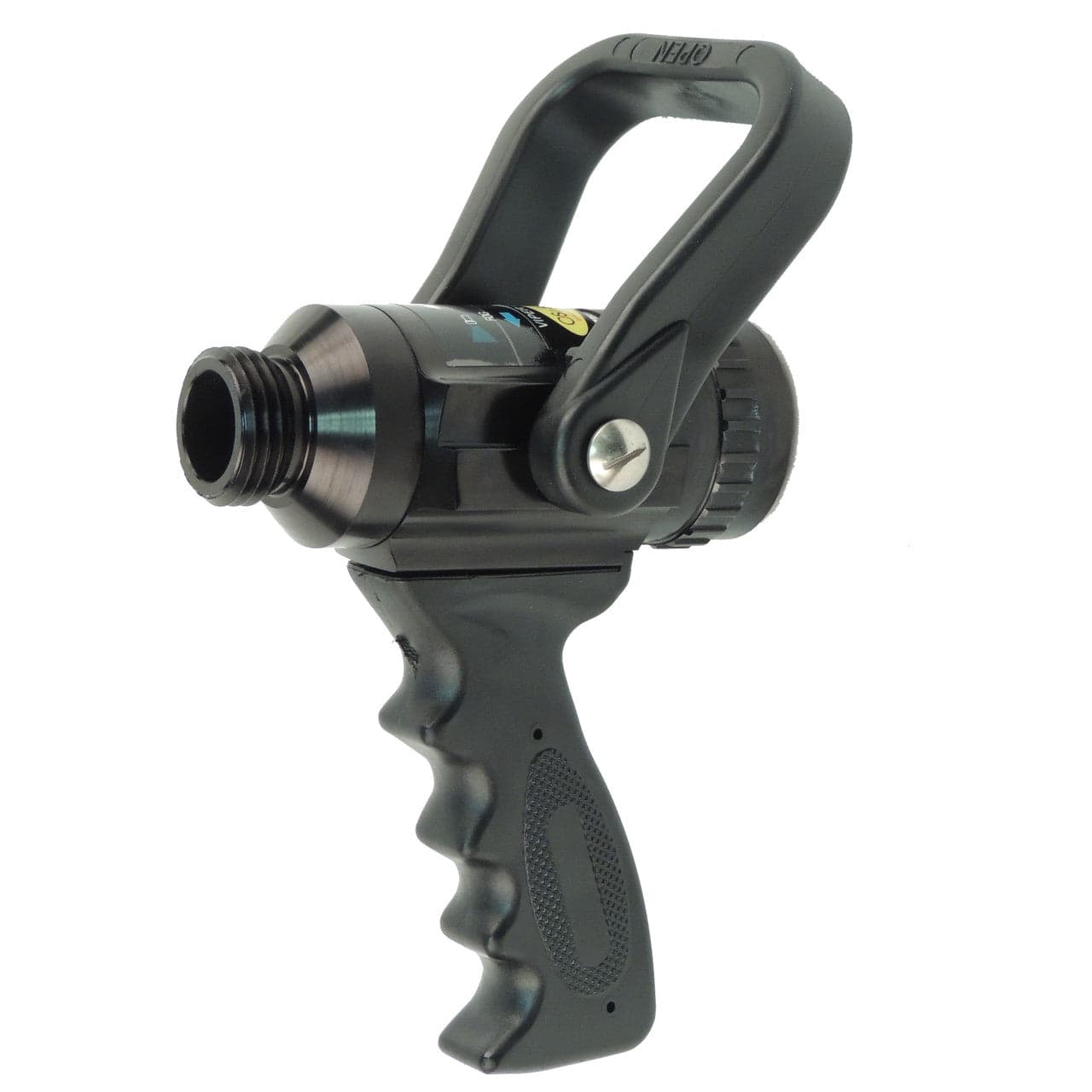

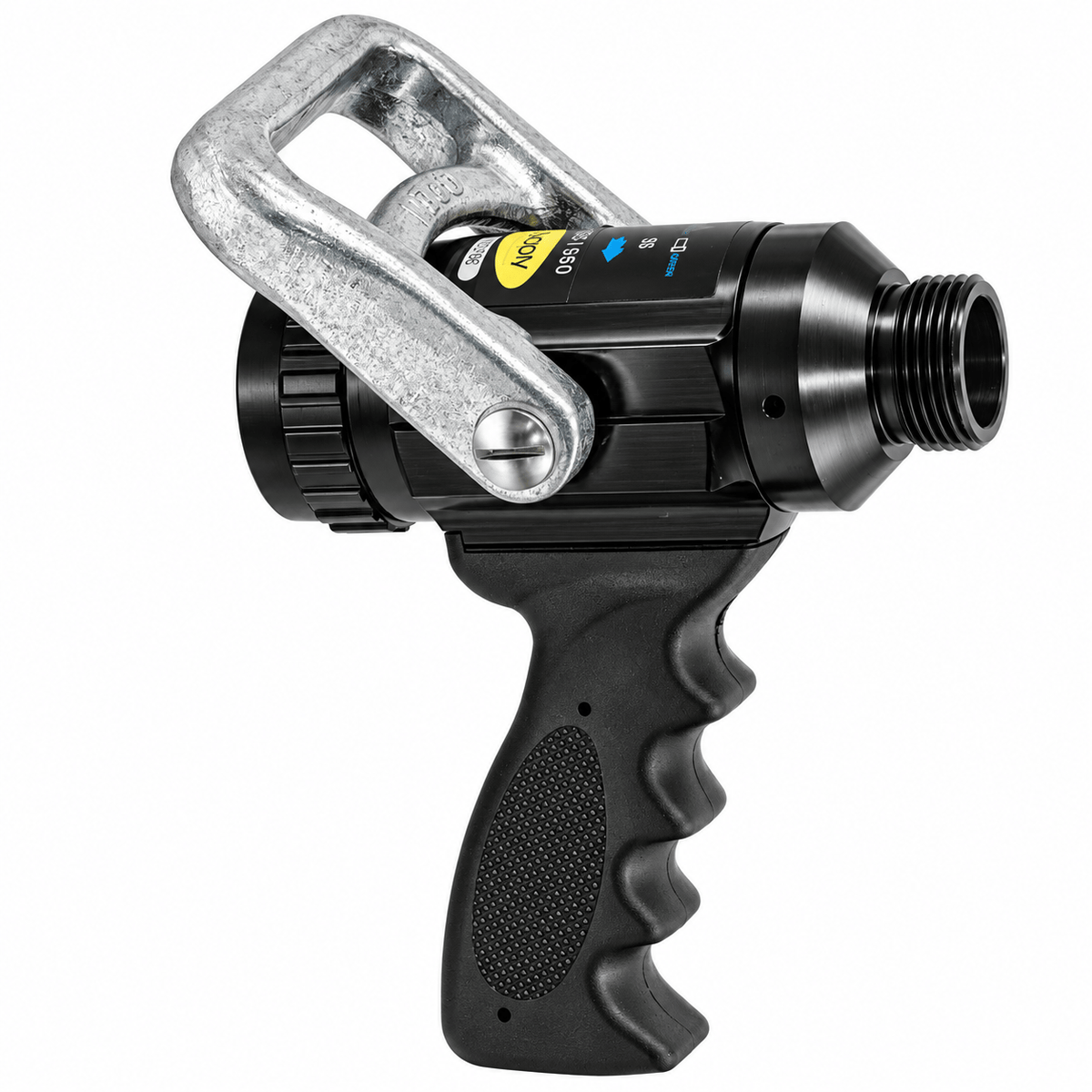

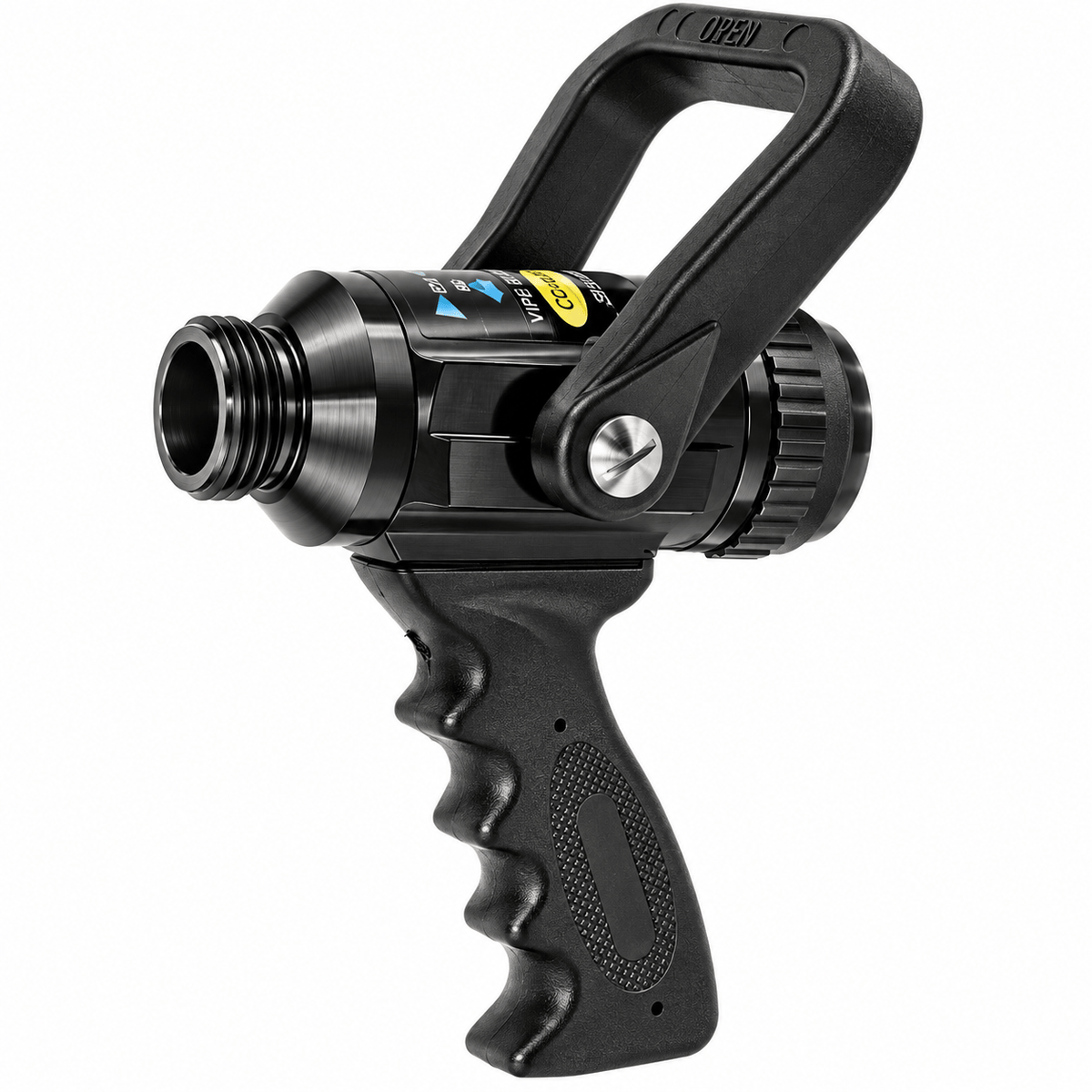

The C&S Supply 1" Ball Shutoff Valve with Pistol Grip is designed to provide reliable water control, lightweight performance, and exceptional durability for wildland, forestry, and structural firefighting applications. Featuring a 1" female swivel inlet and a 1" male threaded outlet, this versatile shutoff valve allows firefighters to quickly control water flow while maintaining compatibility with a wide range of nozzle configurations. The integrated pistol grip enhances handling and control during operations and can be easily removed when desired.
Constructed from hard-anodized E-Lite aluminum, the VB1560 is engineered to withstand demanding fireground conditions while remaining lightweight and easy to handle. Available with either NST (NH) or NPSH threads, this valve can be configured with either a composite or cast metal bail handle to match department preferences. Compatible with C&S nozzle tips and available as part of money-saving nozzle combinations, the VB1560 delivers dependable performance wherever water control is critical.
Features
• 1" female swivel inlet x 1" male threaded outlet
• Integrated pistol grip for improved handling and control
• Pistol grip can be easily removed if desired
• Available with NST (NH) or NPSH thread connections
• Constructed from hard-anodized E-Lite aluminum
• Lightweight, durable, and corrosion-resistant design
• Available with composite bail handle or cast metal bail handle
• Smooth and reliable shutoff operation
• Compatible with C&S nozzle tips
• Available as part of nozzle and valve combo packages
Specifications
• Manufacturer: C&S Supply
• Model: VB1560
• Product Type: Ball Shutoff Valve with Pistol Grip
• Inlet Connection: 1" Female Swivel
• Outlet Connection: 1" Male Threaded
• Thread Options: NST (NH) or NPSH
• Material: Hard-Anodized E-Lite Aluminum
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Available Configurations:
• NST (NH) with Composite Bail Handle
• NST (NH) with Cast Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Cast Metal Bail Handle
• Pistol Grip: Removable
• Weight: 2.50 lbs
• Dimensions: 7" W x 9" H x 5" D
• Compatible With: C&S Nozzle Tips
• Application: Wildland Firefighting, Forestry Operations, Structural Firefighting, and Water Delivery Applications
• Combo Options: Available with Optional Nozzle Tip Packages
