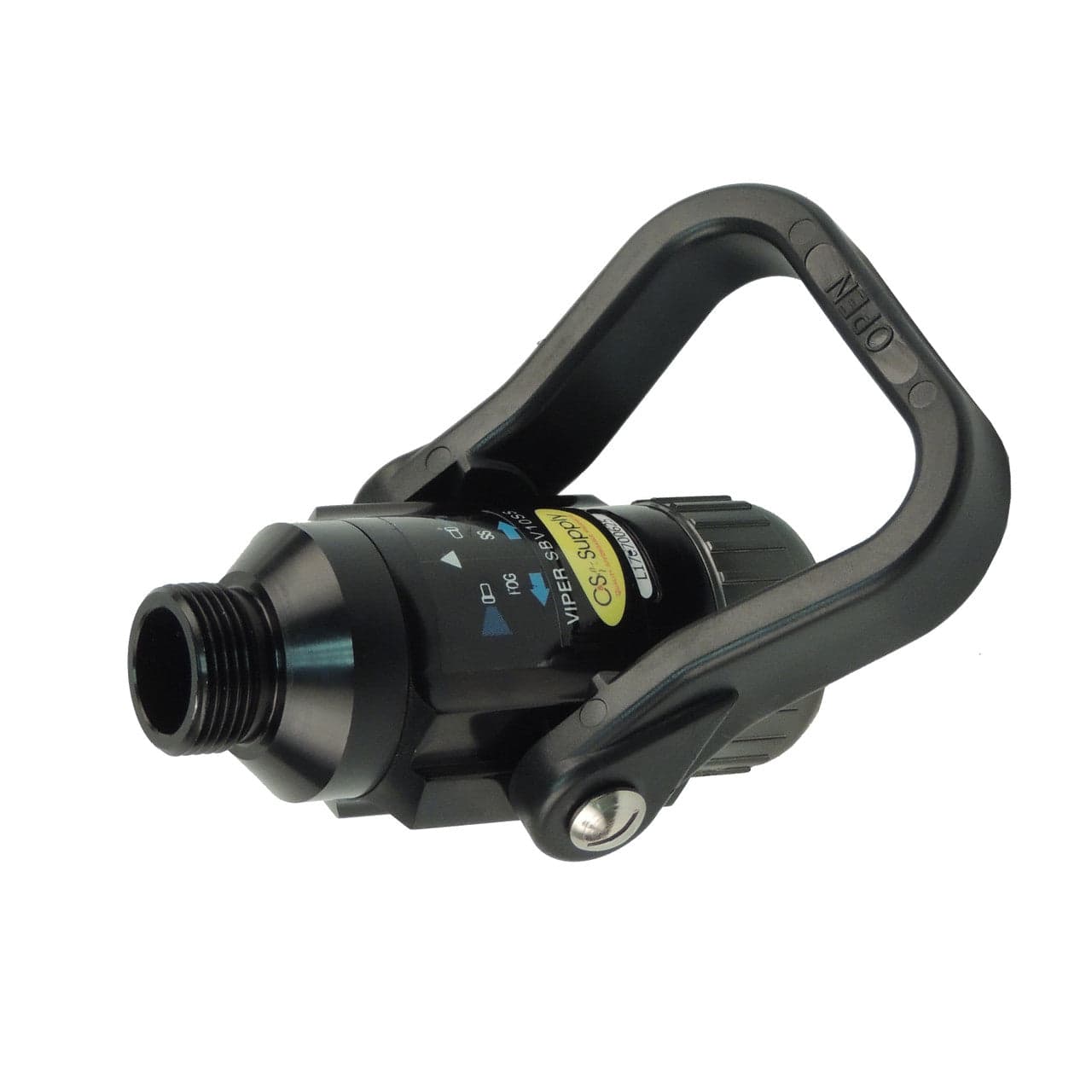

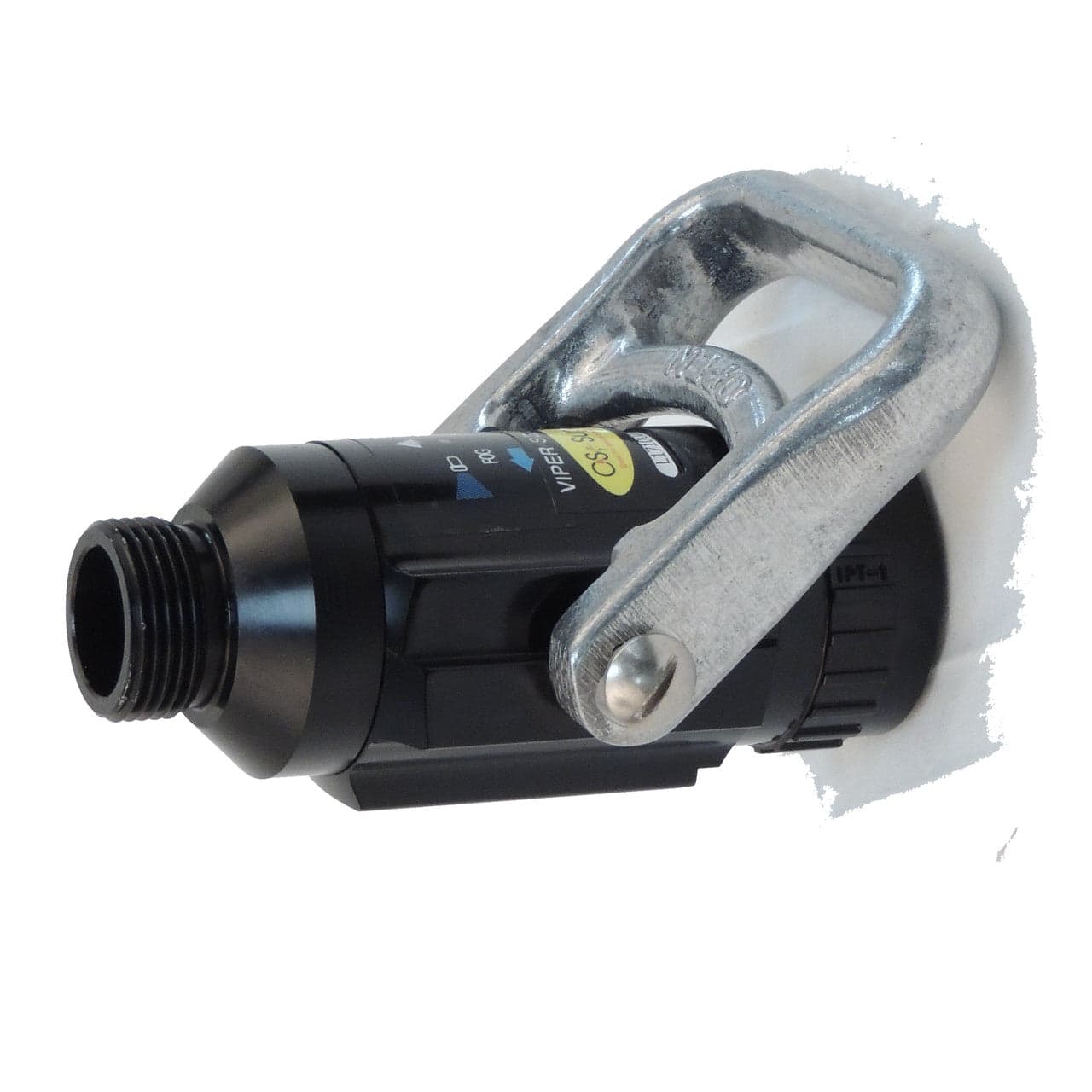

The C&S Supply 1" Forestry Ball Shutoff Valve – No Pistol Grip is designed to provide dependable water control, smooth operation, and lightweight performance for wildland firefighting and forestry applications. Featuring a 1" female swivel inlet, 1" male outlet, and a full 1" waterway, this shutoff valve delivers efficient flow characteristics while maintaining a compact and easy-to-handle design. The no-pistol-grip configuration provides a streamlined profile that is ideal for forestry hose packs, wildland attack lines, and mobile firefighting operations.
Constructed from durable hard-anodized aluminum, the valve utilizes quality polymer ball and seat/seal mechanisms to ensure smooth and reliable operation. Compatible with all C&S 1" nozzle tips, this versatile shutoff valve is available with either NST (NH) or NPSH thread connections and a choice of composite or cast metal bail handles. With four available configurations, departments can select the thread type and handle style that best suits their equipment and operational needs.
Features
• 1" female swivel inlet x 1" male outlet
• No pistol grip configuration for a streamlined design
• Full 1" waterway for efficient flow performance
• Available with NST (NH) or NPSH thread connections
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms

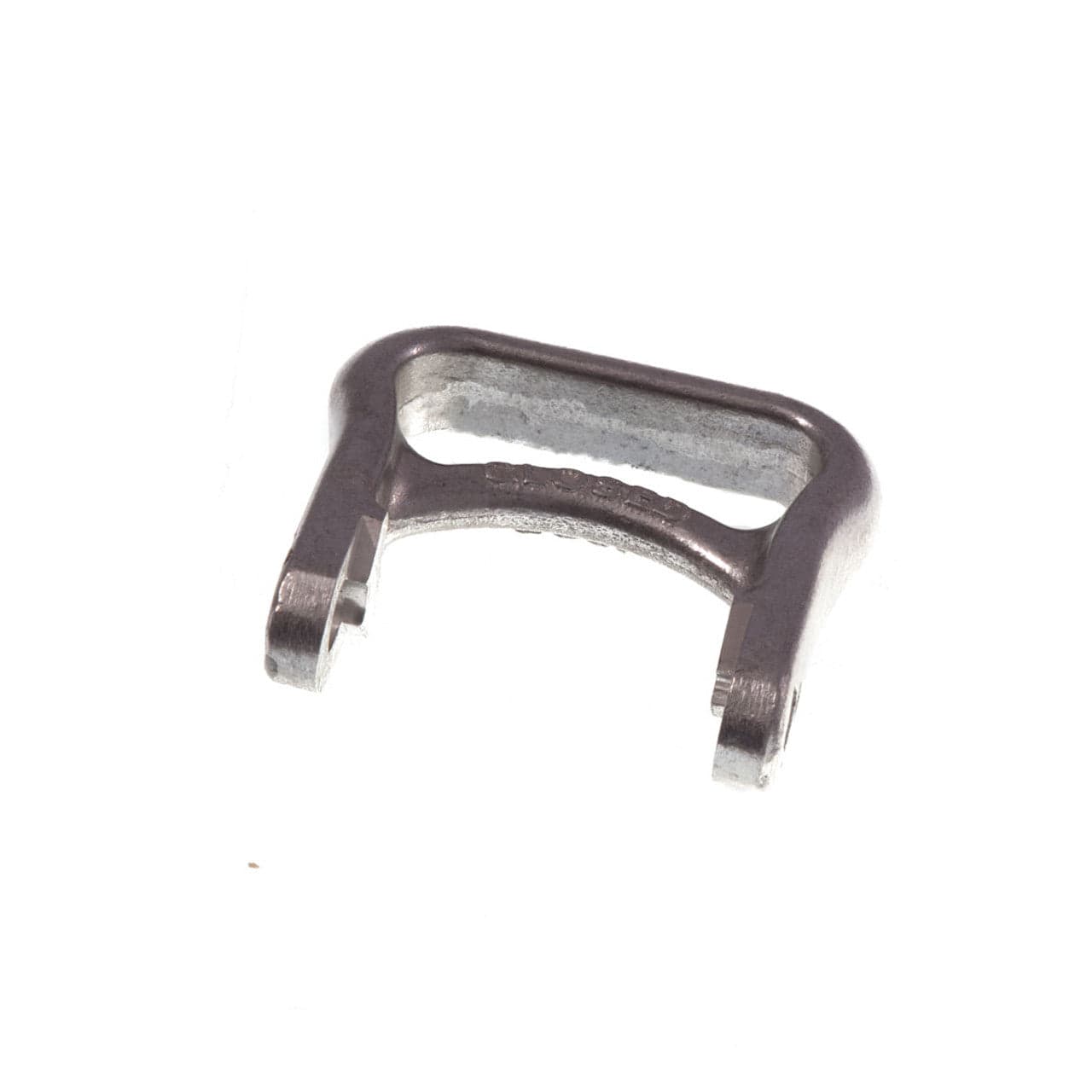

• Available with composite bail handle or cast metal bail handle
• Compatible with all C&S 1" nozzle tips
• Smooth and reliable shutoff operation
• Lightweight, durable, and corrosion-resistant design
Specifications
• Manufacturer: C&S Supply
• Model: SBV10SS
• Product Type: Forestry Ball Shutoff Valve
• Configuration: No Pistol Grip
• Inlet Connection: 1" Female Swivel NST (NH) or NPSH
• Outlet Connection: 1" Male NST (NH) or NPSH
• Waterway Diameter: 1"
• Material: Hard-Anodized Aluminum
• Ball and Seats: Polymer
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Available Configurations:
• NST (NH) with Composite Bail Handle
• NST (NH) with Cast Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Cast Metal Bail Handle
• Weight: 1.50 lbs
• Dimensions: 7" W x 7" H x 4" D
• Compatible With: All C&S 1" Nozzle Tips
• Application: Wildland Firefighting, Forestry Operations, Brush Fire Suppression, and Water Delivery Applications
