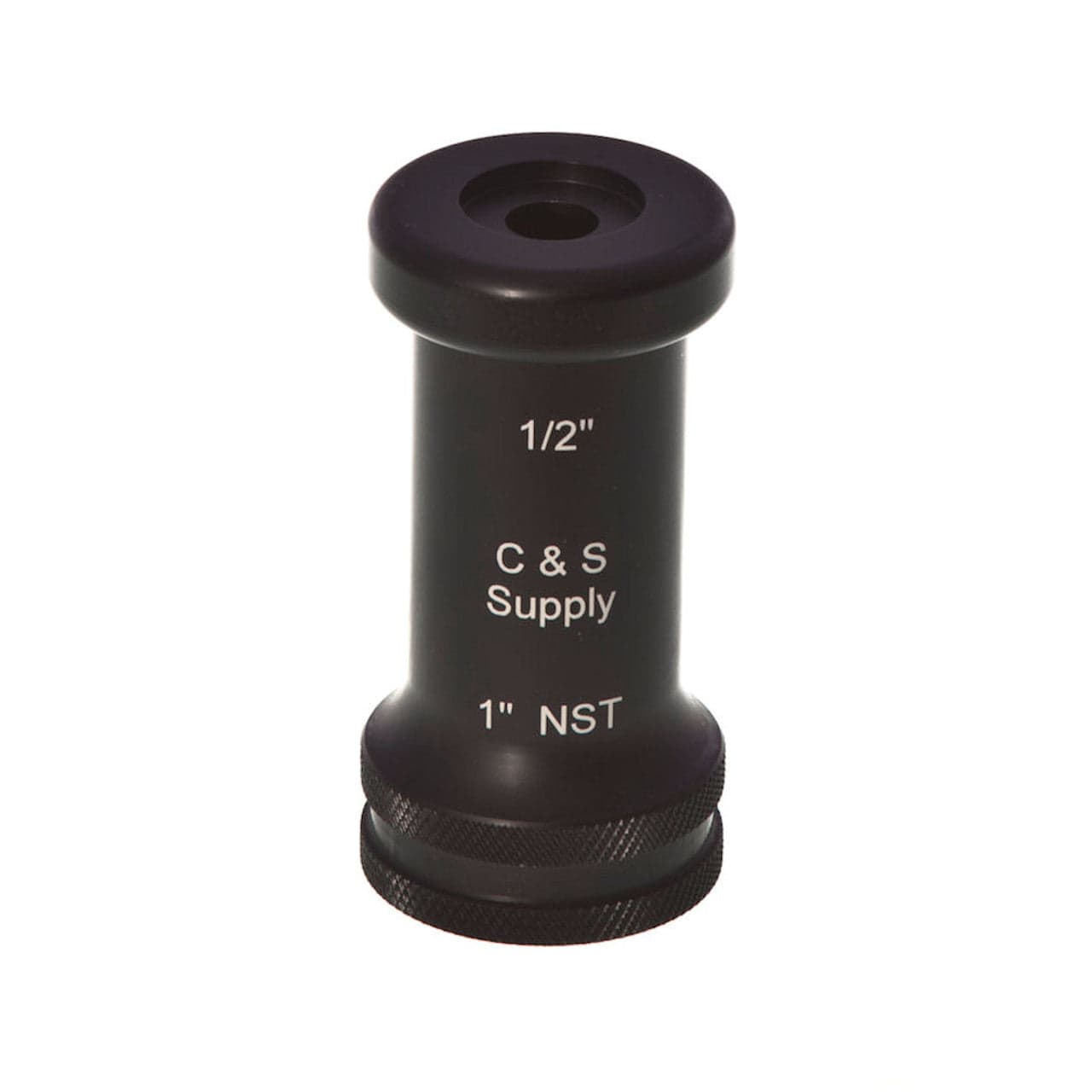

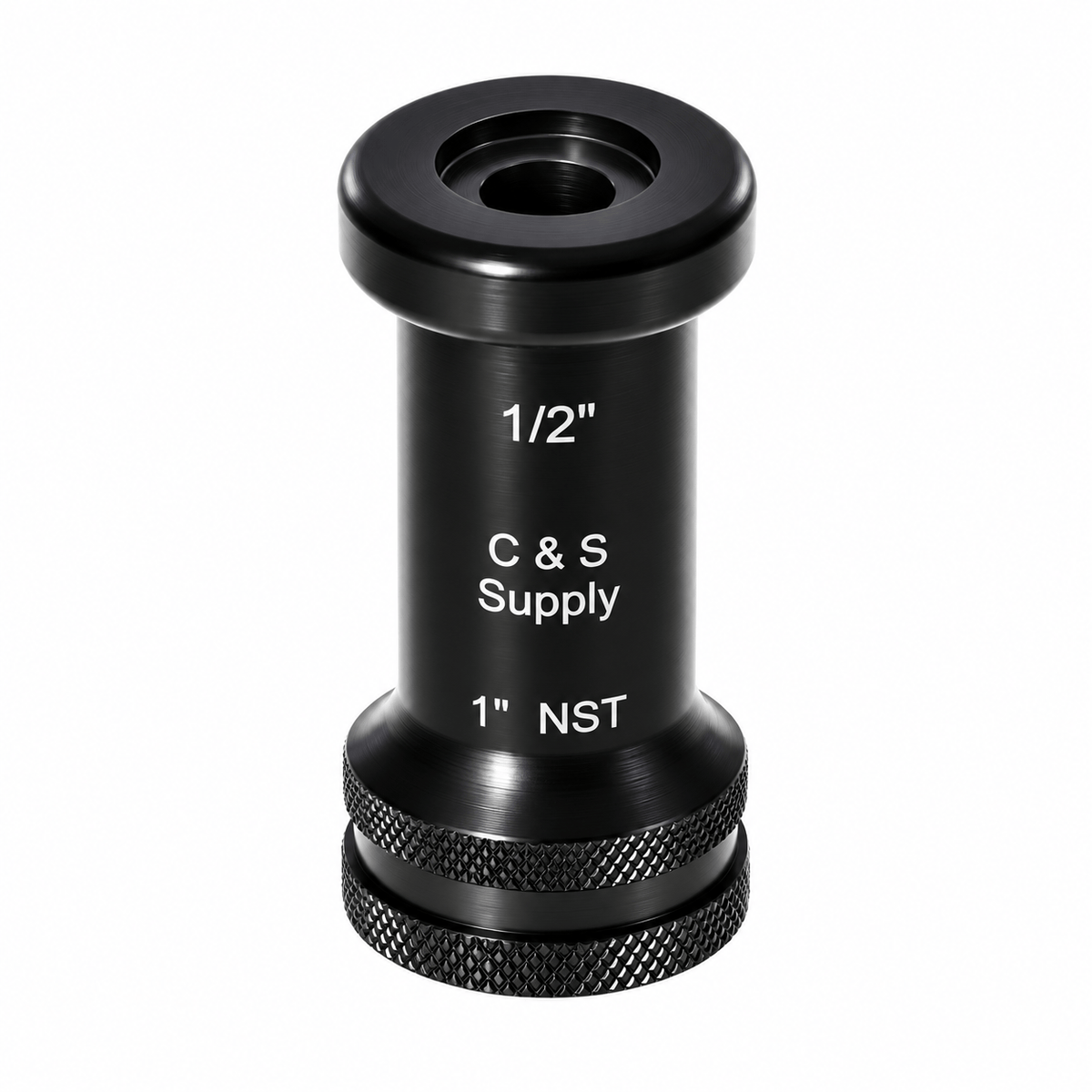

The C&S Supply 1" Straight Bore Nozzle with 1/2" Outlet is designed to provide excellent stream reach, penetration, and flow efficiency for firefighting and CAFS applications. Featuring a precision-machined 1/2" smooth bore outlet, this nozzle produces a solid, high-quality stream that delivers effective water application while maintaining low turbulence and superior stream integrity.
Constructed from rugged hard-anodized aluminum, this nozzle tip is lightweight, corrosion-resistant, and built to withstand demanding fireground conditions. The gradual internal taper is engineered to optimize stream quality and maximize nozzle performance. Available with either 1" NST (NH) or NPSH inlet threads, this nozzle is well-suited for both traditional smooth bore firefighting and CAFS operations.
Features
• Precision-machined 1/2" smooth bore outlet
• Available with 1" NST (NH) or NPSH inlet threads
• Suitable for CAFS and smooth bore firefighting operations
• Rugged hard-anodized aluminum construction
• Lightweight yet highly durable design
• Gradual internal taper for enhanced stream quality
• Corrosion-resistant finish
• Maximizes reach, penetration, and flow efficiency
• Designed for dependable fireground performance
Specifications
• Manufacturer: C&S Supply
• Model: 1 ST BR 1/2"
• Product Type: Straight Bore Nozzle Tip
• Inlet Connection: 1" NST (NH) or NPSH
• Outlet Size: 1/2"
• Material: Hard-Anodized Aluminum
• Flow Rate: 48 GPM @ 40 PSI
• Flow Rate: 54 GPM @ 50 PSI
• Flow Rate: 57 GPM @ 60 PSI
• Flow Rate: 66 GPM @ 80 PSI
• Flow Rate: 75 GPM @ 100 PSI
• Weight: 0.80 lbs
• Dimensions: 4" W x 4" H x 5" D
• Application: CAFS Operations, Smooth Bore Firefighting, and Water Delivery Operations
