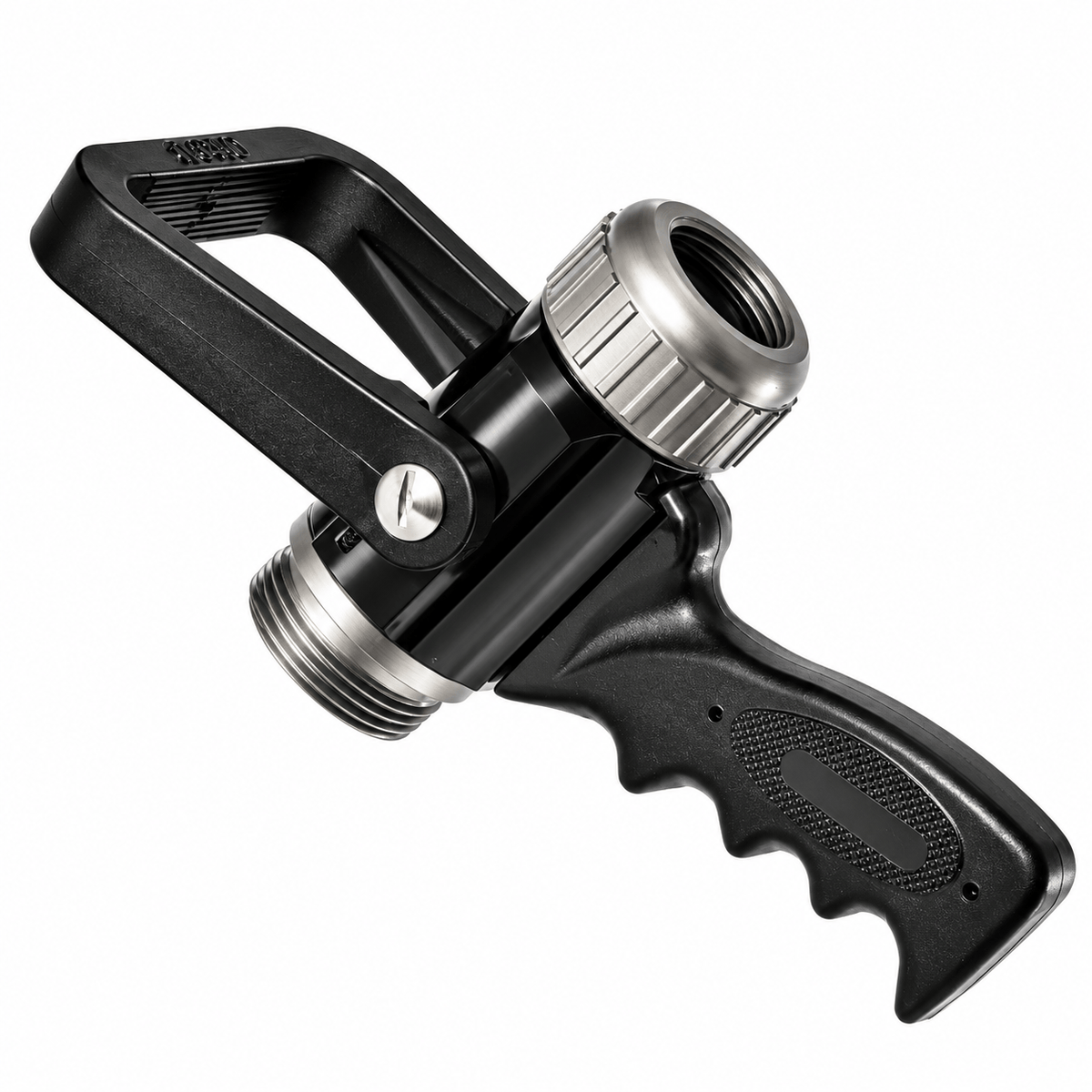

The C&S Supply 1" x 1-1/2" Ball Shutoff Valve with Pistol Grip is designed to provide dependable water control, smooth operation, and versatile flow management for firefighting and water delivery applications. Featuring a 1" female swivel inlet, 1-1/2" male outlet, and a full 1" waterway, this shutoff valve delivers efficient flow performance while allowing firefighters to adapt hose and nozzle configurations as operational needs change. The integrated pistol grip provides enhanced handling and control, helping operators maintain a secure grip during demanding firefighting operations.
Constructed from durable hard-anodized aluminum, the valve utilizes quality polymer ball and seat/seal mechanisms to ensure smooth and reliable operation. The pistol grip can be easily removed when desired, allowing the valve to be configured to suit specific operational requirements. Compatible with all C&S nozzle tips, this versatile shutoff valve is available in four configurations: NST (NH) with composite bail handle, NST (NH) with cast metal bail handle, NPSH with composite bail handle, and NPSH with cast metal bail handle.
Features
• 1" female swivel inlet x 1-1/2" male outlet
• Integrated pistol grip for enhanced handling and control
• Pistol grip can be easily removed if desired
• Full 1" waterway for efficient flow performance
• Available with NST (NH) or NPSH thread connections
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms
• Available with composite bail handle or cast metal bail handle
• Compatible with all C&S nozzle tips
• Lightweight, durable, and corrosion-resistant design
Specifications
• Manufacturer: C&S Supply
• Model: VB10/15
• Product Type: Ball Shutoff Valve with Pistol Grip
• Inlet Connection: 1" Female Swivel
• Outlet Connection: 1-1/2" Male
• Thread Options: NST (NH) or NPSH
• Waterway Diameter: 1"
• Material: Hard-Anodized Aluminum
• Ball and Seats: Polymer
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Available Configurations:
• NST (NH) with Composite Bail Handle
• NST (NH) with Cast Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Cast Metal Bail Handle
• Pistol Grip: Removable
• Weight: 2.50 lbs
• Dimensions: 7" W x 9" H x 5" D
• Compatible With: All C&S Nozzle Tips
• Application: Structural Firefighting, Wildland Firefighting, CAFS Operations, and Water Delivery Applications
