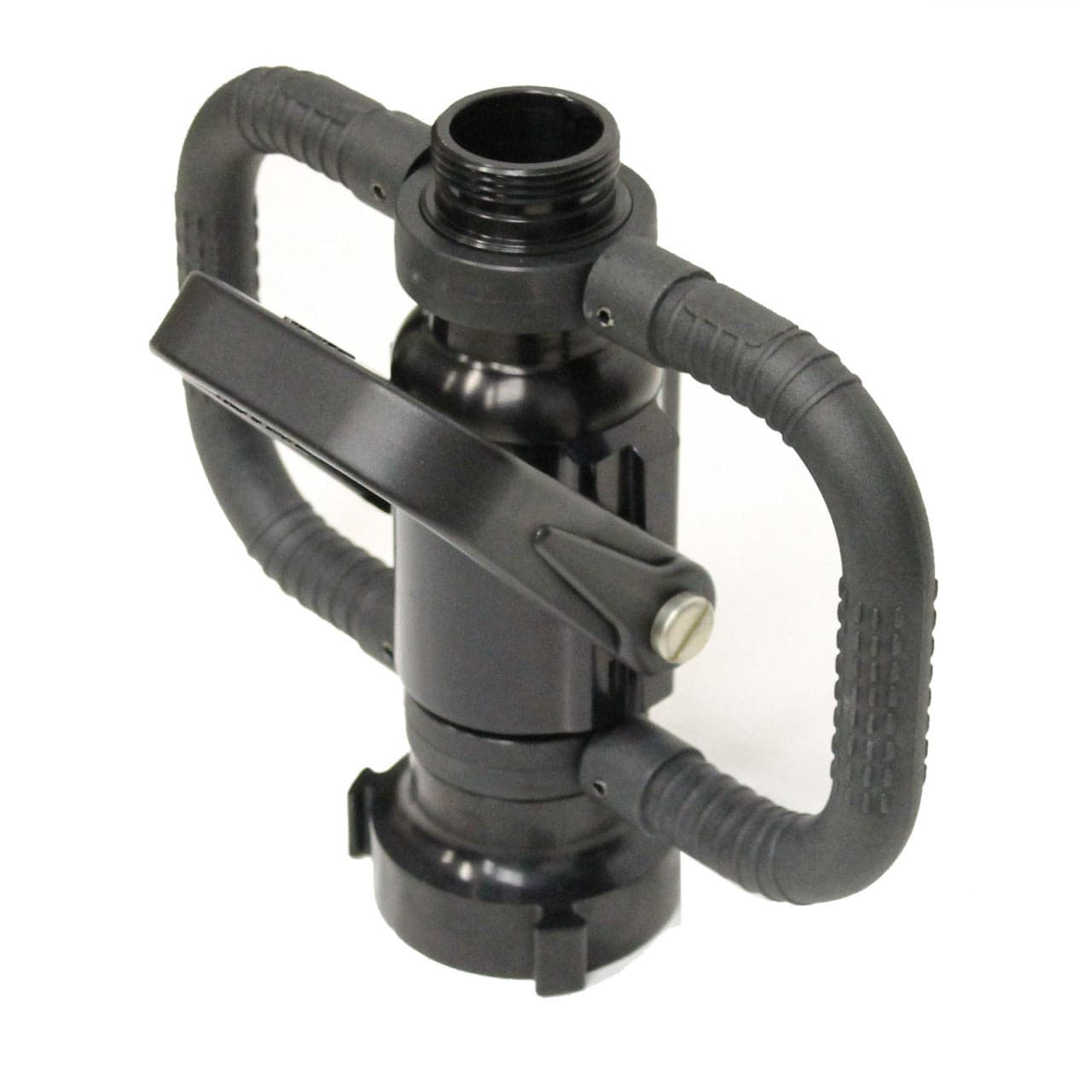

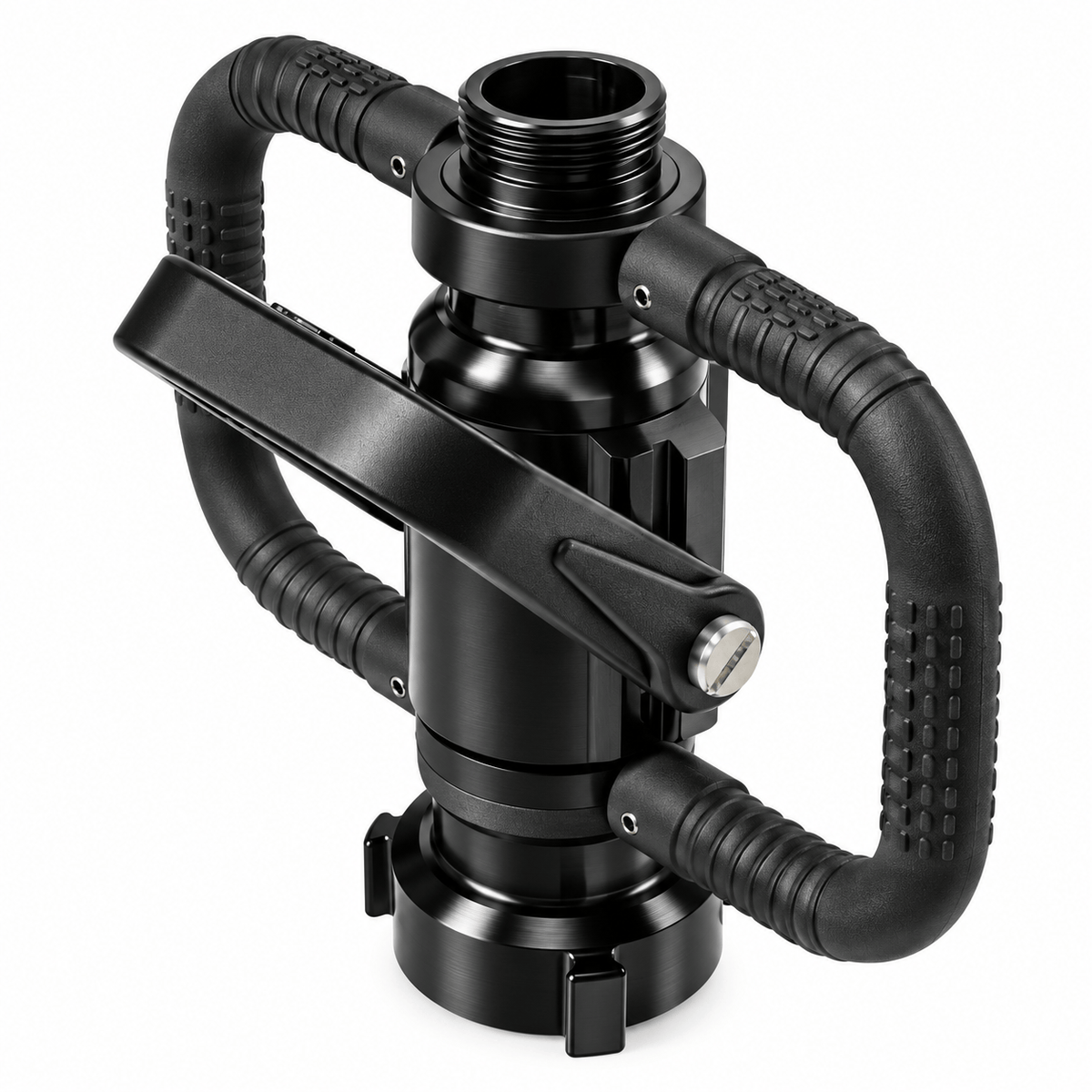

The C&S Supply 2-1/2" x 1-1/2" Ball Shutoff with Axial Play Pipe is designed to provide smooth water control and efficient nozzle operation for high-flow firefighting applications. Featuring a 2-1/2" female swivel inlet and a 1-1/2" male outlet, this axial play pipe assembly allows firefighters to easily direct and control large-volume water streams while maintaining excellent flow characteristics.
Constructed from durable hard-anodized aluminum, this play pipe features a full 1-3/8" waterway and an upgraded metal ball design that creates a smoother water path and helps minimize friction loss. Quality polymer ball and seat mechanisms ensure reliable shutoff performance, while the valve body is compatible with either a composite bail handle or a cast metal bail handle to suit department preferences. Compatible with all C&S nozzle tips, this versatile play pipe assembly is ideal for structural firefighting, master stream support, and high-flow attack operations.
Features
• 2-1/2" female swivel inlet x 1-1/2" male outlet
• Axial play pipe with integrated ball shutoff valve
• Full 1-3/8" waterway for maximum flow efficiency
• Upgraded metal ball for smoother water flow
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms

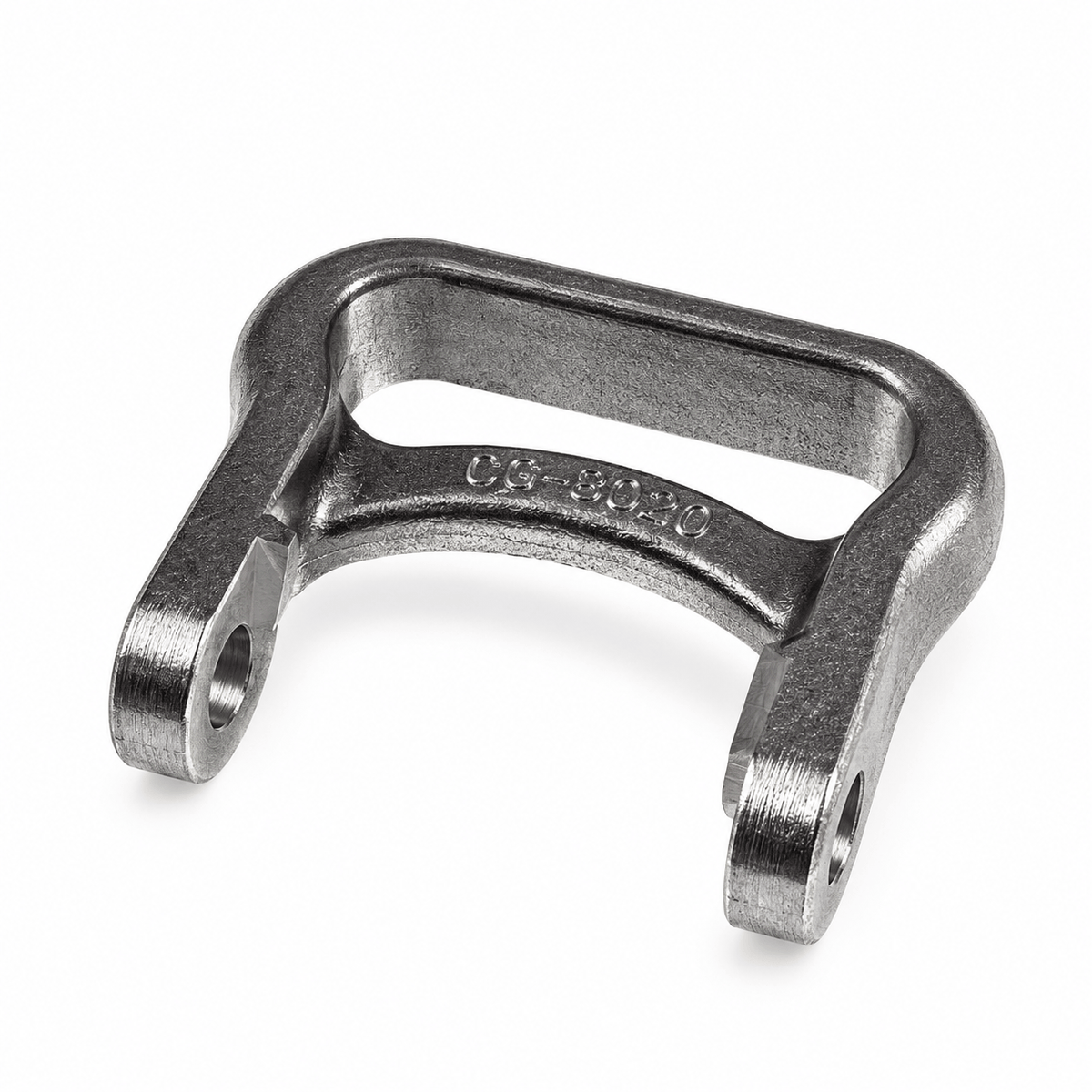

• Available with composite bail handle or cast metal bail handle
• Compatible with all C&S nozzle tips
• Durable, lightweight, and corrosion-resistant design
• Ideal for high-flow firefighting applications
Specifications
• Manufacturer: C&S Supply
• Model: VBPP9520-2.5
• Product Type: Ball Shutoff with Axial Play Pipe
• Inlet Connection: 2-1/2" Female Swivel
• Outlet Connection: 1-1/2" Male
• Waterway Diameter: 1-3/8"
• Material: Hard-Anodized Aluminum
• Ball Type: Upgraded Metal Ball
• Ball and Seats: Polymer
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Weight: 5.00 lbs
• Dimensions: 12" W x 12" H x 9" D
• Application: Structural Firefighting, High-Flow Attack Lines, and Water Delivery Operations
