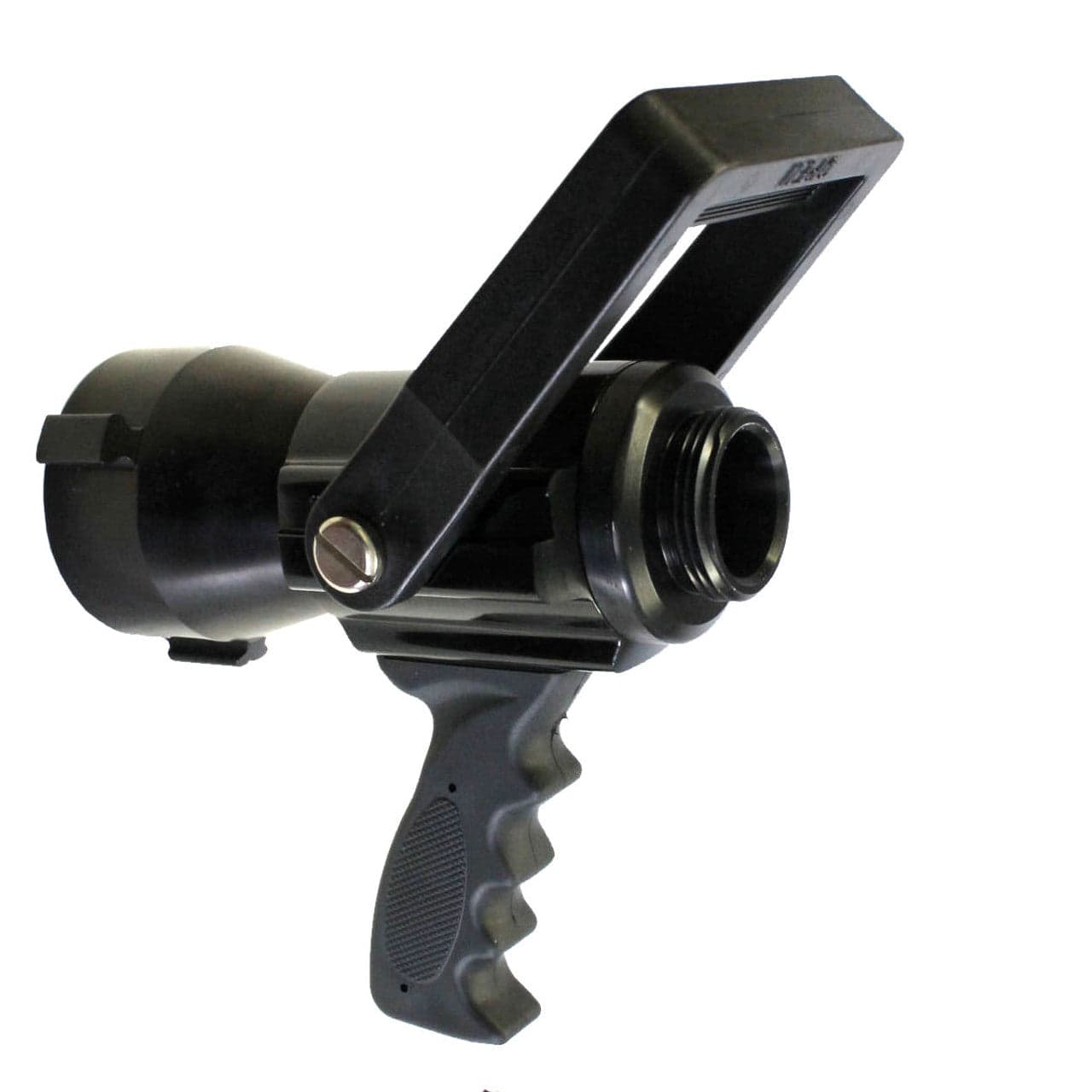

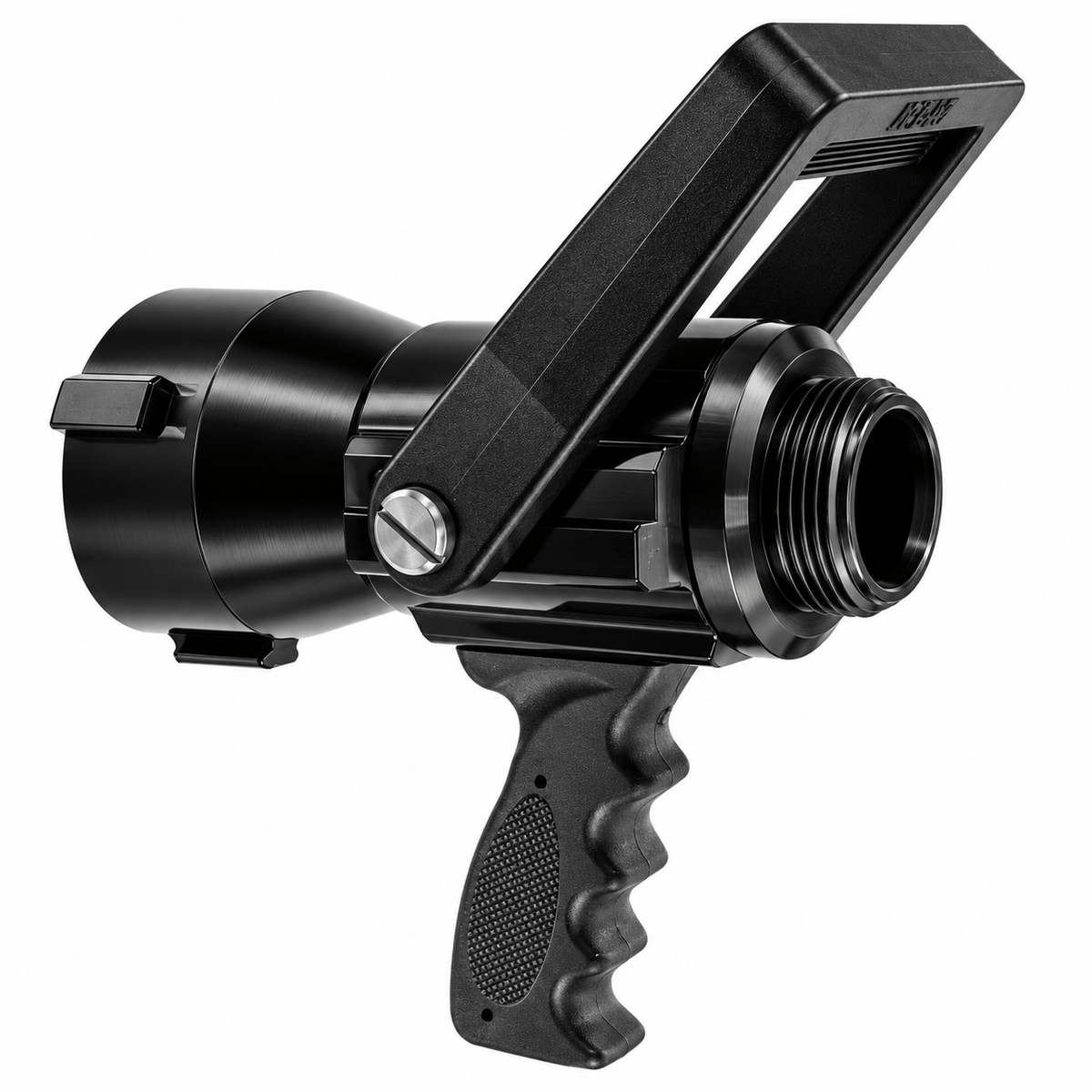

The C&S Supply 2-1/2" x 1-1/2" Ball Shutoff with Pistol Grip is designed to provide reliable water control and maximum flow efficiency for high-volume firefighting operations. Featuring a 2-1/2" female swivel inlet, 1-1/2" male outlet, and a full 1-3/8" waterway, this shutoff valve delivers exceptional flow characteristics while minimizing friction loss through the valve body. The integrated pistol grip enhances nozzle handling and control, making it easier for firefighters to manage high-flow attack lines.
Constructed from durable hard-anodized aluminum, the valve utilizes quality polymer ball and seat/seal mechanisms to ensure smooth, dependable operation. The pistol grip can be easily removed when desired, providing flexibility for different operational preferences. Available with either a lightweight composite bail handle or a rugged cast metal bail handle, this shutoff valve is built to withstand demanding fireground conditions while maintaining reliable performance.
Features
• 2-1/2" female swivel inlet x 1-1/2" male outlet
• Integrated pistol grip for enhanced handling and control
• Pistol grip can be easily removed if desired
• Full 1-3/8" waterway for maximum flow efficiency
• 2-1/2" NST inlet connection
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms
• Available with composite bail handle or cast metal bail handle
• Smooth and reliable shutoff operation
• Durable and corrosion-resistant design
Specifications
• Manufacturer: C&S Supply
• Model: VB9520 2.5
• Product Type: Ball Shutoff Valve with Pistol Grip
• Inlet Connection: 2-1/2" Female Swivel NST (NH)
• Outlet Connection: 1-1/2" Male
• Waterway Diameter: 1-3/8"
• Material: Hard-Anodized Aluminum
• Ball and Seats: Polymer
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Pistol Grip: Removable
• Weight: 5.00 lbs
• Dimensions: 9" W x 12" H x 6" D
• Application: Structural Firefighting, High-Flow Attack Lines, Play Pipe Assemblies, and Water Delivery Operations
