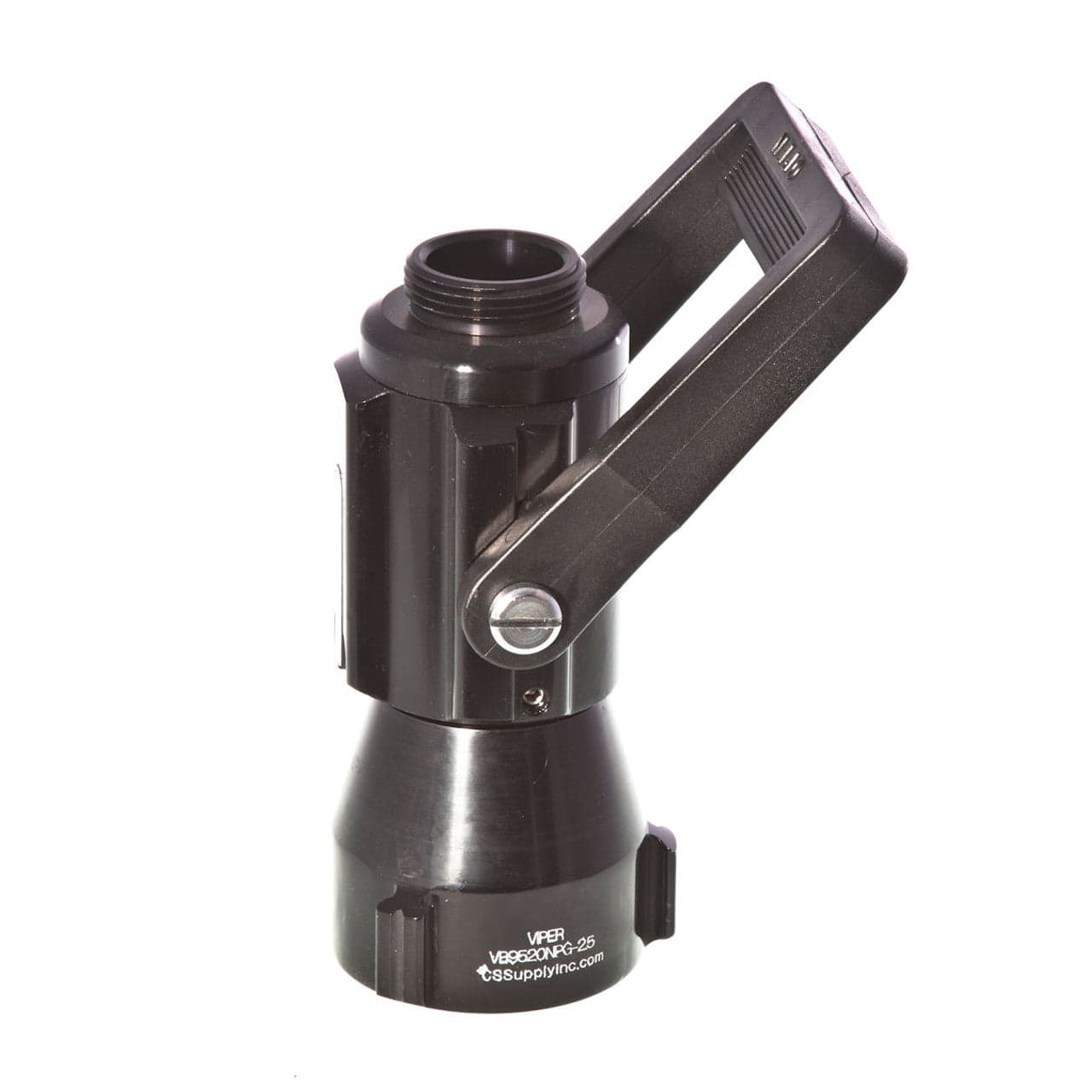

The 2-1/2" x 1-1/2" Ball Shutoff Valve – No Pistol Grip is designed to provide reliable water control and maximum flow efficiency for high-volume firefighting operations. Featuring a 2-1/2" female swivel inlet, 1-1/2" male outlet, and a full 1-3/8" waterway, this shutoff valve delivers exceptional flow characteristics while minimizing friction loss through the valve body.
Constructed from durable hard-anodized aluminum, the valve incorporates quality polymer ball and seat mechanisms for smooth, dependable operation. The upgraded design is built for demanding fireground conditions and is available with either a lightweight composite bail handle or a rugged cast metal bail handle to match department preferences. Designed without a pistol grip, this valve provides a streamlined configuration for use with play pipes, smooth bore tips, and other nozzle assemblies.
Features
• 2-1/2" female swivel inlet x 1-1/2" male outlet
• No pistol grip configuration
• Full 1-3/8" waterway for maximum flow efficiency
• 2-1/2" NST inlet connection
• Hard-anodized aluminum construction
• Quality polymer ball and seat/seal mechanisms
• Available with composite bail handle or cast metal bail handle
• Smooth and reliable shutoff operation
• Corrosion-resistant and lightweight design
• Compatible with a variety of firefighting nozzle assemblies
Specifications
• Manufacturer: C & S Supply
• Model: VB9520 2.5 NPG
• Product Type: Ball Shutoff Valve
• Configuration: No Pistol Grip
• Inlet Connection: 2-1/2" Female Swivel NST (NH)
• Outlet Connection: 1-1/2" Male
• Waterway Diameter: 1-3/8"
• Material: Hard-Anodized Aluminum
• Ball and Seats: Polymer
• Handle Options: Composite Bail Handle or Cast Metal Bail Handle
• Weight: 5.00 lbs
• Dimensions: 9" W x 12" H x 6" D
• Application: Structural Firefighting, High-Flow Attack Lines, Play Pipe Assemblies, and Water Delivery Operations
