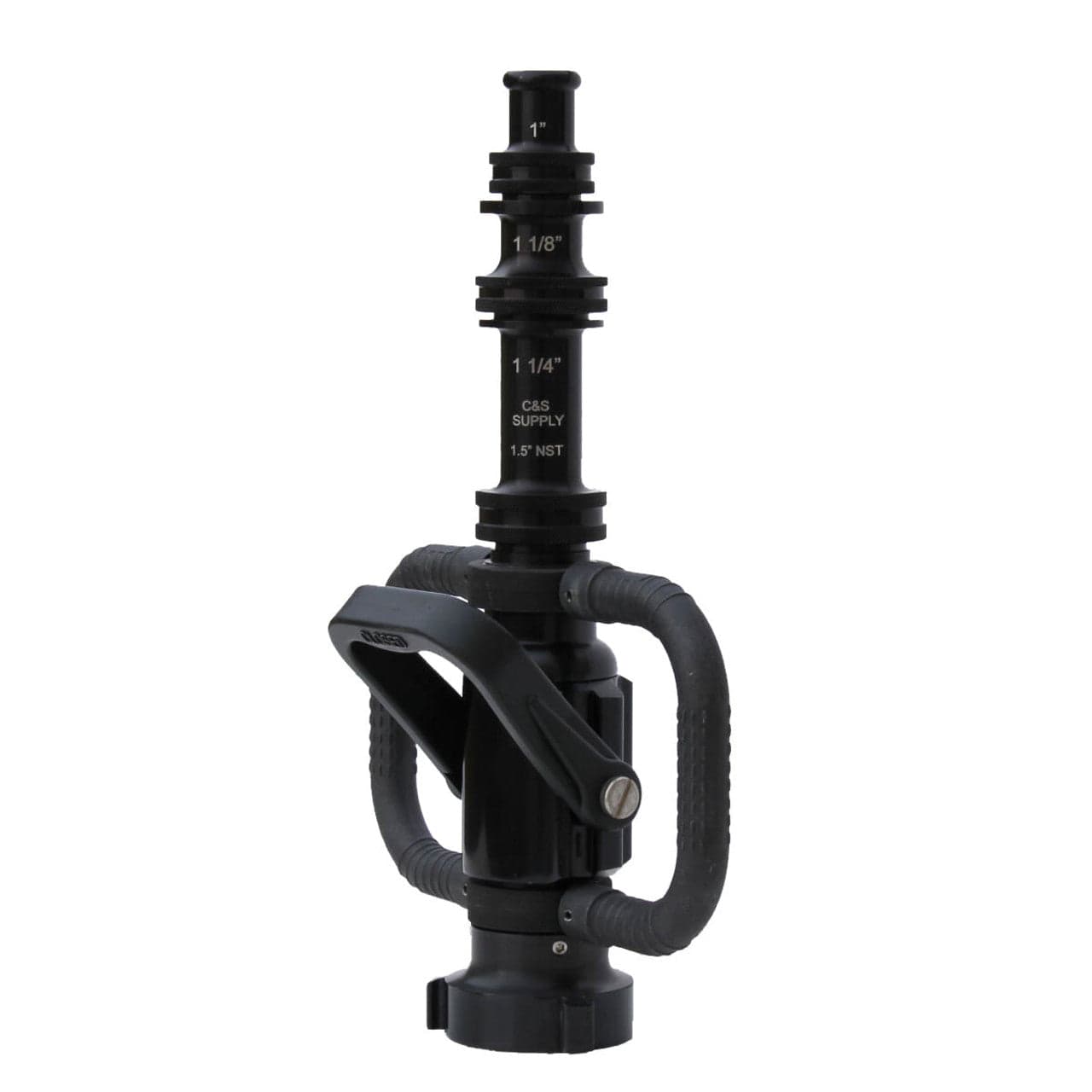

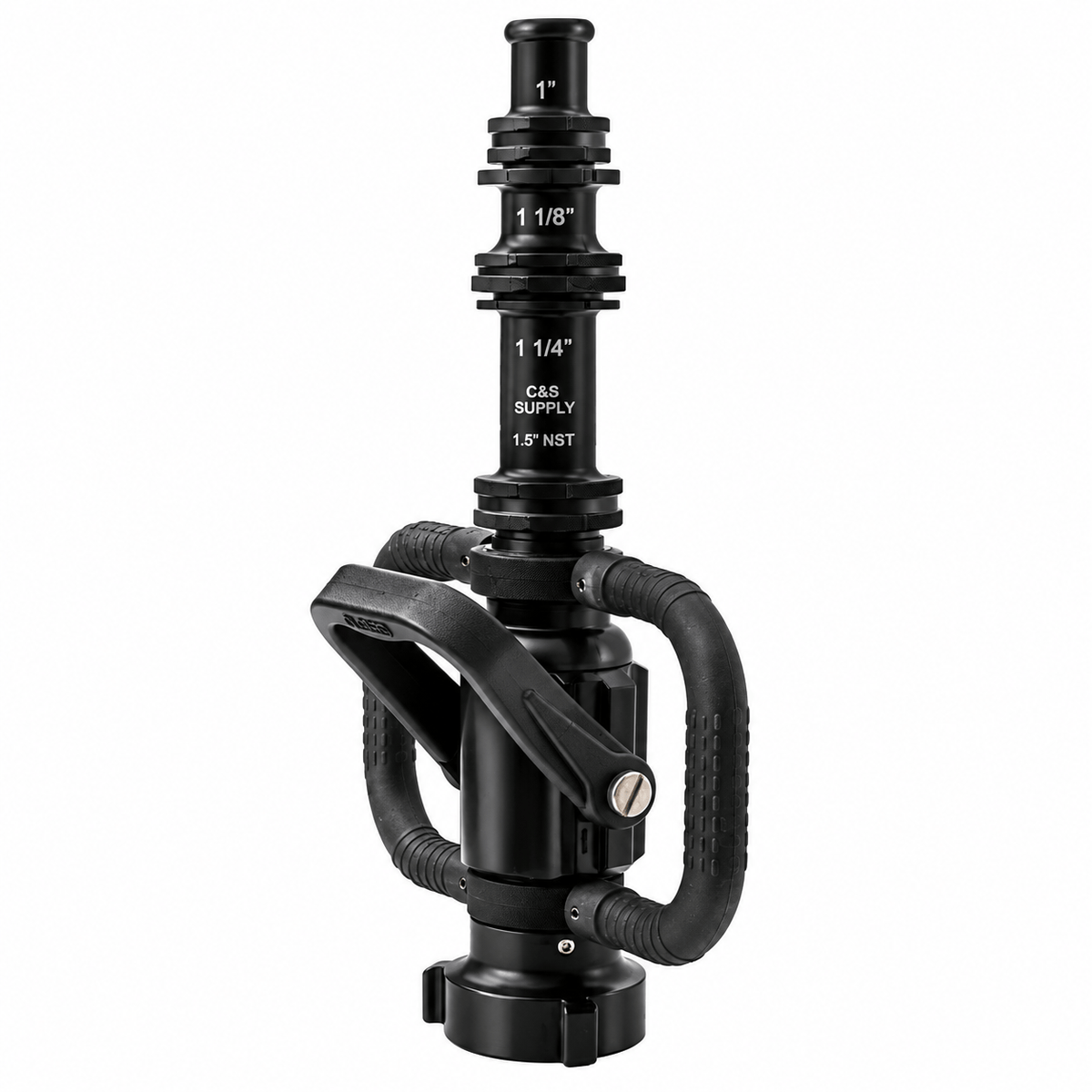

The C&S Supply 2.5" x 1.5" Play Pipe with Triple Stack Tips is a high-flow smooth bore nozzle assembly designed for maximum stream performance in structural firefighting and water delivery operations. Combining a 2.5" swivel ball shutoff valve, axial play pipe, and triple-stack smooth bore tip assembly, this unit provides firefighters with multiple flow options while maintaining the reach, penetration, and stream quality that smooth bore nozzles are known for.
Constructed from hard-anodized aluminum, the VBPP-STT1-COMBO is lightweight, durable, and built to withstand demanding fireground conditions. The integrated ball shutoff valve features a full 1-3/8" waterway for efficient flow, while the STT-1 triple-stack tip allows operators to quickly select between 1-1/4", 1-1/8", and 1" smooth bore outlets to match available water supply and operational requirements.
Features
• Complete play pipe and smooth bore nozzle assembly
• 2.5" NST female swivel inlet with integrated ball shutoff valve
• Axial play pipe design for improved stream control
• Full 1-3/8" waterway for efficient water flow
• STT-1 triple-stack smooth bore tip included
• Includes 1-1/4", 1-1/8", and 1" smooth bore outlets
• Hard-anodized aluminum construction
• Lightweight and corrosion-resistant design
• Multiple tip sizes allow flow adjustments to match water supply conditions
• Designed for smooth bore firefighting operations
• Durable construction for long service life
Specifications
• Manufacturer: C&S Supply
• Model: VBPP-STT1-COMBO
• Product Type: Play Pipe with Triple Stack Tips
• Inlet Connection: 2.5" Female NST (NH) Swivel
• Waterway Size: 1-3/8"
• Valve Type: Ball Shutoff Valve
• Included Tip Assembly: STT-1 Triple Stack Tip
• Tip Outlet Sizes: 1-1/4", 1-1/8", and 1"
• Construction: Hard-Anodized Aluminum
• Weight: 7.20 lbs
• Application: Structural Firefighting, Water Transfer, and High-Flow Smooth Bore Operations
