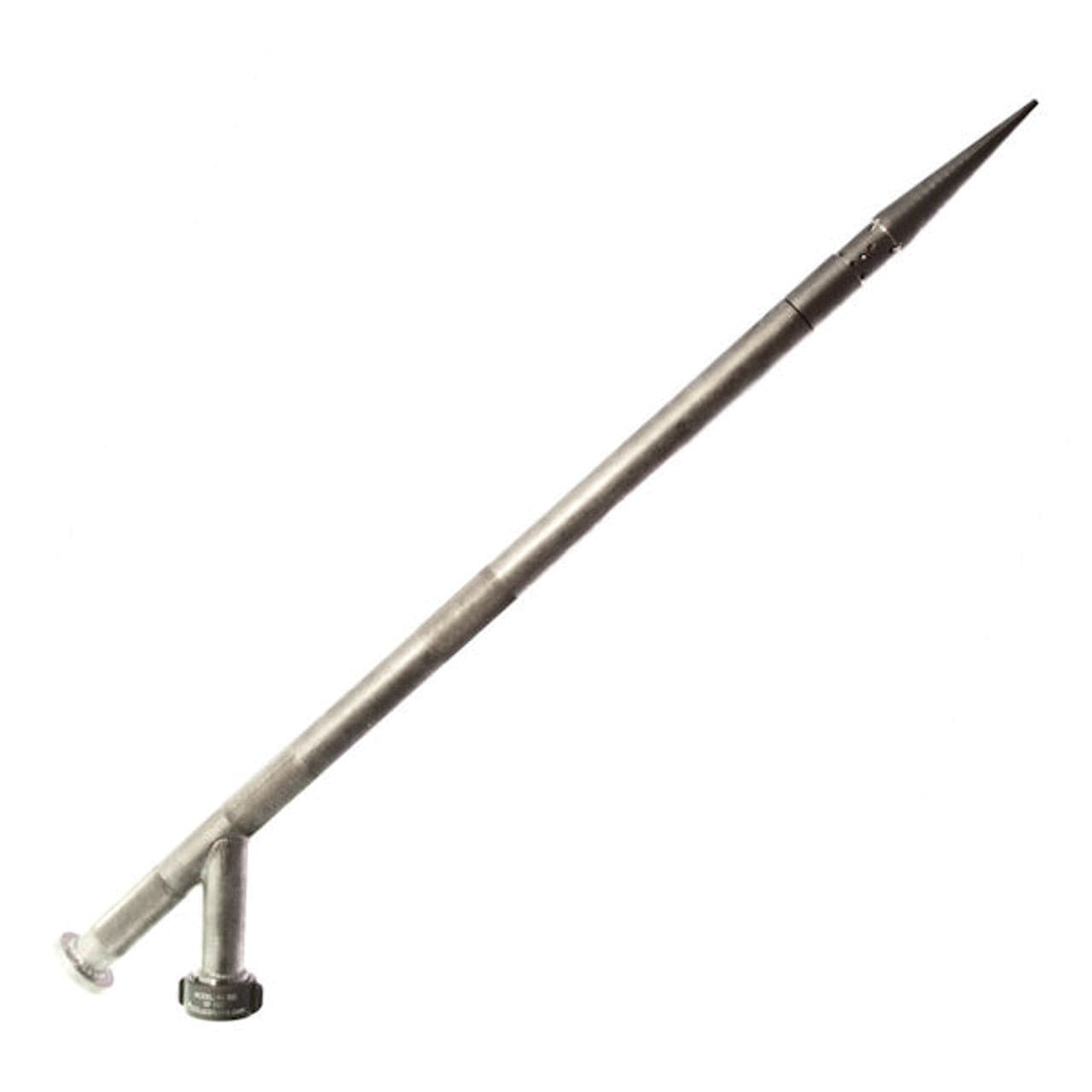

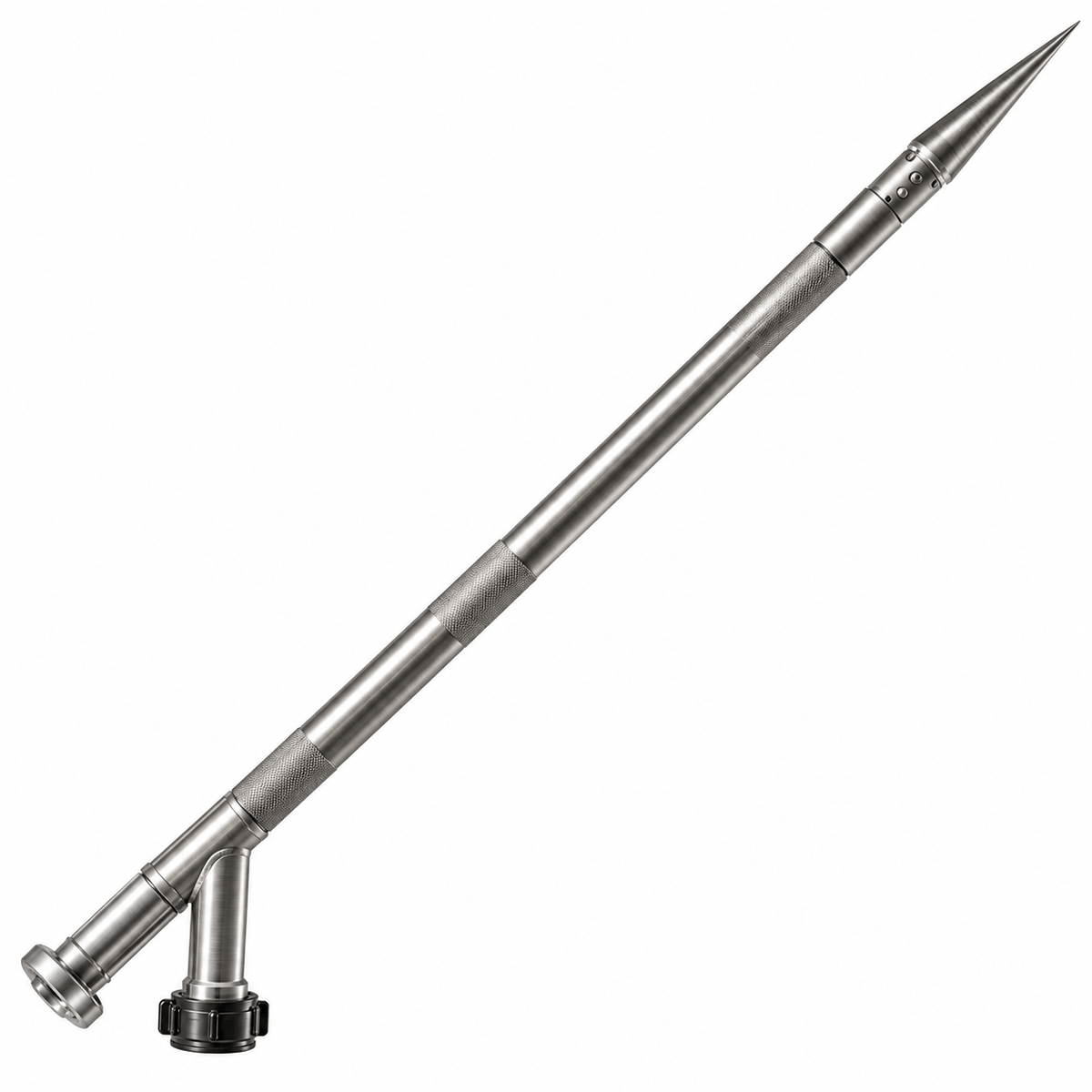

The PN-100 Piercing Nozzle is designed to deliver water directly into concealed spaces, structural voids, vehicle compartments, and other hard-to-reach fire areas. By penetrating barriers and applying water precisely where it is needed, the PN-100 helps firefighters attack hidden fire conditions while reducing the need for extensive overhaul and property damage.
Constructed entirely from stainless steel, the PN-100 is built to withstand demanding firefighting environments. The nozzle features a removable penetrating tip for easy replacement, a reinforced striking plate for driving the nozzle through surfaces, and recessed spray holes that help prevent debris from clogging the waterway. Its unique spray pattern delivers coverage from 60° forward to 10° backward, allowing water to be distributed throughout concealed fire areas for effective suppression.
Features
• Full stainless steel construction
• Removable penetrating tip for easy replacement
• Reinforced striking plate for penetration operations
• Recessed spray holes help keep debris out
• Spray pattern provides coverage from 60° forward to 10° backward
• Designed for concealed space and void fire suppression
• Delivers water directly to hidden fire areas
• Durable construction for demanding firefighting applications
• Available with 1.5" NST or NPSH swivel connection
Specifications
• Manufacturer: C & S Supply
• Model: PN-100
• Product Type: Piercing Nozzle
• Construction: Stainless Steel
• Inlet Connection: 1.5" Swivel NST (NH) or NPSH
• Flow Rate: 100 GPM @ 100 PSI
• Flow Rate: 120 GPM @ 150 PSI
• Length: 41"
• Weight: 13.80 lbs
• Dimensions: 8" W x 36" H x 8" D
• Application: Concealed Space Fire Suppression, Vehicle Fires, Structural Voids, and Overhaul Operations
