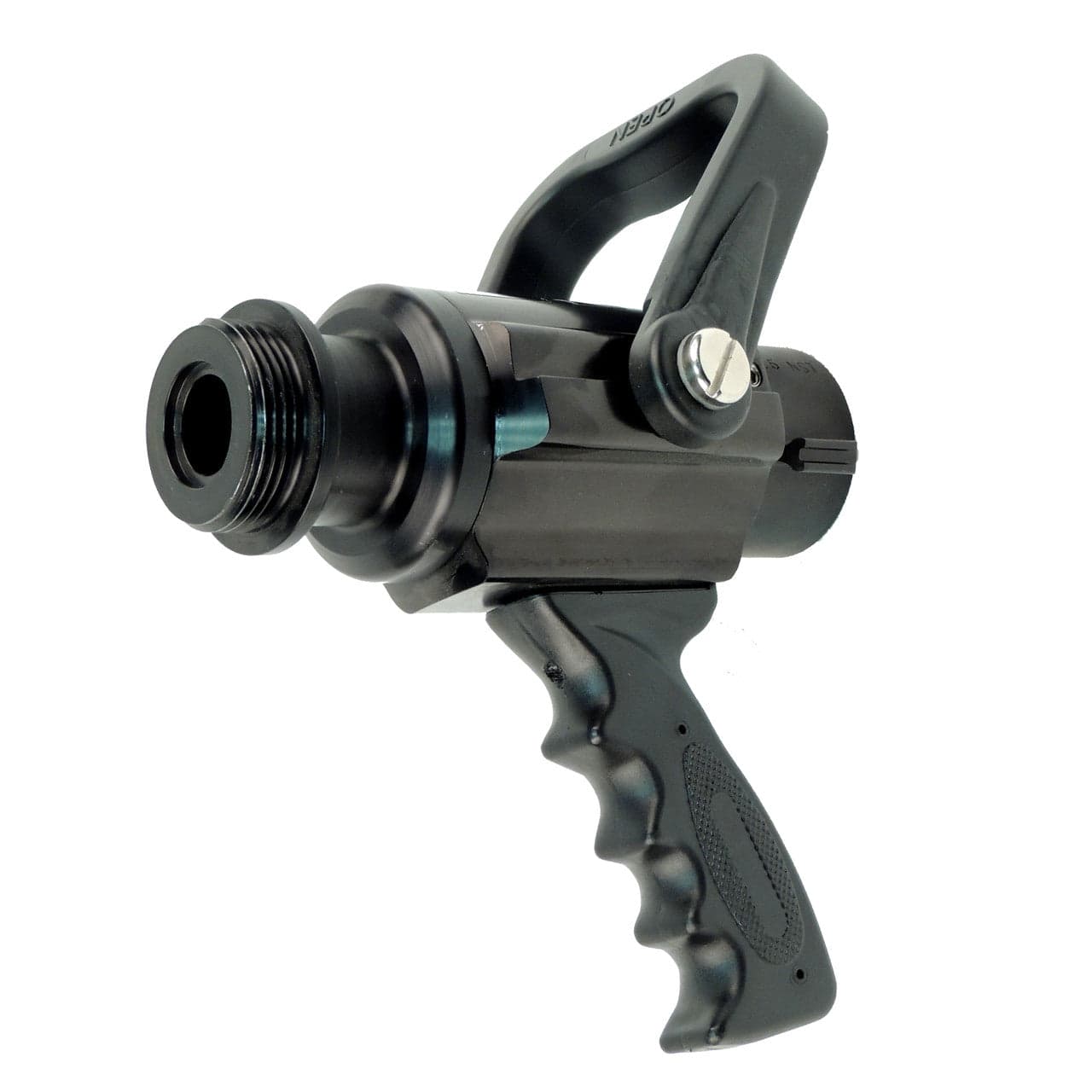

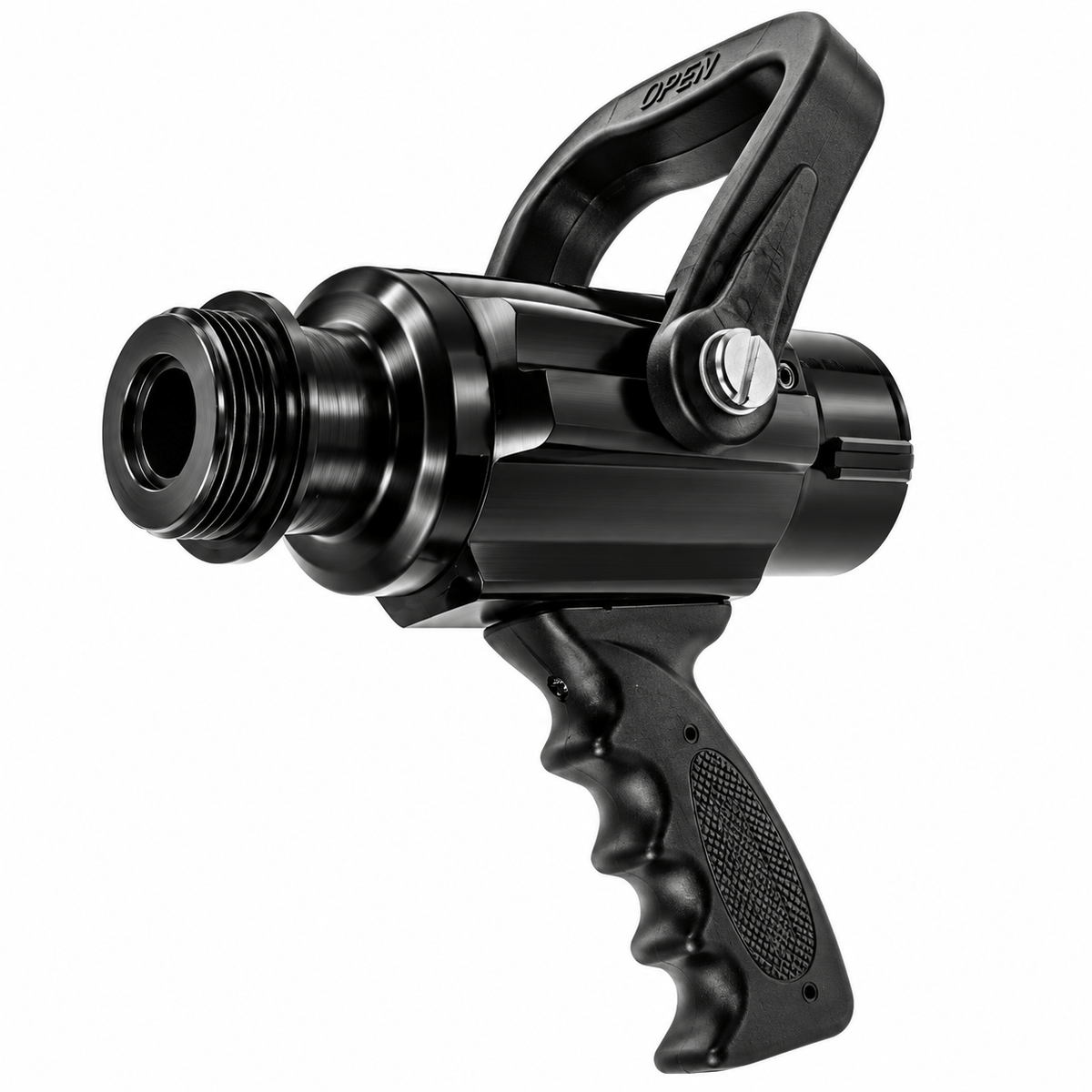

The C&S Supply VIPER 2.0 1-1/2" UltraBore Shutoff with 15/16" Integrated Smooth Bore Tip is engineered to deliver exceptional smooth bore performance, CAFS compatibility, and reliable flow control for demanding firefighting operations. Featuring an integrated 15/16" smooth bore tip rated at 185 GPM at 50 PSI, this nozzle provides outstanding stream quality, reach, and penetration while maintaining the simplicity and effectiveness of a smooth bore design.
Built around a full 1-3/8" waterway, the VIPER 2.0 maximizes water delivery while minimizing friction loss. The advanced dual-drive system ensures smooth operation and long-term durability, while the removable debris inlet screen helps protect internal components and maintain consistent performance. Designed for high-pressure applications, this shutoff nozzle features a maximum working pressure of 580 PSI and is available with NST threads only.
Features
• Integrated 15/16" smooth bore tip
• Rated at 185 GPM at 50 PSI
• Designed for smooth bore and CAFS firefighting operations
• Full 1-3/8" waterway for maximum flow efficiency
• Dual-drive system for smooth and reliable operation
• Removable debris inlet screen for easy maintenance
• Durable construction for demanding fireground conditions
• Low-friction waterway design helps maximize performance
• Maximum working pressure of 580 PSI
• NST thread connection
Specifications
• Manufacturer: C&S Supply
• Model: VBU150-IB185
• Product Type: UltraBore Shutoff with Integrated Smooth Bore Tip
• Inlet Size: 1-1/2" NST (NH)
• Tip Size: 15/16" Integrated Smooth Bore
• Flow Rate: 166 GPM @ 40 PSI
• Flow Rate: 185 GPM @ 50 PSI
• Flow Rate: 202 GPM @ 60 PSI
• Flow Rate: 233 GPM @ 80 PSI
• Flow Rate: 262 GPM @ 100 PSI
• Waterway Diameter: 1-3/8"
• Maximum Working Pressure: 580 PSI
• Weight: 3.20 lbs
• Dimensions: 10" W x 8" H x 5" D
• Features: Dual-Drive System, Removable Debris Inlet Screen
• Application: CAFS Operations, Structural Firefighting, and Smooth Bore Fire Attack Operations
