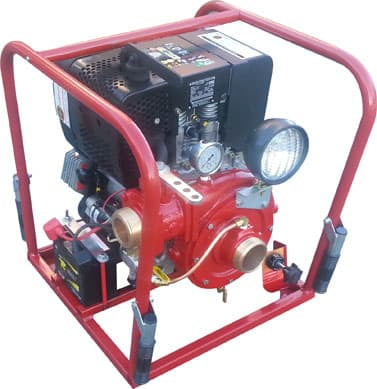

The CET 10 HP High Volume Diesel Powered Pump is a rugged, high-performance firefighting and water transfer pump designed to deliver exceptional flow and dependable diesel-powered operation. Powered by a reliable Hatz 1B40 diesel engine, this pump delivers over 275 GPM and pressures up to 90 PSI, making it ideal for water transfer, tanker filling, rural firefighting, and mobile skid unit applications. The engine and pump are mounted within a durable steel protective frame with folding handles for easy transportation and deployment in demanding environments.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a corrosion-resistant aluminum alloy pump body, bronze impeller, and mechanical shaft seal for long-lasting durability and dependable performance. The electric start system is backed up by a recoil starter for added reliability, while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a swivel spotlight, 14-amp alternator, pressure gauge, vernier throttle, and 12-volt battery, this diesel-powered pump is engineered for dependable service in demanding firefighting operations. A Navy version is also available with a stainless steel frame, anodized pump body, and marinized engine.
Features
• Hatz 1B40 air-cooled diesel engine
• Single-cylinder, 4-stroke diesel engine design
• EPA Tier IV and CARB Tier IV compliant
• 12V electric start with recoil backup
• Heavy-duty steel protective frame with folding handles
• Direct-drive C.E.T. single-stage centrifugal pump
• Corrosion-resistant aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" discharge outlet with Fire Type swing-out valve
• One 2-1/2" suction inlet
• Includes swivel spotlight and vernier throttle
• Includes 14-amp alternator and 12-volt battery
• Pressure gauge included for system monitoring
• Available in a Navy version with marine-duty upgrades
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Diesel Powered Pump
• Model: PFP-10HP-DSL
• Engine: Hatz 1B40
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Diesel
• Emissions Compliance: EPA Tier IV and CARB Tier IV
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 1.32 Gallons (5 L)
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 2-1/2" with Fire Type Swing-Out Valve
• Alternator Output: 14 Amps
• Battery: 12-Volt Included
• Dimensions: 23-3/8" L x 20-1/2" W x 23" H
• Weight: 185 lbs.
• Warranty: 3-Year Limited Warranty

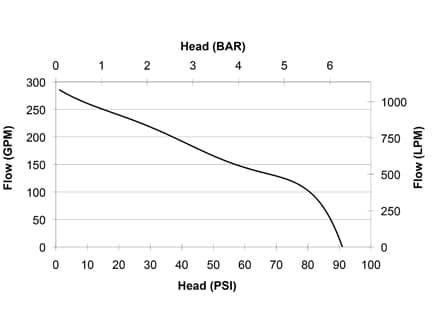

Performance
• 250 GPM @ 10 PSI
• 230 GPM @ 25 PSI
• 165 GPM @ 50 PSI
• 115 GPM @ 75 PSI
• 70 GPM @ 85 PSI
