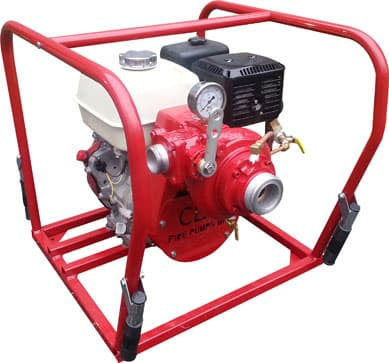

The CET 11 HP High Pressure Skid Frame Pump - Manual Start is a rugged, high-performance firefighting pump designed for applications requiring exceptional pressure and reliable field operation. Powered by a dependable Honda GX340 engine, this pump delivers pressures up to 205 PSI while maintaining strong flow performance, making it ideal for wildland firefighting, relay pumping, long hose lays, remote water delivery, and specialized high-pressure operations. The engine and pump are mounted within a heavy-duty steel frame featuring shock absorbers and folding handles for enhanced portability and durability.
Built around a transmission-driven C.E.T. single-stage centrifugal pump, this unit features a high-strength aluminum alloy pump body, bronze impeller, and mechanical shaft seal for long service life and dependable performance. The exhaust priming system provides reliable priming capability with lifts up to 20 feet, while the included pressure gauge and low oil alert system help operators monitor performance and protect the engine during operation. Designed for demanding firefighting environments, this skid frame pump delivers the pressure needed when standard volume pumps are not enough.
Features
• Honda GX340 air-cooled gasoline engine
• Single-cylinder, 4-stroke engine design
• Manual recoil start system
• Heavy-duty steel protective frame with shock absorbers and folding handles
• Transmission-driven C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 1-1/2" discharge outlet with 1/4-turn ball valve
• One 2-1/2" suction inlet
• Pressure gauge included
• Low oil alert system included
• Ideal for high-pressure firefighting, relay pumping, and long hose lay applications
• Available in skid-mounted configurations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Pressure Skid Frame Pump
• Model: PFP-11HPHND-M-HP
• Engine: Honda GX340
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Gasoline
• Starting System: Manual Recoil Start
• Fuel Tank Capacity: 1.6 Gallons (6.1 L)
• Pump Type: Transmission-Driven C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 1-1/2" with 1/4-Turn Ball Valve
• Dimensions: 24" L x 26-3/4" W x 23-7/8" H
• Weight: 150 lbs.
• Maximum Pressure: 205 PSI
• Warranty: 3-Year Limited Warranty

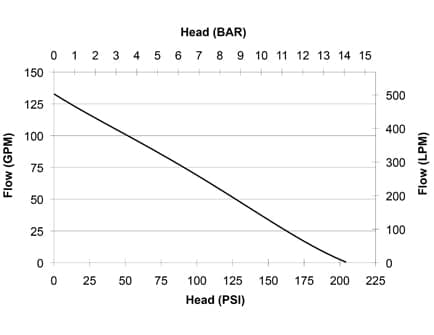

Performance
• 125 GPM @ 10 PSI
• 100 GPM @ 50 PSI
• 65 GPM @ 100 PSI
• 35 GPM @ 150 PSI
• 5 GPM @ 200 PSI
• Maximum Pressure: 205 PSI
