The CET 14 HP High Volume Fire Pump - Electric Start is a powerful water transfer and firefighting pump designed to fill fire apparatus, supply attack engines, and move large volumes of water over long distances. Powered by a reliable Kohler CH440 engine, this high-volume pump delivers impressive flow performance while maintaining a compact footprint that is ideal for skid units, brush trucks, water tenders, and mobile firefighting applications.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for long-lasting durability and dependable operation. The electric start system with recoil backup ensures reliable starting in the field, while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a full roll cage, pressure gauge, and 10-amp charging system, this pump is engineered to provide reliable performance in demanding firefighting and water transfer operations.
Features
• Kohler CH440 air-cooled gasoline engine
• Single-cylinder, 4-stroke engine design
• 12V electric start with recoil start backup
• 10-amp charging system
• Heavy-duty full roll cage for pump protection
• Direct-drive C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" NST discharge outlet with 1/4-turn ball valve
• One 4" NST suction inlet
• Pressure gauge included for system monitoring
• Ideal for fire apparatus filling, relay pumping, and water transfer operations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Fire Pump
• Model: PFP-14HPKHL-EM-1D
• Engine: Kohler CH440
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Gasoline
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 1.8 Gallons (7 L)
• Charging System: 10 Amp
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 4" NST
• Discharge Outlet: One 2-1/2" NST with 1/4-Turn Ball Valve
• Dimensions: 27" L x 20.5" W x 19.5" H
• Wet Weight: 176 lbs.
• Warranty: 3-Year Limited Warranty

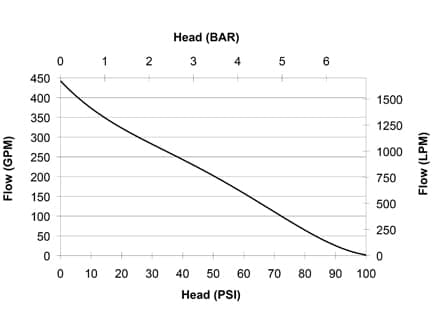

Performance
• 375 GPM @ 5 PSI
• 350 GPM @ 10 PSI
• 300 GPM @ 25 PSI
• 200 GPM @ 50 PSI
• 90 GPM @ 75 PSI
