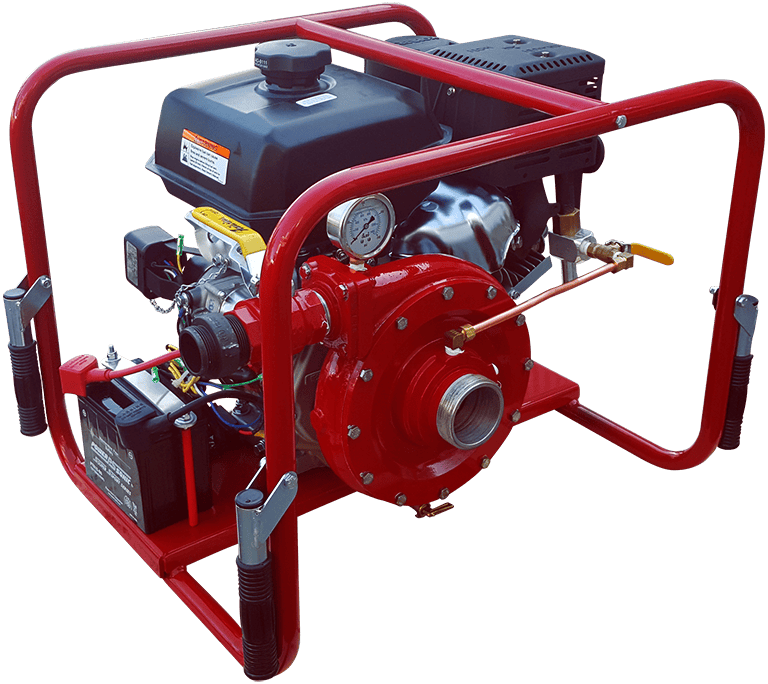

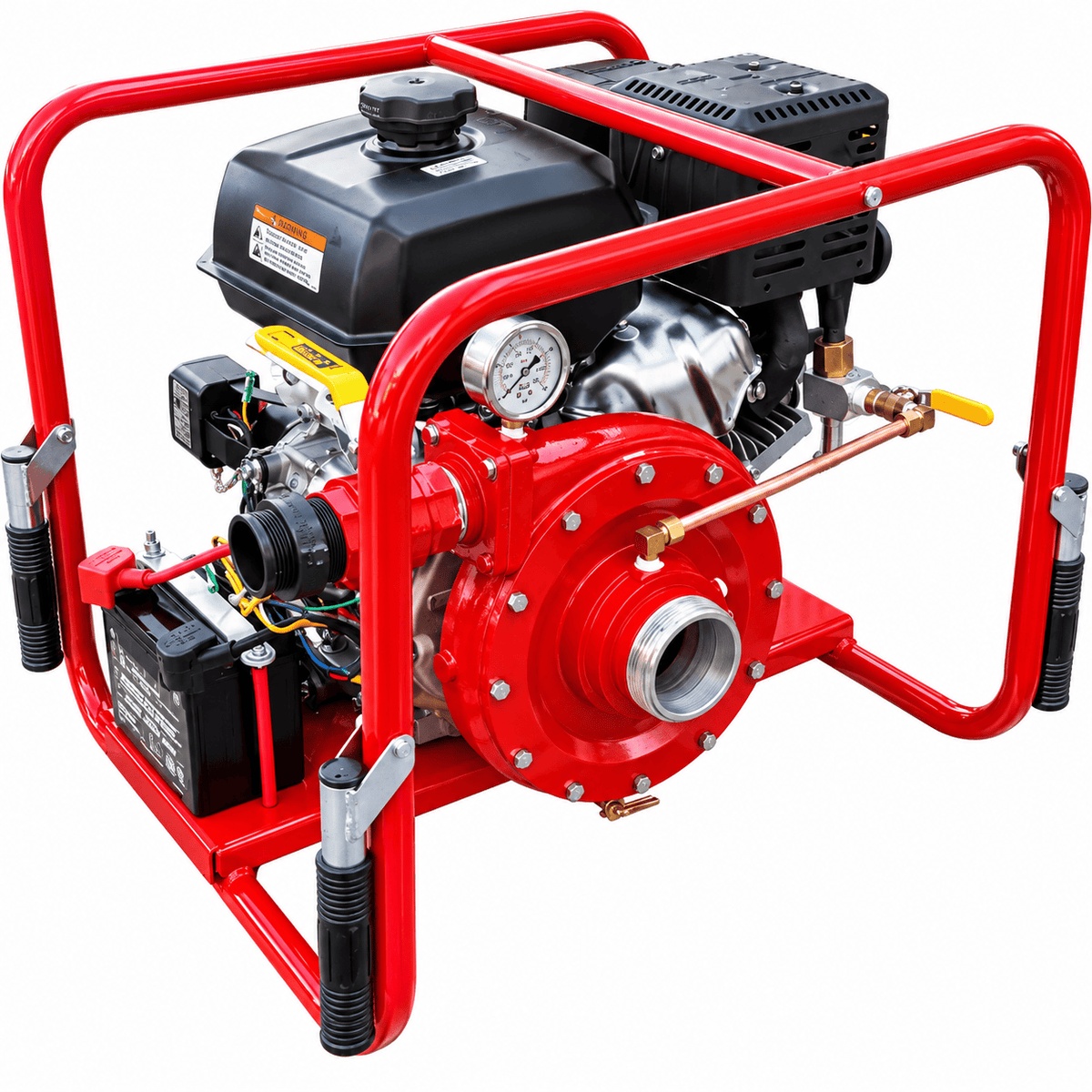

The CET 14 HP Mid Range Pressure and Volume Pump - Electric Start is a versatile firefighting pump designed to provide an excellent balance of flow and pressure for drop-in units, brush trucks, and water transfer applications. Powered by a dependable Kohler CH440 engine, this pump delivers up to 240 GPM and pressures up to 170 PSI, making it ideal for supplying attack lines, relay pumping, and moving water over extended distances. The engine and pump are mounted within a rugged steel protective frame with folding handles for easy transportation and deployment in the field.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for dependable long-term durability. The electric start system with recoil backup ensures reliable starting in all conditions, while the exhaust priming system provides dependable priming capability with lifts up to 24 feet. Complete with a pressure gauge, 12-volt battery, low oil shut-off, and 10-amp charging system, this pump is engineered for dependable performance in demanding firefighting operations.
Features
• Kohler CH440 air-cooled gasoline engine
• Single-cylinder, 4-stroke engine design
• 12V electric start with recoil start backup
• 10-amp charging system
• Heavy-duty steel protective frame with folding handles
• Direct-drive C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 24 ft. lift capability
• One 1-1/2" discharge outlet with 1/4-turn ball valve
• One 2-1/2" suction inlet
• Pressure gauge, 12-volt battery, and low oil shut-off included
• Ideal for drop-in units, firefighting, and water transfer applications
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: Mid Range Pressure and Volume Pump
• Model: PFP-14HPKHL-EM-MR
• Engine: Kohler CH440
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Gasoline
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 1.8 Gallons (7 L)
• Charging System: 10 Amp
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 24 ft. (7.5 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 1-1/2" with 1/4-Turn Ball Valve
• Dimensions: 21-3/4" L x 26-1/2" W x 20-1/4" H
• Wet Weight: 162 lbs.
• Maximum Flow: 240 GPM
• Maximum Pressure: 170 PSI
• Battery: 12-Volt Included
• Warranty: 3-Year Limited Warranty
Performance
• Maximum Flow: 240 GPM
• Maximum Pressure: 170 PSI
• 205 GPM @ 25 PSI
• 175 GPM @ 50 PSI
• 115 GPM @ 100 PSI
