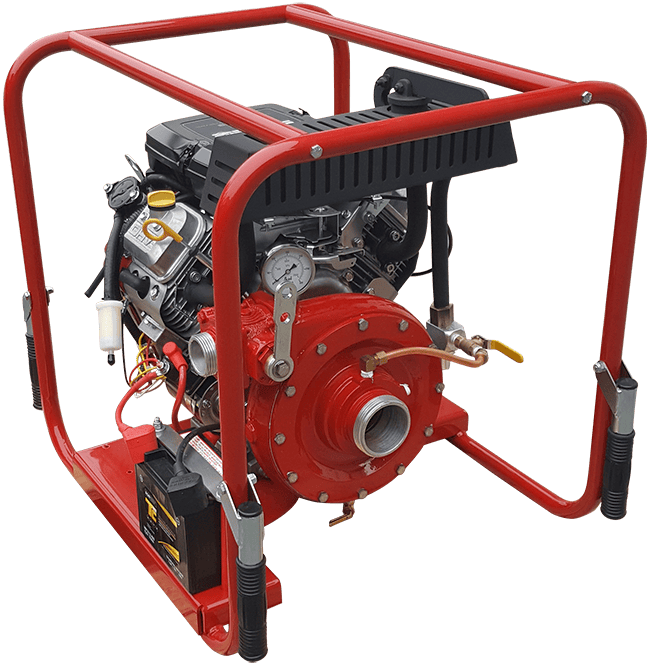

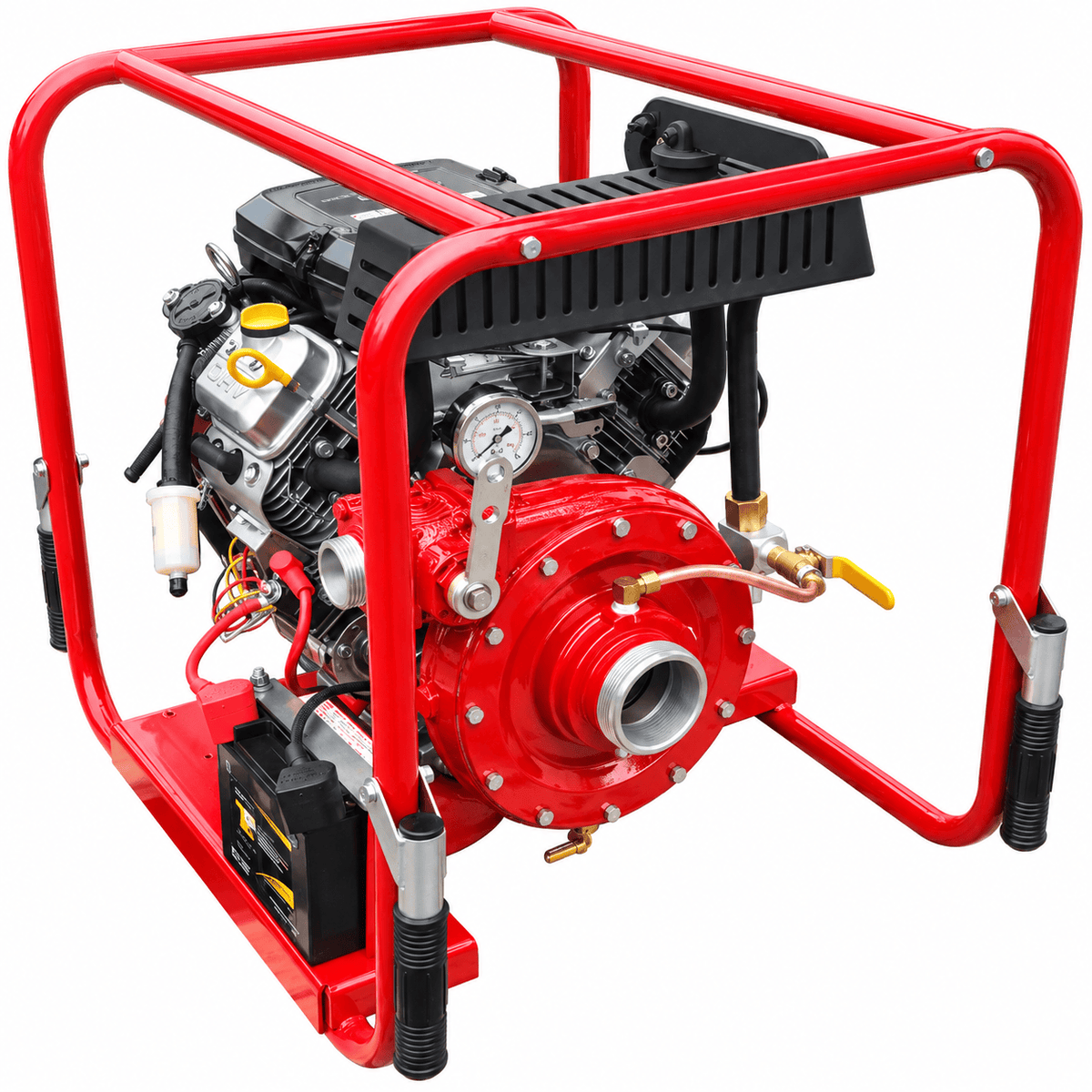

The CET 18 HP Mid Range Pressure and Volume Pump - Electric Start is a versatile firefighting pump designed to deliver an ideal balance of flow and pressure for drop-in units, brush trucks, and water transfer applications. Powered by a reliable Vanguard 350000 V-Twin engine, this pump provides strong flow rates while maintaining the pressure needed for attack lines, relay pumping, and extended water delivery operations. The engine and pump are mounted within a rugged steel protective frame with folding handles, making transportation and deployment easy in demanding environments.
Built around a C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for long-lasting durability and dependable performance. The electric start system is backed up by a recoil starter for added reliability, while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a pressure gauge, 16-amp alternator, low oil alert system, and 12-volt battery, this pump is engineered to perform when it matters most.
Features
• Vanguard 350000 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• Electric start with recoil start backup
• Heavy-duty steel protective frame with folding handles
• C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 1-1/2" discharge outlet with Fire Type swing-out valve
• One 2-1/2" suction inlet
• Includes 16-amp alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Ideal for drop-in units, firefighting, and water transfer operations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: Mid Range Pressure and Volume Pump
• Model: PFP-18HPVGD-MR
• Engine: Vanguard 350000
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: Electric Start with Recoil Backup
• Fuel Tank Capacity: 6 Gallons (22 L) Detachable Tank
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 1-1/2" with Fire Type Swing-Out Valve
• Alternator Output: 16 Amps
• Battery: 12-Volt Included
• Dimensions: 23.5" L x 22" W x 25.5" H
• Weight: 170 lbs.
• Warranty: 3-Year Limited Warranty

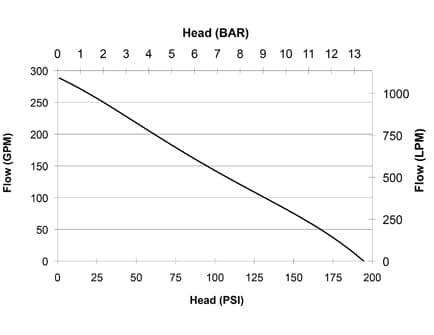

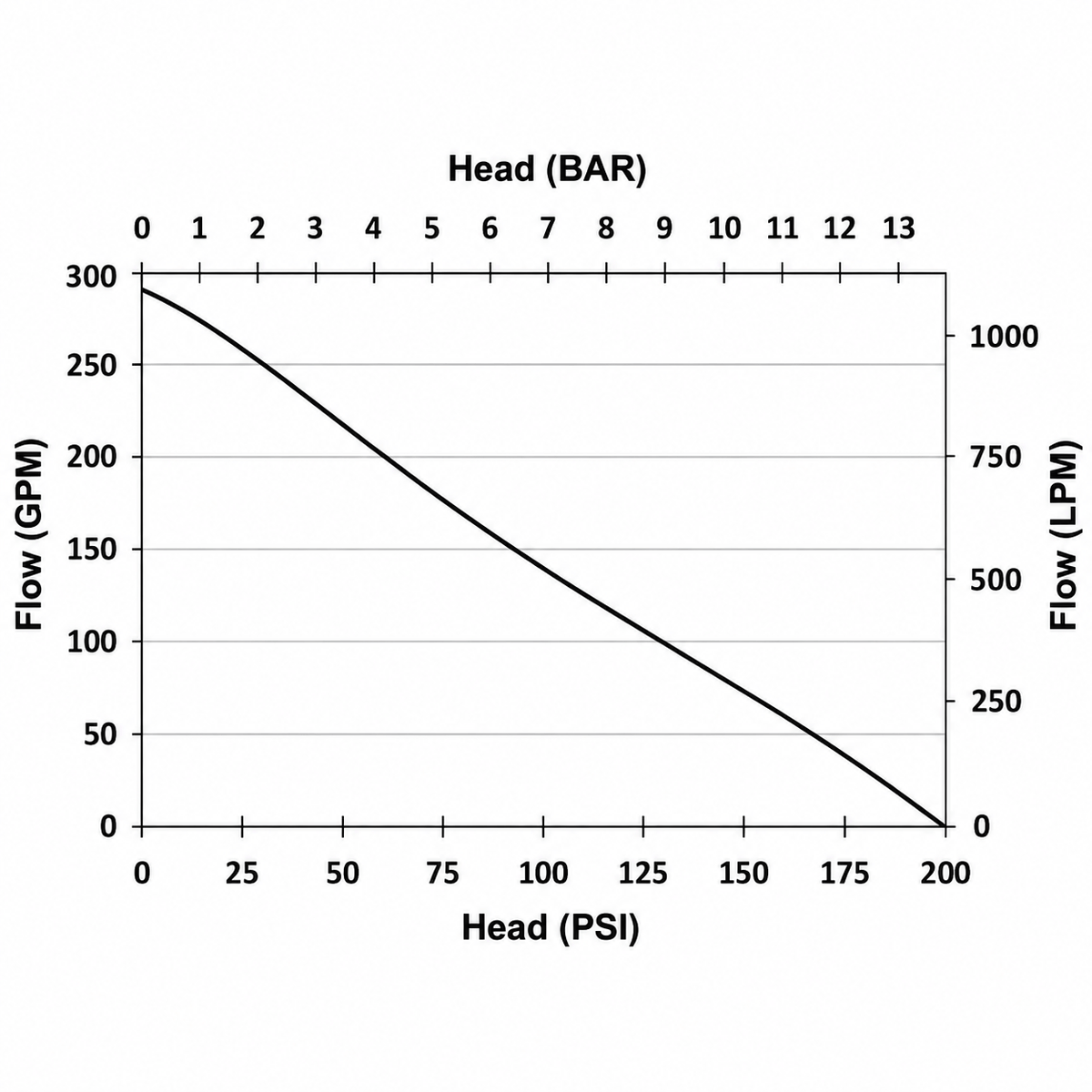

Performance
• 255 GPM @ 25 PSI
• 220 GPM @ 50 PSI
• 140 GPM @ 100 PSI
• 75 GPM @ 150 PSI
• 30 GPM @ 175 PSI
