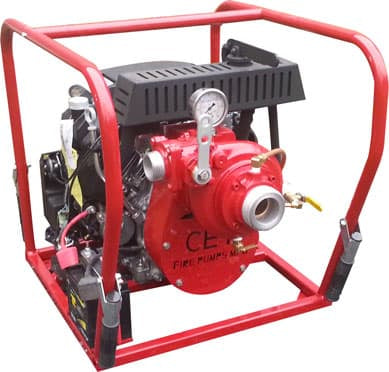

The CET 20 HP High Pressure Pump - Electric Start is a powerful firefighting pump engineered to deliver exceptional pressure performance for wildland firefighting, long hose lays, relay pumping, and specialized water delivery applications. Powered by a dependable Honda GX630 V-Twin engine, this high-pressure pump is capable of producing pressures up to 300 PSI while maintaining reliable flow rates across a wide operating range. The engine and pump are mounted within a rugged steel protective frame featuring shock absorbers and folding handles for easy transportation and deployment in demanding environments.
Built around a C.E.T. single-stage centrifugal pump with belt-drive transmission, this unit features a corrosion-resistant aluminum alloy pump body, bronze impeller, stainless steel pump shaft, and mechanical shaft seal for long-lasting durability. The exhaust priming system provides dependable priming capability with lifts up to 20 feet, while the electric start system, 17-amp alternator, pressure gauge, low oil alert, and included 12-volt battery ensure dependable operation in the field. Designed for high-pressure firefighting applications, this pump delivers the performance needed when maximum pressure is required.
Features
• Honda GX630 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• 12V electric start system
• Heavy-duty steel protective frame with shock absorbers and folding handles
• C.E.T. single-stage centrifugal pump with belt-drive transmission
• Corrosion-resistant aluminum alloy pump body
• Durable bronze impeller construction
• Stainless steel pump shaft
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 1-1/2" discharge outlet with Fire Type swing-out valve
• One 2-1/2" suction inlet
• Includes 17-amp alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Designed for high-pressure firefighting and relay pumping applications
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Pressure Pump
• Engine: Honda GX630
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: 12V Electric Start
• Fuel Tank Capacity: 6 Gallons (22 L) Detachable Plastic Fuel Tank
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Drive Type: Belt-Drive Transmission
• Pump Body Material: Aluminum Alloy
• Impeller Material: Bronze
• Pump Shaft Material: Stainless Steel
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 1-1/2" with Fire Type Swing-Out Valve
• Alternator Output: 17 Amps
• Battery: 12-Volt Included
• Dimensions: 27-1/2" L x 22" W x 24" H
• Weight: 185 lbs.
• Maximum Pressure: 300 PSI
• Warranty: 3-Year Limited Warranty

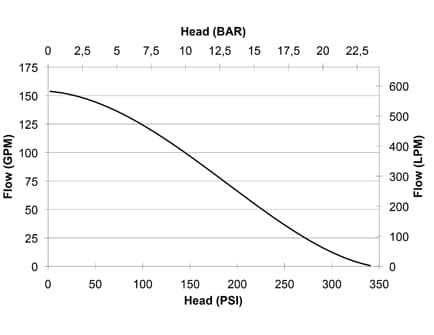

Performance
• 140 GPM @ 50 PSI
• 125 GPM @ 100 PSI
• 100 GPM @ 150 PSI
• 40 GPM @ 250 PSI
• 25 GPM @ 275 PSI
• Maximum Pressure: 300 PSI
