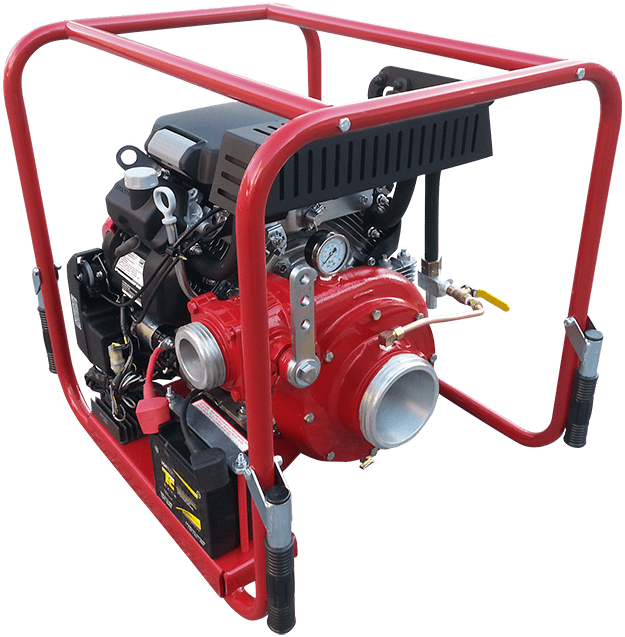

The CET 20 HP High Volume Honda Powered Pump - Electric Start & 1 Delivery Outlet is a powerful, high-capacity firefighting pump designed for tanker filling, relay pumping, fire apparatus supply, and long-distance water transfer operations. Powered by a dependable Honda GX630 V-Twin engine, this pump delivers up to 570 GPM and pressures up to 110 PSI, making it an excellent choice for rural firefighting, water shuttle operations, and emergency water movement applications. Its rugged design and exceptional flow capabilities make it ideal for demanding fireground environments.
Built around a C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for long-lasting durability and reliable performance. The electric start system provides convenient operation, while the exhaust priming system offers dependable priming capability with lifts up to 20 feet. Complete with a 36-watt alternator, pressure gauge, low oil alert system, and 12-volt battery, this pump is engineered to deliver dependable performance when large volumes of water are required.
Features
• Honda GX630 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• Electric start system
• High-volume pump capable of up to 570 GPM
• Heavy-duty protective frame construction
• C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" discharge outlet with 1/4-turn ball valve
• One 4" suction inlet
• Includes 36-watt alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Ideal for tanker filling, relay pumping, and water transfer operations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Fire Pump
• Model: PFP-20HPHND-1D
• Engine: Honda GX630
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: Electric Start
• Fuel Tank Capacity: 6 Gallons (22 L) Detachable Tank
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 4"
• Discharge Outlet: One 2-1/2" with 1/4-Turn Ball Valve
• Alternator Output: 36 Watts
• Battery: 12-Volt Included
• Dimensions: 21-1/4" L x 26-1/2" W x 24" H
• Weight: 189 lbs.
• Maximum Flow: 570 GPM
• Maximum Pressure: 110 PSI
• Warranty: 3-Year Limited Warranty

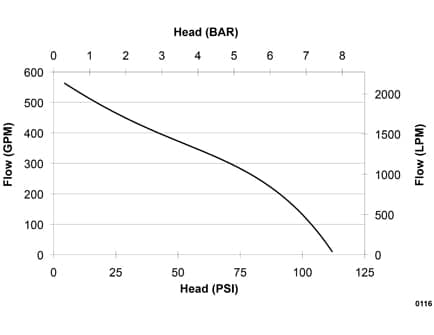

Performance
• Maximum Flow: 570 GPM
• Maximum Pressure: 110 PSI
• 470 GPM @ 25 PSI
• 375 GPM @ 50 PSI
• 285 GPM @ 75 PSI
• 130 GPM @ 100 PSI
