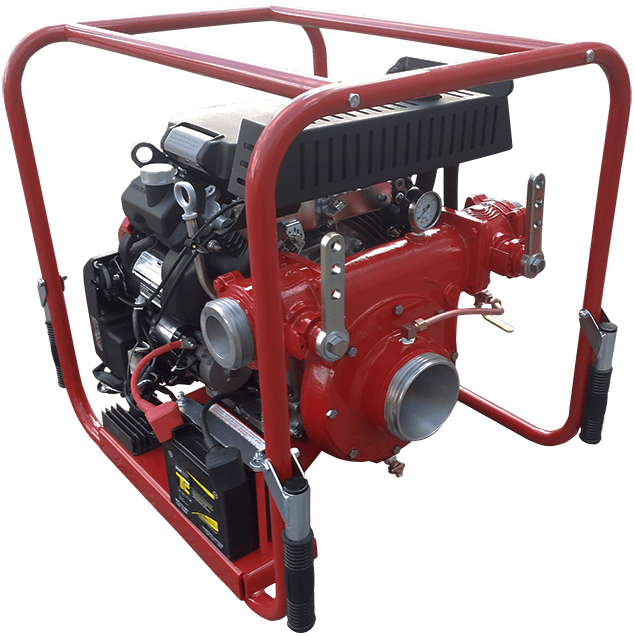

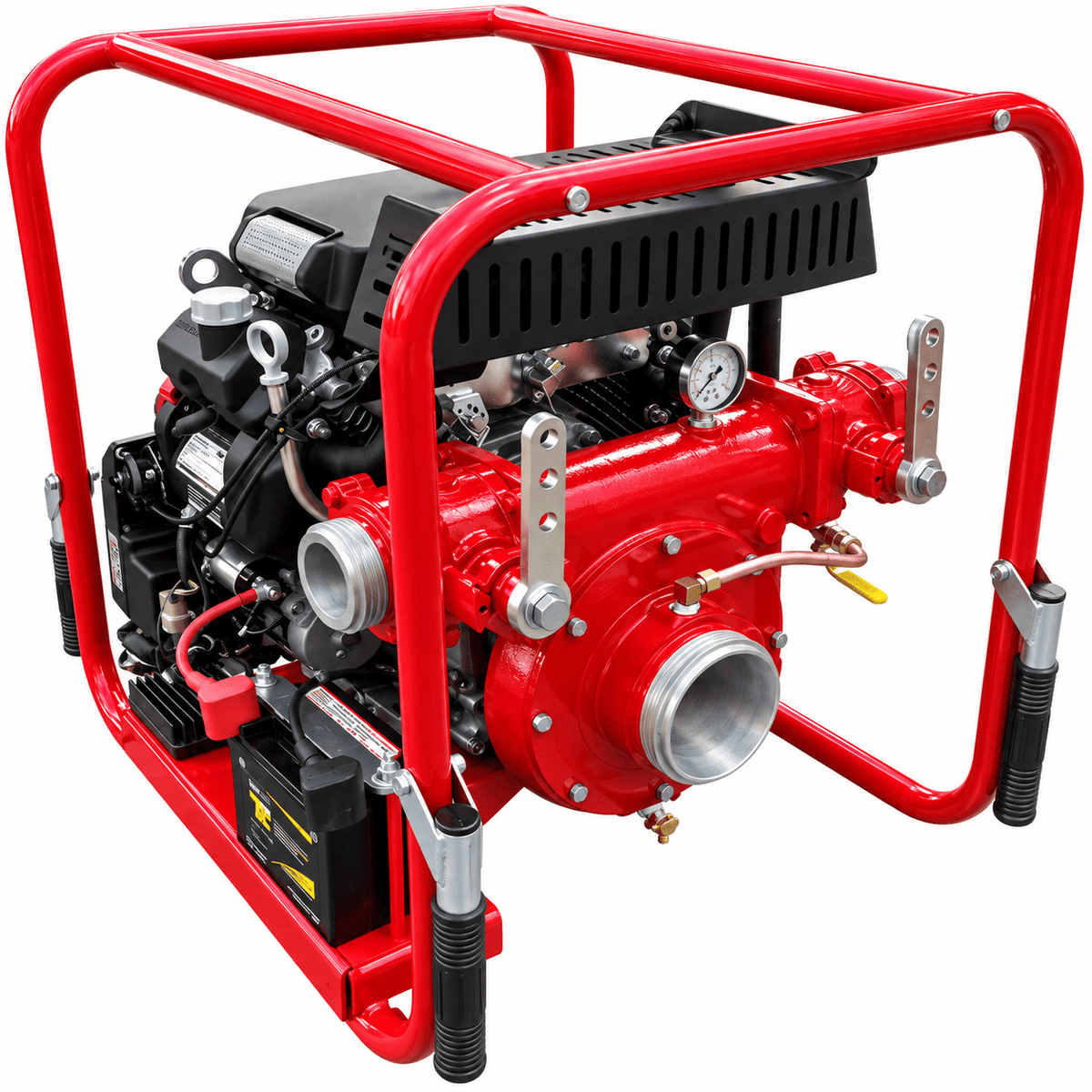

The CET 20 HP High Volume Honda Powered Pump - Electric Start & 2 Delivery Outlets is a high-capacity firefighting and water transfer pump designed for tanker filling, relay pumping, fire apparatus supply, and long-distance water movement operations. Powered by a dependable Honda GX630 V-Twin engine, this pump delivers up to 630 GPM and pressures up to 105 PSI, making it an excellent solution for rural firefighting, water shuttle operations, and large-scale water transfer applications. The dual discharge outlet configuration provides additional flexibility when supplying multiple lines or filling operations simultaneously.
Built around a C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for long-lasting durability and dependable performance. The electric start system provides quick and reliable operation, while the exhaust priming system offers dependable priming capability with lifts up to 20 feet. Complete with a 36-watt alternator, pressure gauge, low oil alert system, and 12-volt battery, this pump is engineered to deliver reliable high-volume performance in demanding environments.
Features
• Honda GX630 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• Electric start system
• High-volume pump capable of up to 630 GPM
• Heavy-duty protective frame construction
• C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• Two 2-1/2" discharge outlets with 1/4-turn ball valves
• One 4" suction inlet
• Includes 36-watt alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Ideal for tanker filling, relay pumping, and water transfer operations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Fire Pump
• Model: PFP-20HPHND-2D
• Engine: Honda GX630
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: Electric Start
• Fuel Tank Capacity: 6 Gallons (22 L) Detachable Tank
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 4"
• Discharge Outlets: Two 2-1/2" with 1/4-Turn Ball Valves
• Alternator Output: 36 Watts
• Battery: 12-Volt Included
• Dimensions: 21-1/4" L x 26-1/2" W x 24" H
• Weight: 198 lbs.
• Maximum Flow: 630 GPM
• Maximum Pressure: 105 PSI
• Warranty: 3-Year Limited Warranty

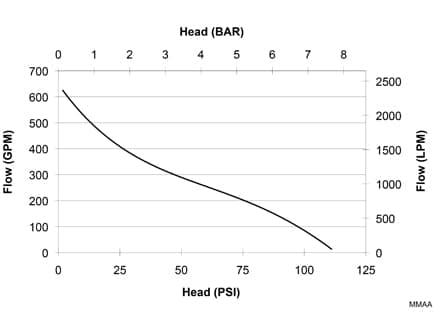

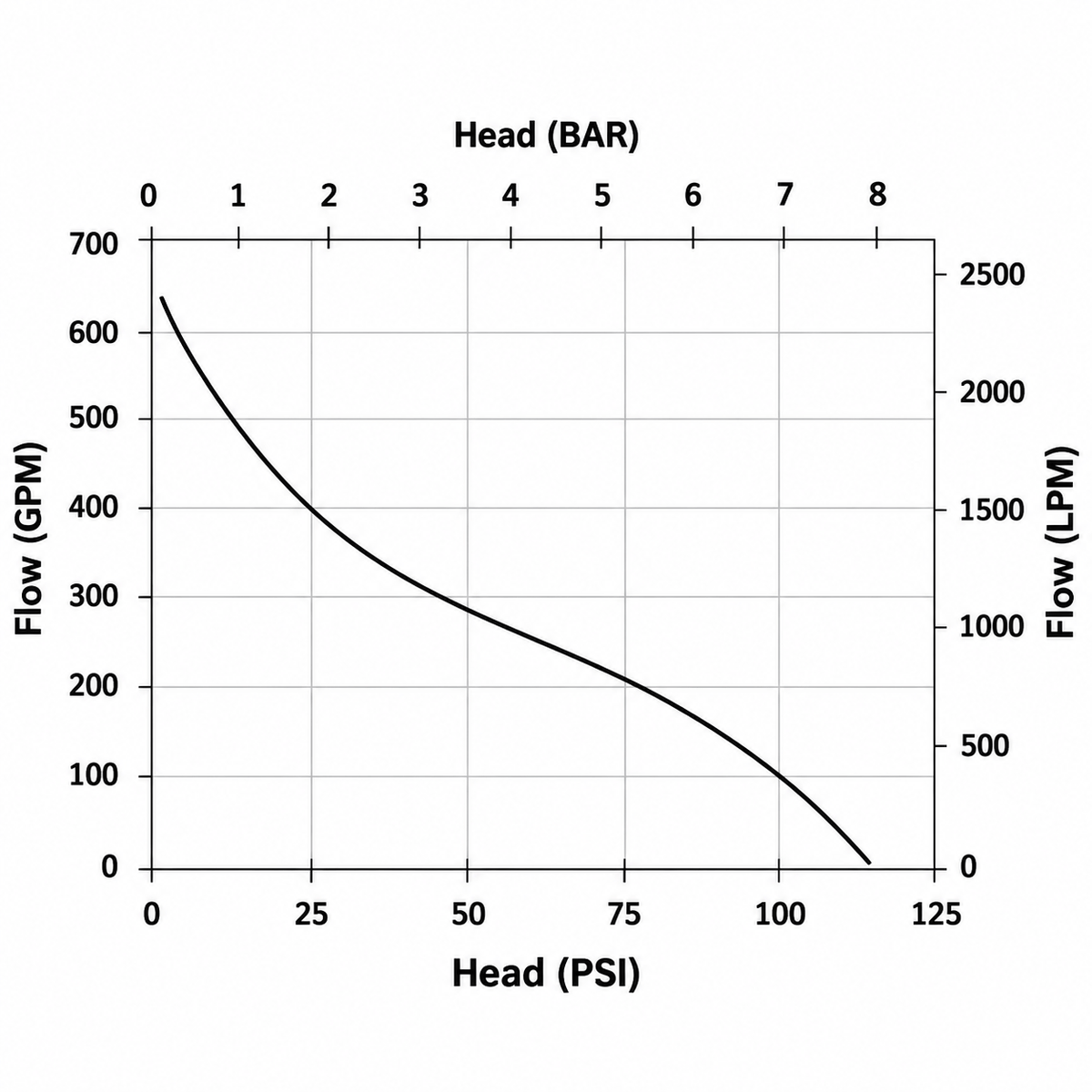

Performance
• Maximum Flow: 630 GPM
• Maximum Pressure: 105 PSI
• 410 GPM @ 25 PSI
• 300 GPM @ 50 PSI
• 185 GPM @ 75 PSI
• 100 GPM @ 100 PSI
