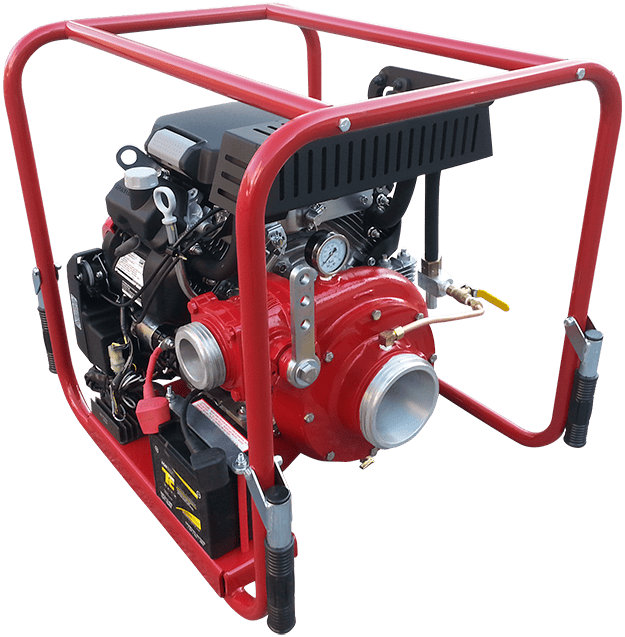

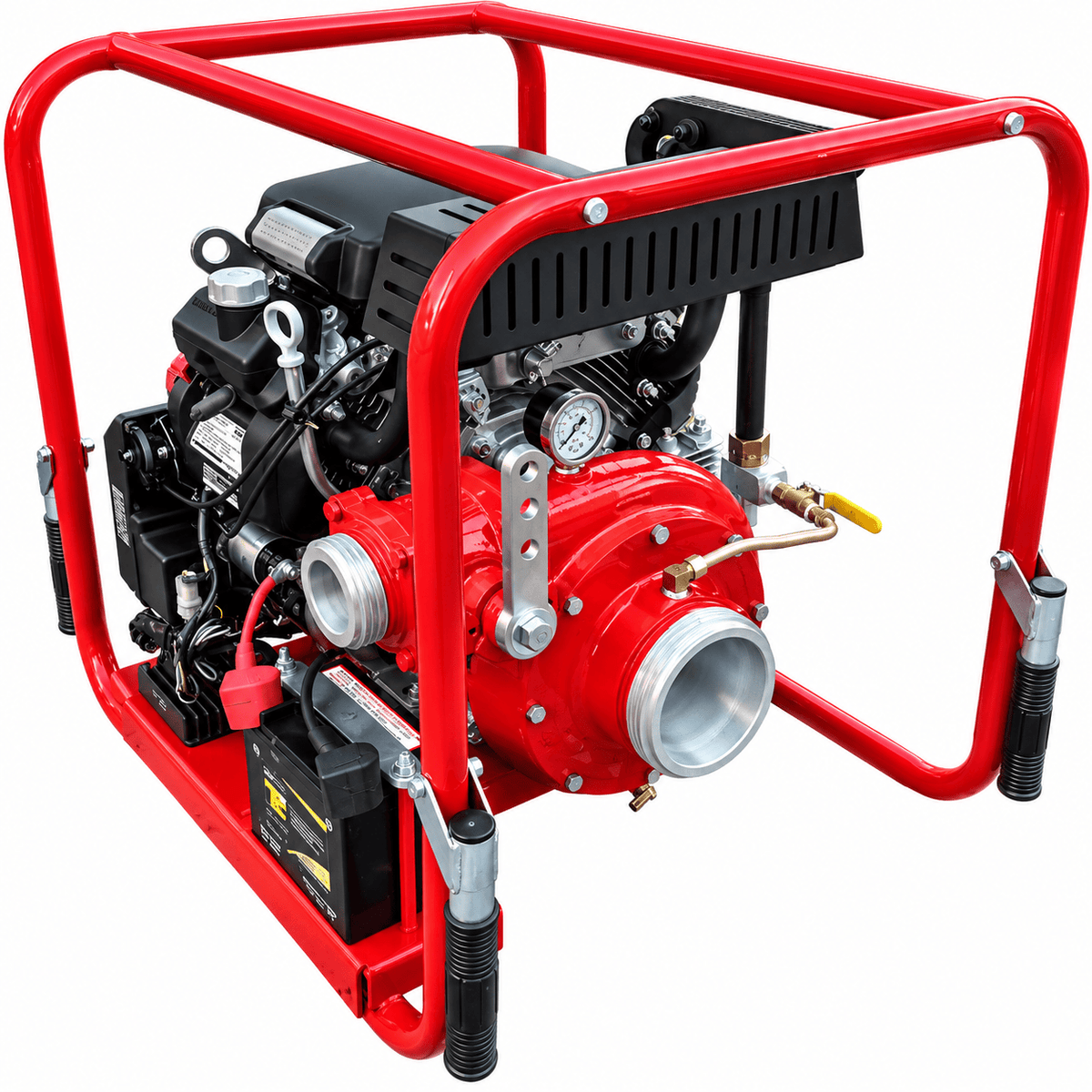

The CET 20 HP High Volume Skid Frame Pump - 1 Delivery Outlet is a powerful, high-capacity firefighting pump designed for water transfer, tanker filling, relay pumping, and supplying fire apparatus over long distances. Powered by a dependable Honda GX630 V-Twin engine, this pump delivers up to 570 GPM and pressures up to 110 PSI, making it an excellent choice for rural firefighting operations, water shuttle operations, and high-volume water movement applications.
Built around a rugged C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for exceptional durability and long service life. The exhaust priming system provides dependable priming capability with lifts up to 20 feet, while the electric start system, alternator, pressure gauge, low oil alert, and included 12-volt battery ensure reliable operation in demanding environments. Mounted within a heavy-duty protective frame, this pump is engineered to provide years of dependable service in the field.
Features
• Honda GX630 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• Electric start system for easy operation
• High-volume pump capable of up to 570 GPM
• Heavy-duty protective skid frame construction
• C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" discharge outlet with 1/4-turn ball valve
• One 4" suction inlet
• Includes 36-watt alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Ideal for tanker filling, relay pumping, and water transfer operations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Skid Frame Pump
• Model: PFP-20HPHND-1D
• Engine: Honda GX630
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: Electric Start
• Fuel Tank Capacity: 6 Gallons (22 L) Detachable Tank
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 4"
• Discharge Outlet: One 2-1/2" with 1/4-Turn Ball Valve
• Alternator Output: 36 Watts
• Battery: 12-Volt Included
• Dimensions: 21-1/4" L x 26-1/2" W x 24" H
• Weight: 189 lbs.
• Maximum Pressure: 110 PSI
• Warranty: 3-Year Limited Warranty

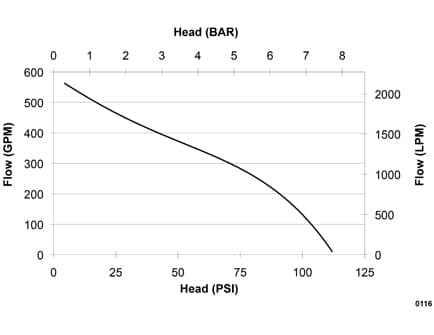

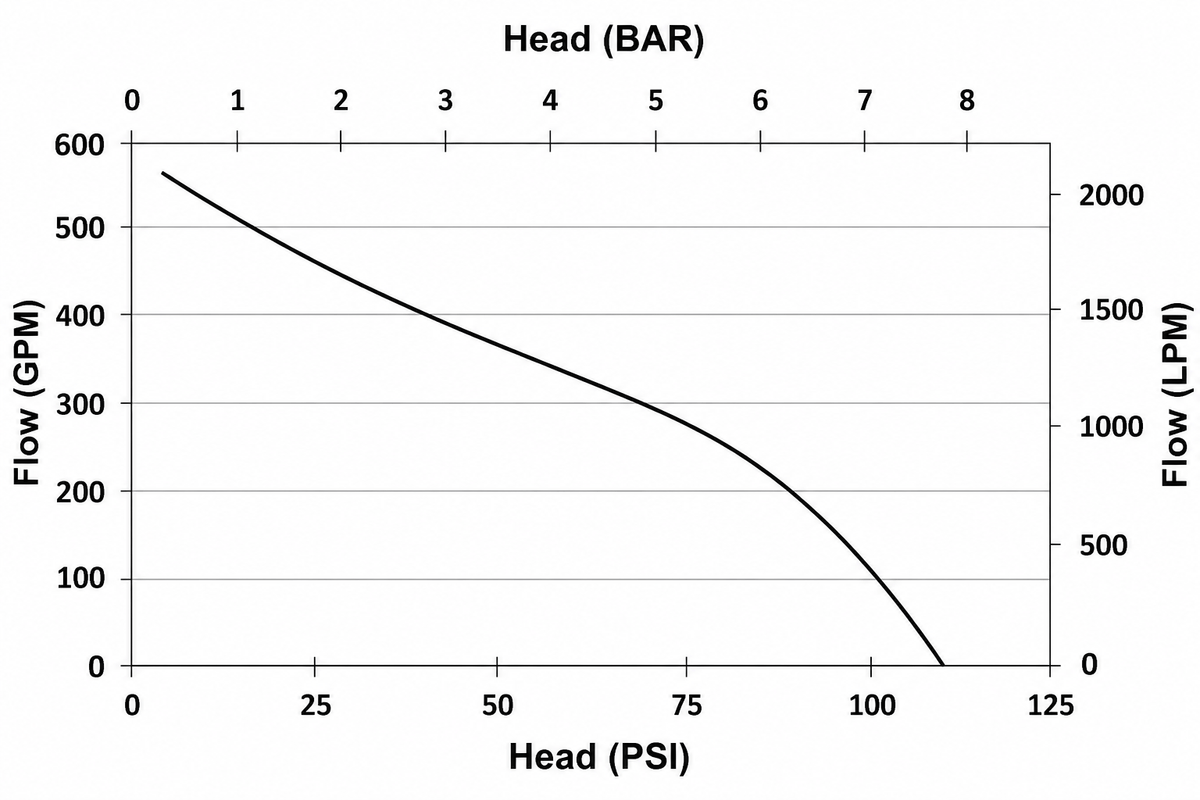

Performance
• Maximum Flow: 570 GPM
• Maximum Pressure: 110 PSI
• 470 GPM @ 25 PSI
• 375 GPM @ 50 PSI
• 285 GPM @ 75 PSI
• 130 GPM @ 100 PSI
