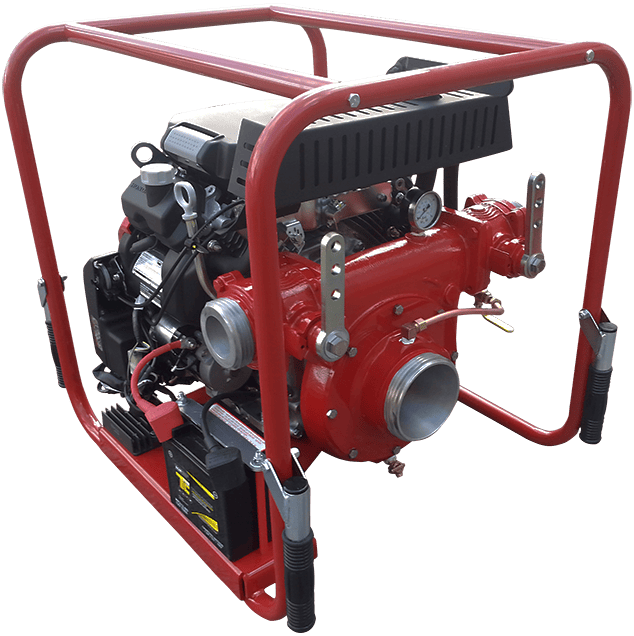

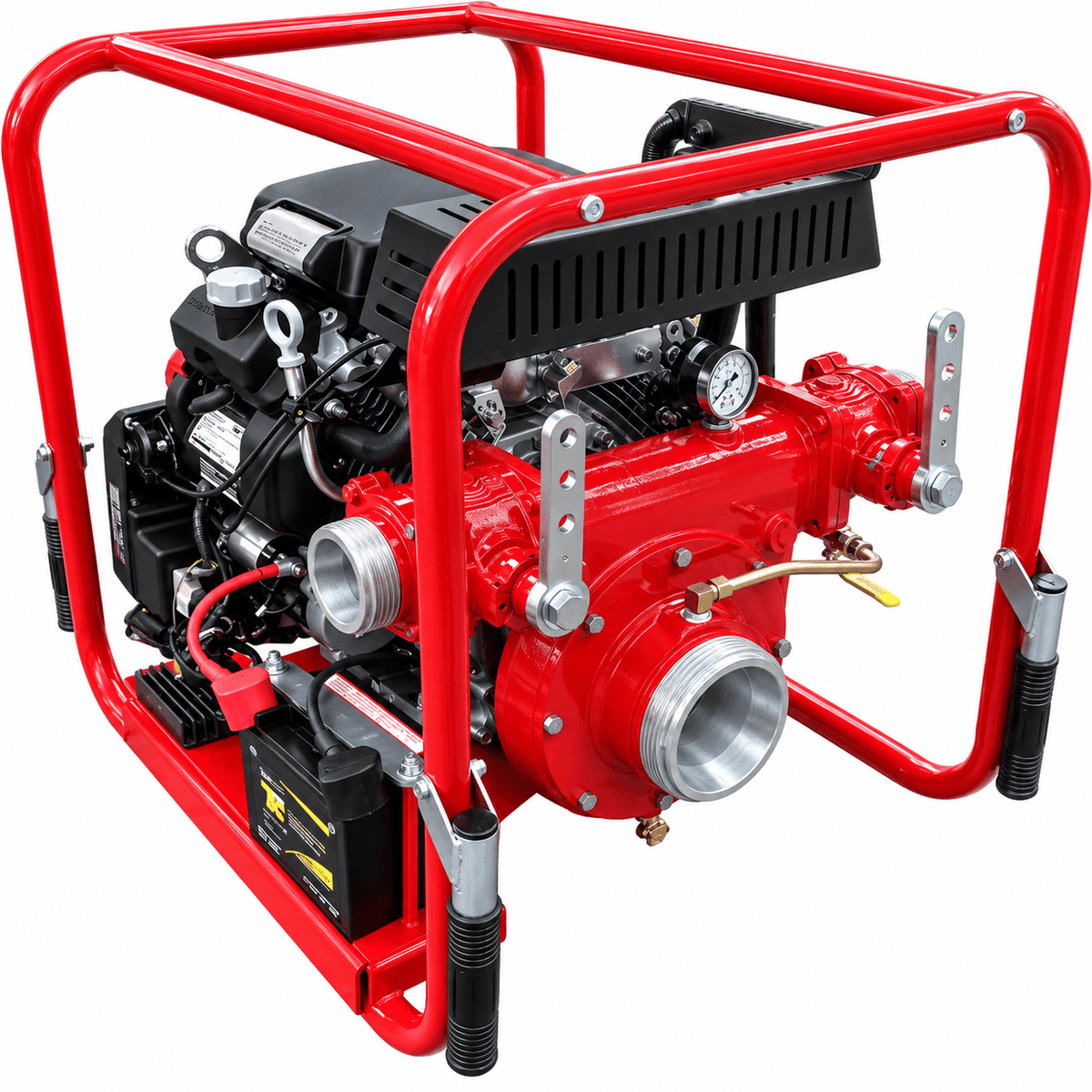

The CET 20 HP High Volume Skid Frame Pump - 2 Delivery Outlets is a powerful water transfer and firefighting pump designed to move large volumes of water efficiently for tanker filling, relay pumping, fire apparatus supply, and long-distance water movement. Powered by a reliable Honda GX630 V-Twin engine, this high-capacity pump delivers up to 630 GPM and pressures up to 105 PSI, making it an excellent solution for rural firefighting operations, water shuttle systems, and emergency water supply applications.
Built around a rugged C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for exceptional durability and long service life. The dual 2-1/2" discharge outlets provide increased flexibility for supplying multiple hose lines or filling operations simultaneously. Combined with an electric start system, exhaust priming capability, and heavy-duty protective frame, this pump is engineered to deliver dependable performance in demanding field conditions.
Features
• Honda GX630 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• Electric start system for easy operation
• High-volume pump capable of up to 630 GPM
• Heavy-duty protective skid frame construction
• C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• Two 2-1/2" discharge outlets with 1/4-turn ball valves
• One 4" suction inlet
• Includes 36-watt alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Ideal for tanker filling, relay pumping, and water transfer operations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Skid Frame Pump
• Model: PFP-20HPHND-2D
• Engine: Honda GX630
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: Electric Start
• Fuel Tank Capacity: 6 Gallons (22 L) Detachable Tank
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 4"
• Discharge Outlets: Two 2-1/2" with 1/4-Turn Ball Valves
• Alternator Output: 36 Watts
• Battery: 12-Volt Included
• Dimensions: 21-1/4" L x 26-1/2" W x 24" H
• Weight: 198 lbs.
• Maximum Pressure: 105 PSI
• Warranty: 3-Year Limited Warranty

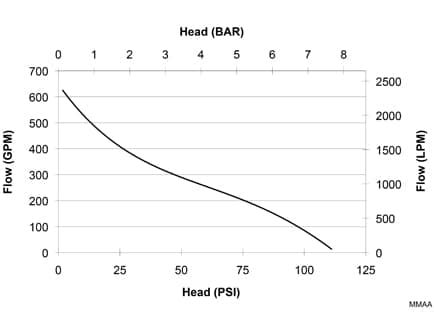

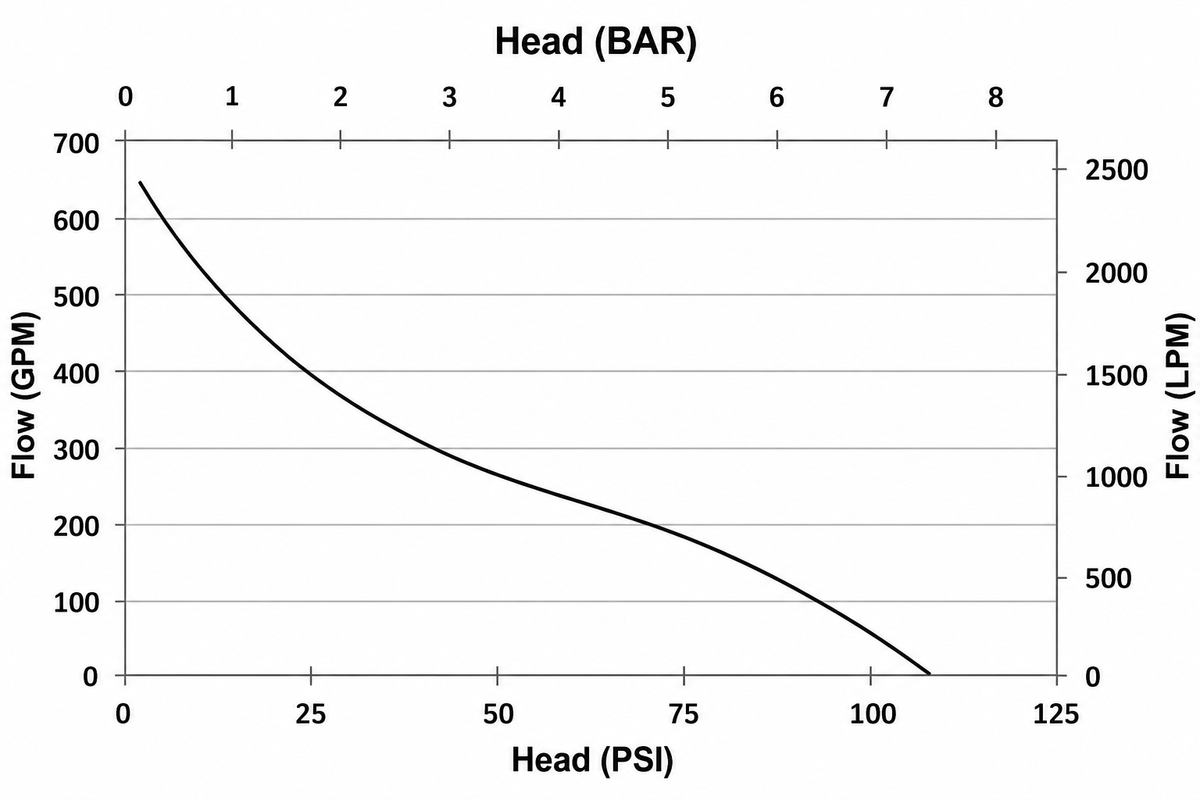

Performance
• Maximum Flow: 630 GPM
• Maximum Pressure: 105 PSI
• 410 GPM @ 25 PSI
• 300 GPM @ 50 PSI
• 185 GPM @ 75 PSI
• 100 GPM @ 100 PSI
