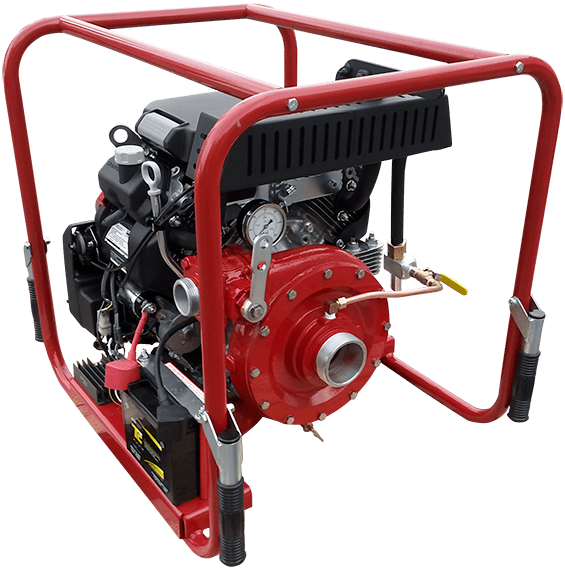

The CET 20 HP Mid Range Pressure and Volume Pump - Electric Start is a versatile firefighting pump designed to provide an excellent balance of high flow and high pressure performance. Ideal for drop-in units, brush trucks, and water transfer applications, this pump delivers up to 300 GPM while producing pressures up to 205 PSI. Powered by a dependable Honda GX630 V-Twin engine, it is well suited for supplying attack lines, relay pumping, and moving water over extended distances.
Built around a C.E.T. single-stage centrifugal pump, this unit features a high-resistance aluminum alloy pump body, bronze impeller, and mechanical shaft seal for dependable long-term durability. The electric start system provides reliable operation, while the exhaust priming system offers dependable priming capability with lifts up to 20 feet. Mounted within a rugged steel protective frame with folding handles, this pressure and volume pump is engineered to perform in demanding firefighting environments.
Features
• Honda GX630 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• Electric start system
• Heavy-duty steel protective frame with folding handles
• C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 1-1/2" discharge outlet with 1/4-turn ball valve
• One 2-1/2" suction inlet
• Charge coil 12V-17A charging system
• Pressure gauge, low oil alert, and 12-volt battery included
• Ideal for drop-in units, water transfer, and firefighting operations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: Mid Range Pressure and Volume Pump
• Model: PFP-20HPHND-MR
• Engine: Honda GX630
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: Electric Start
• Fuel Tank Capacity: 6 Gallons (22 L) Detachable Tank
• Charging System: Charge Coil 12V-17A
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 1-1/2" with 1/4-Turn Ball Valve
• Dimensions: 21-1/4" L x 26-1/2" W x 24" H
• Weight: 183 lbs.
• Maximum Flow: 300 GPM
• Maximum Pressure: 205 PSI
• Battery: 12-Volt Included
• Warranty: 3-Year Limited Warranty

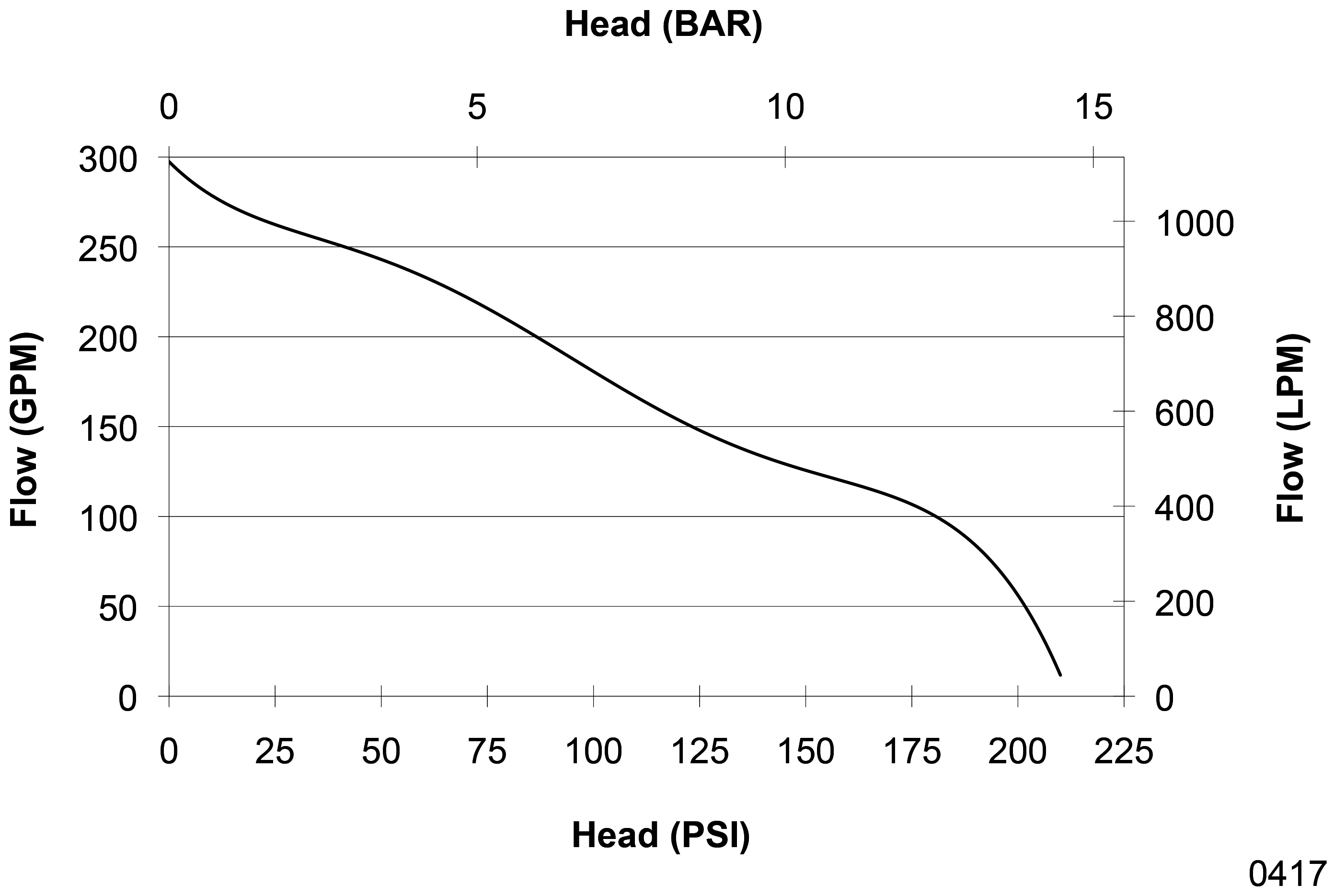

Performance
• Maximum Flow: 300 GPM
• Maximum Pressure: 205 PSI
• 240 GPM @ 50 PSI
• 180 GPM @ 100 PSI
• 125 GPM @ 150 PSI
• 60 GPM @ 200 PSI
