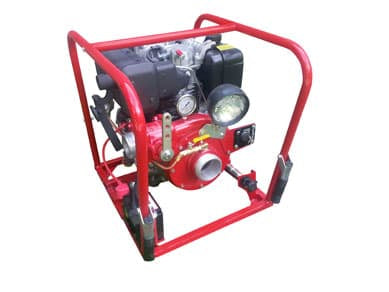

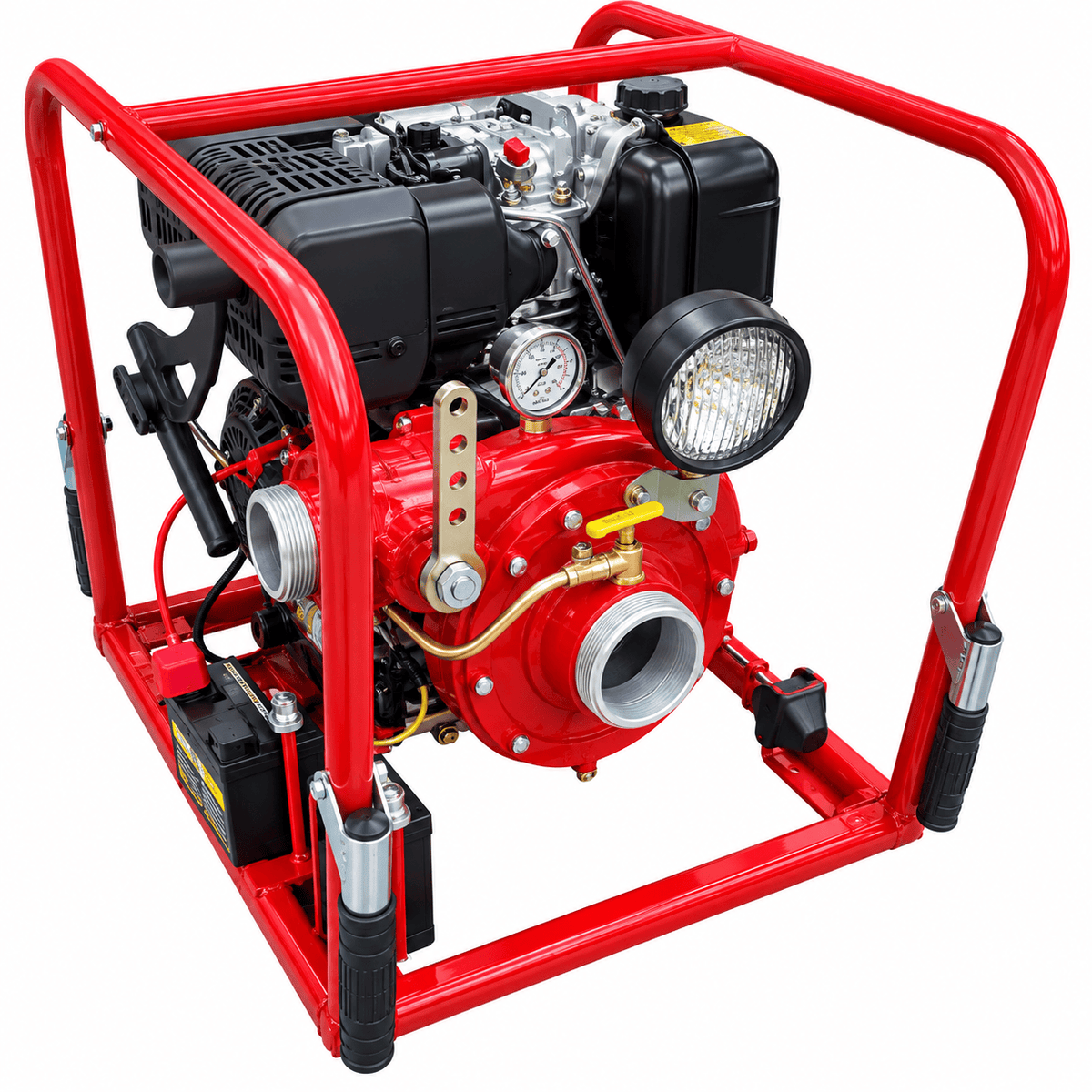

The CET 9 HP High Volume Diesel Powered Pump is a rugged, high-performance firefighting and water transfer pump designed to deliver exceptional flow while providing the reliability and fuel efficiency of diesel power. Powered by a dependable Yanmar L100 diesel engine, this pump produces up to 350 GPM and pressures up to 75 PSI, making it ideal for tanker filling, water transfer, rural firefighting, and mobile skid unit applications. The engine and pump are mounted within a durable steel protective frame featuring shock absorbers and folding handles for easy transportation and deployment in demanding environments.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a corrosion-resistant aluminum alloy pump body, bronze impeller, stainless steel pump shaft, and mechanical shaft seal for exceptional durability and long service life. The electric start system is backed up by a recoil starter for added reliability, while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a swivel spotlight, 100-watt alternator, pressure gauge, vernier throttle, and 12-volt battery, this diesel-powered pump is engineered to deliver dependable performance wherever large volumes of water are required.
Features
• Yanmar L100 air-cooled diesel engine
• Single-cylinder, 4-stroke diesel engine design
• 12V electric start with recoil start backup
• Heavy-duty steel protective frame with shock absorbers and folding handles
• Direct-drive C.E.T. single-stage centrifugal pump
• Corrosion-resistant aluminum alloy pump body
• Durable bronze impeller construction
• Stainless steel pump shaft for enhanced durability
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" discharge outlet with 1/4-turn ball valve
• One 3" suction inlet
• Includes swivel spotlight and vernier throttle
• Includes 100-watt alternator and 12-volt battery
• Pressure gauge included for system monitoring
• Ideal for water transfer, tanker filling, and firefighting applications
• Backed by a 2-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Diesel Powered Pump
• Model: PFP-9HP-DSL
• Engine: Yanmar L100
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Diesel
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 1.45 Gallons (5.5 L)
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: Aluminum Alloy
• Impeller Material: Bronze
• Pump Shaft Material: Stainless Steel
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 3"
• Discharge Outlet: One 2-1/2" with 1/4-Turn Ball Valve
• Alternator Output: 100 Watts
• Battery: 12-Volt Included
• Dimensions: 25-1/2" L x 20-1/2" W x 23-3/4" H
• Weight: 195.8 lbs.
• Maximum Flow: 350 GPM
• Maximum Pressure: 75 PSI
• Warranty: 2-Year Limited Warranty

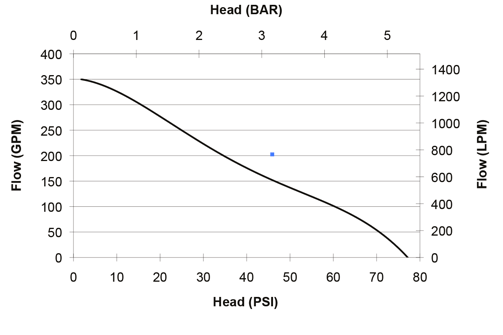

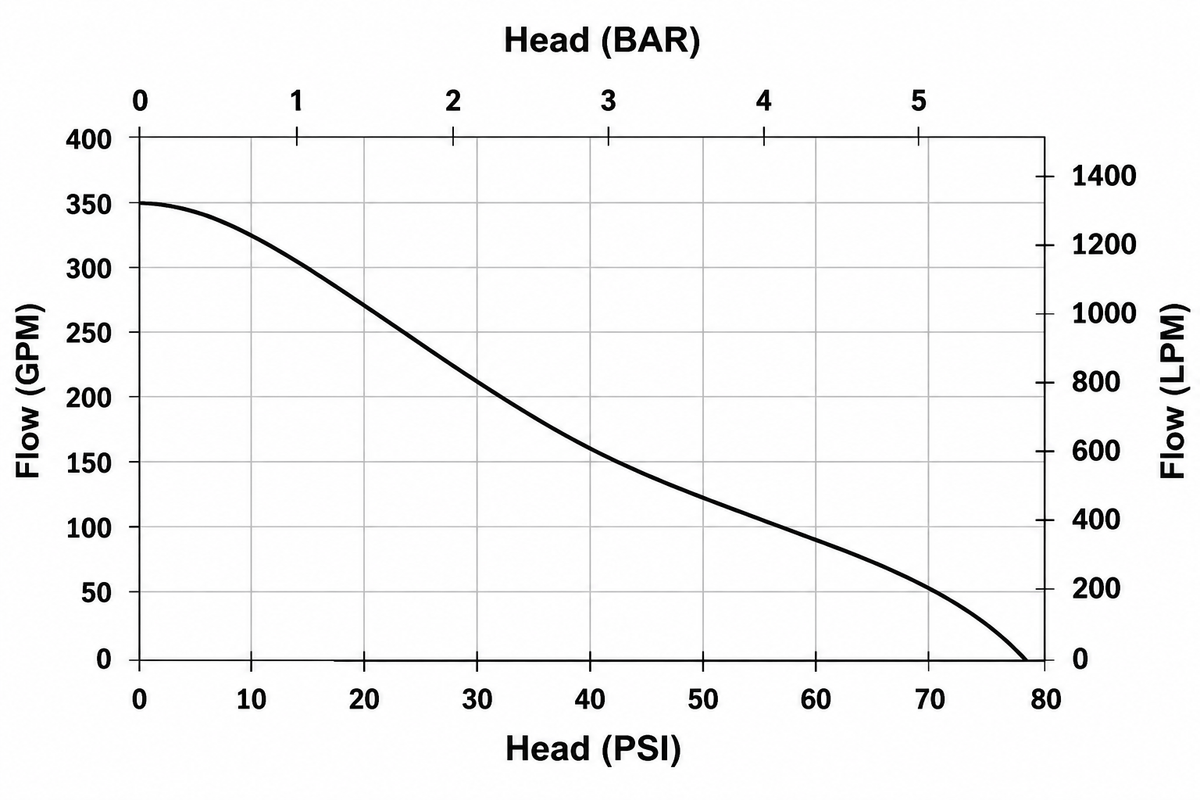

Performance
• Maximum Flow: 350 GPM
• Maximum Pressure: 75 PSI
• 325 GPM @ 10 PSI
• 240 GPM @ 25 PSI
• 130 GPM @ 50 PSI
