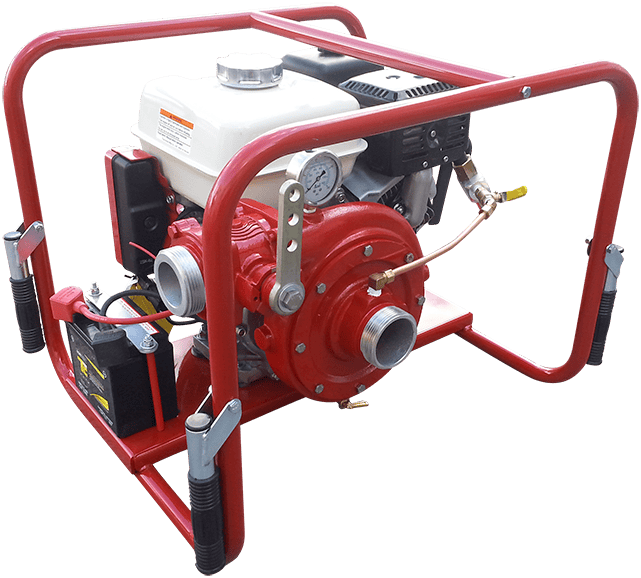

The CET 9 HP High Volume Skid Frame Pump - Electric Start is a lightweight, high-performance firefighting pump engineered to deliver exceptional water flow in a compact and portable package. Powered by a reliable Honda GX270 engine, this pump provides some of the highest volume output available in its class, making it ideal for water transfer, tanker filling, rural firefighting, and skid unit applications. The engine and pump are mounted within a durable steel protective frame equipped with shock absorbers and folding handles for easy transport and deployment in demanding environments.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a corrosion-resistant aluminum alloy pump body, bronze impeller, and mechanical shaft seal for dependable long-term performance. The convenient electric start system is backed up by a recoil starter for added reliability, while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a 36-watt alternator, 12-volt battery, pressure gauge, and low oil alert system, this pump is designed to deliver reliable performance when it matters most.
Features
• Honda GX270 air-cooled gasoline engine
• Single-cylinder, 4-stroke engine design
• 12V electric start with recoil start backup
• Lightweight, high-volume pump design
• Heavy-duty steel protective frame with shock absorbers and folding handles
• Direct-drive C.E.T. single-stage centrifugal pump
• Corrosion-resistant aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" discharge outlet with 1/4-turn ball valve
• One 2-1/2" suction inlet
• Includes 36-watt alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Ideal for water transfer, tanker filling, and firefighting applications
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Skid Frame Pump
• Model: PFP-9HPHND-EM
• Engine: Honda GX270
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Gasoline
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 1.4 Gallons (5.3 L)
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 2-1/2" with 1/4-Turn Ball Valve
• Alternator Output: 36 Watts
• Battery: 12-Volt Included
• Dimensions: 21-1/2" L x 23-1/4" W x 20" H
• Weight: 115 lbs.
• Warranty: 3-Year Limited Warranty
Performance
• 200 GPM @ 25 PSI
• 140 GPM @ 50 PSI
• 100 GPM @ 75 PSI
• 60 GPM @ 100 PSI
