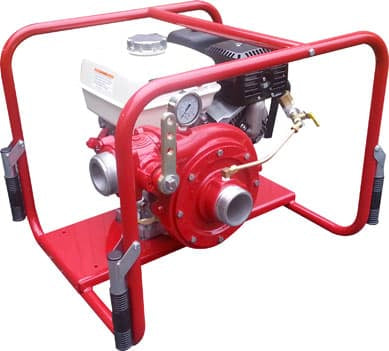

The CET 9 HP High Volume Skid Frame Pump - Manual Start is a lightweight, high-output firefighting pump designed to deliver exceptional water flow in a compact and portable package. Powered by a dependable Honda GX270 engine, this pump provides some of the highest volume performance available in its class, making it ideal for water transfer, tanker filling, rural firefighting, and mobile skid unit applications. The engine and pump are mounted within a rugged steel protective frame equipped with shock absorbers and folding handles for easy transportation and deployment.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a corrosion-resistant aluminum alloy pump body, bronze impeller, and mechanical shaft seal for reliable long-term performance. The exhaust priming system provides dependable priming capability with lifts up to 20 feet, while the included pressure gauge and low oil alert help operators monitor system performance and protect the engine during operation. Compact, durable, and easy to operate, this pump is designed for demanding firefighting and water movement applications.
Features
• Honda GX270 air-cooled gasoline engine
• Single-cylinder, 4-stroke engine design
• Manual recoil start system
• Lightweight, high-volume pump design
• Heavy-duty steel protective frame with shock absorbers and folding handles
• Direct-drive C.E.T. single-stage centrifugal pump
• Corrosion-resistant aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" discharge outlet with 1/4-turn ball valve
• One 2-1/2" suction inlet
• Pressure gauge and low oil alert system included
• Ideal for water transfer, tanker filling, and firefighting applications
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: High Volume Skid Frame Pump
• Model: PFP-9HPHND-M
• Engine: Honda GX270
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Gasoline
• Starting System: Manual Recoil Start
• Fuel Tank Capacity: 1.4 Gallons (5.3 L)
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 2-1/2" with 1/4-Turn Ball Valve
• Dimensions: 21-1/2" L x 26-3/4" W x 20" H
• Weight: 105 lbs.
• Warranty: 3-Year Limited Warranty
Performance
• 200 GPM @ 25 PSI
• 140 GPM @ 50 PSI
• 100 GPM @ 75 PSI
• 60 GPM @ 100 PSI
