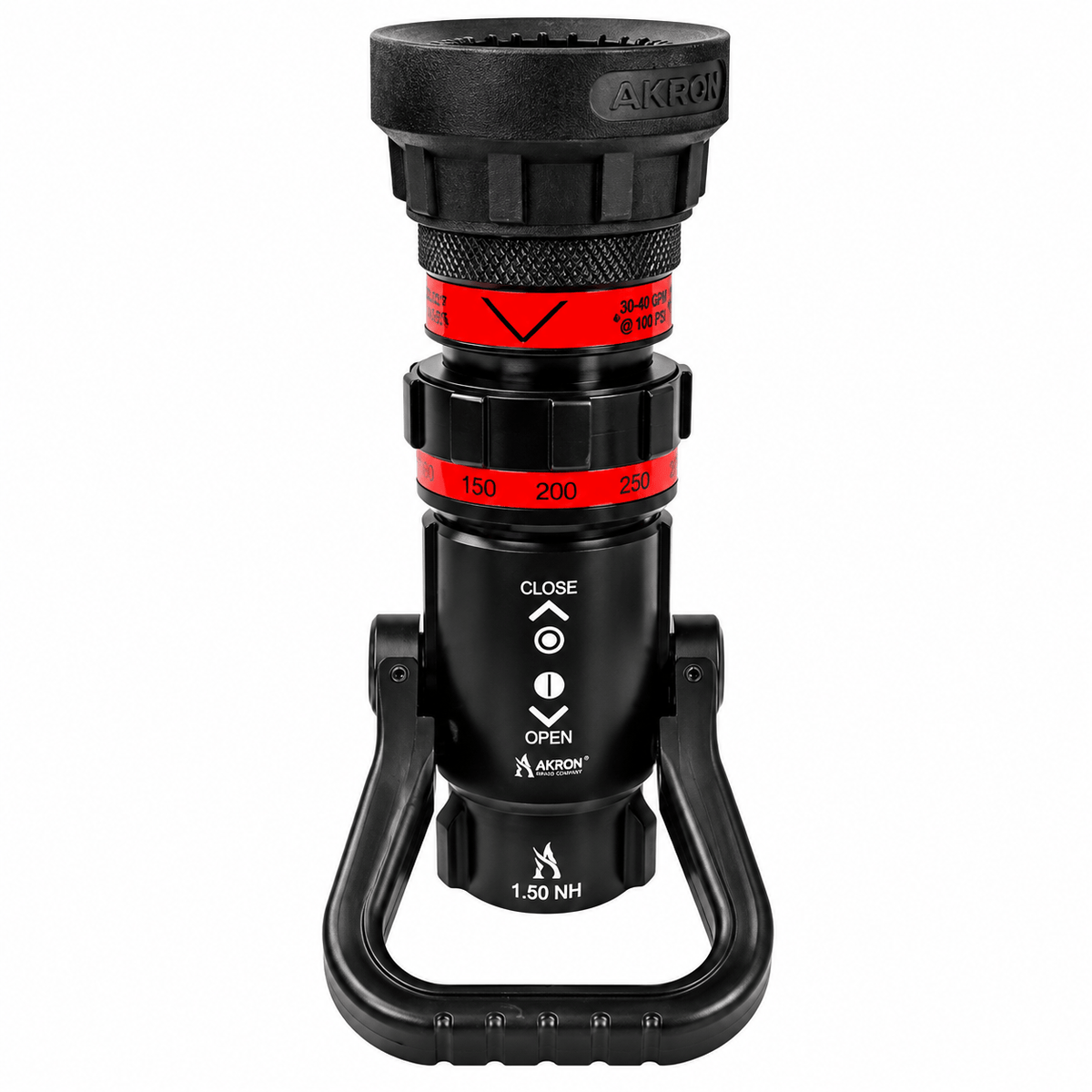

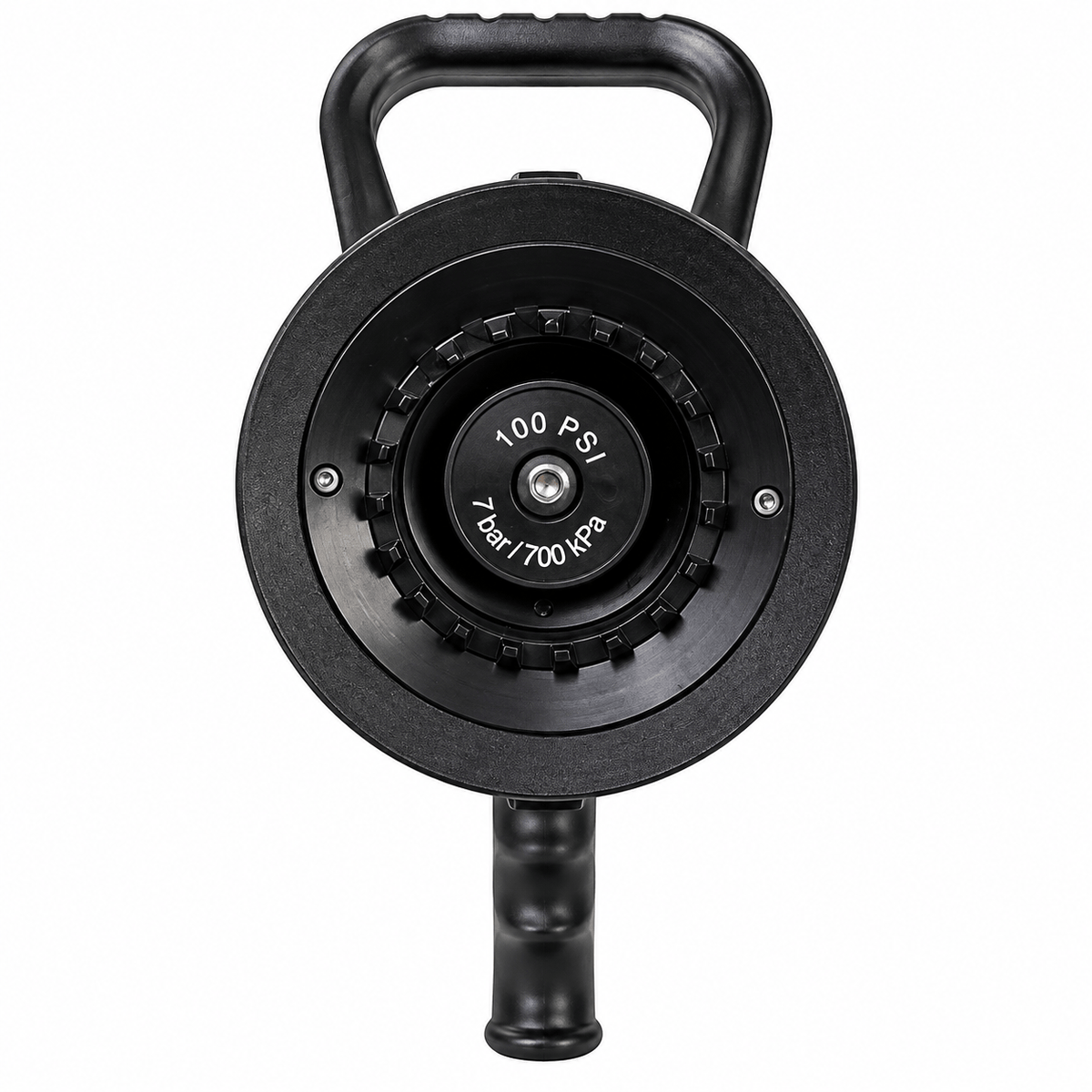

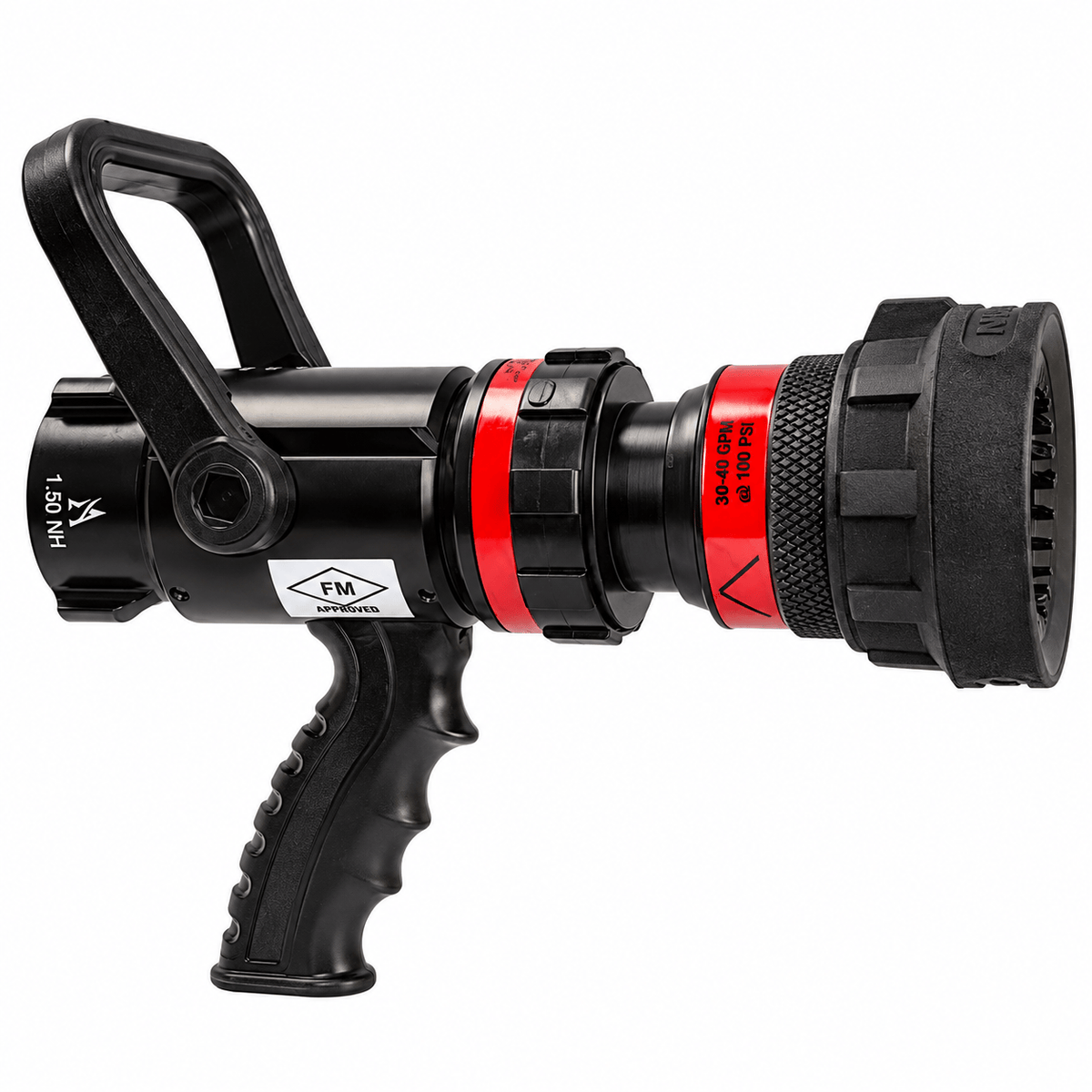

The Akron Brass 1.5" Wide Range Turbojet Nozzle with Pistol Grip is a selectable-gallonage, constant-flow firefighting nozzle designed to provide reliable stream performance across a wide range of firefighting applications. Engineered so that flow remains constant throughout all stream patterns, the Turbojet allows operators to quickly adjust flow rates while maintaining effective fire suppression capabilities.
Constructed from lightweight yet durable Pyrolite material, this nozzle features multiple fixed flow settings ranging from 95 to 200 GPM and transitions from straight stream to fog with just a quarter turn. The attached pistol grip improves handling and control during operation, making the Turbojet a trusted choice for structural, industrial, ARFF, marine, mining, and wildland firefighting professionals worldwide.
Features
• Constant gallonage design maintains flow rate throughout all stream patterns
• Multiple selectable flow settings for operator-controlled performance
• Attached pistol grip for improved handling and nozzle control
• Quarter-turn operation from straight stream to fog pattern
• Large, easy-to-read pattern identification markings
• Raised lug marks identify straight stream position in low-visibility conditions
• Easy to service and repair
• Compatible with Akron Brass Quick-Attack Foam Tube Style 796
• Meets European Standard requirements
• Replacement for Akron Brass Style 1762 Turbojet nozzle
• Available flow settings at 100 PSI (7 bar) or optional 75 PSI (5 bar) operation
Specifications
• Manufacturer: Akron Brass
• Style: 1763
• Product Type: Selectable Gallonage Fire Nozzle
• Material: Pyrolite
• Finish: Pyrolite
• Inlet Size: 1.5" (38 mm) Swivel Inlet
• Flow Settings: 95, 125, 150, and 200 GPM
• Additional Flow Range: 30-200 GPM
• Length: 11" (279 mm)
• Weight: 5.75 lbs (2.6 kg)
• Certifications: NFPA 1964, Factory Mutual (FM)
• NFPA 1960 (2024) Compliant: No
• Compatible Foam Tube: Akron Brass Style 796 Quick-Attack Foam Tube
• Applications: Structural Firefighting, Industrial Firefighting, Airport ARFF, Wildland Forestry, Marine, and Mining
