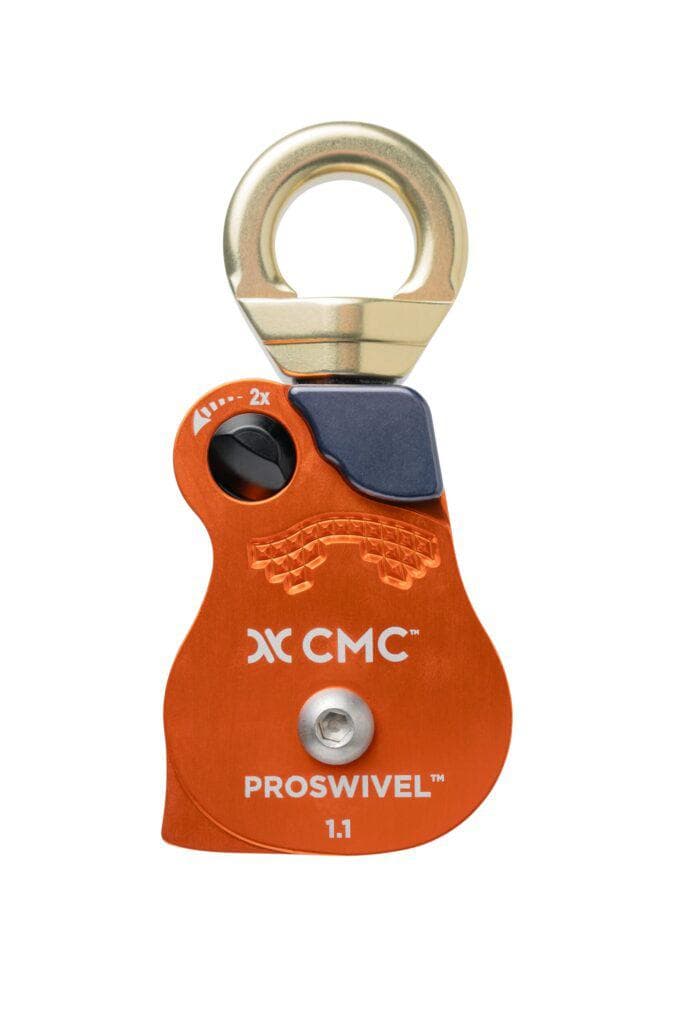

The 1.1" PMP Single Swivel Pulley combines a high-efficiency pulley and integrated swivel into one compact device, creating a streamlined solution for rescue, rope access, work-at-height, and arborist applications. Designed in partnership with Rock Exotica, this lightweight pulley features a pivoting sideplate that allows rope loading and unloading while remaining attached to the anchor, reducing setup time and increasing operational efficiency.
The integrated swivel helps align the rope with the direction of pull, minimizing twisting and improving system performance. Sealed ball bearings maximize efficiency while the compact CNC-machined aluminum construction delivers an exceptional strength-to-weight ratio. Ideal for lightweight technical rescue systems and progress-capture setups, the 1.1" PMP Single Swivel Pulley is NFPA Technical Use rated and certified to EN 12278 standards.
Features
• Integrated swivel and pulley design reduces overall system length and increases travel
• Pivoting sideplate allows rope loading without disconnecting from the anchor
• Double-action detent button helps prevent accidental sideplate opening
• Sealed ball bearing sheave provides smooth, high-efficiency operation
• Rotating swivel automatically aligns with the direction of pull
• Compatible with rope, webbing, or carabiner anchor connections
• Compact, lightweight design ideal for technical rescue and rope access applications
• CNC-machined aluminum construction for optimal strength-to-weight performance
• Prusik-minding design facilitates progress-capture systems
• Compatible with ropes up to 13 mm (1/2 in) diameter
• Ideal for rescue, work-at-height, and tree care applications
• Patented design developed in partnership with Rock Exotica
• Made in the USA
Specifications
• Item Number: 300434
• Type: Single Sheave Swivel Pulley
• Material: Aluminum
• Weight: 147 g (5.2 oz)
• Dimensions: 112 x 51 mm (4.4 x 2.0 in)
• Color: Bronze / Slate
• NFPA Rating: Technical Use
• Certification: EN 12278
• Minimum Breaking Strength (MBS): 22 kN (4,946 lbf)
• Maximum Rope Diameter: 13 mm (1/2 in)
• Manufacturer: CMC
• Product Type: Single Swivel Pulley
