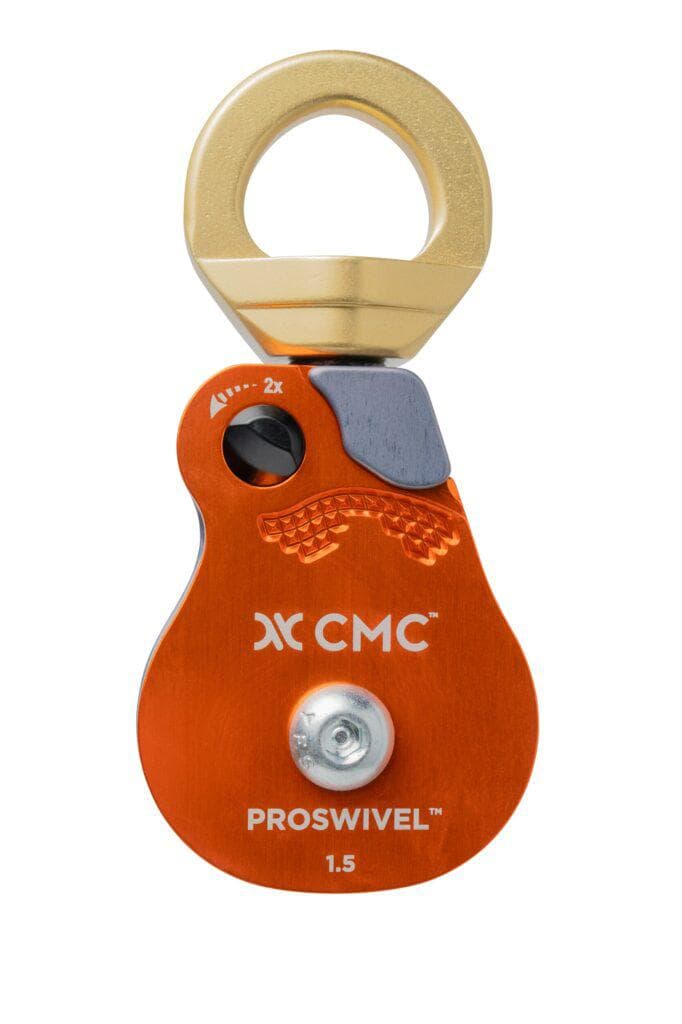

The 1.5" Single Swivel Pulley combines a high-efficiency pulley and integrated swivel into a compact, lightweight device designed for rescue, rope access, arborist, and industrial rigging applications. By integrating both components into a single unit, the pulley reduces overall system length while improving rope alignment and operational efficiency.
Part of CMC’s ProSwivel Pulley series developed in partnership with Rock Exotica, this pulley features a pivoting side plate that allows ropes to be loaded and unloaded while the pulley remains attached to the anchor. The integrated swivel automatically aligns with the direction of pull to minimize twisting and improve system performance. A sealed ball-bearing sheave provides smooth, efficient operation, while the ergonomic design allows easy one-handed anchoring and rope installation.
Manufactured from CNC-machined aluminum and certified to NFPA General Use standards, the 1.5" Single Swivel Pulley offers an excellent balance of strength, durability, and compact size for demanding technical rope applications.
Features
• Integrated swivel and pulley design reduces overall system length
• Pivoting side plate allows rope loading and unloading while attached to the anchor
• Double-action detent button helps prevent accidental side plate opening
• Sealed ball-bearing sheave provides smooth, high-efficiency operation
• Rotating swivel automatically aligns with the direction of pull
• Swivel attachment accommodates rope, webbing, or carabiners
• Ergonomic design enables easy one-handed anchoring and loading
• CNC-machined aluminum construction for optimal strength-to-weight ratio
• Prusik-minding design facilitates progress-capture systems
• Compatible with ropes up to 13 mm (1/2 in) diameter
• Ideal for rescue, rope access, work-at-height, and tree care applications
• Patented design
• Made in the USA
Specifications
• Manufacturer: CMC
• Product Type: Single Swivel Pulley
• Item Number: 300431
• Sheave Configuration: Single Sheave
• Material: Aluminum
• Weight: 261 g (9.2 oz)
• Dimensions: 135 x 63 mm (5.3 x 2.5 in)
• Color: Bronze / Slate
• NFPA Rating: General Use
• Certification: EN 12278
• 3 Sigma MBS: 36 kN (8,093 lbf)
• Compatible Rope Diameter: Up to 13 mm (1/2 in)
• Bearing Type: Sealed Ball Bearings
• Integrated Swivel: Yes
• Country of Origin: USA
Applications
• Technical rescue systems
• Mechanical advantage hauling systems
• Progress-capture systems
• Rope access operations
• High-directional and tripod systems
• Confined space rescue
• Arborist and tree care rigging
• Redirects and tensioned rope systems
