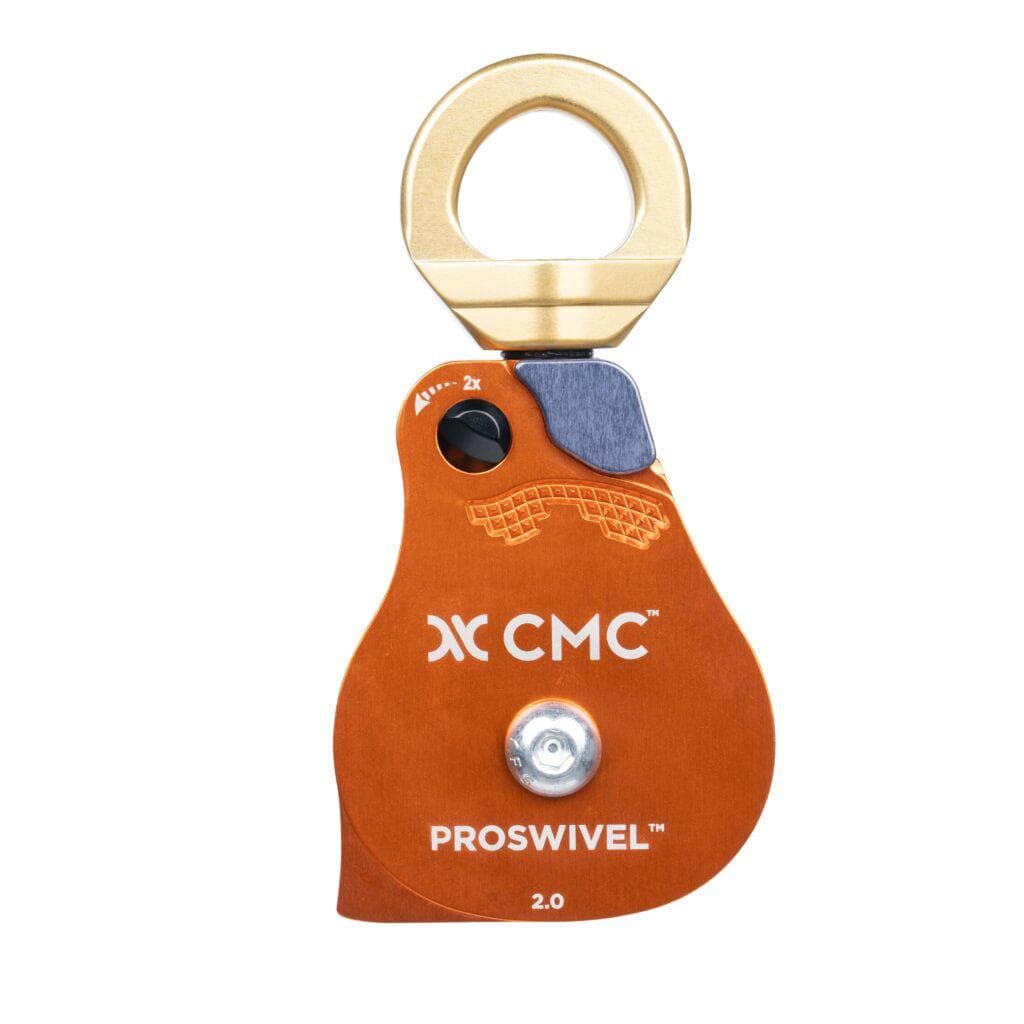

The 2.0" PMP Single Swivel Pulley combines a high-efficiency pulley and integrated swivel into a single compact device, reducing system length while improving rope alignment and overall rigging efficiency. Designed for rescue, rope access, work-at-height, and arborist applications, the ProSwivel Pulley features a pivoting side plate that allows ropes to be loaded or unloaded while the pulley remains attached to the anchor.
Developed in partnership with Rock Exotica, the ProSwivel series incorporates a rotating swivel that automatically aligns with the direction of pull, helping reduce twisting and improve system performance. The sealed ball-bearing sheave delivers smooth, efficient operation, while the double-action detent button helps prevent accidental opening during use.
Manufactured from CNC-machined aluminum for an ideal balance of strength and weight, the 2.0" PMP Single Swivel Pulley is NFPA General Use rated and built to withstand demanding rescue and industrial applications. Its ergonomic design allows easy one-handed anchoring and loading, making it a versatile addition to any technical rope system.
Features
• Integrated swivel and pulley design reduces overall system length
• Pivoting side plate allows rope loading and unloading while attached to the anchor
• Double-action detent button helps prevent accidental side plate opening
• Sealed ball-bearing sheave provides smooth, high-efficiency operation
• Rotating swivel aligns automatically with the direction of pull
• Swivel attachment accommodates rope, webbing, or carabiners
• Ergonomic design enables easy one-handed anchoring and loading
• CNC-machined aluminum construction for optimal strength-to-weight ratio
• Prusik-minding design facilitates progress-capture systems
• Compatible with ropes up to 13 mm (1/2 in) diameter
• Ideal for rescue, rope access, work-at-height, and tree care applications
• Patented design
• Made in the USA
Specifications
• Manufacturer: CMC
• Product Type: Single Swivel Pulley
• Item Number: 300437
• Sheave Configuration: Single Sheave
• Material: Aluminum
• Weight: 349 g (12.3 oz)
• Dimensions: 148 x 76 mm (5.8 x 3.0 in)
• Color: Bronze / Slate
• NFPA Rating: General Use
• Certification: EN 12278
• 3 Sigma MBS: 36 kN (8,093 lbf)
• Compatible Rope Diameter: Up to 13 mm (1/2 in)
• Bearing Type: Sealed Ball Bearings
• Country of Origin: USA
Applications
• Technical rescue systems
• Mechanical advantage hauling systems
• Rope access operations
• High-directional and tripod systems
• Confined space rescue
• Arborist and tree care rigging
• Redirects and progress-capture systems
