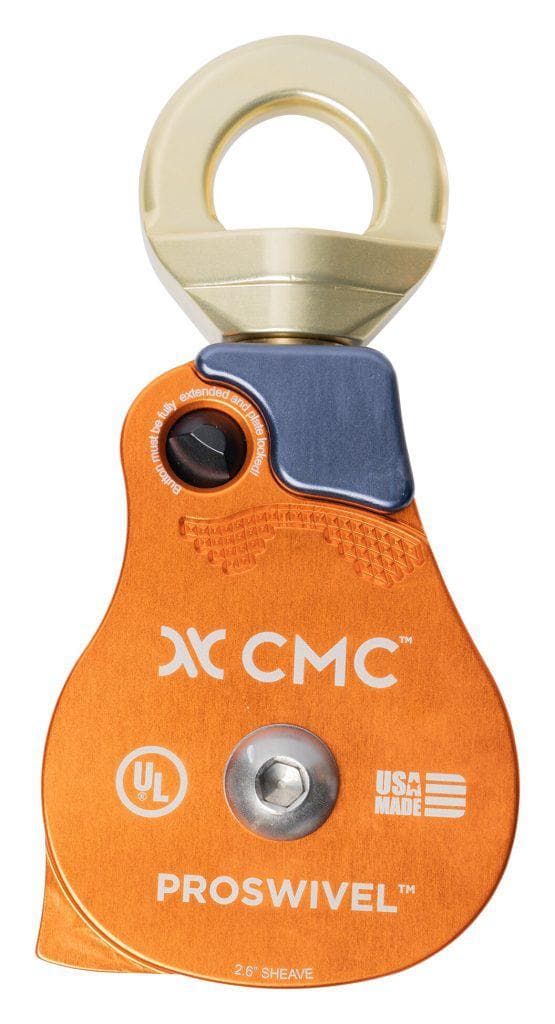

The 2.6" PMP Single Swivel Pulley is a high-capacity pulley designed for demanding rescue, rope access, arborist, and industrial rigging applications. Combining a swivel and pulley into a single device, it reduces overall system length while improving rope alignment and efficiency. The integrated swivel automatically aligns with the direction of pull, minimizing twisting and optimizing system performance.
Part of CMC’s ProSwivel Pulley series developed in partnership with Rock Exotica, this pulley features a pivoting side plate that allows rope loading and unloading while remaining connected to the anchor. A double-action detent button helps prevent accidental opening, while the large sealed ball-bearing sheave provides exceptional efficiency for hauling, raising, lowering, and mechanical advantage systems.
Manufactured from CNC-machined aluminum and built to NFPA General Use standards, the 2.6" PMP Single Swivel Pulley offers outstanding strength, durability, and performance for technical professionals who require maximum efficiency and reliability in the field.
Features
• Integrated swivel and pulley design reduces overall system length
• Large 2.6" sheave increases efficiency for hauling and mechanical advantage systems
• Pivoting side plate allows rope loading and unloading while attached to the anchor
• Double-action detent button helps prevent accidental side plate opening
• Sealed ball-bearing sheave provides smooth, high-efficiency operation
• Rotating swivel automatically aligns with the direction of pull
• Swivel attachment accommodates rope, webbing, or carabiners
• Ergonomic design enables easy one-handed anchoring and loading
• CNC-machined aluminum construction for optimal strength and durability
• Prusik-minding design facilitates progress-capture systems
• Compatible with ropes up to 13 mm (1/2 in) diameter
• Ideal for rescue, rope access, work-at-height, and tree care applications
• Patented design
• Made in the USA
Specifications
• Manufacturer: CMC
• Product Type: Single Swivel Pulley
• Item Number: 300436
• Sheave Configuration: Single Sheave
• Material: Aluminum
• Weight: 841 g (29.7 oz)
• Dimensions: 191 x 93 mm (7.5 x 3.6 in)
• Color: Bronze / Slate
• NFPA Rating: General Use
• Certification: EN 12278
• 3 Sigma MBS: 70 kN (15,737 lbf)
• Compatible Rope Diameter: Up to 13 mm (1/2 in)
• Bearing Type: Sealed Ball Bearings
• Country of Origin: USA
Applications
• Technical rescue systems
• High-efficiency hauling and lowering systems
• Mechanical advantage systems
• High-directional and tripod systems
• Rope access operations
• Confined space rescue
• Arborist and tree care rigging
• Redirects and progress-capture systems
