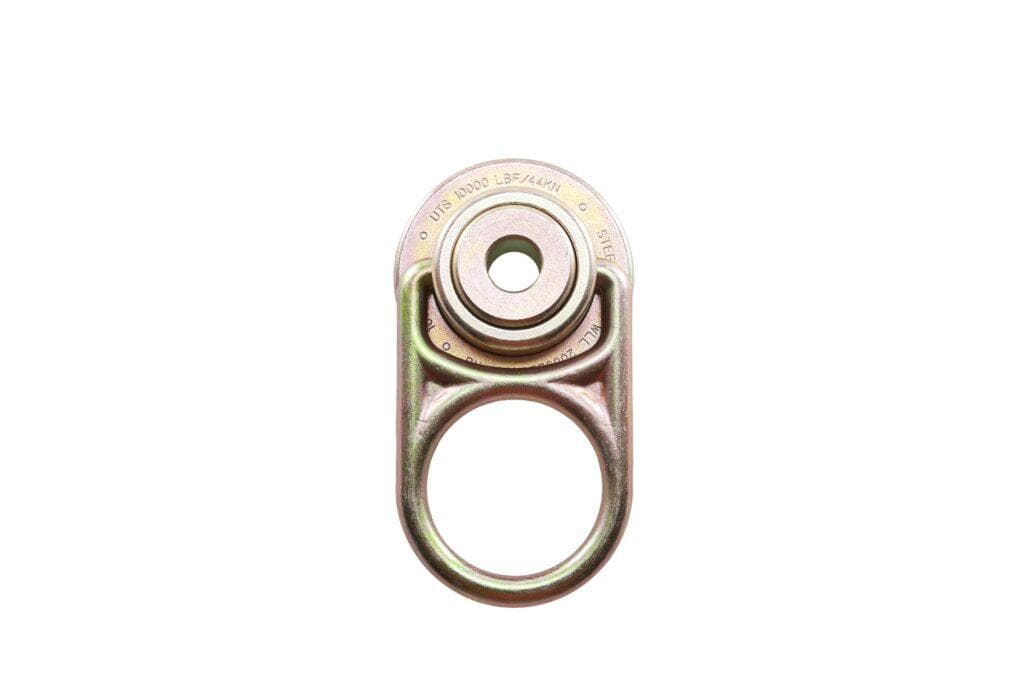

The 5/8" Anchor 10K Swivel Only is a robust anchorage connector designed for use in steel and concrete applications where a reliable, high-strength anchor point is required. Featuring a forged steel D-ring with a 360-degree swivel design, this anchor provides a full range of motion while helping reduce twisting and side loading during fall protection, rescue, and work-at-height operations.
Designed for use with compatible steel or concrete anchor bolts, the swivel-only configuration allows users to adapt the anchor to specific jobsite requirements. With a minimum breaking strength of 10,000 lbf (44 kN) and compliance with ANSI and OSHA standards, this anchor delivers dependable performance in demanding industrial, construction, and rescue environments.
Features
• Robust forged steel D-ring construction for maximum strength and durability
• 360-degree swivel design provides full freedom of movement at the anchor point
• Helps reduce twisting and side loading during use
• Suitable for steel and concrete anchorage applications
• Compatible with approved steel or concrete anchor bolts
• Minimum breaking strength of 10,000 lbf (44 kN)
• Meets ANSI Z359.18-2017 requirements
• Complies with OSHA 1910.140 and OSHA 1926.502 standards
• Designed for fall protection, rescue, and work-at-height applications
• No bolts included
Specifications
• Product Type: Swivel Anchorage Connector
• Product Name: 5/8" Anchor 10K Swivel Only
• Weight: 0.9 kg (2 lb)
• Minimum Breaking Strength (MBS): 10,000 lbf (44 kN)
• Product Dimensions: 5.5 in L x 3 in W x 1 in H
• Shipping Dimensions: 7.2 in L x 4.8 in W x 2.4 in H
• Material: Forged Steel
• Standards: ANSI Z359.18-2017, OSHA 1910.140, OSHA 1926.502
• Hardware Included: No bolts included
Applications
• Fall protection anchorage systems
• Rope rescue operations
• Industrial maintenance work
• Construction site anchorage points
• Steel structure anchoring
• Concrete anchoring applications
• General work-at-height safety systems
