The Arizona Vortex Kit is the industry-leading artificial high directional (AHD) system designed for technical rescue, rope access, confined space, industrial, and wilderness operations. Developed through years of field testing and innovation, the Arizona Vortex® combines the functionality of a tripod, bipod, monopod, A-frame, Sideways A-frame, Gin Pole, Easel A-frame, and numerous custom configurations into one highly versatile system.
Built around a precision-machined two-piece head assembly, the Arizona Vortex® provides rescuers with exceptional adaptability for edge transitions, highline systems, tracking line offsets, confined space access, and complex rope rescue scenarios. Its modular design allows users to configure the system to suit virtually any environment, while integrated pulley mounting options help maximize working space and efficiency. The included Vortex Bag System enables a single technician to transport the complete system into remote wilderness locations or industrial work sites.
Features

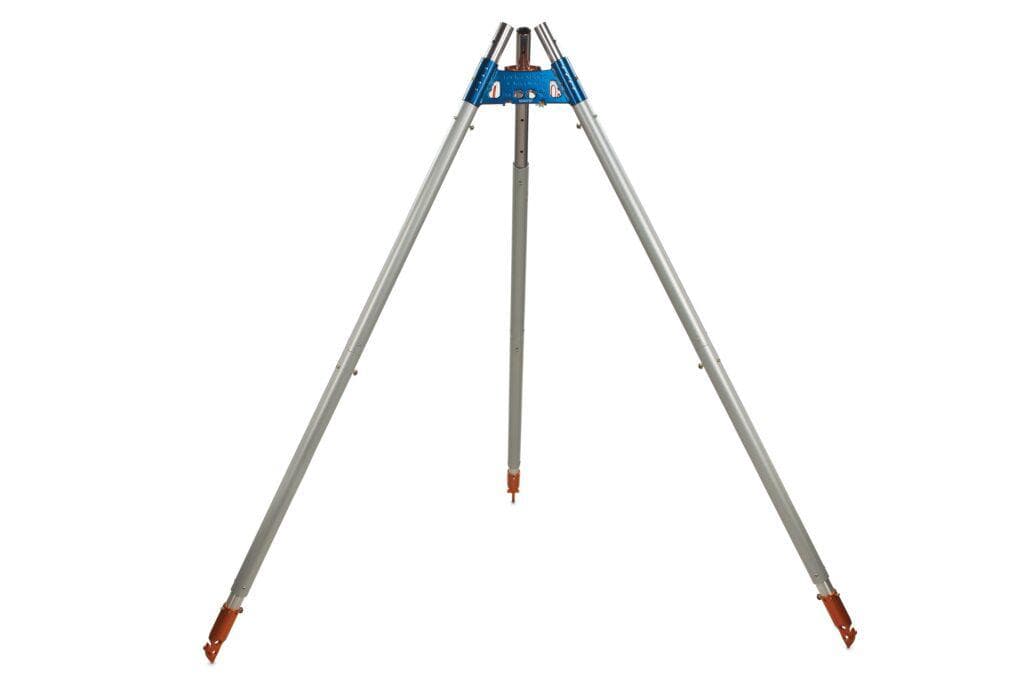

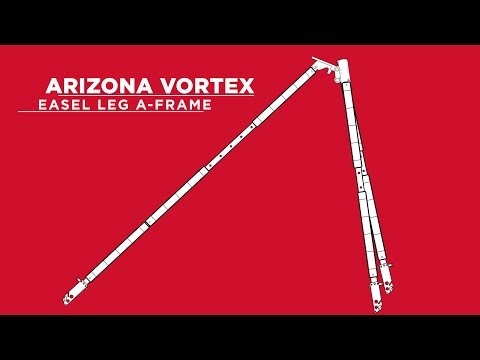

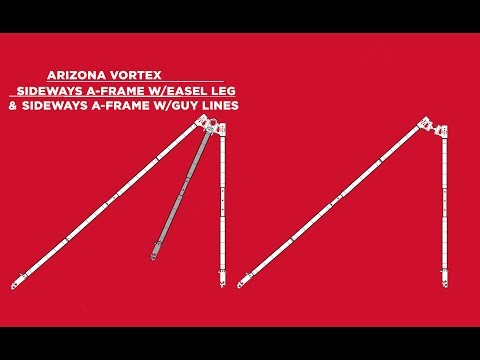

• Versatile multipod system configurable as a tripod, bipod, monopod, A-frame, Sideways A-frame, Gin Pole, Easel A-frame, and more
• Ideal for technical rescue, rope access, confined space, industrial, and wilderness applications

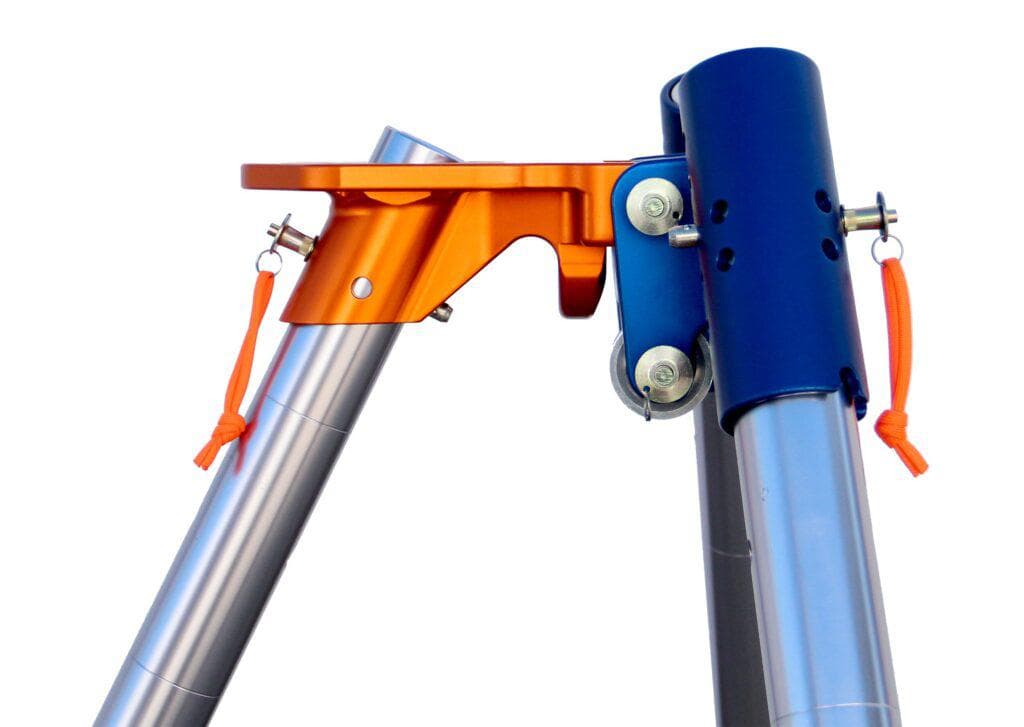

• Precision-machined two-piece head assembly for strength and adaptability
• Artificial High Directional (AHD) design provides superior edge management capabilities
• Allows direct pulley attachment to the head assembly using quick pins for increased working clearance
• Supports highline systems, tracking line offsets, and advanced rescue rigging configurations
• Adjustable leg lengths allow customized setups for uneven terrain and challenging environments

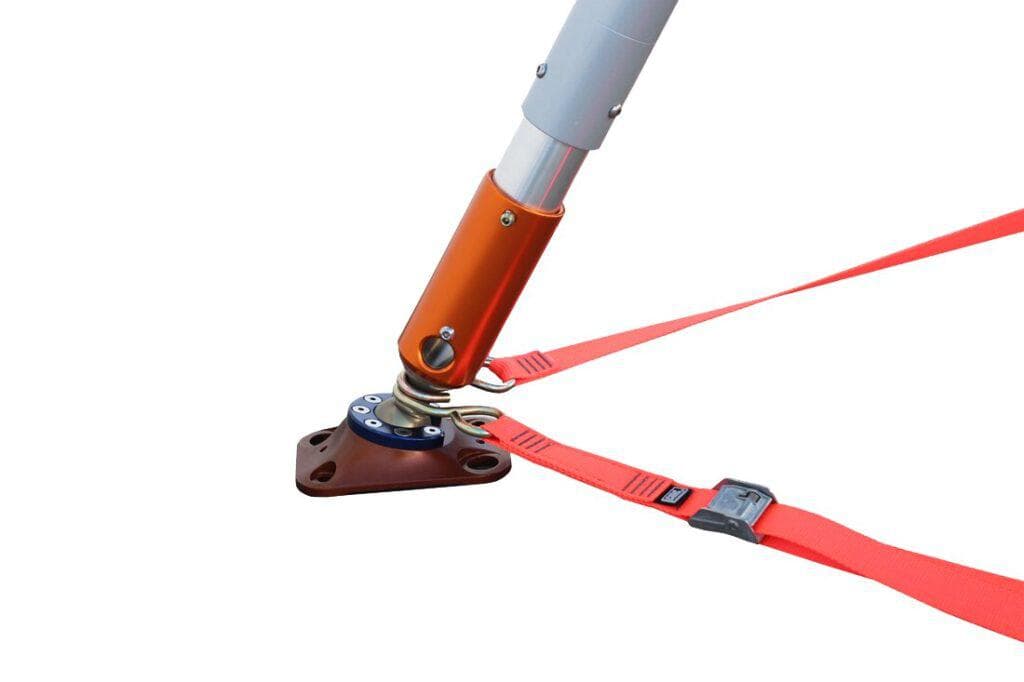

• Includes both Raptor (Claw) Feet and Flat (Omni) Feet for varying surface conditions
• Improved Flat Feet feature replaceable rubber pads for extended service life
• Multiple attachment points support complex rigging and rope access systems
• Modular design accommodates a wide range of rescue and access scenarios
• Includes complete Vortex Bag System for transport and storage
• Backpack-style carrying system allows a single technician to transport the complete kit
• Durable Cordura® nylon storage bags provide long-term protection and field durability
• Certified for professional rescue and industrial use

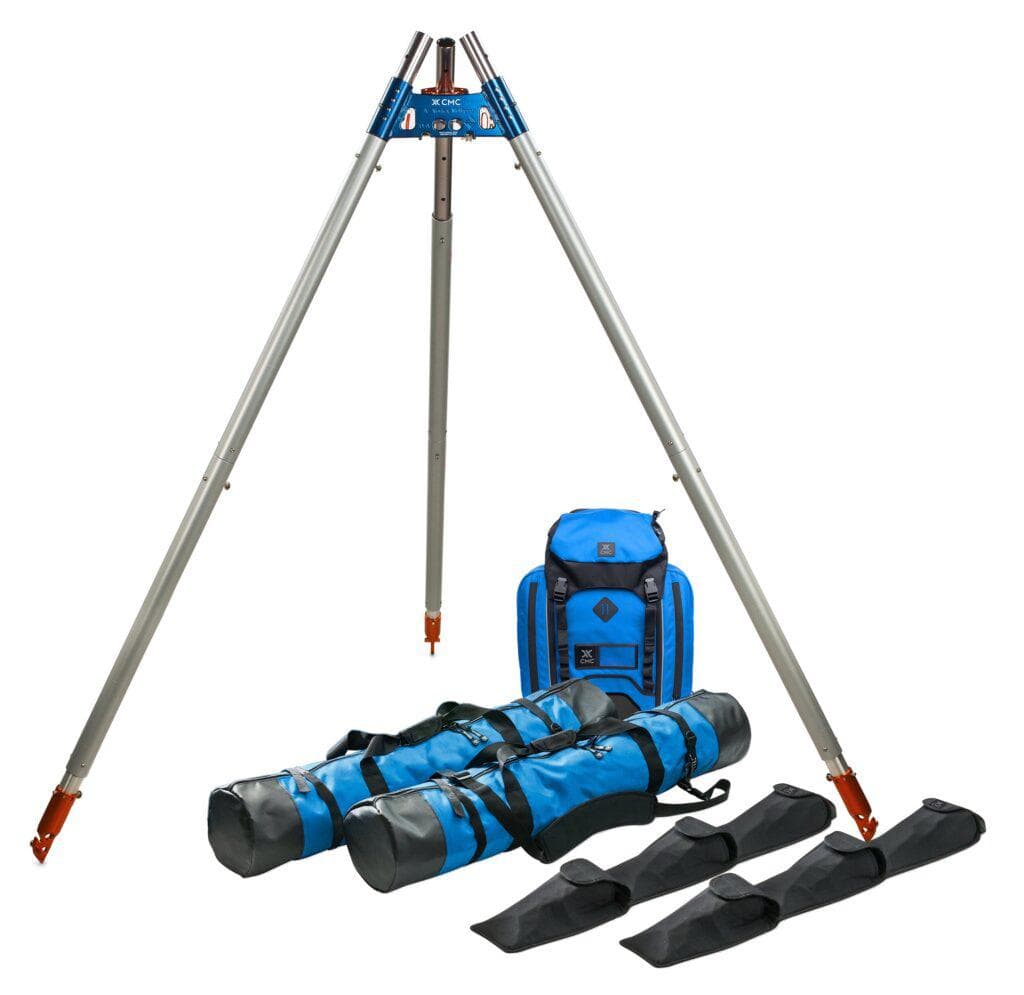

Kit Contents

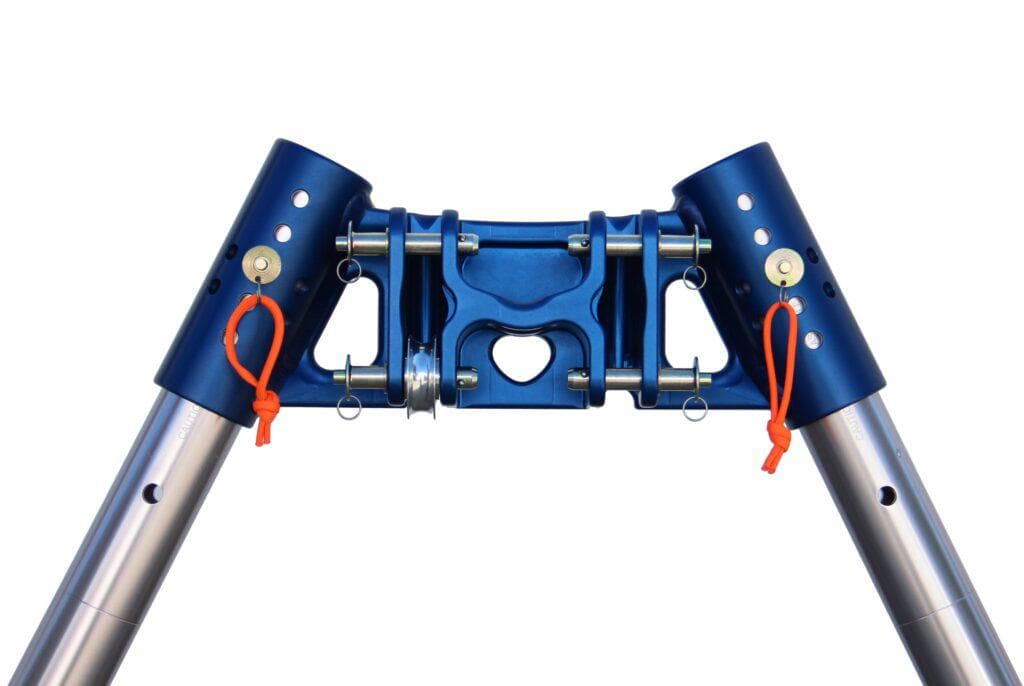

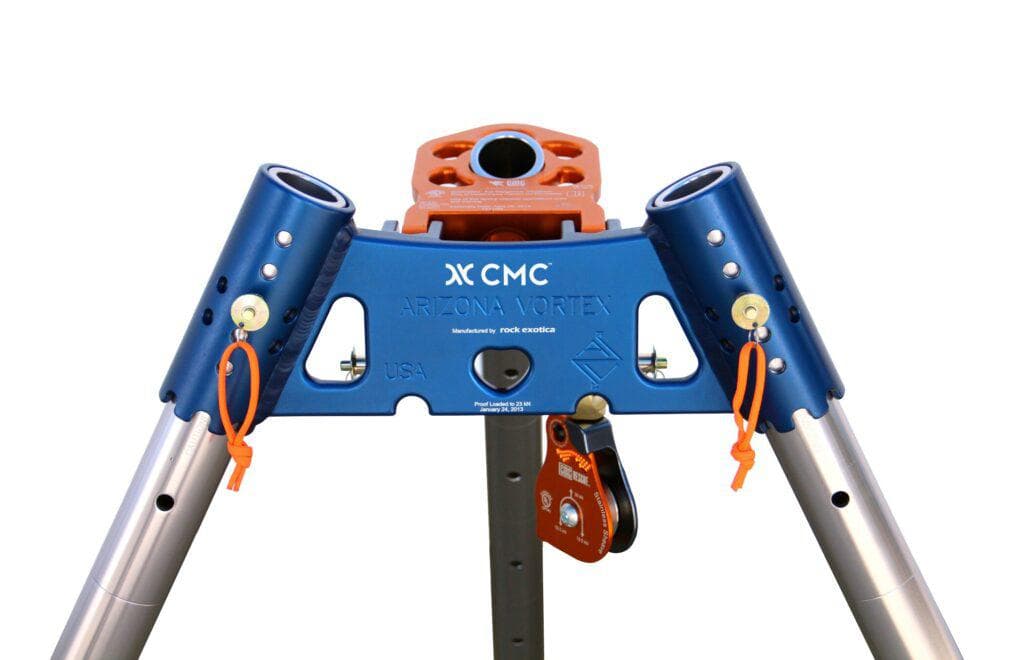

• 2-Piece Head Set

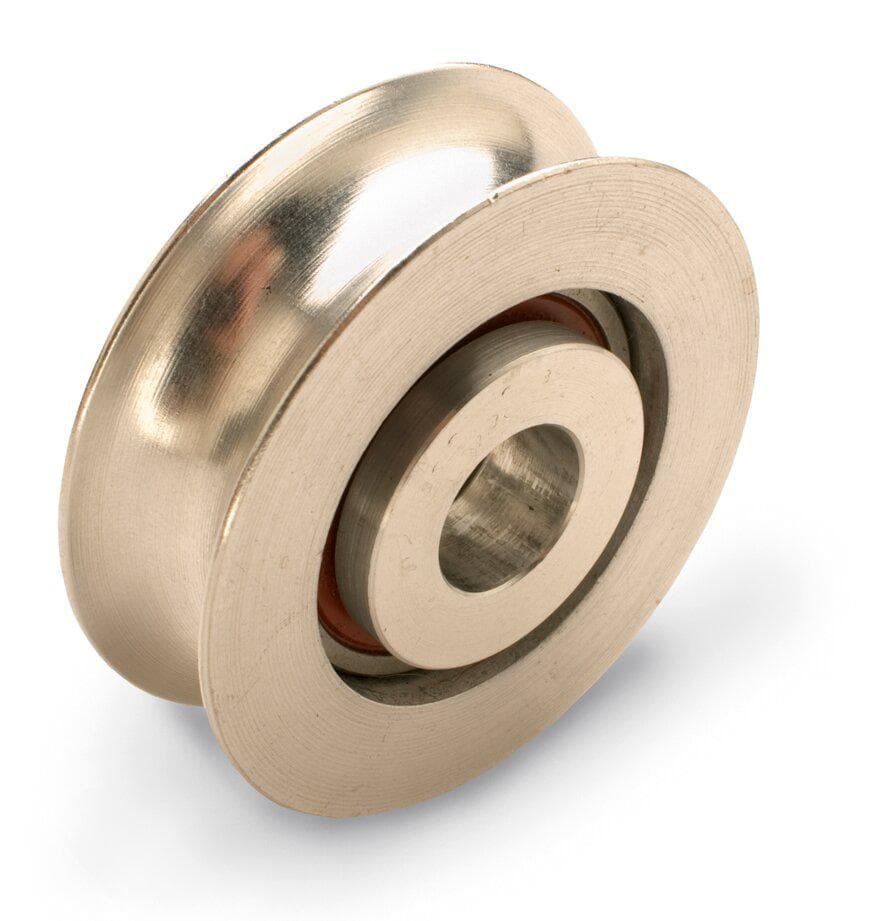

• Head Set Pulley Wheel

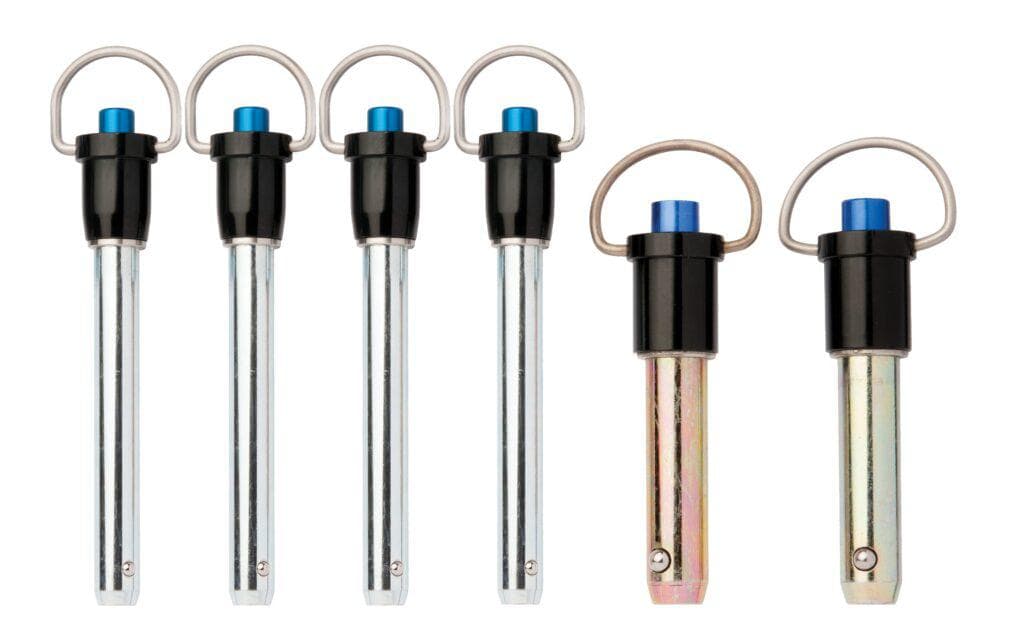

• Head Pins (4)
• Inner Legs (3)
• Outer Legs (7)
• Leg/Foot Pins (17)
• Flat (Omni) Feet (3)
• Raptor (Claw) Feet (3)
• Orange Pin Flags (21)

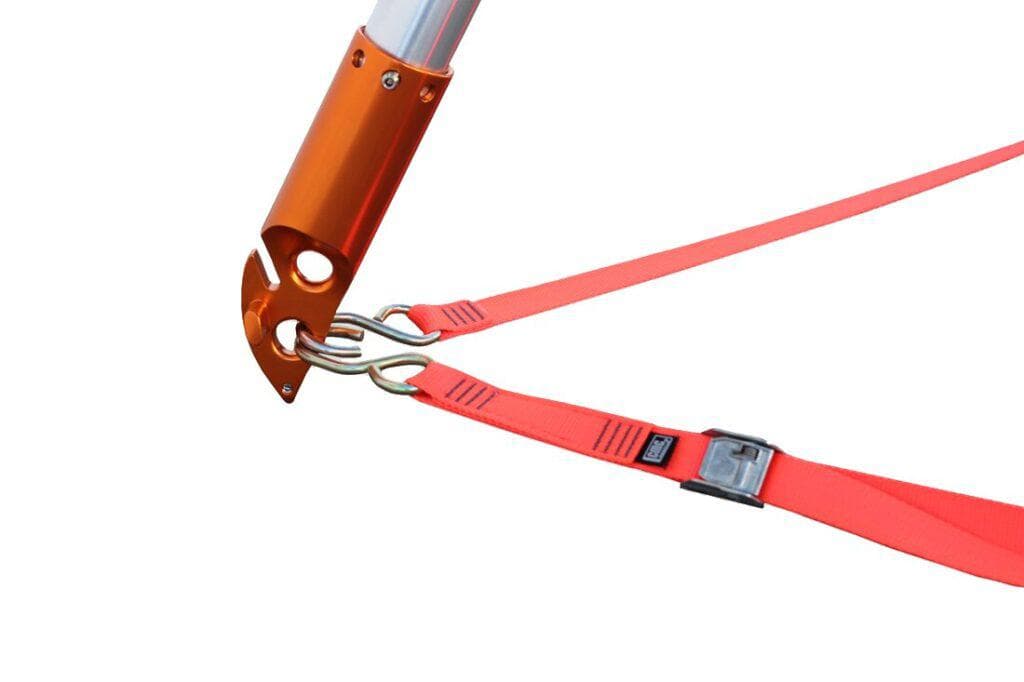

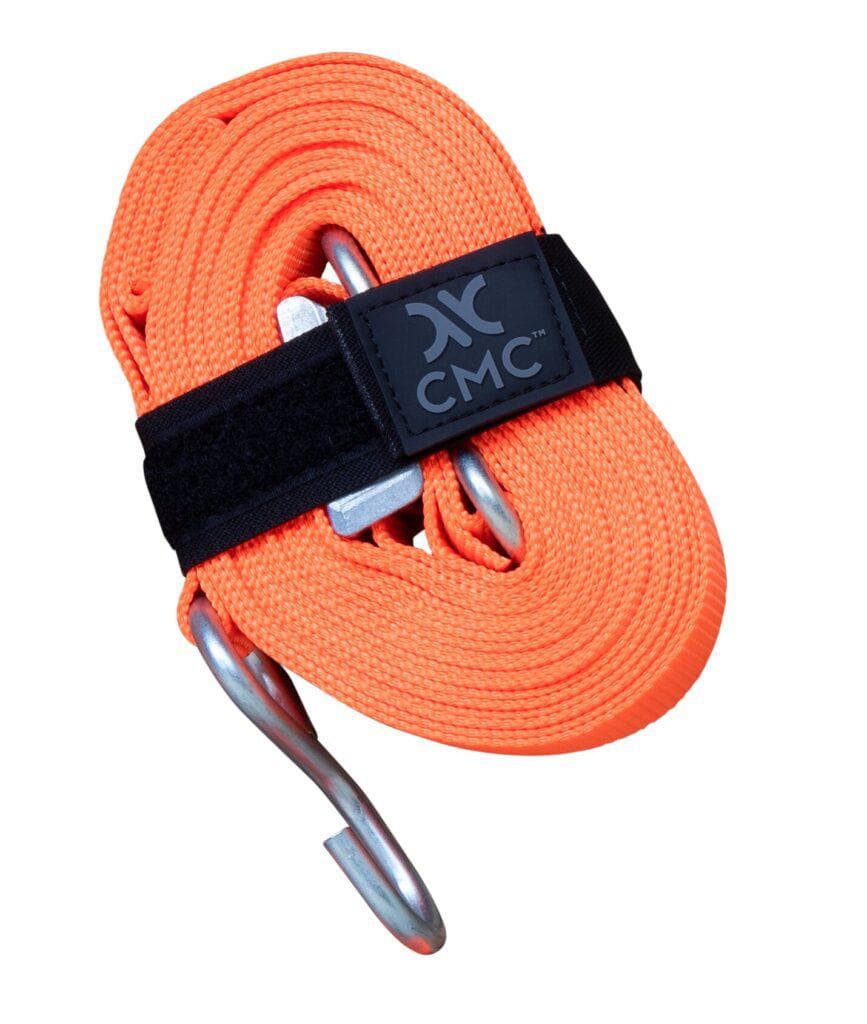

• Adjustable Hobble Straps (3)

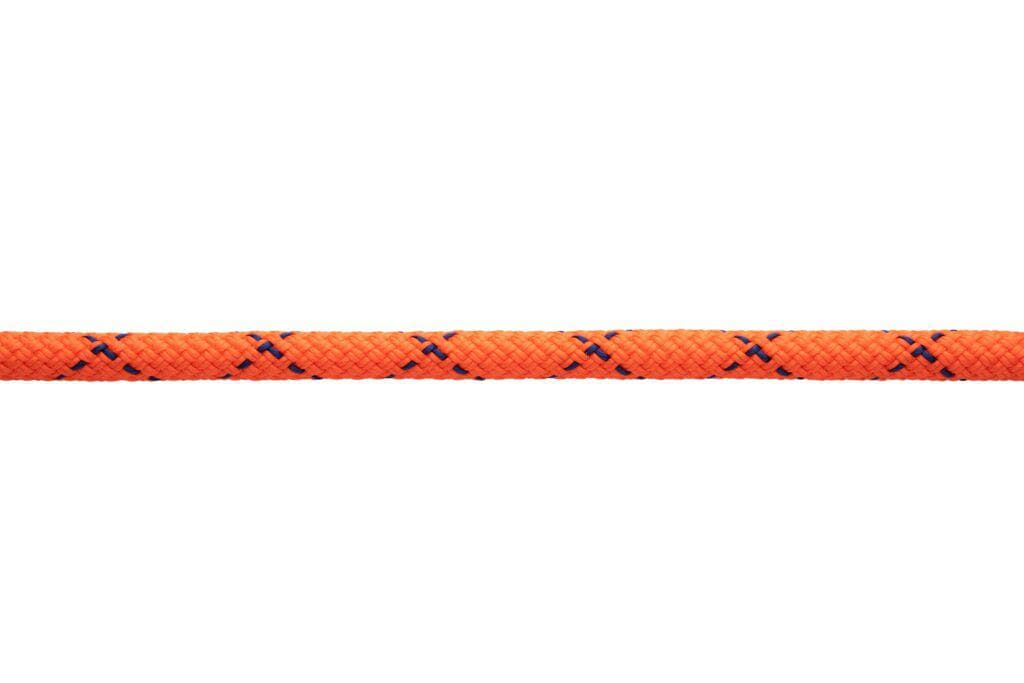

• 8 mm Tether Cord (40 ft)
• User Manual
Vortex Bag System Includes

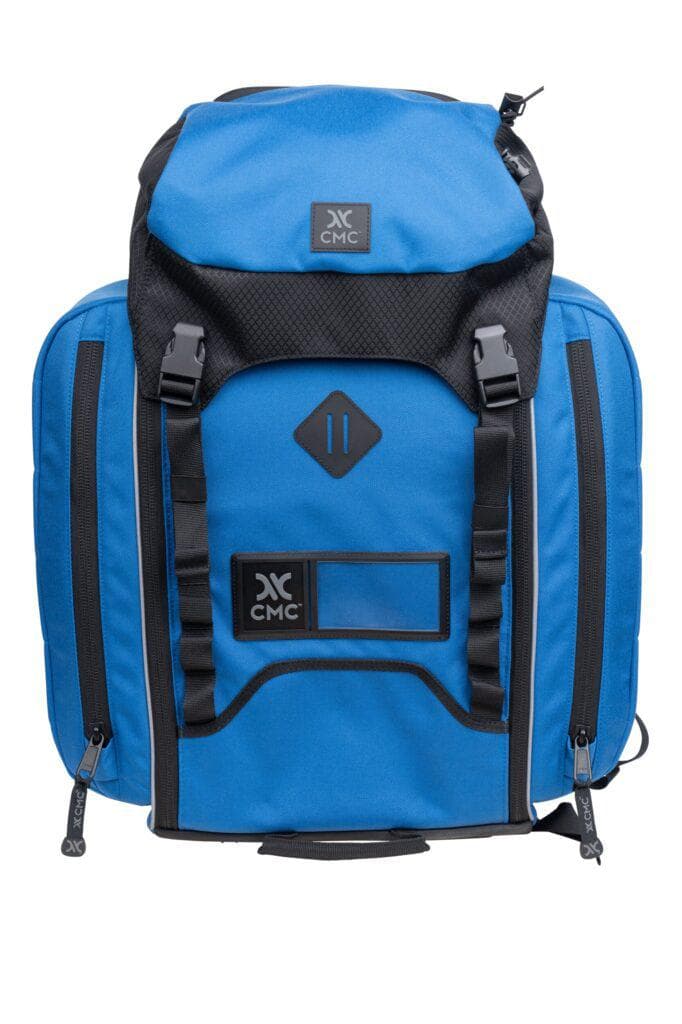

• RigTech Pack™
• Leg Bags with Shoulder Straps (2)

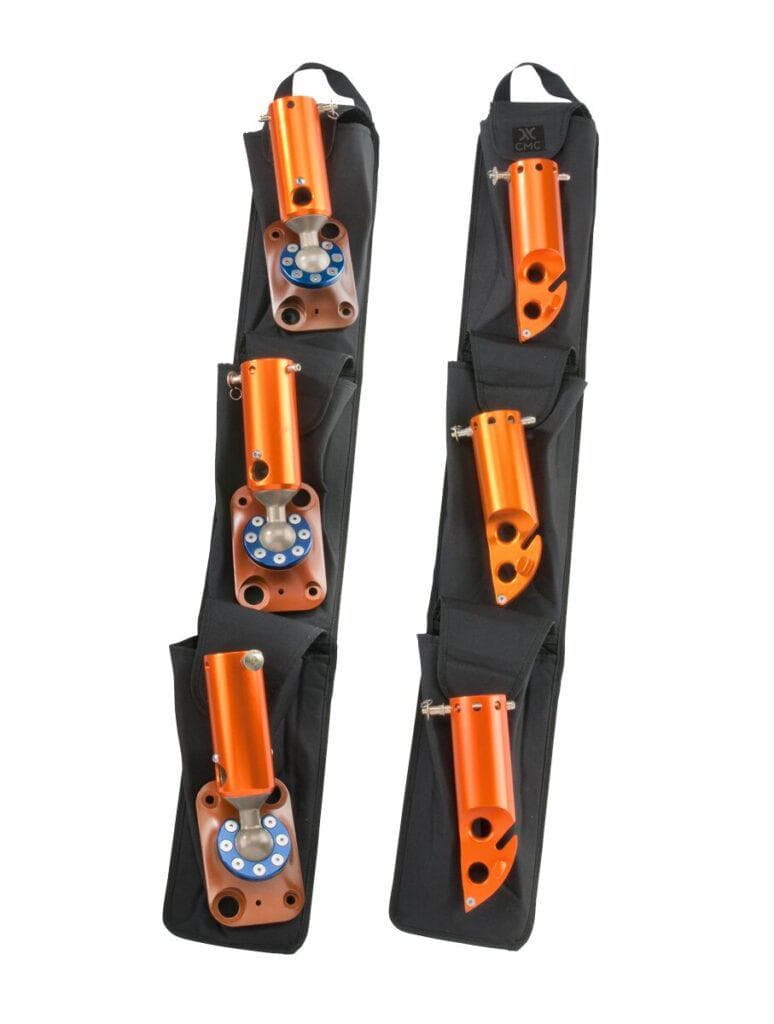

• Foot Set Sleeves (2)
• Pin Storage Bag
Specifications
• Manufacturer: CMC
• Product Type: Artificial High Directional Multipod System
• Model: Arizona Vortex Kit
• Minimum Height: 9 ft (2.7 m)
• Maximum Height (with Additional Legs): 12 ft (3.7 m)
• Weight (with Both Foot Sets): 72 lb (33 kg)
• Shipping Weight: 95 lb (43 kg)
• Minimum Breaking Strength (MBS): 36 kN (8,093 lbf)
Certifications
• NFPA General Use Classified
• EN 795:2012 Type B
• CEN/TS 16415:2013
Applications
• Technical Rescue
• Rope Access
• Confined Space Rescue
• Industrial Rescue
• Highline Systems
• Edge Management Operations
• Wilderness Rescue
• Search and Rescue
• Tower and Structural Access Operations
