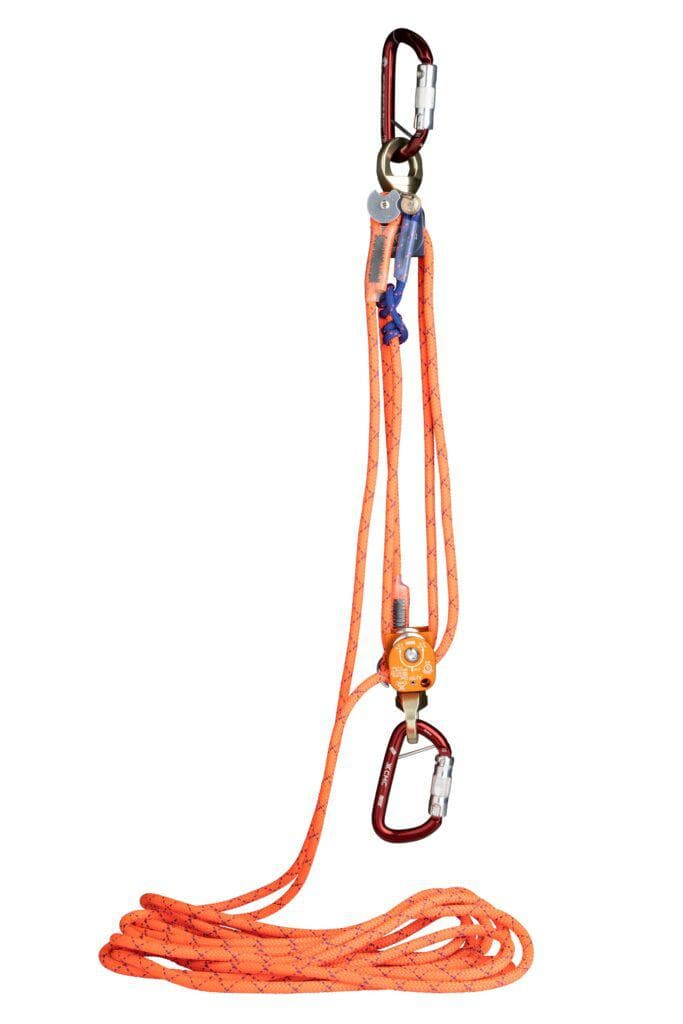

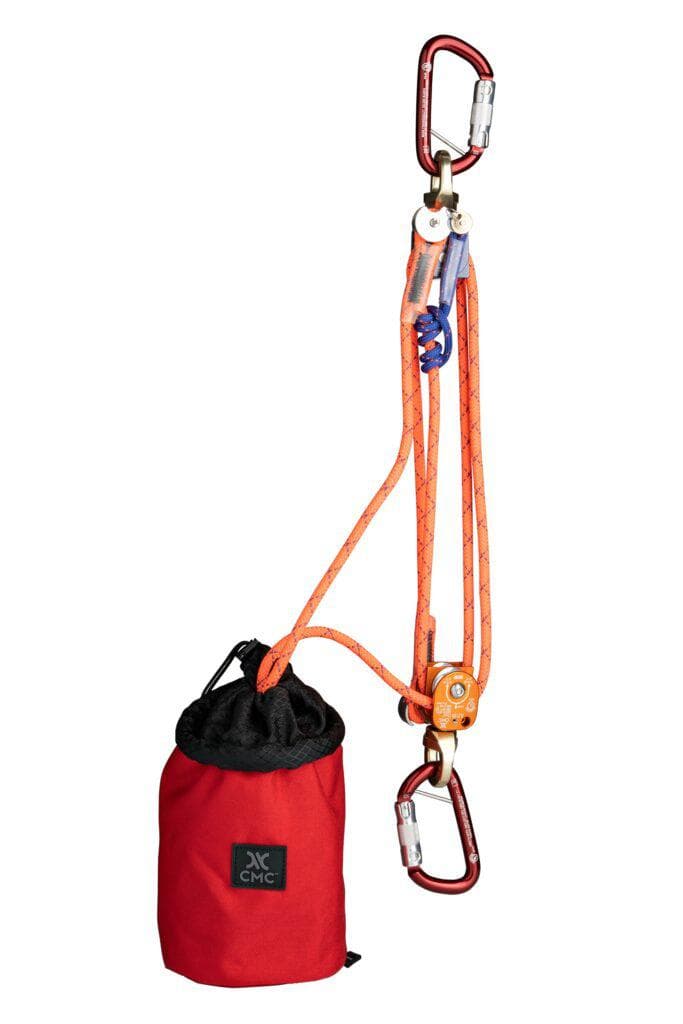

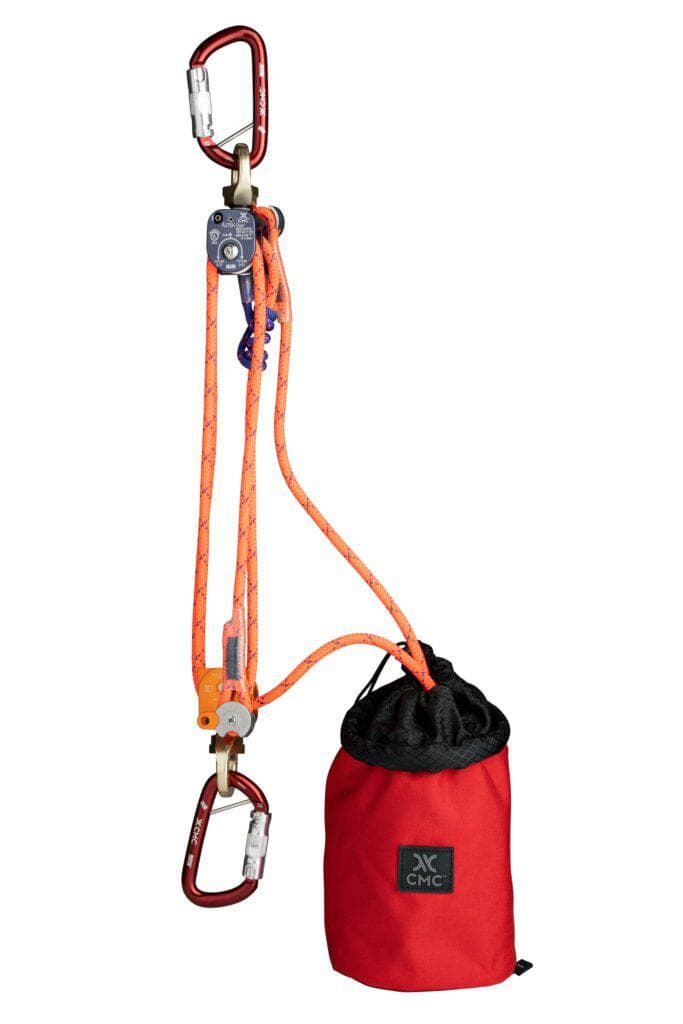

The AZTEK ProSeries® LT System is a compact, highly versatile mechanical advantage system designed for rope rescue, rope access, and technical rigging applications. Originally developed by Reed Thorne of Ropes That Rescue, the AZTEK has become a globally trusted rescue tool, offering more than 100 rigging solutions in a lightweight, portable package. Built around the principle of keeping equipment simple, efficient, compact, and adaptable, the AZTEK ProSeries LT System delivers exceptional performance in demanding rescue environments.
The Load Tender (LT) version features 28 feet of 8 mm AZTEK ProSeries® Cord and can extend the set-of-fours up to 6 feet while providing a 4:1 or 5:1 mechanical advantage. Packaged in an attachable storage pouch, the system is ready for rapid deployment and can be used for litter handling, pick-off rescues, load transfers, tensioned systems, redirects, and countless other rigging applications.
Features
• Compact AZTEK Load Tender (LT) system for rescue and rope access operations
• Provides 4:1 or 5:1 mechanical advantage configurations
• 28 ft (8.5 m) of 8 mm AZTEK ProSeries® Cord with sewn-eye termination
• Extends the set-of-fours up to 6 ft for increased versatility
• Includes ProTech™ Aluminum Auto-Lock Carabiners with removable keeper pins
• Delivered assembled in an attachable carry pouch for rapid deployment
• Suitable for more than 100 rescue and rigging applications
• Classified to NFPA General Use standards
• High-strength construction with 36 kN (8,093 lbf) MBS
Common Applications
• Litter attendant positioning
• High-angle attendant tether systems
• High-angle litter scoops
• Solo pick-off rescues
• Personal mechanical advantage systems
• Knot passing operations
• Load correction and repositioning
• Load transfers
• Dynamic fixed brake systems
• Pre-tensioned back-ties
• Redirect anchors
• Load-releasing hitches
• Tensioned guying systems
System Includes
• CMC AZTEK Double Pulley Set
• Quick Pin for AZTEK Omni Pulley (1)
• AZTEK ProSeries® Cord – 8.5 m (28 ft) of 8 mm hi-viz orange cord with sewn-eye termination
• ProTech™ Aluminum Auto-Lock Carabiners (2) with removable keeper pins (not installed)
• AZTEK Bound-Loop Prusik, Blue (6 mm) – 9 in

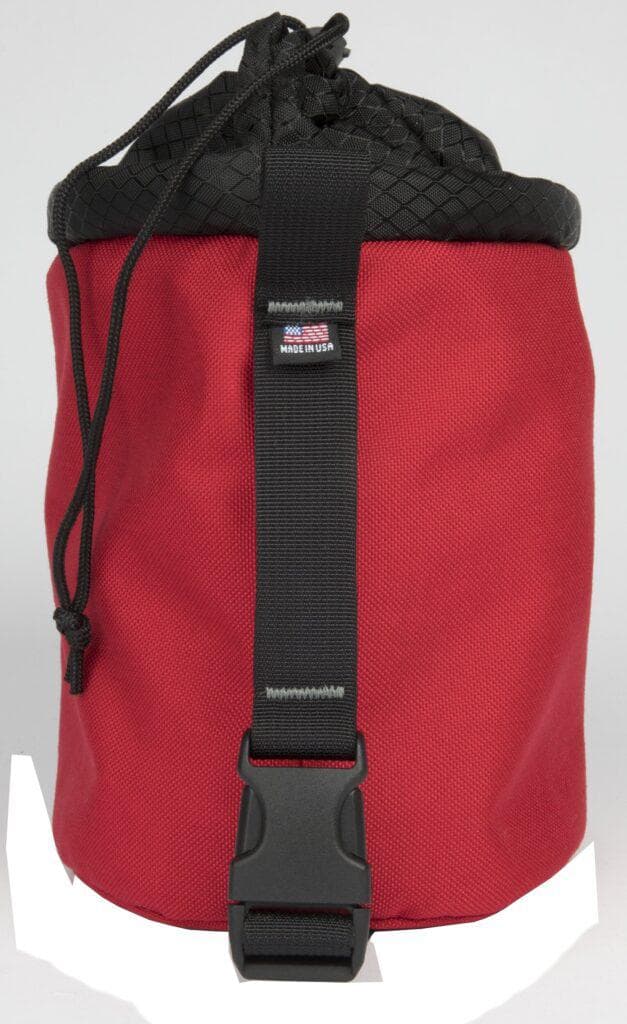

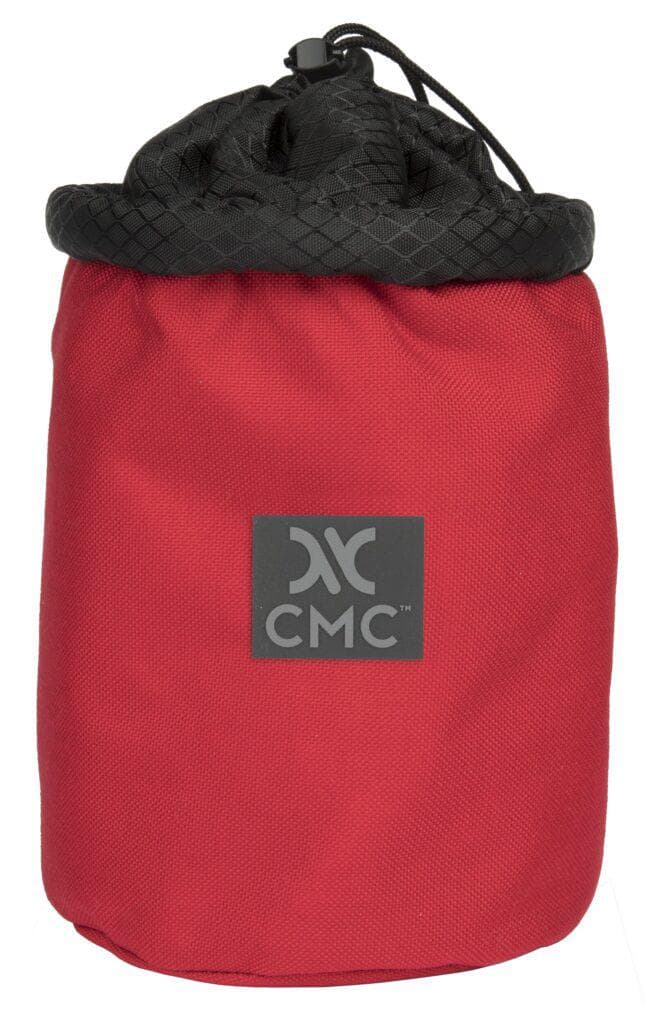

• Red storage pouch with quick-connect attachment
Specifications
• Product Name: AZTEK ProSeries® LT System
• Weight: 1.3 kg (3 lb)
• Color: Orange / Blue
• NFPA Rating: General Use
• 3 Sigma MBS: 36 kN (8,093 lbf)
• Cord Length: 28 ft (8.5 m)
• Cord Diameter: 8 mm
• Mechanical Advantage: 4:1 or 5:1
