The CSR2 Replacement Rope is a pre-packaged replacement kit designed for restoring a CSR2 Pulley System™ with a new factory-configured Static-Pro rope assembly. Each kit includes 200 feet of Static-Pro rope with a sewn termination for secure attachment to the CSR2 pulley becket, along with the hardware and accessories needed for installation.
Designed to match the standard rope length used in the CSR2 system, the replacement kit includes a hex key, nylon cap screw, and shrink tube for sealing the rope end after installation. Once properly installed, the system will continue to exceed NFPA General Use strength requirements; however, the re-roped system is no longer considered a factory-manufactured CMC system and is no longer UL certified to NFPA standards as a complete assembly.
Features
• Replacement rope kit for CSR2 Pulley System™
• Includes 200 ft (61 m) of Static-Pro rope with sewn termination

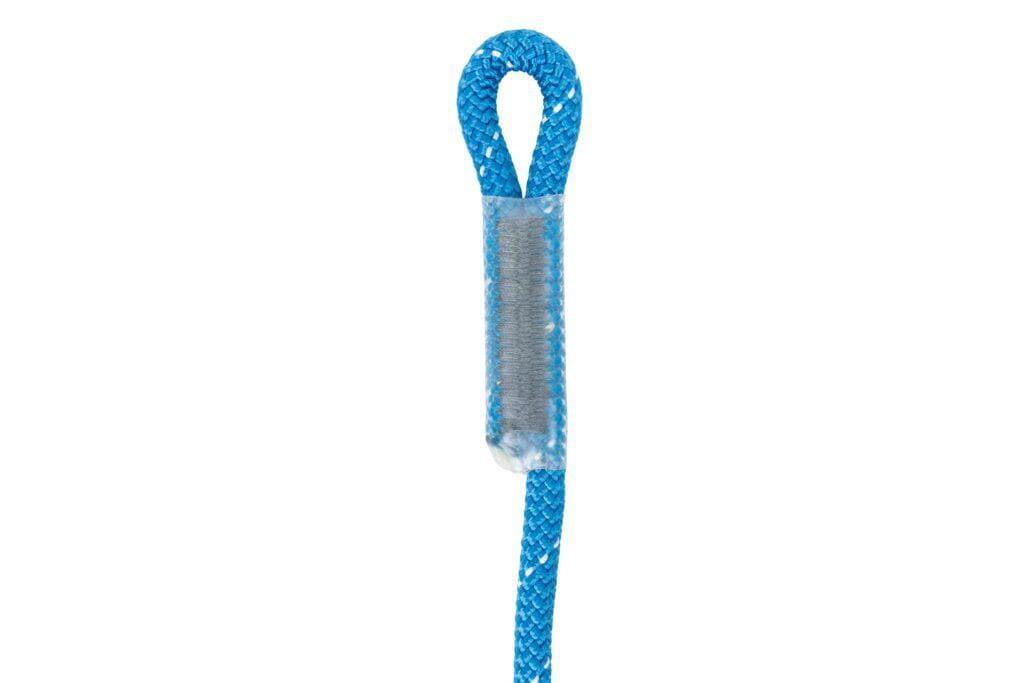

• Sewn eye provides secure attachment to the CSR2 pulley becket
• Includes nylon cap screw and hex key for becket removal and reinstallation
• Shrink tube included for sealing the rope end after installation
• Designed to match the standard CSR2 system rope length
• Maintains NFPA General Use strength requirements when properly installed
• Compatible with CSR2 Pulley Systems requiring rope replacement

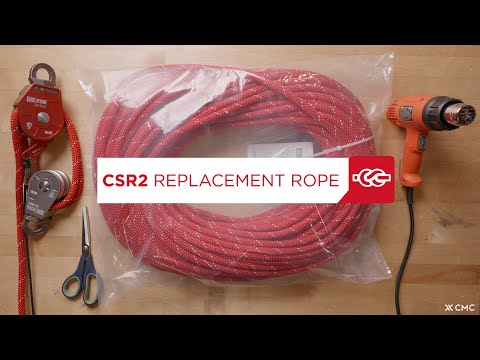

Kit Contents

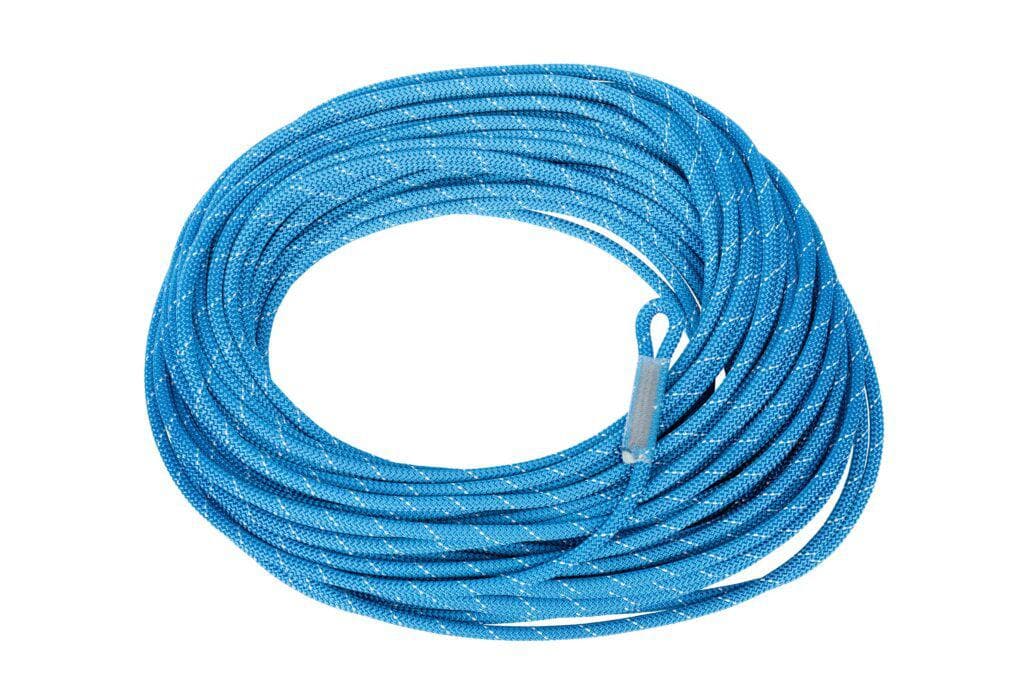

• 200 ft (61 m) Static-Pro rope with sewn termination
• 3/32 in Hex Key
• Nylon Cap Screw
• Rope End Shrink Tube

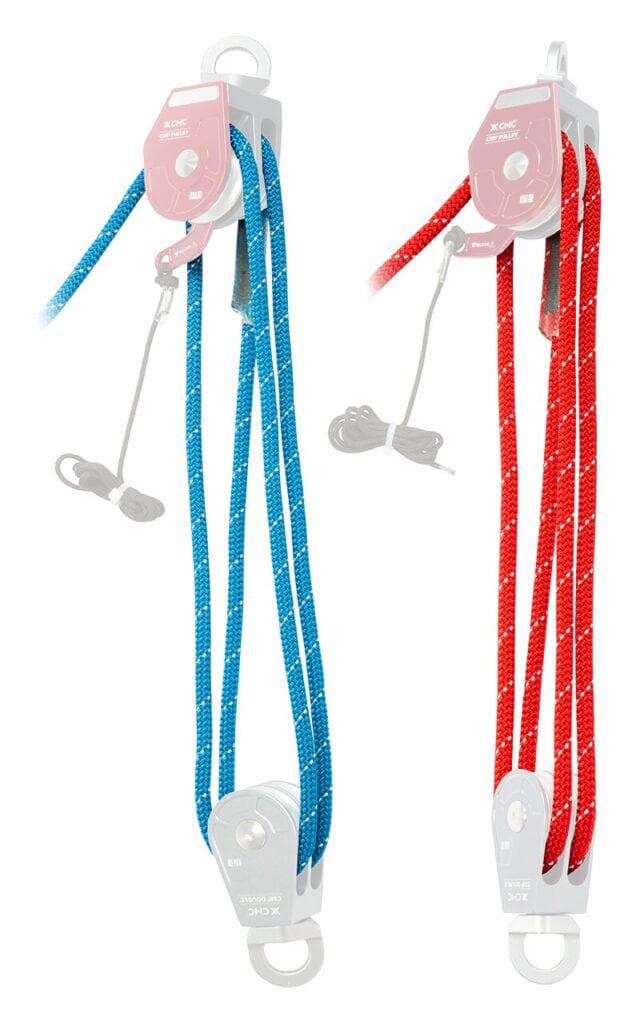

Specifications

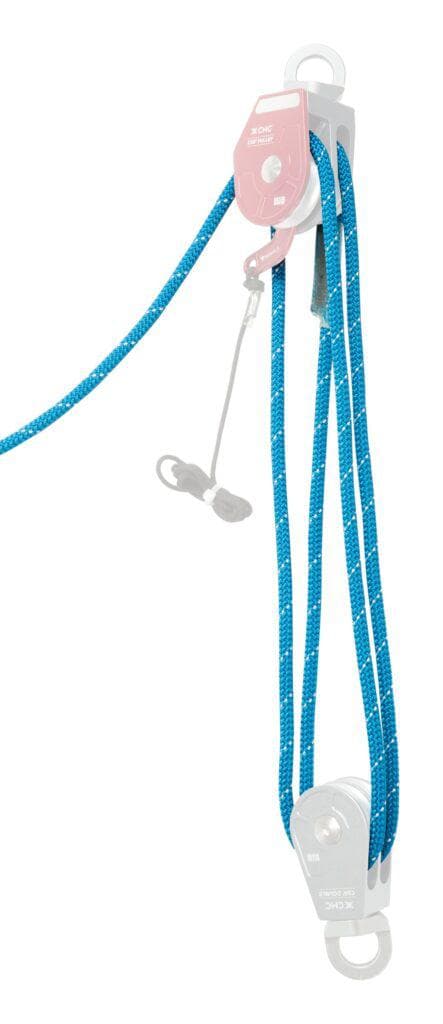

11 mm (7/16 in) Static-Pro Rope
• Item Number: 281503
• Rope Diameter: 11 mm (7/16 in)
• Rope Type: Static-Pro
• Length: 200 ft (61 m)
• Color: Blue
• Product Name: Rope, CSR2, 11 mm, Blue w/ Term, 200 ft

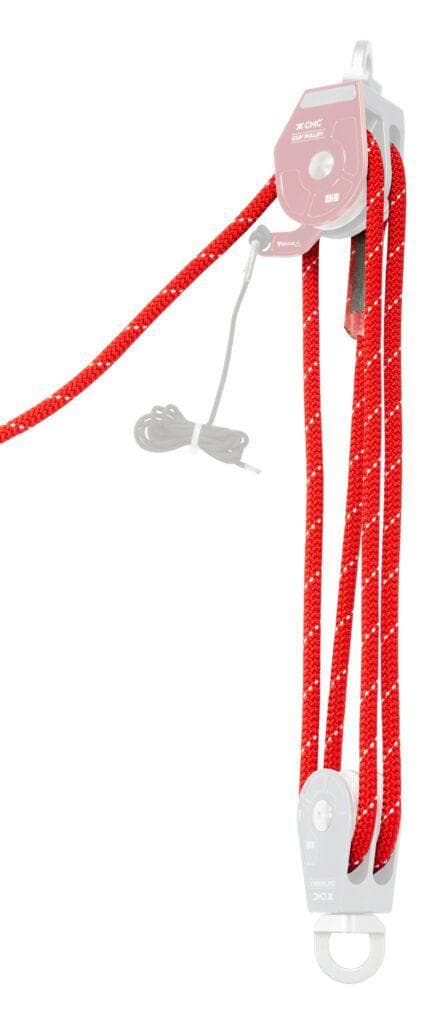

12.5 mm (1/2 in) Static-Pro Rope
• Item Number: 281502
• Rope Diameter: 12.5 mm (1/2 in)
• Rope Type: Static-Pro
• Length: 200 ft (61 m)
• Color: Red
• Product Name: Rope, CSR2, 12.5 mm, Red w/ Term, 200 ft
Important Note
• Installation of a replacement rope changes the CSR2 Pulley System from its original factory-manufactured configuration. While individual components maintain their certifications and the completed system continues to exceed NFPA General Use strength requirements, the assembled system is no longer considered UL certified to NFPA standards.
