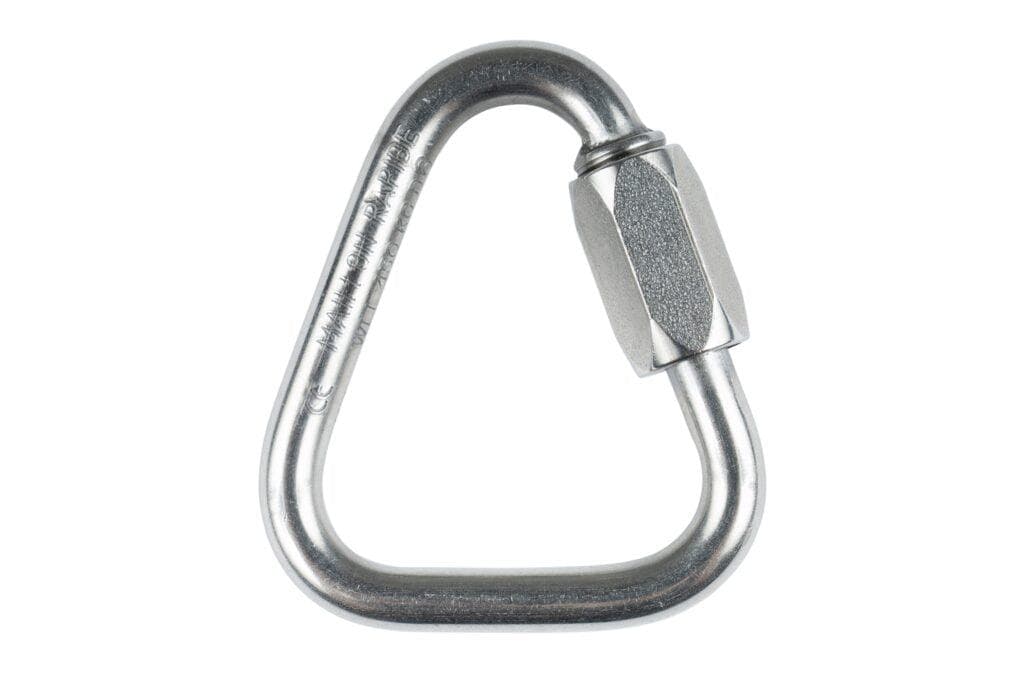

The Delta Quick Link is a durable screw-link connector designed for rope rescue, rope access, industrial safety, and rigging applications where a secure, semi-permanent connection is preferred. The distinctive delta shape is especially useful for anchor systems and harness integrations, helping distribute loads efficiently while reducing connector crowding.
Also known as a screw link, the Delta Quick Link is commonly used in situations where carabiners may not be ideal, particularly when tri-axial loading cannot be avoided. Once tightened, the threaded closure provides a secure connection that resists accidental opening. Available in multiple sizes and materials, these quick links offer dependable performance for rescue, industrial, and work-at-height environments.
Features
• Delta-shaped design ideal for anchor systems and harness connections
• Suitable for applications where tri-axial loading may occur
• Secure threaded closure creates a semi-permanent connection
• Commonly used as a chest harness connector
• Helps organize rigging and anchor systems efficiently
• Durable steel construction for long service life
• Suitable for rope rescue, rope access, and industrial safety applications
• More secure when fully tightened than many temporary connectors
• Available in multiple sizes to suit a variety of rigging requirements
Specifications
6 mm Delta Quick Link
• Item Number: 205002
• Weight: 1.4 oz (40 g)
• Diameter: 6 mm
• Interior Length: 1-3/4 in (44 mm)
• Material: Stainless Steel
• Working Load Limit: 4.4 kN (992 lbf)
• Minimum Breaking Strength: 22 kN (4,950 lbf)
10 mm Delta Quick Link
• Item Number: 382101
• Weight: 5.3 oz (150 g)
• Diameter: 10 mm
• Interior Length: 2-5/8 in (67 mm)
• Material: Galvanized Steel
• Working Load Limit: 8.8 kN (1,984 lbf)
• Minimum Breaking Strength: 44.1 kN (9,920 lbf)
12 mm Delta Quick Link
• Item Number: 382121
• Weight: 9.1 oz (258 g)
• Diameter: 12 mm
• Interior Length: 3-3/16 in (81 mm)
• Material: Galvanized Steel
• Working Load Limit: 10.8 kN (2,425 lbf)
• Minimum Breaking Strength: 53.9 kN (12,125 lbf)
Applications
• Technical Rope Rescue
• Industrial Rope Access
• Work-at-Height Operations
• Anchor Systems
• Chest Harness Connections
• Rigging and Safety Connections
