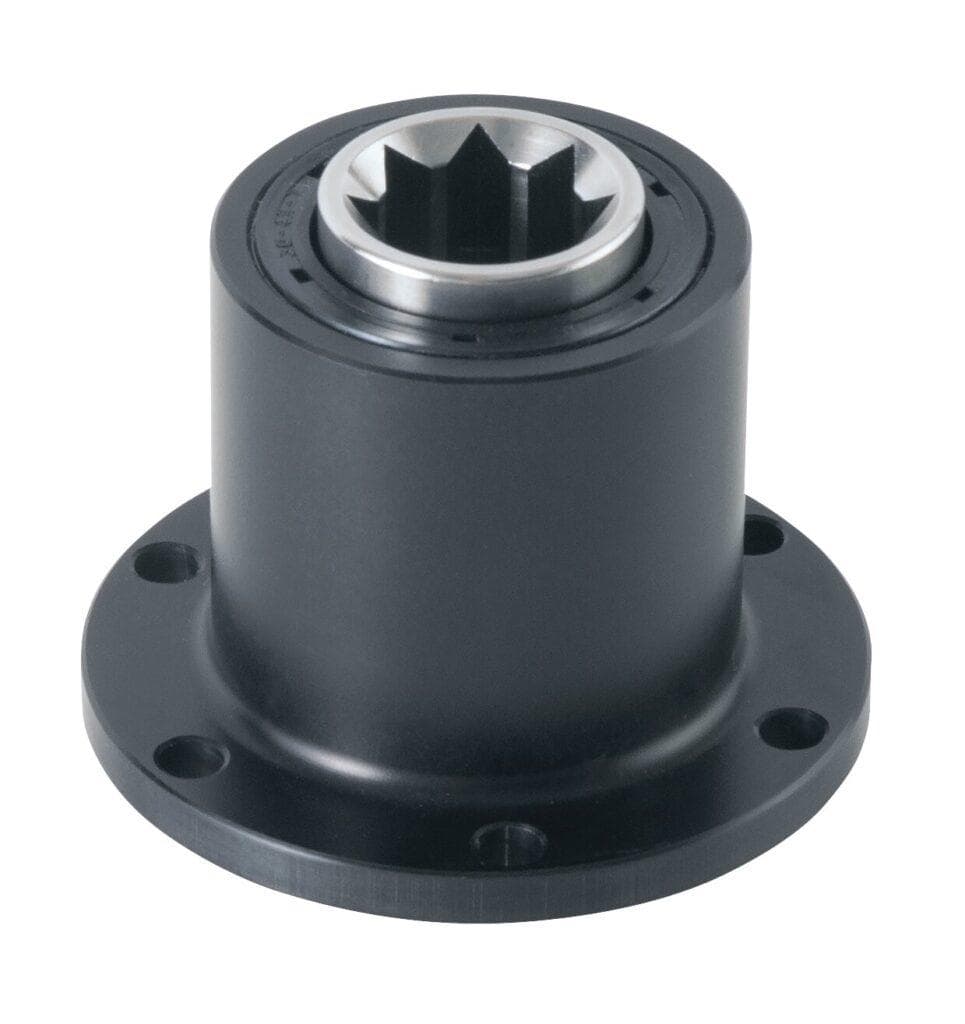

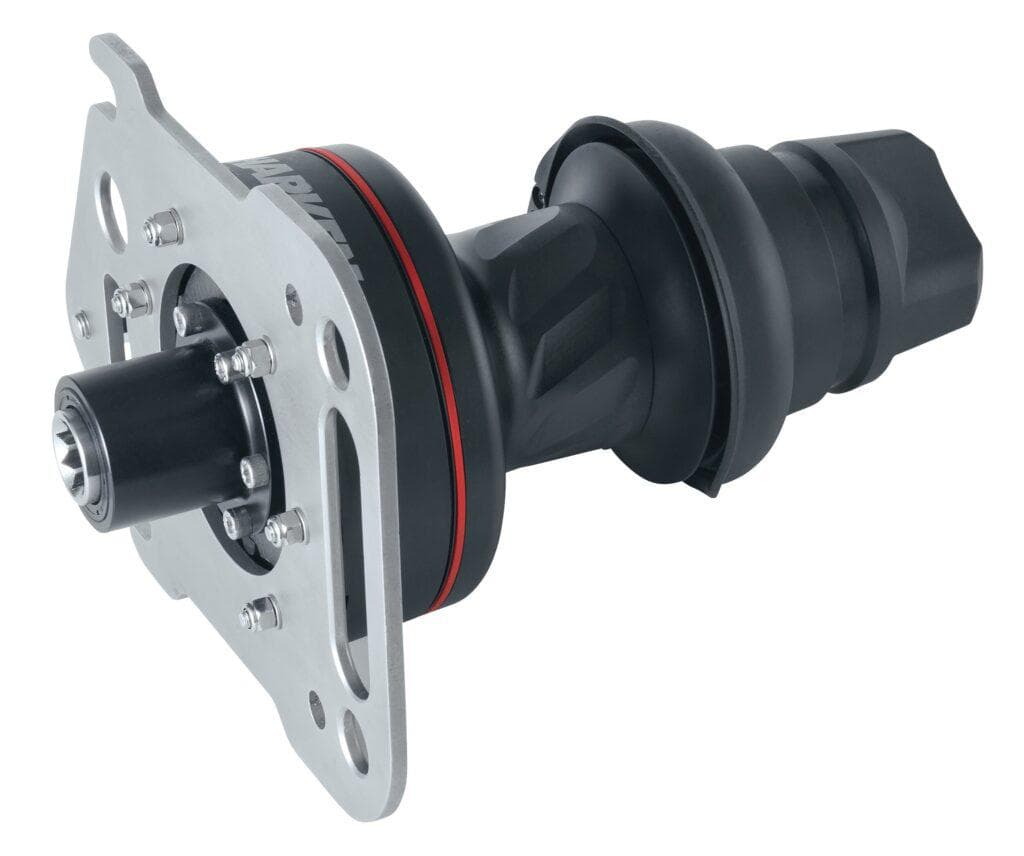

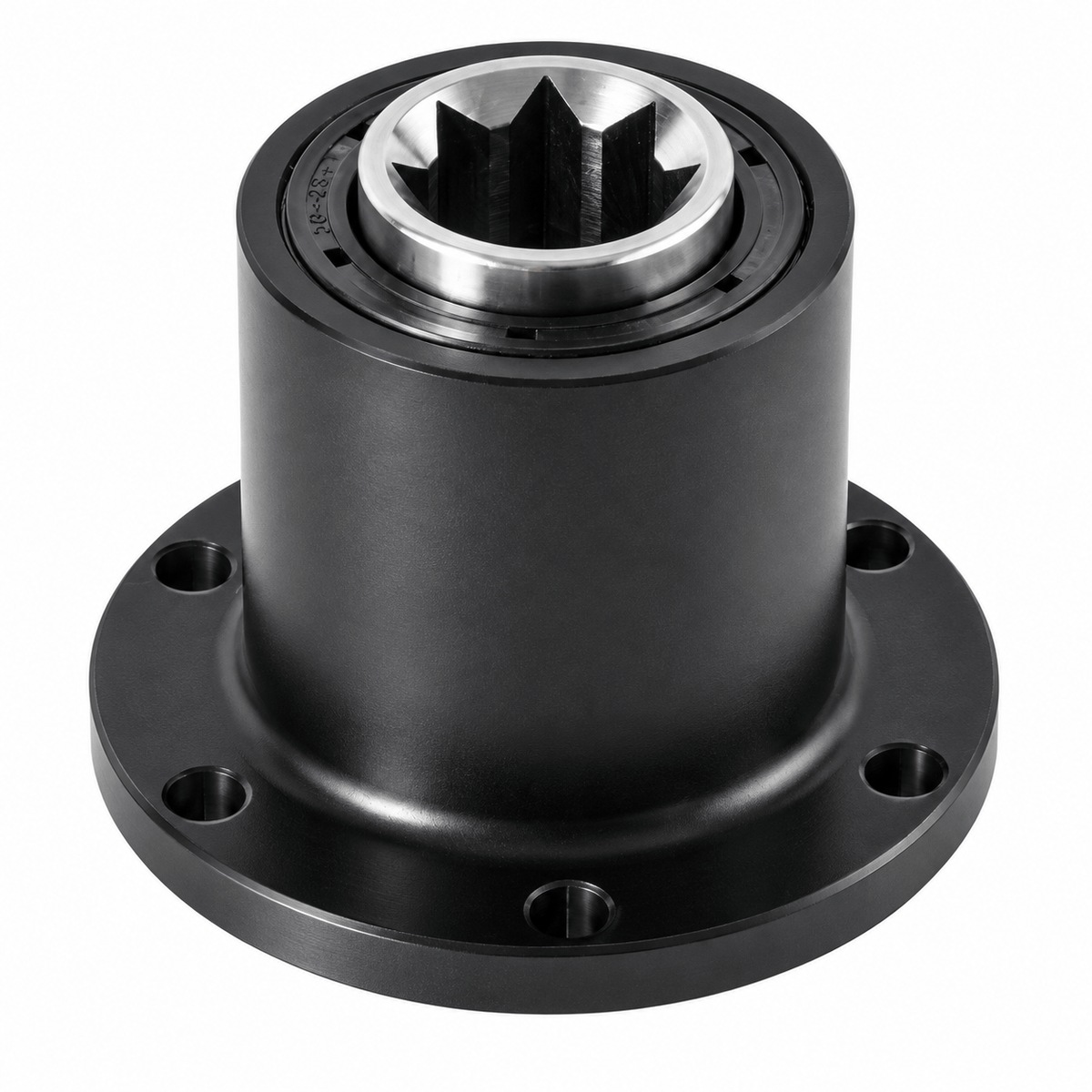

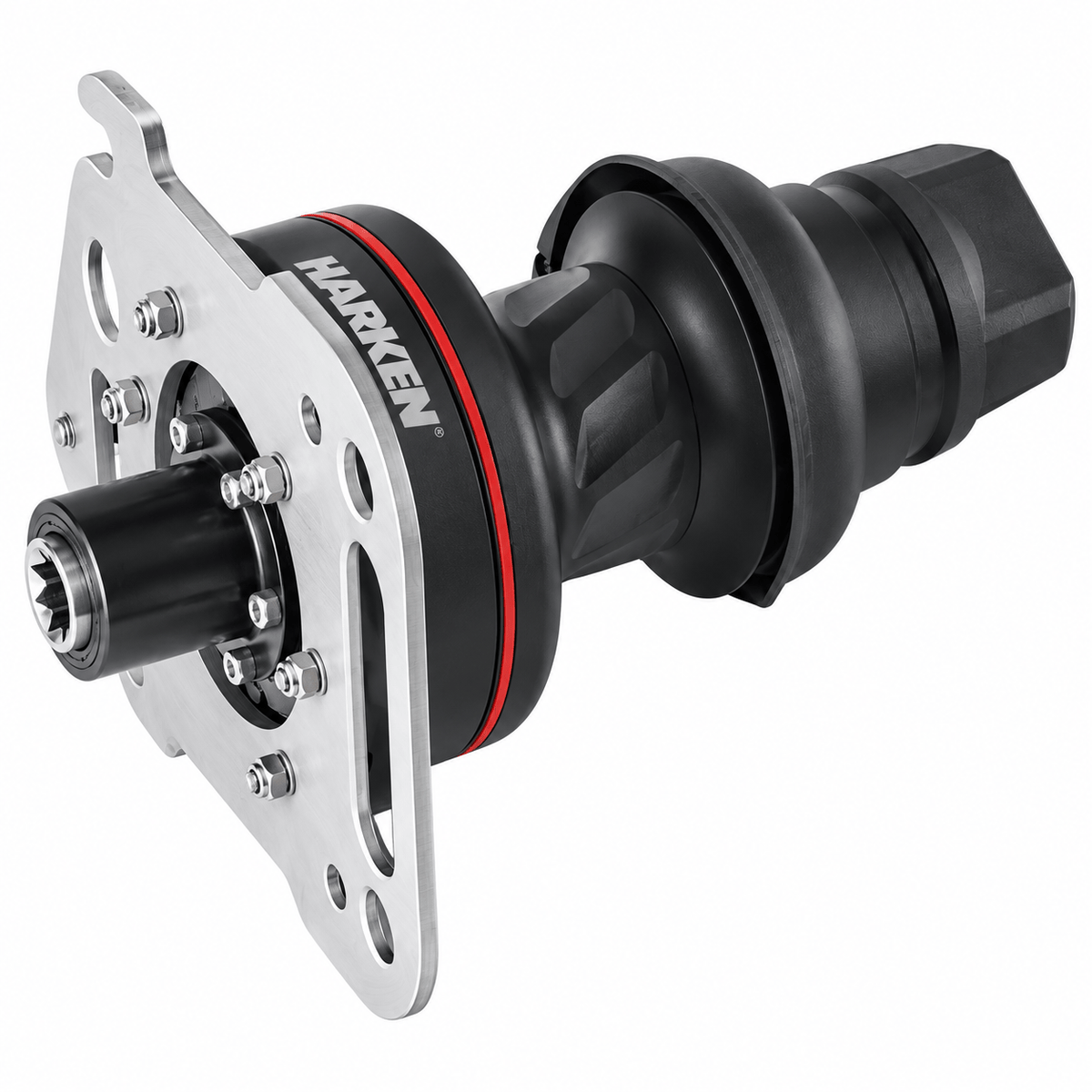

The Harken Winch Protect-Connect is a specialized stabilization accessory designed for use with the Harken LokHead Winch during long raises, heavy-load operations, and drill-powered applications. By providing additional support and stability to the winch system, the Protect-Connect helps improve performance, reduce equipment wear, and increase operational efficiency when using powered drills.
Recommended by Harken for drill-driven winch operations, the Protect-Connect increases the maximum allowable drill speed from 60 RPM to 400 RPM when properly installed. This allows operators to complete lifting and lowering tasks more efficiently while maintaining safe winch operation. Designed for compatibility with NFPA and EN-certified LokHead Winch models manufactured in 2020 or later, the Protect-Connect works in conjunction with the Power Tool Adapter and standard drill chucks to create a versatile powered winch system. Mounting hardware is included for quick installation.
Features
• Stabilizes the Harken LokHead Winch during long raises and heavy-load operations
• Recommended for drill-powered winch applications
• Increases maximum allowable drill speed from 60 RPM to 400 RPM
• Helps reduce stress and wear on both the drill and winch gearing system
• Designed for use with the LokHead Winch operating in 40:1 mechanical advantage mode
• Works with the Harken Power Tool Adapter and standard drill chucks
• Enhances winch stability and overall operational efficiency
• Compatible with NFPA and EN-certified LokHead Winch models manufactured in 2020 or later
• Includes mounting screws for installation
• May be used with approved drill-powered human suspension systems when paired with compatible equipment
Specifications
• Manufacturer: CMC
• Product Type: Winch Stabilization Accessory
• Model: Harken Winch Protect-Connect
• Weight: 0.95 lb (0.43 kg)
• Height: 2.4 in (60 mm)
• Width: 3.0 in (75 mm)
• Compatible Winches: Harken LokHead Winch Models (2020 or Later)
• Compatible Standards: NFPA and EN-Certified LokHead Winches
• Maximum Drill Speed with Protect-Connect Installed: 400 RPM
• Maximum Drill Speed without Protect-Connect: 60 RPM
• Included Hardware: Mounting Screws
• Compliance Note: Not EN 13157 Compliant
• Recommended Use: Long Raises, Heavy Loads, and Drill-Powered Winch Operations
