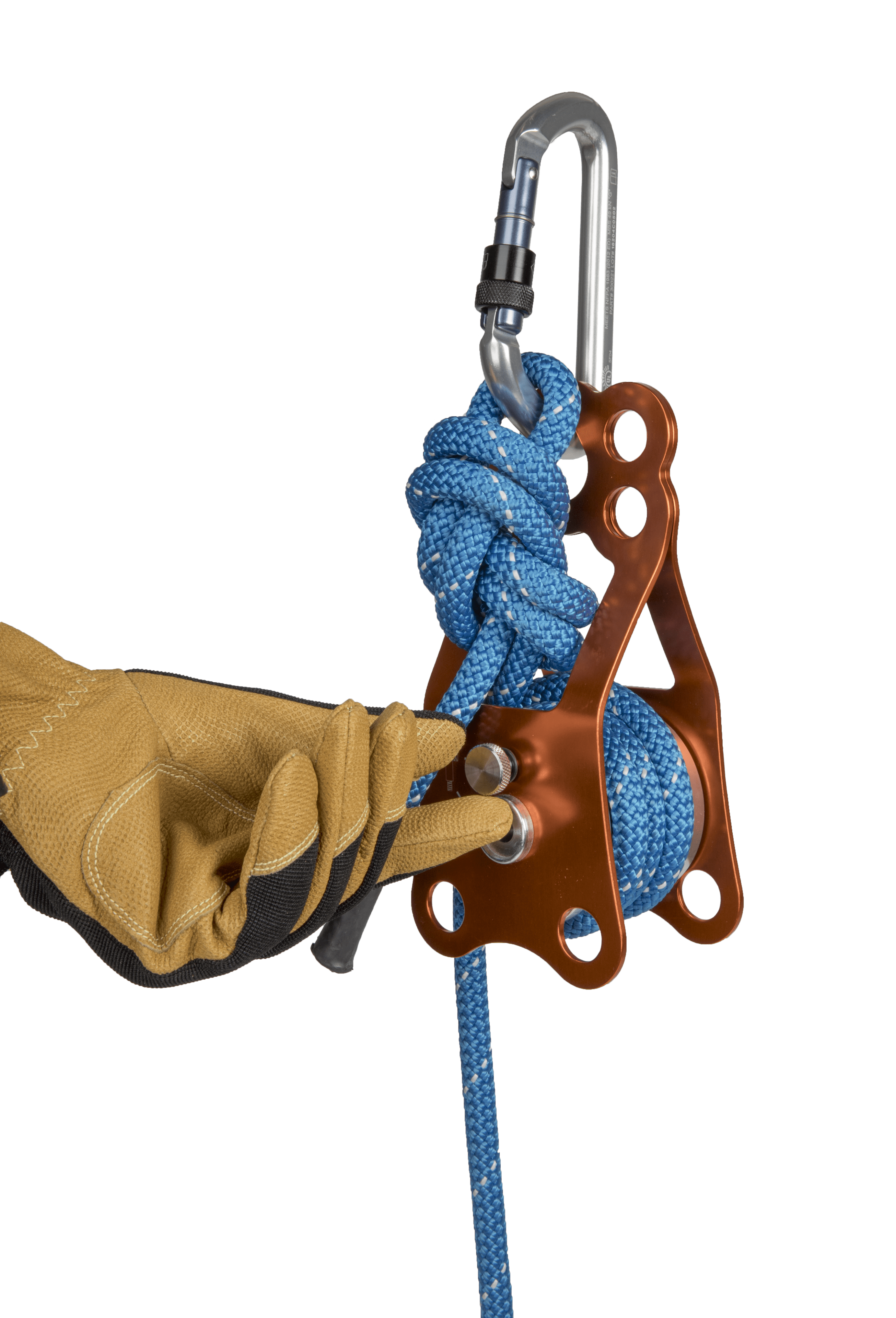

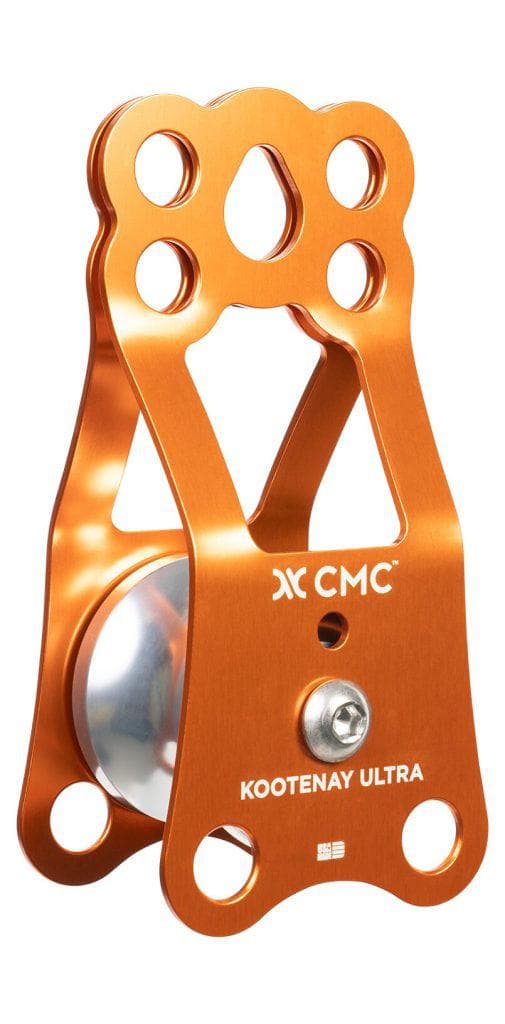

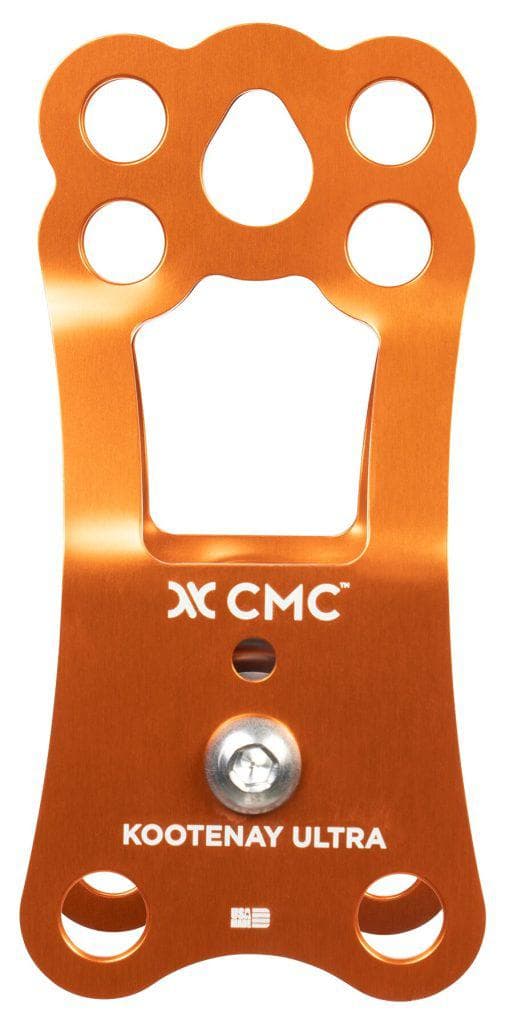

The Kootenay Ultra Pulley is a highly versatile, high-strength pulley designed for technical rescue, highline operations, knot-passing systems, and complex rigging applications. Engineered to provide exceptional functionality in demanding environments, it features multiple rigging holes that allow for optimal separation of tag lines and hoist ropes, simplifying reeving configurations and improving overall system efficiency.
For English and Norwegian reeves, the increased spacing between hoist pulleys helps reduce unintended load rotation, while separate rigging holes make system setup easier and prevent carabiners from binding against one another. The integrated sheave-lock pin can be quickly inserted from its stowed axle position to create a secure, high-strength tie-off point when required. A durable anodized aluminum sheave mounted on sealed ball bearings delivers smooth operation, long service life, and maximum efficiency under load.
Built for rescue professionals who demand reliability and versatility, the Kootenay Ultra Pulley is NFPA General Use rated and designed to excel in high-angle rescue, highline systems, and advanced rigging operations.
Features
• Designed for knot-passing, highline, and advanced rigging applications
• Multiple rigging holes provide optimal separation of tag lines and hoist ropes
• Supports a variety of reeving configurations for complex rescue systems
• Increased pulley spacing helps reduce inadvertent load spinning in English and Norwegian reeves
• Separate rigging holes prevent carabiner interference and binding

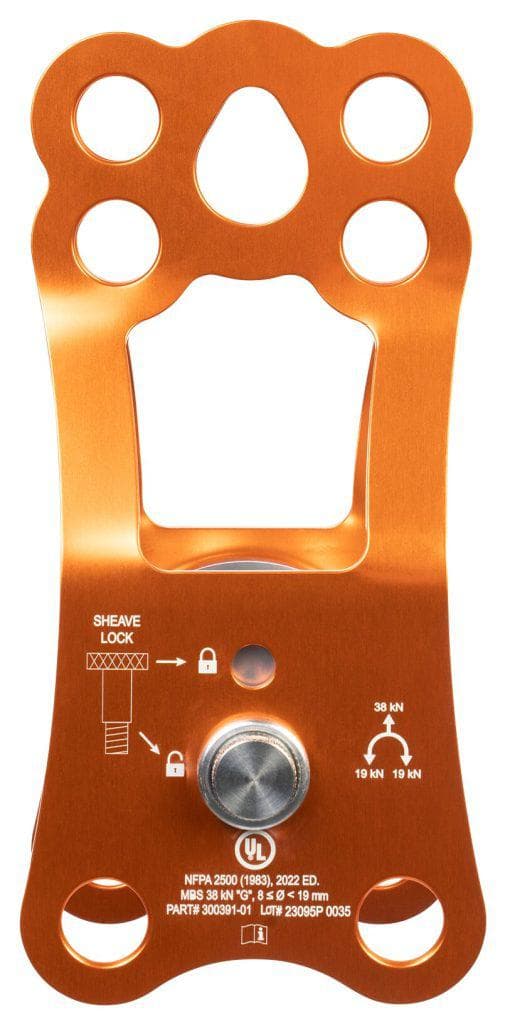

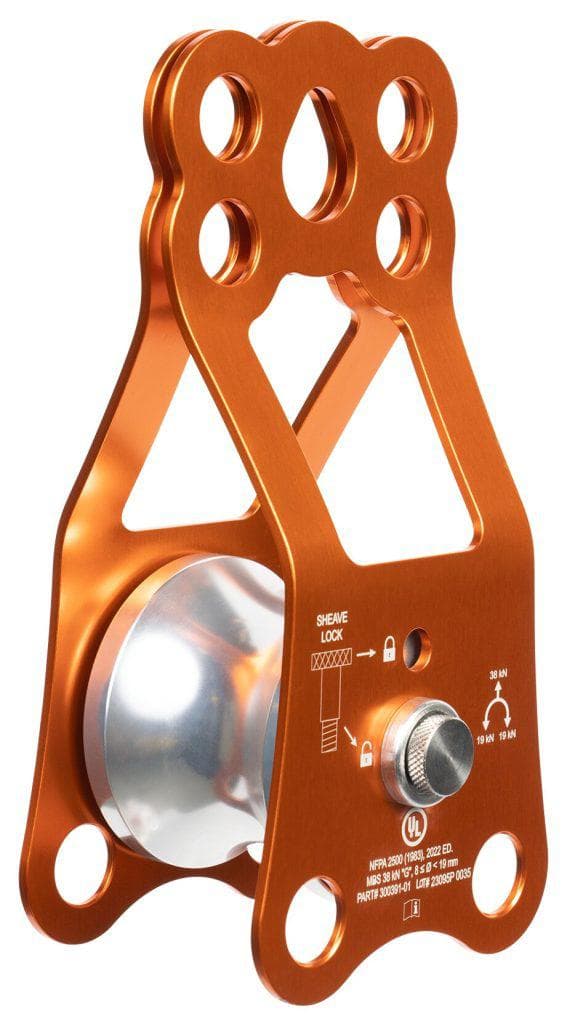

• Integrated sheave-lock pin converts the pulley into a high-strength tie-off point
• Sheave-lock pin stores conveniently in the axle when not in use

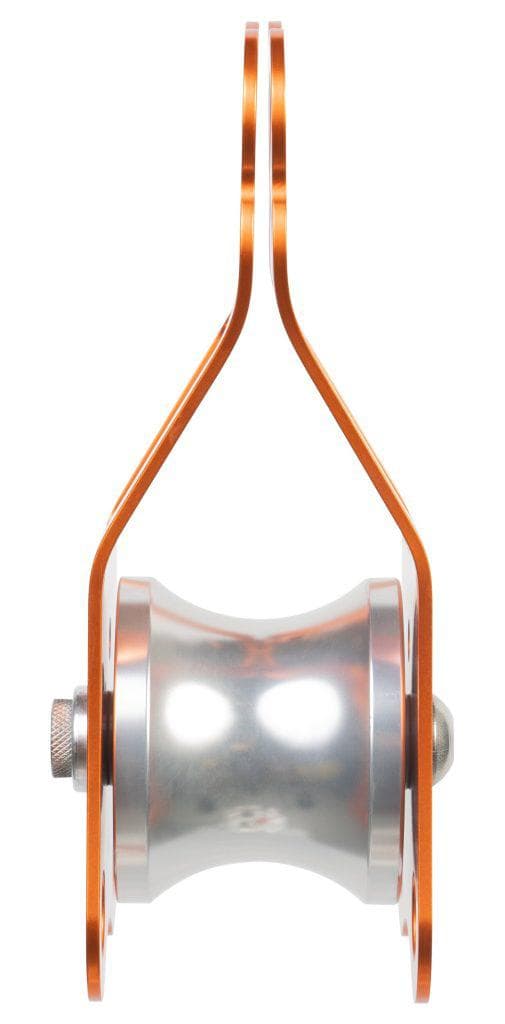

• Durable anodized aluminum sheave for long service life
• Sealed ball bearings provide smooth, efficient operation under load
• High-strength construction for demanding rescue and rigging environments
• NFPA General Use rated
Specifications
• Manufacturer: CMC
• Product Type: High-Strength Rescue Pulley
• Weight: 709 g (1.6 lb)
• Sheave Tread Size: 57 x 64 mm (2.25 x 2.5 in)
• Color: Orange
• NFPA Rating: General Use
• 3 Sigma MBS: 38 kN (8,543 lbf)
• Sheave Material: Anodized Aluminum
• Bearing Type: Sealed Ball Bearings
Applications
• Highline systems
• Knot-passing operations
• English reeves
• Norwegian reeves
• Technical rescue rigging
• Mechanical advantage systems
• High-strength tie-off applications
• Advanced rope rescue operations
