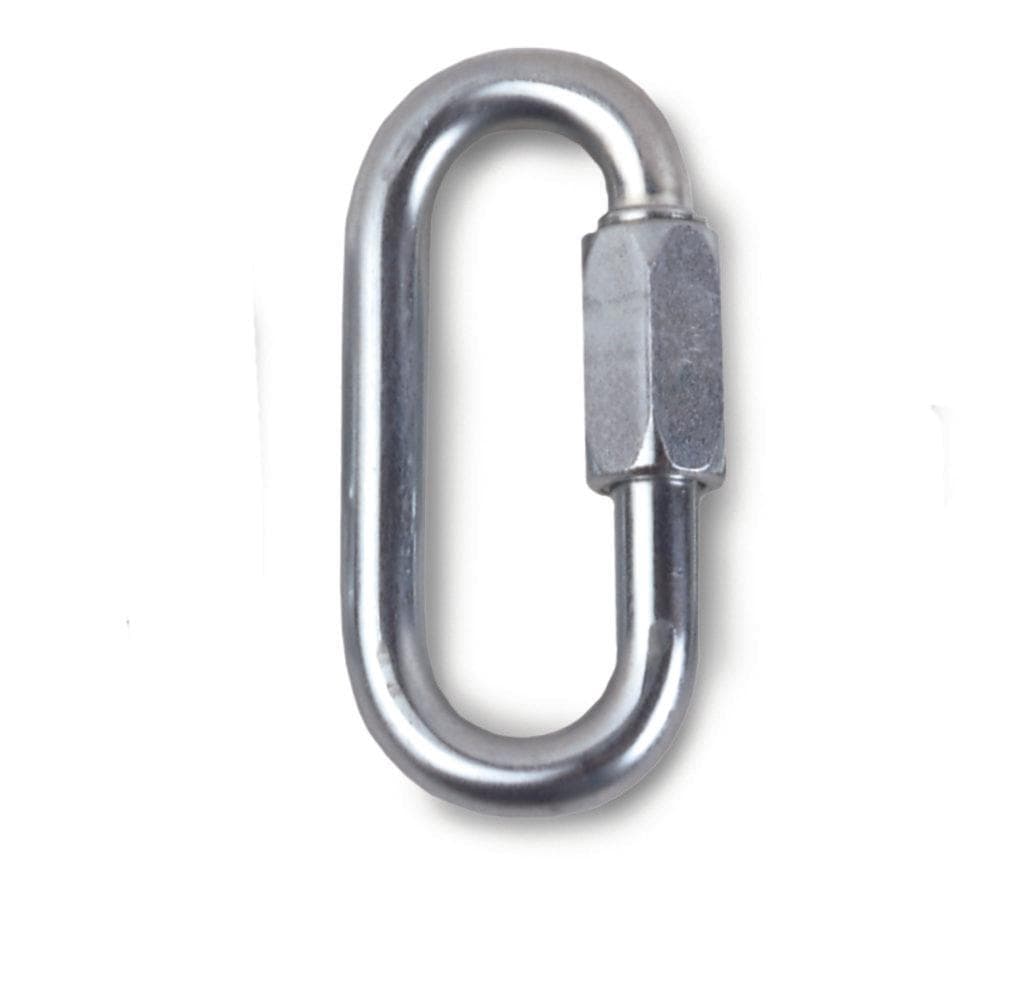

The Long Oval Quick Link is a durable galvanized steel connector designed for rope rescue, rope access, industrial safety, and rigging applications where a secure, semi-permanent connection is preferred. Also known as a screw link, this connector provides a reliable alternative to carabiners in situations where tri-axial loading may occur or where additional connection security is required.
Available in both 7 mm and 10 mm sizes, the Long Oval Quick Link features an elongated oval shape that accommodates a variety of rigging configurations while maintaining excellent strength and durability. Once tightened, the threaded closure provides a secure connection that resists accidental opening, making it ideal for anchors, harness integrations, and other life-safety applications. Constructed from galvanized steel for corrosion resistance, these quick links deliver dependable performance in demanding environments.
Features
• Long oval design provides versatile connection options for rigging systems
• Ideal for applications where tri-axial loading cannot be avoided
• Secure threaded closure creates a semi-permanent connection
• Suitable for rope rescue, rope access, and industrial work-at-height operations
• Can be used for anchor systems, harness connections, and rigging assemblies
• Galvanized steel construction offers durability and corrosion resistance
• More secure when fully tightened than many temporary connectors
• Cost-effective alternative to traditional carabiners
• Available in 7 mm and 10 mm sizes
Specifications
7 mm Long Oval Quick Link
• Item Number: 383073
• Weight: 1.8 oz (51 g)
• Diameter: 7 mm
• Interior Length: 2-1/16 in (52 mm)
• Material: Galvanized Steel
• Working Load Limit: 5.4 kN (1,213 lbf)
• Minimum Breaking Strength: 27 kN (6,065 lbf)
10 mm Long Oval Quick Link
• Item Number: 384101
• Weight: 5.6 oz (159 g)
• Diameter: 10 mm
• Interior Length: 3-3/8 in (86 mm)
• Material: Galvanized Steel
• Working Load Limit: 9.8 kN (2,205 lbf)
• Minimum Breaking Strength: 49 kN (11,025 lbf)
Applications
• Technical Rope Rescue
• Industrial Rope Access
• Work-at-Height Operations
• Anchor Systems
• Rigging and Safety Connections
